1. Produktüberschreitungview
The BLANCO Yovis-S kitchen faucet, model 518296, is a modern, high-pressure single-lever mixer with an elegant, organic design. It features a high, 360° swivel spout and a high-quality metal pull-out spray, offering enhanced comfort and functionality for your kitchen. This faucet is designed for perfect combination with BLANCO Silgranit PuraDur sinks, featuring a two-tone Jasmin/Chrome finish.

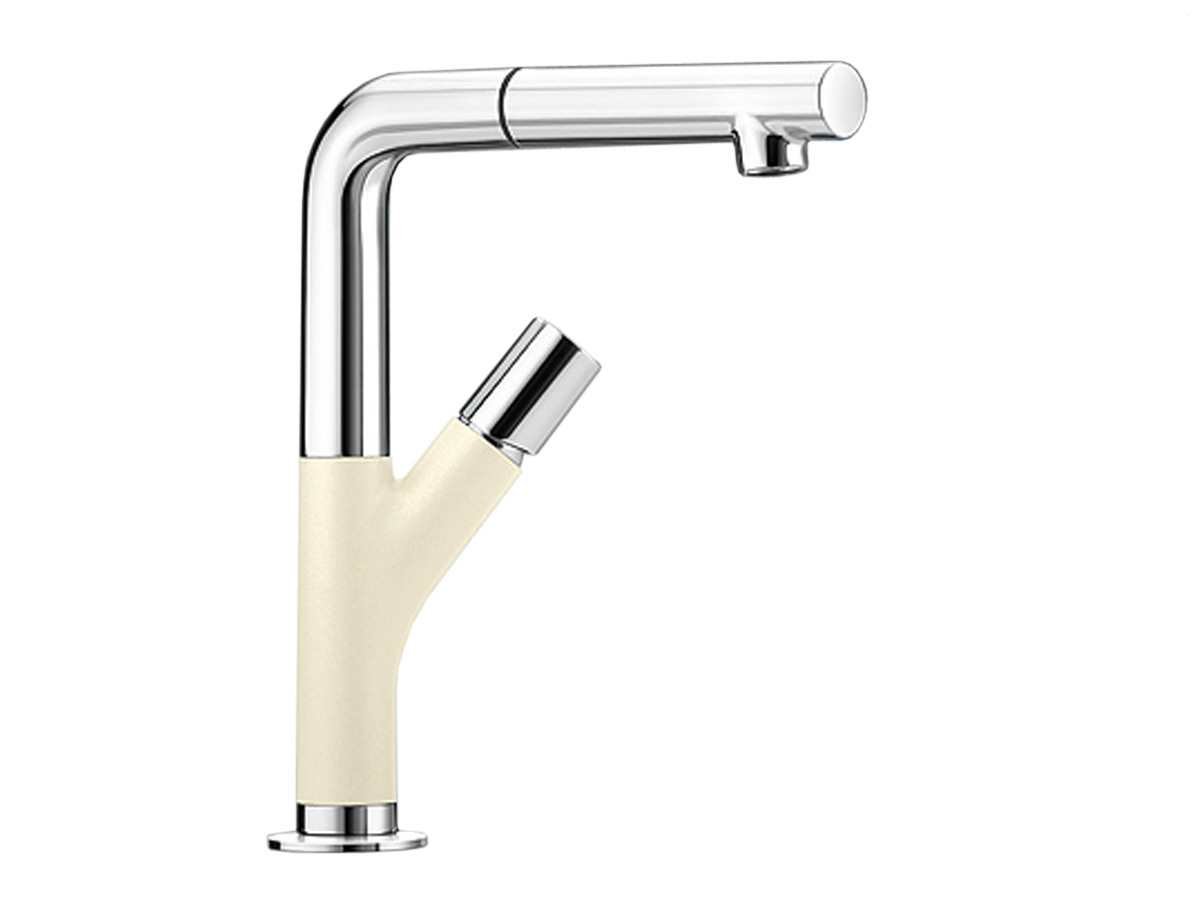

Abbildung 1.1: BLANCO Yovis-S kitchen faucet with Jasmin/Chrome finish. This image illustrates the faucet's organic design and two-tone appearance, complementing a kitchen sink.
Abbildung 1.2: BLANCO Yovis-S kitchen faucet with its pull-out spray extended. This demonstrates the flexibility and extended reach provided by the integrated spray hose.
2. Sicherheitshinweise
Bitte lesen Sie vor der Installation und Inbetriebnahme alle Anweisungen sorgfältig durch. Bewahren Sie diese Anleitung zum späteren Nachschlagen auf.
- Vor Beginn der Installation muss sichergestellt werden, dass alle Wasserleitungen abgestellt sind.
- Wenn Sie sich bei irgendeinem Teil des Installationsprozesses unsicher sind, konsultieren Sie einen qualifizierten Installateur.
- Verwenden Sie keine Scheuermittel oder aggressive Chemikalien auf der Oberfläche des Wasserhahns, da dies zu Beschädigungen führen kann.
- Check for leaks after installation and periodically thereafter.
- Ensure proper water pressure is maintained as per product specifications.
3. Packungsinhalt
Vergewissern Sie sich vor Beginn der Installation, dass alle Komponenten vorhanden sind:
- 1 x BLANCO Yovis-S Kitchen Faucet
- 1 x Pull-out spray hose
- 1 x Stabilizing plate
- 2 x Flexible connection hoses (450 mm length)
- Gaskets with integrated dirt filter
- Montagezubehör
4. Einrichtung (Installation)
The BLANCO Yovis-S faucet is designed for single-hole, deck-mounted installation. Follow these general steps for installation. Refer to the technical drawing for specific dimensions and connections.
- Montageloch vorbereiten: Ensure the sink or countertop has a single mounting hole of the appropriate diameter (refer to specifications).
- Den Wasserhahnkörper einbauen: Insert the faucet body into the mounting hole. Secure it from underneath with the stabilizing plate and mounting hardware provided.
- Wasserleitungen anschließen: Attach the two flexible connection hoses (450 mm) to the faucet's inlets. Connect the other ends to your hot and cold water supply lines, ensuring the integrated dirt filters are correctly positioned.
- Connect Pull-out Spray Hose: Connect the pull-out spray hose to the designated outlet on the faucet body. Ensure a secure connection to prevent leaks.
- Auf Dichtheit prüfen: Slowly turn on the main water supply and check all connections for leaks. Tighten any connections as necessary.
Abbildung 4.1: Technical drawing illustrating the dimensions and connection points for the BLANCO Yovis-S faucet. This diagram provides critical measurements for installation planning.
5. Bedienungsanleitung
The BLANCO Yovis-S faucet is designed for intuitive and comfortable use.
- Wasserdurchfluss und Temperatur: The single-lever handle allows for easy regulation of both water quantity and temperature. Move the lever up to increase flow and down to decrease. Move it left for hot water and right for cold water.
- Schwenkbarer Auslauf: The high spout can swivel 360°, providing ample clearance for filling tall containers and making it convenient for use with double sinks.
- Ausziehbare Sprühdüse: To use the pull-out spray, simply grasp the spray head and pull it out from the spout. The flexible hose allows for extended reach for rinsing dishes or cleaning the sink area. Push the spray head back into the spout until it clicks securely into place.
6. Wartung
Regular maintenance will help preserve the appearance and functionality of your BLANCO Yovis-S faucet.
- Reinigung des Wasserhahns: Clean the faucet regularly with a soft cloth and mild soap or a non-abrasive liquid cleaner specifically designed for chrome and composite surfaces. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Kalkreduzierung: The patented jet regulator is designed to significantly reduce limescale buildup. Periodically remove and clean the aerator (jet regulator) to maintain optimal water flow.
- Schlauchinspektion: Periodically inspect the flexible connection hoses and the pull-out spray hose for any signs of wear, kinks, or damage.
7. Fehlerbehebung
Sollten Sie Probleme mit Ihrem Wasserhahn haben, beachten Sie bitte die folgenden gängigen Schritte zur Fehlerbehebung:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Niedriger Wasserdurchfluss | Verstopfter Belüfter; teilweise geschlossenes Absperrventil; Ablagerungen in den Wasserleitungen. | Reinigen oder ersetzen Sie den Strahlregler; stellen Sie sicher, dass die Absperrventile vollständig geöffnet sind; spülen Sie die Wasserleitungen durch. |
| Undichtigkeiten an den Verbindungen | Lose Verbindungen; verschlissene Dichtungen. | Verbindungen festziehen; Dichtungen bei Beschädigung ersetzen. |
| Probleme mit der Wassertemperatur | Incorrect water heater settings; issues with supply lines. | Check water heater settings; ensure hot and cold supply lines are correctly connected and fully open. |
| Pull-out spray not retracting | Hose obstruction; weight not properly attached or tangled. | Check for obstructions under the sink; ensure the counterweight is free to move and properly attached to the hose. |
If these steps do not resolve the issue, please contact BLANCO customer support.
8. Spezifikationen
| Besonderheit | Detail |
|---|---|
| Marke | BLANCO |
| Modellnummer | 518296 |
| Produkttyp | Single-lever kitchen mixer faucet with pull-out spray |
| Farbe | Jasmin/Chrome |
| Material | Metall |
| Ausführung | Chrom |
| Installationstyp | Deck Mounted, Single-hole |
| Anzahl der Griffe | 1 (Hebel) |
| Schwenkbarer Auslauf | 360° |
| Im Lieferumfang enthaltene Komponenten | Flexible connection hoses, pull-out spray, stabilizing plate, gaskets with dirt filter |
| Artikelgewicht | 3 Kilogramm |
| Ursprungsland | Deutschland |
9. Garantie und Support
BLANCO products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official BLANCO webWebsite.
For technical support, spare parts, or any inquiries not covered in this manual, please contact BLANCO customer service. Contact information can typically be found on the BLANCO webauf der Website oder auf Ihrem Kaufbeleg.
