1. Produktüberschreitungview
This manual provides essential information for the safe and effective use of your Ushio BC1618 FCL J120V-500W Halogen Projector Light Bulb. Please read these instructions carefully before installation and operation.
Produktbeschreibung
The Ushio BC1618 is a 500-watt, 120-volt halogen incandescent light bulb designed for projector, stage, and studio applications. It features a T2.5 shape with a Recessed Single Contact (R7s) base, providing a clear light output with a color temperature of 3,000K.
Hauptmerkmale
- Wastage: 500 W
- Bandtage: 120 V
- Basistyp: R7s (Recessed Single Contact)
- Farbtemperatur: 3,000
- Lichtstrom: 10,000 Lumen
- Durchschnittliche Lebensdauer: 2,000 Stunden
- Beenden: Klar

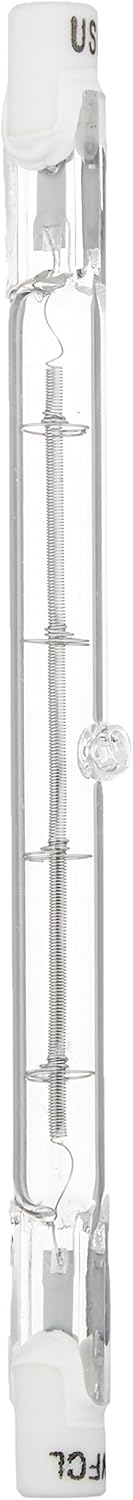

Figure 1: Ushio BC1618 FCL J120V-500W Halogen Projector Light Bulb.
2. Sicherheitshinweise
Beachten Sie stets die folgenden Sicherheitsvorkehrungen, um Verletzungen oder Schäden am Produkt und an der Ausrüstung zu vermeiden.
- Stromabschaltung: Always disconnect power to the fixture before installing, removing, or handling the bulb.
- Hohe Temperatur: Halogen bulbs operate at high temperatures. Allow the bulb to cool completely before touching it.
- Vermeiden Sie direkten Kontakt: Do not touch the glass part of the bulb with bare hands. Oils from your skin can create hot spots, leading to premature failure. Use a clean cloth or gloves if handling is necessary.
- Geeignete Befestigung: Use only in fixtures designed for halogen bulbs of the specified wattage und voltage.
- Belüftung: Sorgen Sie für ausreichende Belüftung rund um das Gerät, um eine Überhitzung zu vermeiden.
- Entsorgung: Entsorgen Sie gebrauchte Glühbirnen gemäß den örtlichen Vorschriften.
- Augenschutz: Wear appropriate eye protection during installation or removal to guard against potential glass breakage.
3. Installationsanweisungen
Follow these steps to safely install the Ushio BC1618 projector light bulb.
- Stellen Sie sicher, dass die Stromversorgung ausgeschaltet ist: Before beginning, confirm that the power supply to the projector or fixture is completely disconnected.
- Abkühlung zulassen: If replacing an old bulb, ensure it has cooled down completely to avoid burns.
- Zugang zum Lampenfach: Open the bulb access panel on your projector or fixture. Refer to your projector's manual for specific instructions on accessing the bulb.
- Alte Glühbirne entfernen: Carefully grasp the old bulb (using a cloth or gloves if it's a halogen type) and gently pull it straight out from its R7s base. Avoid twisting.
- Neue Glühbirne handhaben: Remove the new Ushio BC1618 bulb from its packaging. Do not touch the glass envelope with bare hands. Use the packaging, a clean cloth, or gloves to handle the bulb.
- Neue Glühbirne einsetzen: Align the pins of the new bulb with the slots in the R7s base. Gently push the bulb straight into the socket until it is firmly seated. Do not force it.
- Sicheres Fach: Close and secure the bulb access panel.
- Strom wiederherstellen: Reconnect the power supply to the projector or fixture.
Figure 2: Approximate dimensions of the Ushio BC1618 bulb, showing its length of 4.8 inches (12 cm).
4. Bedienung
Once the Ushio BC1618 bulb is correctly installed, operate your projector or fixture as per its manufacturer's instructions. The bulb will illuminate immediately upon power application.
- Aufwärmzeit: Halogen bulbs provide instant full brightness.
- Abkühlen: After use, allow the projector or fixture to cool down for several minutes before moving or storing it. This helps prolong the life of the bulb and other components.
- Dimmen: If your fixture supports dimming, ensure it is compatible with halogen incandescent bulbs.
5. Wartung
Proper maintenance can extend the life of your Ushio BC1618 bulb and ensure optimal performance.
- Reinigung: If the bulb's glass envelope becomes dirty, gently wipe it with a clean, lint-free cloth moistened with isopropyl alcohol. Ensure the bulb is completely cool and power is disconnected before cleaning.
- Inspektion: Periodically inspect the bulb and its socket for any signs of damage, corrosion, or loose connections.
- Lagerung: Bewahren Sie Ersatzbirnen in ihrer Originalverpackung an einem kühlen, trockenen Ort auf, um sie vor Beschädigungen zu schützen.
6. Fehlerbehebung
If you encounter issues with your Ushio BC1618 bulb, refer to the following common problems and solutions.
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Glühbirne leuchtet nicht. | No power to fixture; Bulb not seated correctly; Bulb has reached end of life; Faulty fixture. | Check power connection and circuit breaker. Ensure bulb is fully inserted. Replace bulb if it has exceeded its average lifetime. Consult a qualified technician for fixture repair. |
| Birne flackert. | Loose connection; Incompatible dimmer; Voltage Schwankungen. | Ensure bulb is securely seated. Verify dimmer compatibility. Check power supply for stability. |
| Glühbirne brennt schnell durch. | Überlautstärketage; Frequent switching; Excessive vibration; Touching glass with bare hands during installation. | Überprüfen Sie die korrekte Voltage supply. Reduce frequency of on/off cycles. Ensure fixture is stable. Reinstall bulb carefully, avoiding skin contact with glass. |
7. Technische Daten
| Marke | Ushio |
| Modellnummer | BC1618 (1000488) |
| Lichtart | Halogen Incandescent |
| Wastage | 500 Watt |
| Bandtage | 120 Volt |
| Größe der Glühbirnenform | T2.5 (119MM length) |
| Basistyp | R7s (Recessed Single Contact) |
| Farbtemperatur | 3000 Kelvin |
| Helligkeit | 10000 Lumen |
| Durchschnittliche Lebensdauer | 2000 Stunden |
| Beenden | Klar |
| Material | Kupfer |
| Technische Daten | 5.5 x 1 x 1 Zoll (ca. 13.97 x 2.54 x 2.54 cm) |
| Artikelgewicht | 0.48 Unzen (ca. 13.6 Gramm) |
| Spezifische Verwendungen | Projector, Stage, Studio |
| UPC | 048777131718 |
8. Garantie und Support
Garantieinformationen
The manufacturer states that a specific warranty description is Nicht zutreffend. for this product. Please refer to the retailer's return policy for any issues.
Kundenservice
For further assistance or inquiries regarding the Ushio BC1618 projector light bulb, please contact your point of purchase or refer to the manufacturer's official webSite für Supportressourcen.
