HMF 1608-02 Portable Document Safe with Electronic Lock

1. Einleitung

Thank you for choosing the HMF 1608-02 Portable Document Safe. This safe is designed to provide secure storage for your valuable documents, cash, and other small items. It features a robust steel sheet body, an electronic lock with a customizable code, and an emergency key override. For added security, an anti-theft metal cable is included. Please read this manual carefully before initial use to ensure proper setup and operation.

2. Sicherheitshinweise

• Keep Emergency Keys Secure: Store the emergency keys in a safe location, separate from the safe itself, and not inside the safe.
• Batteriehandhabung: Use only the specified battery type. Do not mix old and new batteries or different types of batteries. Remove batteries if the safe will not be used for an extended period.
• Feuchtigkeit vermeiden: Do not expose the safe to water or high humidity.
• Richtige Platzierung: Ensure the safe is placed on a stable, flat surface.
• Kinder: Bewahren Sie den Tresor und seine Schlüssel außerhalb der Reichweite von Kindern auf.

3. Packungsinhalt

Bitte überprüfen Sie, ob alle Artikel im Paket vorhanden sind:

• HMF 1608-02 Portable Document Safe
• Emergency Keys (2 pieces)
• Anti-theft Metal Cable
• Bedienungsanleitung (dieses Dokument)

4. Produktüberschreitungview

Familiarize yourself with the components of your HMF 1608-02 safe.

Abbildung 4.1: Exterieur view of the HMF 1608-02 safe, highlighting the electronic keypad for code entry, the central rotary knob for locking/unlocking, and the emergency keyhole.

Abbildung 4.2: Innere view of the HMF 1608-02 safe when open. The bottom is lined with foam for protection, and the battery compartment for the electronic lock is visible on the inside of the lid.

Abbildung 4.3: The safe's interior, showcasing its capacity to hold various items such as a smartphone, camera lens, and banknotes, with a protective foam base.

Abbildung 4.4: Detail of the anti-theft metal cable, designed to secure the safe to a fixed object, providing an additional layer of protection.

Abbildung 4.5: The integrated carrying handle on the front of the safe, demonstrating its portability and ease of transport.

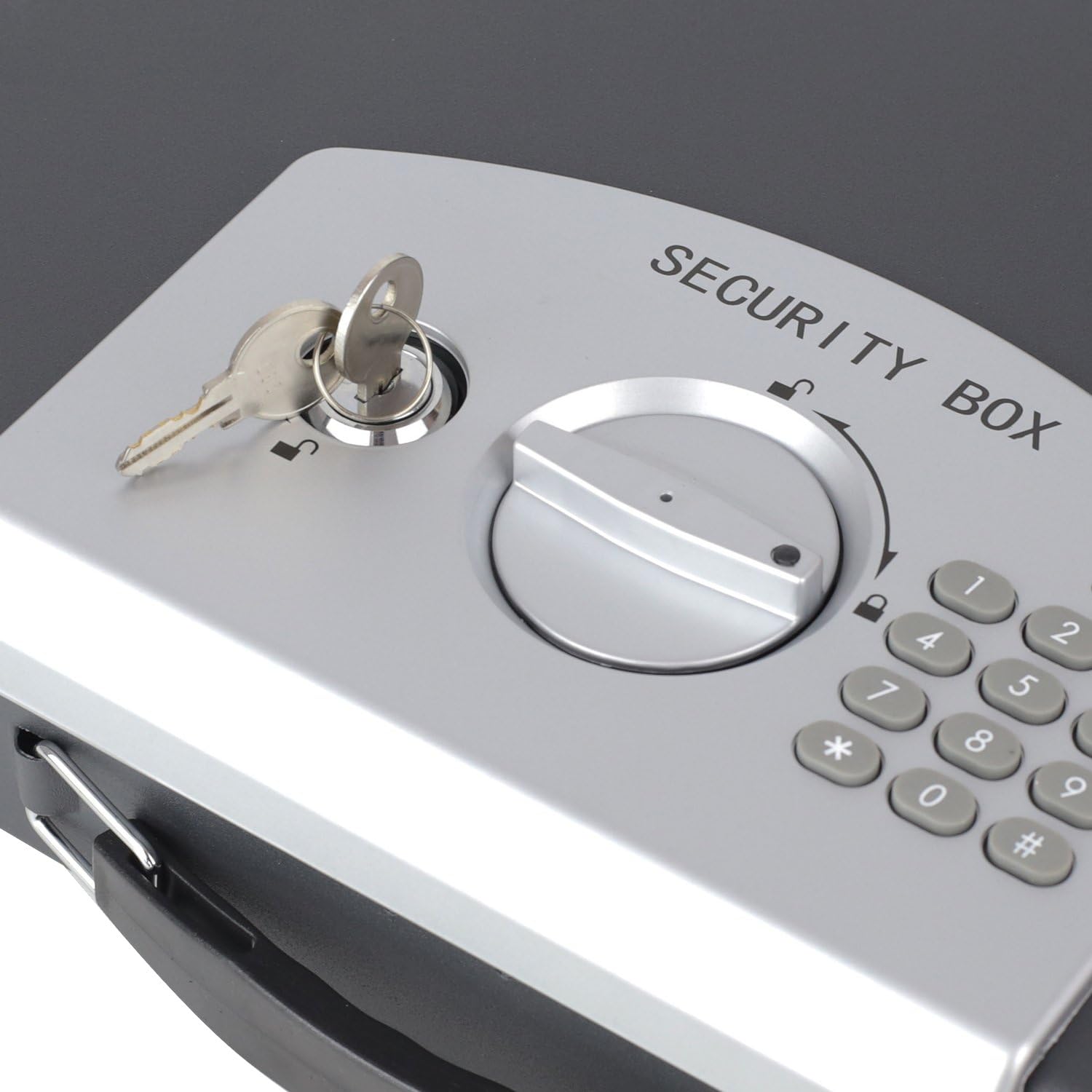

Abbildung 4.6: Eine detaillierte view of the emergency keyhole, located on the control panel, which allows manual access to the safe.

5. Einrichtung

5.1 Einlegen der Batterie

1. Open the safe using the emergency key (refer to section 5.3 if needed).
2. Locate the battery compartment on the inside of the safe's lid (refer to Figure 4.2).
3. Öffnen Sie die Abdeckung des Batteriefachs.
4. Insert the required batteries (typically 4x AA, not included) according to the polarity indicators (+/-).
5. Schließen Sie den Batteriefachdeckel fest.

5.2 Setting the Electronic Code

After installing batteries, you can set your personal electronic code.

1. With the safe door open, locate the small red or green reset button on the inside of the door, near the battery compartment.
2. Press the reset button. You should hear a beep, and an indicator light on the keypad will illuminate.
3. Within 5 seconds, enter your desired personal code (3-8 digits) on the keypad.
4. Confirm your code by pressing the '#' button.
5. The indicator light will flash, and you will hear a confirmation beep, indicating the new code is set.
6. Testen Sie den neuen Code: With the door still open, enter your new code and press '#'. The safe should indicate it's unlocked. If it doesn't, repeat the steps.

5.3 Verwendung des Notfallschlüssels

The emergency key provides manual access to the safe in case of battery failure or forgotten code.

1. Locate the emergency keyhole on the control panel (refer to Figure 4.6).
2. Stecken Sie einen der mitgelieferten Notfallschlüssel in das Schlüsselloch.
3. Turn the key clockwise (or counter-clockwise, depending on the lock) while simultaneously turning the rotary knob on the control panel to the unlock position.
4. The safe door will open.
5. Remove the key after opening.

6. Betrieb

6.1 Opening with Electronic Code

1. Enter your personal electronic code (3-8 digits) on the keypad.
2. Drücken Sie die Taste '#'.
3. If the code is correct, a green indicator light will illuminate, and you will hear a beep.
4. Within 5 seconds, turn the rotary knob clockwise (or counter-clockwise) to the unlock position and open the safe door.

6.2 Schließen des Tresors

1. Schließen Sie die Tresortür fest.
2. Turn the rotary knob counter-clockwise (or clockwise) to the lock position. The safe is now secured.

6.3 Using the Anti-Theft Cable

The included metal cable can be used to secure the safe to a fixed object, deterring opportunistic theft.

1. Locate the cable attachment point on the safe (refer to Figure 4.4).
2. Thread the loop end of the metal cable through a secure, fixed object (e.g., a desk leg, a heavy piece of furniture).
3. Attach the other end of the cable to the designated slot on the safe.
4. Ensure the cable is taut and the safe cannot be easily moved.

7. Wartung

7.1 Batteriewechsel

When the batteries are low, the indicator light may flash red or the keypad may not respond. Replace batteries promptly to avoid being locked out.

1. Open the safe using either the electronic code or the emergency key.
2. Open the battery compartment on the inside of the lid.
3. Entfernen Sie die alten Batterien und entsorgen Sie diese ordnungsgemäß.
4. Legen Sie neue Batterien ein und achten Sie dabei auf die richtige Polarität.
5. Schließen Sie das Batteriefach.

7.2 Reinigung

Reinigen Sie die Außenseite des Tresors mit einem weichen, fusselfreien Tuch.amp Mit einem Tuch abwischen. Verwenden Sie keine Scheuermittel oder Lösungsmittel, da diese die Oberfläche oder elektronische Bauteile beschädigen können.

8. Fehlerbehebung

• Safe does not open with electronic code:
  • Stellen Sie sicher, dass die Batterien korrekt eingesetzt und nicht entladen sind. Tauschen Sie sie gegebenenfalls aus.
  • Vergewissern Sie sich, dass Sie den richtigen Code eingeben.
  • Ensure you press '#' after entering the code and turn the knob within 5 seconds.
• Keypad is unresponsive or indicator light is dim:
  • Batteries are likely low. Replace them immediately.
• Safe locks after multiple incorrect attempts:
  • The safe may enter a lockout mode after 5 incorrect code entries. Wait for the lockout period to expire (typically a few minutes) or use the emergency key to open.
• Der Notfallschlüssel funktioniert nicht:
  • Ensure the key is fully inserted and turned correctly while simultaneously operating the rotary knob.

9. Spezifikationen

• Modell: HMF 1608-02
• Material: Legierter Stahl
• Farbe: Schwarz
• Schlosstyp: Elektronisch, Schlüssel
• Außenabmessungen (L x B x H): 33 cm x 29.5 cm x 7.5 cm (13.0 Zoll x 11.6 Zoll x 3.0 Zoll)
• Interior Dimensions (L x W x H): 30 cm x 22.5 cm x 5.5 cm (11.8 Zoll x 8.9 Zoll x 2.2 Zoll)
• Gewicht: 1.9 kg
• Document Compatibility: A4 format
• Besondere Merkmale: Portable, Anti-theft protection (via cable), Carrying handle

10. Garantie und Support

HMF products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided at the point of purchase or visit the official HMF webBitte bewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.
