Robern CB-MP16D6FPN M-Series Flat Mirror Medicine Cabinet

1. Einleitung

This manual provides detailed instructions for the installation, operation, and maintenance of your Robern CB-MP16D6FPN M-Series Flat Mirror Medicine Cabinet. Please read all instructions carefully before beginning installation or use to ensure proper function and safety. This cabinet features durable rust-free anodized aluminum construction, a SAFESEAL Gasket frame, and a 3-way adjustable concealed hinge system.

2. Sicherheitshinweise

• Always disconnect power at the main circuit breaker before installing or servicing any electrical components, if applicable.
• Tragen Sie während der Installation geeignete Schutzausrüstung, einschließlich Augenschutz und Handschuhen.
• Stellen Sie sicher, dass die Montagefläche statisch tragfähig ist und das Gewicht des Schranks und seines Inhalts tragen kann.
• For recessed installations, verify that there are no hidden electrical wires, plumbing, or other obstructions within the wall cavity.
• Handle glass components, such as mirrors and shelves, with care to prevent breakage and injury.
• Wenn Sie sich bei irgendeinem Teil des Installationsprozesses unsicher sind, konsultieren Sie einen qualifizierten Fachmann.

3. Packungsinhalt

Vergewissern Sie sich vor Beginn der Installation, dass alle Komponenten vorhanden und unbeschädigt sind.

• Medicine Cabinet Unit (with mirrored door and interior)
• Adjustable Glass Shelves (4 included)
• Patented Swing-Out Magnifying Mirror
• Mounting Hardware (for recessed and surface-mount options)

4. Einrichtung und Installation

The Robern CB-MP16D6FPN cabinet supports both recessed and surface-mount installations. Modular components can be joined horizontally and vertically for expanded storage solutions.

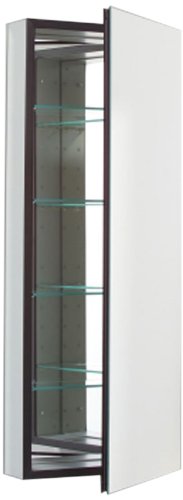

Figure 4.1: Robern CB-MP16D6FPN M-Series Flat Mirror Medicine Cabinet. This image shows the overall appearance of the medicine cabinet, featuring its mirrored door and sleek design.

4.1 Einbau

1. Prepare the Rough Opening: A rough opening of 14-1/2 inches wide x 38-5/8 inches high x 6 inches deep is required. Ensure the wall cavity is clear of obstructions.
2. Insert Cabinet: Carefully slide the cabinet into the prepared rough opening. The recessed cabinet will project approximately 7/8 inch from the wall. Ensure it is recessed no less than 5-3/4 inches deep.
3. Sicherer Schrank: Use the provided mounting hardware to secure the cabinet firmly to the wall studs or blocking within the rough opening. Ensure the cabinet is level and plumb.

4.2 Surface-Mount Installation

1. Montagepunkte markieren: Hold the cabinet against the wall at the desired height and location. Mark the positions for the mounting screws.
2. Pilotlöcher bohren: Drill pilot holes at the marked locations, ensuring they align with wall studs for maximum support. If studs are not available, use appropriate wall anchors (not included).
3. Gehäuse montieren: Attach the cabinet to the wall using the provided mounting hardware. Verify that the cabinet is securely fastened, level, and plumb.

5. Bedienungsanleitung

5.1 Öffnen und Schließen der Tür

The cabinet features a concealed finger-pull door edge. Gently pull the door edge to open. The 3-way adjustable concealed hinge system allows for a wide door opening angle of 170 degrees, providing full access to the cabinet interior.

5.2 Adjusting Glass Shelves

The cabinet includes four adjustable glass shelves. To adjust a shelf, carefully lift it from its current position and reposition it onto the desired shelf clips. Ensure the shelf is securely seated on all four clips before placing items on it.

5.3 Using the Swing-Out Magnifying Mirror

The patented swing-out magnifying mirror can be extended and rotated for close-up tasks. Gently pull the mirror assembly outwards and pivot it to the desired angle. Push it back into its stored position when not in use.

6. Wartung

6.1 Reinigen des Gehäuses

• Verspiegelte Oberflächen: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to avoid liquid seeping into edges.
• Aluminiumrahmen: Wischen Sie mit einem weichen,amp cloth. For stubborn marks, a mild, non-abrasive cleaner can be used. Avoid harsh chemicals or abrasive pads, which can damage the anodized finish.
• SAFESEAL Gasket: Periodically wipe the gasket with a damp cloth to remove any dust or debris, ensuring its sealing integrity.

6.2 Scharniereinstellung

The 3-way adjustable concealed hinges allow for fine-tuning of the door alignment. Refer to the hinge manufacturer's instructions or consult a professional if adjustments are needed to ensure proper door closure and alignment.

7. Fehlerbehebung

• Door Does Not Close Smoothly: Check for any obstructions in the cabinet or hinge area. Verify that the cabinet is level and plumb. Hinge adjustment may be required (refer to Section 6.2).
• Shelves Are Not Stable: Ensure that the glass shelves are correctly seated on all four shelf clips. Verify that the clips themselves are securely inserted into the cabinet's side walls.
• Mirror Appears Loose: Check the mounting screws for the cabinet and ensure they are tight. For the swing-out magnifying mirror, ensure its pivot points are secure.

8. Spezifikationen

9. Garantieinformationen

Specific warranty details for the Robern CB-MP16D6FPN M-Series Flat Mirror Medicine Cabinet are not provided in this manual. For comprehensive warranty information, please refer to the documentation included with your purchase or visit the official Robern webBewahren Sie Ihren Kaufbeleg für Garantieansprüche auf.

10. Kundendienst

If you require further assistance, have questions regarding installation, or need to report a missing or damaged part, please contact Robern customer service. Contact information can typically be found on the manufacturer's webvor Ort oder in den Verpackungsmaterialien.
