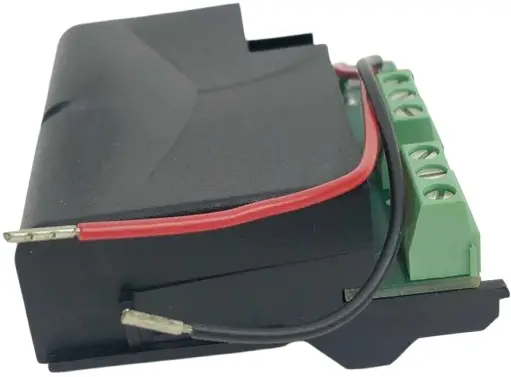

Danfoss ECA 80 Relay Module
OPERATION INSTRUCTIONS
Application
- The relay module ECA 80 is used in connection with the ECL Comfort 300 series. Furthermore, it is applied in some specific OEM applications.
- The module can be mounted in the socket of the ECL Comfort controller.
- ECA 80 contains two relay outputs and is connected to and powered by the ECL BUS.
Ordering
| Type | Description | Code No. |
| ECA 80 | Relay module | 087B1150 |

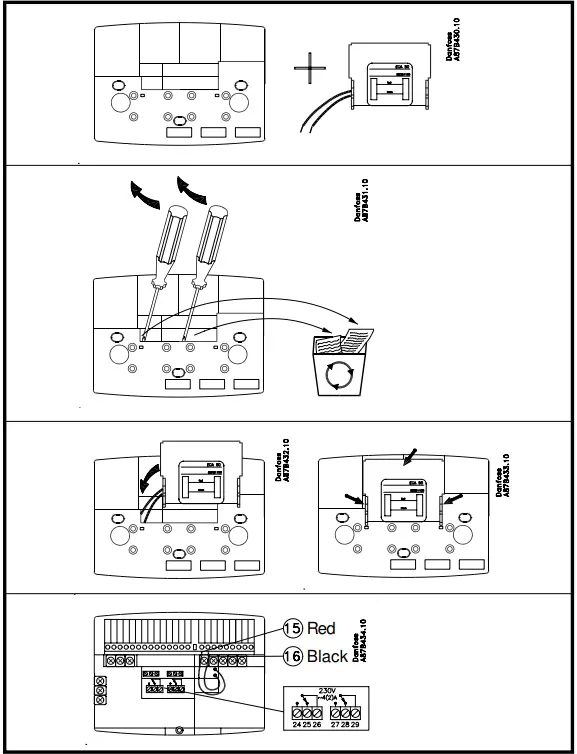

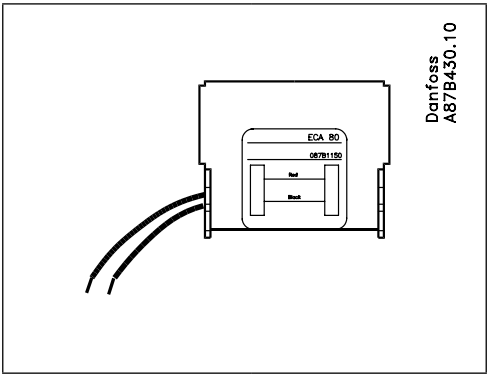

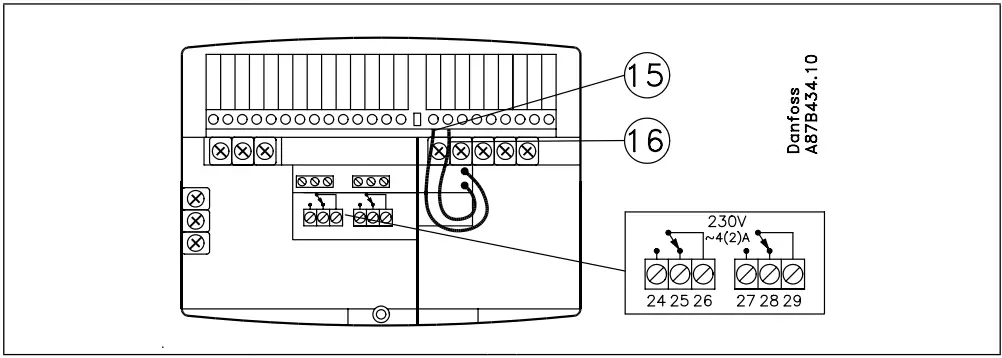

Wiring
Technical data
| Power supply | ECL BUS (18 V power/data) |
| Power consumption | 0.25 W |
| Relay output load | 230 V a.c. – 4(2) A |
| Storage temperature | -40 oC – 70 OC |
| Ambient temperature | 0 – 50 oC |
| Installation | Rear side of ECL socket |
| Height x length x width | 60 x 55 x 20 mm |
| Module weigth | 150 g |
