Installation Guide
Stepper output module
Type AK-XM 208C

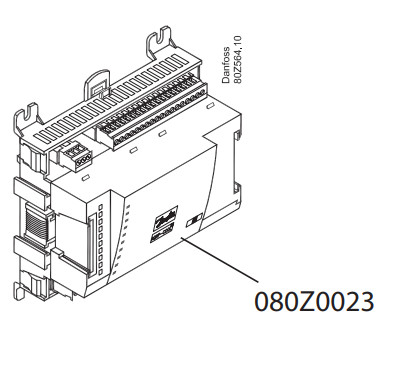

AK-XM 208C Stepper Output Module
Info for Centralized (Rack) control
- AK-XM 208C opens and closes opposite to how AK-XM 208B
- Ensure AK-XM 208C has a dedicated line up (Comm module + 208C only). No other modules to be added to AK-XM 208C.
-20 °C < tamb < 55 °C
-0 °F < tamb < 130 °F
0 – 95% RH, non condensing
IP10 / VBG4
Controller supply = 5 VA
Valve supply = 7.8 VA + valvesClass II construction
Listed
4VR5
UL file: E357029
Class 2 or LPS in accordance with NEC.
For supply connections, use 16 AWG or larger wires rated for at least 90 °C (194 °F).
Use copper conducters only.
Warning
Ensure power is disconnected before adding or removing Modules
ADAP-KOOL° The Product contains electrical components And may not be d lsposed together with domestic waste. Equipment must be separate collected with Electrical and Elec-tronic waste. According to Local and cu r re m ly val id legislation.
AN055886442238en-000801
© Danfoss I Climate Solutions I 2023.08
