REFRIGERATION AND AIR CONDITIONING
Instructions

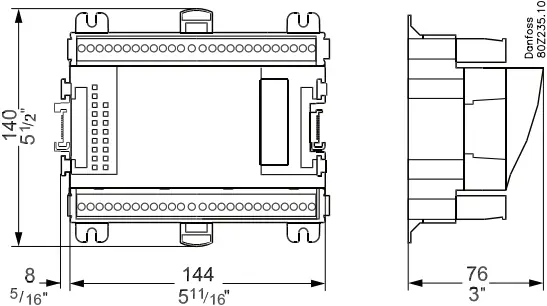

AK-XM 205B
-20°< tamb < 55°C17
-0°F < tamb < 130°F
0 – 95% RH, non condensing
IP10 / VBG4
UL: E357029
Warning

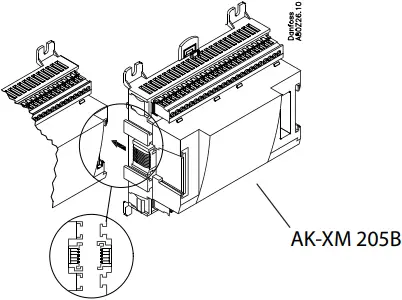

Ensure power is disconnected before adding or removing Modules
AI x 8
DO x 8
Max. 230 V
AC-1: max. 4 A (ohmic)
AC-15: max. 3 A (Inductive)
- Keep the safety distance Low and high voltage must not be connected to the same output group
Point
Terminal 9: 12 V
Terminal10: 5 V
Terminal 21: 12 V
Terminal 22: 5 V
Terminal 11, 12, 23, 24 :

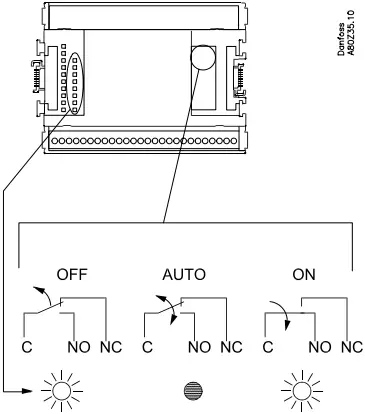

Override (off / Auto / on)
- (Communication module)
- (Controller)
| Signal a) | Signal type b) | |
| S (sensor) Pt 1000 ohm/0°C
| S1 S2 Saux1 Saux2 SSA SdA | Pt 1000 |
| P (pressure) AKS 32R
AKS 32
| P0A P0B PcA PcB Paux | AKS 32R AKS 2050 MBS 8250 -1 – xx barAKS 32 -1 – zz bar |
| U (voltage)
| … | 0 – 5 V 0 – 10 V |
| On/Off
| Ext. Main switch Day/Night Door | Active at: Closed |
| DO
| Comp 1 Comp 2 Fan 1 Alarm | Active at: ON |
| Signal a) | Signal type b) / Active at | Module c) | Point d) | Terminal |
| 1 (AI 1) | 1 – 2 | |||
| 2 (AI 2) | 3 – 4 | |||
| 3 (AI 3) | 5 – 6 | |||
| 4 (AI 4) | 7 – 8 | |||
| 5 (AI 5) | 13 – 14 | |||
| 6 (AI 6) | 15 – 16 | |||
| 7 (AI 7) | 17 – 18 | |||
| 8 (AI 8) | 19 – 20 | |||
| 9 (DO 1) | 25-26-27 | |||
| 10 (DO 2) | 28-29-30 | |||
| 11 (DO 3) | 31-32-33 | |||
| 12 (DO 4) | 34-35-36 | |||
| 13 (DO 5) | 37-38-39 | |||
| 14 (DO6) | 40-41-42 | |||
| 15 (DO7) | 43-44-45 | |||
| 16 (DO8) | 46-47-48 |
The Product contains electrical components And may not be disposed together with domestic waste.
Equipment must be separate collected with Electrical and Electronic waste. According to Local and currently valid legislation
Instructions RI8HM602 © Danfoss 09/2018
AK-XM 205B
