OUXI R7 Elcykel Brugermanual

1. Introduktion

Welcome to the OUXI R7 Electric Bike user manual. This guide provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

2. Sikkerhedsoplysninger

Your safety is paramount. Adhere to all local traffic laws and regulations when operating this electric bike. Always wear a helmet and appropriate safety gear. Perform a pre-ride inspection before each use.

• Brug altid en godkendt hjelm.
• Check brake function, tire pressure, and battery charge before each ride.
• Ensure all quick releases and fasteners are secure.
• Rid ikke under påvirkning af alkohol eller stoffer.
• Vær opmærksom på dine omgivelser og andre trafikanter.
• Avoid riding in adverse weather conditions or on excessively rough terrain unless the bike is designed for it.
• Familiarize yourself with the bike's controls and features before riding at speed.

3. Pakkens indhold

Ved udpakning skal du kontrollere, at alle komponenter er til stede:

• OUXI R7 Electric Bike Frame with integrated components
• 48V 13Ah aftageligt batteri
• Batterioplader
• Støtteben
• Pumpe
• Reflekser (foran, bagpå, på hjul)
• Værktøjssæt
• Brugervejledning (dette dokument)

4. Opsætning og montering

The OUXI R7 Electric Bike requires some assembly. General assembly involves attaching the front wheel, handlebars, pedals, and seat. Ensure all bolts and quick releases are securely fastened before riding.

It is recommended to consult the assembly video available on the product page for detailed visual instructions.

5. Betjeningsvejledning

5.1. Tænd/sluk

Locate the power button on the LCD display. Press and hold the power button to turn the bike on or off. The display will illuminate, indicating the system is active.

5.2. Køretilstande

The OUXI R7 Electric Bike offers five distinct riding modes to suit various preferences and terrains:

1. Gashåndtag: Twist the throttle grip to engage the motor and propel the bike without pedaling.
2. Pedalhjælpstilstand (PAS): Engage one of the 1-5 PAS levels. The motor provides assistance as you pedal, extending your range and reducing effort.
3. Booster-tilstand: Provides an extra boost of power, useful for easily ascending inclines or starting from a stop.
4. Cruise Mode: Maintain a desired speed without continuous throttle input.
5. Normal cykeltilstand: Ride the bike like a traditional bicycle, using pedal power only with no motor assistance.

5.3. Gearskift

The OUXI R7 features a 7-speed shifting system. Use the twist grip shifter on the right handlebar to change gears according to terrain and desired speed. Shift to lower gears for climbing hills and higher gears for flat terrain or descents.

5.4. LCD-skærm

The integrated LCD display provides real-time information and control over various bike functions:

• Batteriniveau: Angiver resterende batteriopladning.
• Hastighed: Viser den aktuelle kørehastighed.
• PAS-niveau: Shows the current Pedal Assist level (1-5).
• ODO/TRIP/VOL: Toggles between Odometer (total distance), Trip distance, and Voltage.
• Lights Indicator: Shows when the headlight and taillight are active.
• Hornkontakt: Activates the bike's horn.
• Blinklysknap: Activates turn signals (if equipped).

5.5. Bremsesystem

The OUXI R7 is equipped with a reliable dual disc brake system (front and rear) for effective stopping power. Apply both brakes simultaneously for controlled deceleration. Regularly inspect brake pads and cables for wear and proper function.

5.6. Justeringer

• Justerbart sæde: The seat height can be adjusted to accommodate various rider heights for optimal comfort and pedaling efficiency.

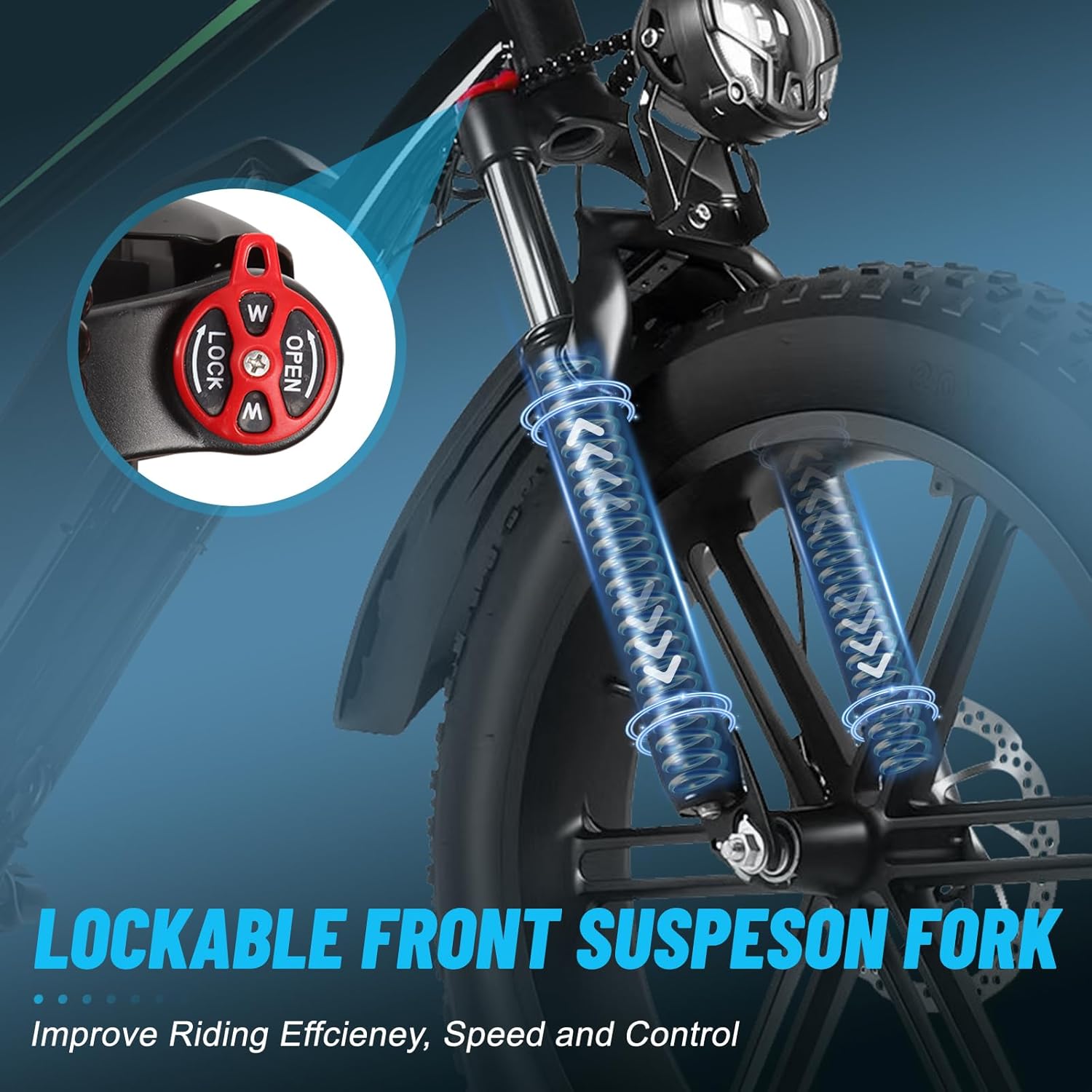

• Lockable Front Suspension Fork: The front suspension fork can be locked or unlocked. Lock the suspension for efficient riding on smooth surfaces and unlock it for improved shock absorption and control on rough or uneven terrain.

6. Batterioplysninger

The OUXI R7 is powered by a 48V 13Ah removable lithium-ion battery. This battery can be charged directly on the bike or removed for charging. The battery is lockable for security, requiring a key for removal and to prevent theft.

• Opladningstid: Cirka 6.5 timer for en fuld opladning.
• Rækkevidde: Up to 30-35 miles in electric-only mode; 55-60 miles in pedal-assist mode (actual range may vary based on terrain, rider weight, and riding style).

7. Vedligeholdelse

Regular maintenance is crucial for the longevity and safe operation of your OUXI R7 Electric Bike. Follow these guidelines:

• Dæk: Maintain recommended tire pressure (refer to tire sidewall for specifications). Inspect tires regularly for wear, cuts, or punctures.
• Bremser: Periodically check brake pads for wear and ensure brake levers operate smoothly. Adjust brake cables as needed to maintain proper stopping power.
• Kæde: Hold kæden ren og smurt for at sikre jævne gearskift og forhindre for tidlig slitage.
• Batteripleje: Store the battery in a cool, dry place. Charge the battery regularly, even when the bike is not in use, to prolong its lifespan. Avoid fully discharging the battery.
• Generel inspektion: Before each ride, check all bolts, nuts, and quick releases for tightness. Ensure the headlight and taillight are functional.
• Rensning: Rengør cyklen med en damp klud. Undgå at bruge højtryksrensere direkte på elektriske komponenter.

8. Fejlfinding

If you encounter issues with your OUXI R7 Electric Bike, refer to the following common troubleshooting tips:

• Ingen strøm: Ensure the battery is fully charged and properly seated. Check all electrical connections. Press and hold the power button on the display.
• Motoren går ikke i indgreb: Verify the Pedal Assist (PAS) level setting on the display. Ensure the throttle is not stuck. Check for any error codes displayed on the LCD.
• Bremsningsproblemer: Inspect brake pads for wear and replace if necessary. Check brake cables for tension and damage. Ensure disc rotors are clean and free from obstruction.
• Usædvanlige lyde: Investigate the source of any new or unusual sounds. This could indicate loose components, worn parts, or issues with the drivetrain.

For persistent issues or problems not covered here, please contact OUXI customer support.

9. Specifikationer

Key technical specifications for the OUXI R7 Electric Bike:

10. Garanti

The OUXI R7 Electric Bike comes with a 1-year manufacturer's limited warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation provided with your product or contact customer support.

11. Kundesupport

For any questions, technical assistance, or warranty claims regarding your OUXI R7 Electric Bike, please contact OUXI customer support:

• E-mail: ouxisupport@163.com
• You can also contact the seller directly through your Amazon order page for assistance.

Our support team is available to provide assistance and ensure your satisfaction with the OUXI R7 Electric Bike.
