Indledning
Thank you for choosing the HOMCOM 50-inch Electric Fireplace. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new electric fireplace. Please read all instructions carefully before use and retain this manual for future reference.
Figure 1: HOMCOM 50-inch Electric Fireplace and its remote control.
Sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger ved brug af elektriske apparater for at reducere risikoen for brand, elektrisk stød og personskade.
- Læs alle instruktioner, før du bruger denne varmeovn.
- Denne varmeovn er varm, når den er i brug. For at undgå forbrændinger, lad ikke bar hud berøre varme overflader.
- Ekstrem forsigtighed er nødvendig, når et varmeapparat bruges af eller i nærheden af børn eller handicappede, og når varmeapparatet efterlades i drift og uden opsyn.
- Brug ikke varmeapparater med en beskadiget ledning eller stik, eller efter at varmeapparatet ikke fungerer korrekt, er blevet tabt eller beskadiget på nogen måde.
- Må ikke bruges udendørs.
- For at frakoble varmeapparatet skal du dreje kontrollerne til OFF, og derefter tage stikket ud af stikkontakten.
- Indsæt eller lad ikke fremmedlegemer trænge ind i ventilations- eller udsugningsåbninger, da dette kan forårsage elektrisk stød eller brand eller beskadige varmeren.
- For at forhindre en mulig brand, må du ikke blokere luftindtag eller udstødning på nogen måde.
- Denne varmelegeme har varme og lysbuer eller gnistgivende dele indeni. Brug den ikke i områder, hvor benzin, maling eller brændbare dampe eller væsker bruges eller opbevares.
- Brug kun denne varmeovn som beskrevet i denne vejledning. Enhver anden brug, som ikke anbefales af producenten, kan forårsage brand, elektrisk stød eller personskade.
- Sæt altid varmeapparater direkte i en stikkontakt/stikkontakt. Brug aldrig med en forlængerledning eller flytbar el-hane (stikkontakt/stikdåse).
Produktegenskaber
- Realistisk atmosfære: Features faux-fire logs and crystals with six adjustable brightness levels and ten flame colors. Can be used with or without heat.
- Effektiv opvarmning: 1500W electric heater covers 161-431 sq ft, with a temperature range of 41-99°F. Includes automatic on/off control based on ambient temperature and an 8-hour auto shut-off function.
- Praktisk kontrol: Operated via remote control or on-unit touch controls. Clear LED display for settings monitoring.
- Safe and Quiet: Equipped with auto-shutoff for overheating protection. Operates quietly (lower than 55dB).
Figure 2: Adjustable flame colors and brightness settings.
Figure 3: Heating capabilities and safety features.
Opsætning og installation
The HOMCOM Electric Fireplace can be installed as a recessed unit or wall-mounted.
Dimensioner
- Overordnede dimensioner: 50 cm B x 6.2 cm D x 17.7 cm H
Figure 4: Product dimensions and recommended wall opening for recessed installation (44.9" W x 17.1" H x 6.3" D).
Installationsmuligheder
Choose between wall-mounted or recessed installation based on your preference and wall structure.
Figure 5: Wall-mounted and recessed installation diagrams.
For recessed installation, ensure the wall opening matches the recommended dimensions for proper fit and ventilation. For wall-mounted installation, securely fasten the mounting bracket to wall studs before hanging the fireplace.
The fireplace includes both a log set and crystal media for decorative purposes. Select your preferred media and place it in the designated area within the fireplace.

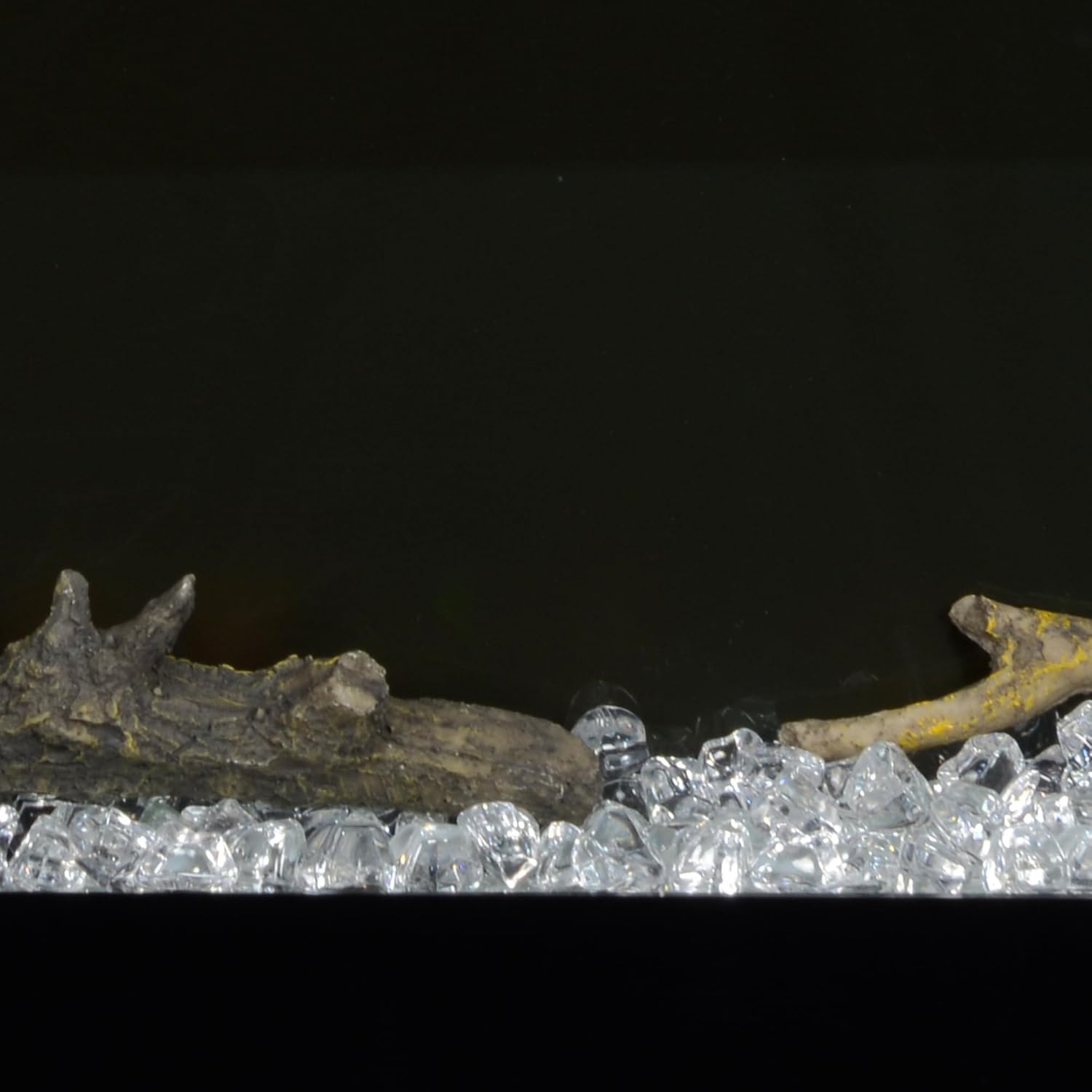

Figure 6: Faux log and crystal media options.
Betjeningsvejledning
Your electric fireplace can be operated using the included remote control or the touch controls located on the unit.
Figur 7: Overview of panel and remote control functions.
Fjernbetjeningsfunktioner
- Tænd/sluk: Tænder eller slukker pejsen.
- Flammefarve: Skifter mellem 10 forskellige flammefarvemuligheder.
- Flamme lysstyrke: Justerer flammeeffektens lysstyrke (6 niveauer).
- Varmestyring: Activates the heating function and adjusts temperature settings (41-99°F).
- Timer: Sets the auto shut-off timer for up to 8 hours.
- Temperaturenhed: Skifter mellem Celsius og Fahrenheit.
On-Unit Controls
The fireplace features a touch control panel for direct operation. These buttons mirror the primary functions of the remote control, allowing you to power on/off, adjust flame settings, and control heating.
Note: The LED display provides clear feedback on current settings, including temperature and timer status.
Opvarmningsdrift
The 1500W heater provides supplemental heat for rooms up to 431 sq ft. The unit features an automatic on/off control that maintains your desired room temperature. The 8-hour auto shut-off function enhances safety and energy efficiency.
Video 1: Demonstration of the Home4me Electric Fireplace features, including flame color changes and heat settings. This video highlights the versatility and ease of use of the unit.
Video 2: Overståetview of the Country Living Brand electric fireplace, showcasing its aesthetic appeal and functional controls. This video provides a visual guide to operating the fireplace.
Opretholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din elektriske pejs.
- Rensning: Sørg for, at enheden er slukket og at stikket er taget ud, inden rengøring. Brug en blød, tør klud.amp cloth to wipe surfaces. Do not use abrasive cleaners or sprays.
- Luftventiler: Regularly check and clean the air vents to prevent dust buildup, which can impede heating efficiency and potentially cause overheating.
- Opbevaring: If storing the fireplace for an extended period, ensure it is clean, dry, and stored in a safe, cool location.
Figure 8: Air outlet design for safe operation and heat distribution.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pejsen tænder ikke. | No power, main power switch off, remote battery dead. | Check power outlet, ensure main power switch is on, replace remote battery. |
| Ingen varmeafgivelse. | Heater function not activated, temperature setting too low. | Activate heater function via remote/panel, increase temperature setting. |
| Flammeeffekten virker ikke. | Flame effect turned off, LED issue. | Ensure flame effect is on. If problem persists, contact customer support. |
| Enheden overopheder og slukker. | Blocked air vents, internal malfunction. | Clear air vents. Allow unit to cool. If problem persists, contact customer support. |
Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | HOMCOM |
| Modelnavn | Electric Fireplace (Model 820-422V82BK) |
| Produktdimensioner | 50 cm B x 6.2 cm D x 17.7 cm H |
| Materiale | Hærdet glas |
| Strømkilde | Elektrisk med ledning |
| Strømforbrug | 1500 watt |
| Varmeoutput | 5115 BTU i timen |
| Varmeområde | 161-431 sq ft |
| Temperaturområde | 41-99°F |
| Støjniveau | Mindre end 55dB |
| Særlige funktioner | Adjustable Flame, Adjustable Thermostat, Overheat Protection, Timer |
| Installationstype | Vægmontering, indbygget |
| Inkluderede komponenter | LED Display, Remote Control, Timer |
| Varens vægt | 42 pund |
| Batterier påkrævet | 1 CR2 battery (for remote) |
Garanti og support
This HOMCOM Electric Fireplace comes with a Limited Warranty. For specific details regarding warranty coverage, please refer to the warranty card included with your product or contact HOMCOM customer support.
For technical assistance, troubleshooting not covered in this manual, or to inquire about replacement parts, please contact HOMCOM customer support. Contact information can typically be found on the manufacturer's webwebstedet eller på din købskvittering.
Kundesupport: Amazons kundesupport (for purchase related inquiries)
