Keylessbest Replacement Key Fob Remote Control for 2019-2024 Dodge Ram 1500 Pickup

Indledning

This manual provides essential instructions for the Keylessbest OHT-4882056 replacement key fob remote control. It covers compatibility, package contents, programming procedures, operation, maintenance, troubleshooting, and technical specifications to ensure proper use and functionality.

Kompatibilitet

This key fob is compatible with the following vehicles:

• 2019-2024 Dodge Ram 1500 Pickup

Important Verification: Before purchase and programming, ensure your original key fob matches the following specifications:

• Varenummer: 68291692 e.Kr
• FCC ID: OHT-4882056
• Frekvens: 433.92MHz (or 434MHz)

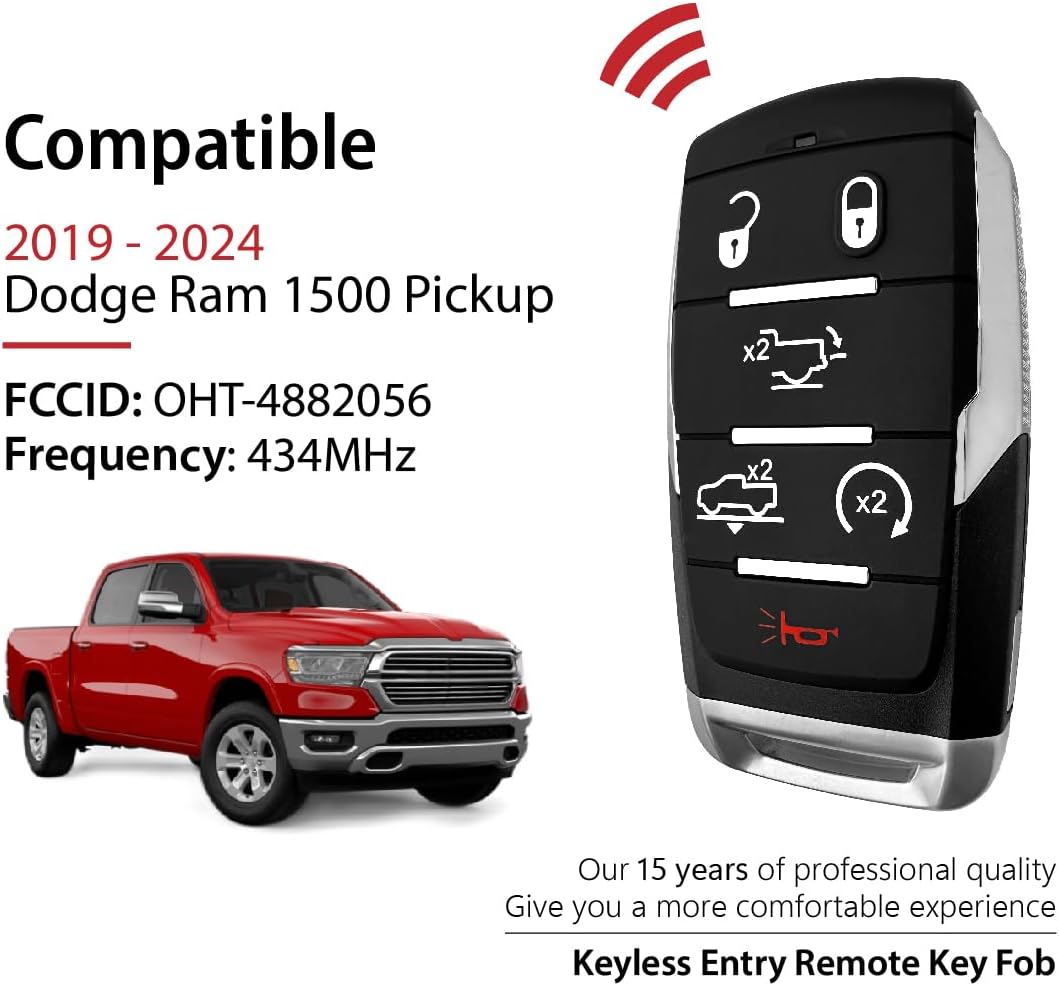

This image illustrates the compatible vehicle, a 2019-2024 Dodge Ram 1500 Pickup, alongside the key fob. Key specifications such as FCC ID: OHT-4882056 and Frequency: 434MHz are highlighted, confirming compatibility.

Pakkens indhold

Pakken indeholder typisk følgende komponenter:

• Key Fob Shell (1x)
• PCB Board (1x)
• Uncut Key Blade (1x)
• Lithium Battery (CR2032) (1x)
• Transponder Chip (1x)

This image displays the individual components included in the Keylessbest replacement key fob package, such as the outer shell, internal circuit board, uncut metal key, battery, and transponder chip.

Opsætning og programmering

Vigtig bemærkning: This is a brand-new, unprogrammed key. Professional programming by a certified locksmith or dealership is required for proper functionality.

Programmeringstrin:

1. Bekræft kompatibilitet: Confirm that the FCC ID and part number on your original key match the specifications of this replacement key fob (OHT-4882056, 68291692AD).
2. Kontakt en professionel: Schedule an appointment with a local automotive locksmith or a Dodge dealership.
3. Key Cutting: If your vehicle requires a physical key blade, the uncut key blade included in the package will need to be cut by the locksmith to match your vehicle's ignition.
4. Fjernprogrammering: The locksmith or dealer will use specialized equipment to program the key fob's remote functions and transponder chip to your vehicle's immobilizer system.

Attempting to program the key fob without professional equipment may result in damage or improper function.

This image emphasizes the critical requirement for professional programming by a locksmith or dealer. It also notes that the key blade is uncut and requires professional cutting.

Betjeningsvejledning

Once programmed, the key fob provides various functions for your vehicle. The buttons are typically arranged as follows:

This diagram illustrates the layout of the 6-button key fob, labeling each button's function: Unlock, Lock, Tailgate, Air Suspension, Remote Start, and Panic.

• Lås op knap: Press once to unlock the driver's door. Press twice to unlock all doors.
• Låseknap: Tryk én gang for at låse alle døre.
• Tailgate Button (x2): Press twice to open or release the tailgate.
• Air Suspension Button (x2): Press twice to activate or adjust air suspension (if equipped).
• Remote Start Button (x2): Press twice to remotely start the vehicle. The vehicle will run for a preset time and then shut off.
• Panic Button (Horn Icon): Press and hold to activate the vehicle's alarm system (horn and lights). Press again to deactivate.

Specific functions may vary slightly based on your vehicle's trim level and options.

Opretholdelse

The key fob is powered by a CR2032 lithium battery.

Udskiftning af batteri

1. Locate the small notch on the side or bottom of the key fob.
2. Carefully insert a small flat-head screwdriver or a coin into the notch and gently pry open the two halves of the key fob casing.
3. Remove the old CR2032 battery. Note the orientation (+/-).
4. Indsæt et nyt CR2032-batteri med den positive (+) side opad.
5. Align the two halves of the key fob casing and press them firmly together until they click into place.

Ensure the battery is correctly oriented to avoid damage. Dispose of old batteries responsibly.

Fejlfinding

Key Fob Not Responding

• Tjek batteri: A weak or dead battery is a common cause. Replace the CR2032 battery as described in the Maintenance section.
• Reprogramming Needed: If the battery was replaced or the fob was dropped, it might require reprogramming by a professional locksmith or dealership.
• Bilbatteri: Ensure your vehicle's battery is not discharged.
• Interferens: Strong radio signals or electronic devices nearby can sometimes interfere with the key fob's signal. Move away from such sources.

Remote Start Not Working

• Door/Hood/Trunk Ajar: Remote start typically will not activate if any door, the hood, or the trunk/tailgate is open.
• Lavt brændstofforbrug: Some vehicles prevent remote start if the fuel level is too low.
• Kontrollampe for motor: A lit check engine light can prevent remote start.
• Køretøjsindstillinger: Ensure remote start is enabled in your vehicle's settings.

Specifikationer

This image displays the internal circuit board of the key fob, along with diagnostic tool readouts confirming the 434MHz frequency and 4A chip type.

Garanti og support

For warranty information or technical support, please refer to the Keylessbest official website or contact their customer service directly. Ensure you have your purchase details and the product model number (OHT-4882056) available.

Fabrikant: Keylessbest

Dato først tilgængelig: 26. juni 2023
