Casatema Family Star Plus Montessori Bunk Bed Instruction Manual

1. Introduktion

This manual provides essential information for the safe assembly, operation, and maintenance of your Casatema Family Star Plus Montessori Bunk Bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

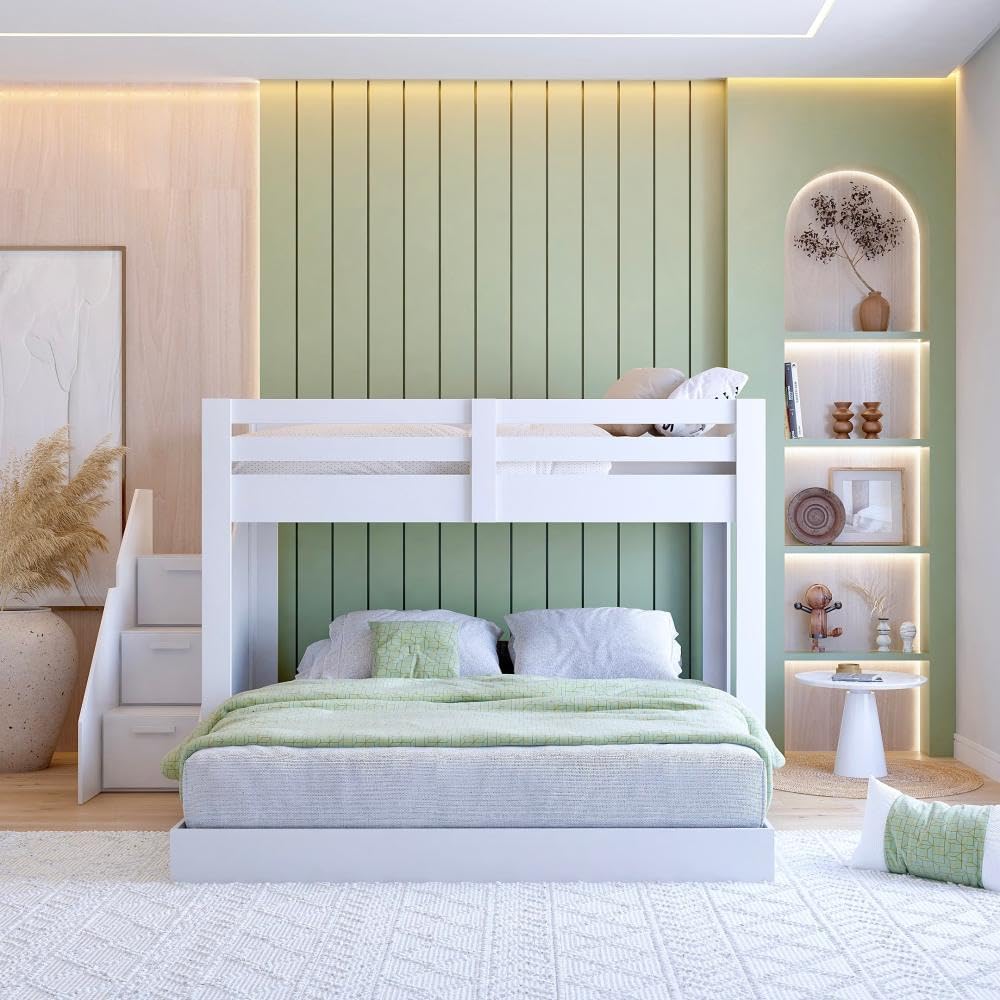

The Casatema Family Star Plus Montessori Bunk Bed is designed to optimize space and provide a versatile sleeping solution. It features a secure upper bunk with safety rails and a Montessori-style lower bed to encourage independence. An integrated staircase with storage compartments adds functionality.

2. Sikkerhedsoplysninger

ADVARSEL: Manglende overholdelse af disse advarsler og instruktioner kan resultere i alvorlig personskade eller død.

• Ensure the maximum weight capacity of the structure is respected. Overloading can lead to structural failure.
• Exercise caution regarding potential pinch points or sharp edges during assembly and use. Keep fingers clear of moving parts.
• Follow assembly instructions carefully to prevent instability or structural collapse. Do not deviate from the provided steps.
• Kun én person må opholde sig i den øverste køje ad gangen.
• Fastgør eller hæng ikke genstande på nogen del af køjesengen, der ikke er designet til brug med sengen; f.eksample, but not limited to, hooks, belts, and jump ropes. These can pose a strangulation hazard.
• Always use the ladder for entering and exiting the upper bunk. Do not jump on or off the bunk bed.
• Ensure mattresses are of the correct size to prevent gaps between the mattress and the bed frame, which could trap a child.
• Periodically check and ensure that all connectors are tight.
• Hold børn væk fra samleområdet, indtil monteringen er færdig.

3. Pakkens indhold

Before assembly, verify that all components and hardware are present and undamaged. Refer to the included hardware list and diagrams for identification.

Inkluderede komponenter:

• Bunk bed frame components (MDP panels, support beams)
• Solid wood slats for bed bases
• Integrated staircase with storage compartments
• Safety rail for the upper bunk
• Samlebeslag (skruer, dyvler, forbindelsesstykker)

4. Opsætnings- og monteringsvejledning

Assembly of this bunk bed is required. It is recommended that two adults perform the assembly. Please follow the step-by-step instructions provided in the separate assembly guide included with your product. Ensure you have adequate space for assembly and all necessary tools (e.g., screwdriver, hammer).

Figure 4.1: Overall dimensions of the bunk bed with integrated staircase.

Vigtige monteringstrin:

1. Pak alle komponenter ud, og verificer dem i forhold til styklisten.
2. Assemble the lower bed frame first, ensuring all connections are secure.
3. Attach the vertical supports for the upper bunk to the lower bed frame.
4. Assemble the upper bunk frame and carefully place it onto the vertical supports.
5. Install the solid wood slats for both the upper and lower bed bases.
6. Assemble and attach the integrated staircase, ensuring it is firmly secured to the main bed structure.
7. Install the safety rail on the upper bunk.
8. Tighten all screws and fasteners after complete assembly.

5. Betjeningsvejledning

This bunk bed is designed for sleeping and resting. Adhere to the following guidelines for safe operation:

Figure 5.1: Weight capacities for the bunk bed components.

• Vægt kapacitet:
  • Upper Bed: Supports up to 100 kg.
  • Lower Bed: Supports up to 120 kg.
  • Stair Steps: Each step supports up to 100 kg.
  • Stair Niches: Each niche supports up to 20 kg.
• Madras krav:


  Figure 5.2: Recommended mattress sizes.

  • Upper Bed: Requires a mattress of 88x188 cm (not included).
  • Lower Bed: Requires a mattress of 158x198 cm (not included).
• Integreret trappe: The staircase provides safe access to the upper bunk. Each step includes a door for storage. Ensure doors are closed when not accessing the compartments to prevent tripping hazards.

Figure 5.3: Integrated staircase with open storage compartments.

6. Vedligeholdelse

Proper maintenance will extend the life and safety of your bunk bed.

• Rensning: Tør overflader af med en blød, damp klud. Undgå at bruge slibende rengøringsmidler, stærke kemikalier eller opløsningsmidler, da disse kan beskadige overfladen.
• Inspektion: Periodically (e.g., monthly) inspect all bolts, screws, and fasteners to ensure they are tight. Re-tighten as necessary.
• Skade: If any part of the bed becomes damaged, discontinue use immediately and contact customer support for replacement parts or advice. Do not attempt to repair damaged structural components yourself.

7. Fejlfinding

• Sengen føles ustabil eller vaklende: Ensure all assembly steps were followed correctly. Check and re-tighten all bolts and fasteners. Verify that the bed is placed on a flat, level surface.
• Dele mangler eller er beskadiget: If you discover any missing or damaged parts upon unpacking, do not proceed with assembly. Contact Casatema customer service immediately for assistance.
• Vanskeligheder med samling: Review the assembly instructions carefully. If you encounter persistent difficulties, consider seeking professional assembly services or contacting customer support.

8. Specifikationer

9. Garanti og support

For warranty information, details on returns, or to contact customer support for assistance with assembly, missing parts, or any other inquiries, please refer to your purchase documentation or visit the official Casatema website. Please have your product model number (Family Star Plus) and purchase date available when contacting support.
