Hitachi Refrigerator R-HWS47R XW User Manual

1. Produktet er slutview

The Hitachi R-HWS47R XW is a 470L capacity refrigerator designed with a slim 60cm body width, featuring a single-door type. It incorporates advanced cooling technologies to ensure optimal food preservation and convenience. Key features include the "Marugoto Chilled" compartment for overall freshness, the "Special Fresh Ice Temperature Room" for delicate items like meat and fish, and the "Fresh Sleep Vegetable Room" to maintain vegetable crispness.

Figur 1: Forside view of the Hitachi R-HWS47R XW refrigerator, showcasing its sleek Crystal White finish and five-door design.

2. Installation og opsætning

Proper installation is crucial for the refrigerator's performance and longevity. Ensure sufficient space around the unit for ventilation and door opening.

2.1 Pladskrav

• Minimum required installation space: 610mm (Width) x 701mm (Depth) x 1873mm (Height).
• Allow at least 5cm of space above the unit for proper heat dissipation.
• Allow at least 0.5cm of space on the sides for proper heat dissipation.
• Ensure adequate space in front of the refrigerator for doors to open fully (90 degrees or more).

Figure 2: Detailed diagram illustrating the product dimensions and the minimum required installation space, including clearances for heat dissipation and door swing.

2.2 Placering

Place the refrigerator on a flat, stable surface away from direct sunlight or heat sources. Ensure the power outlet is easily accessible.

3. Betjeningsvejledning

This section details the various features and functions of your Hitachi refrigerator.

3.1 Marugoto Chilled Compartment

The entire refrigerator compartment is designed to maintain a consistent temperature of approximately 2°C and humidity of about 80%. This feature helps to suppress bacterial growth and prevent food from drying out, allowing for longer-lasting freshness without the need for wrapping. It is ideal for storing a variety of foods, including prepared dishes and large pots.

Figure 3: Illustration of the "Marugoto Chilled" feature, highlighting its consistent temperature (approx. 2°C) and high humidity (approx. 80%) for extended food freshness.

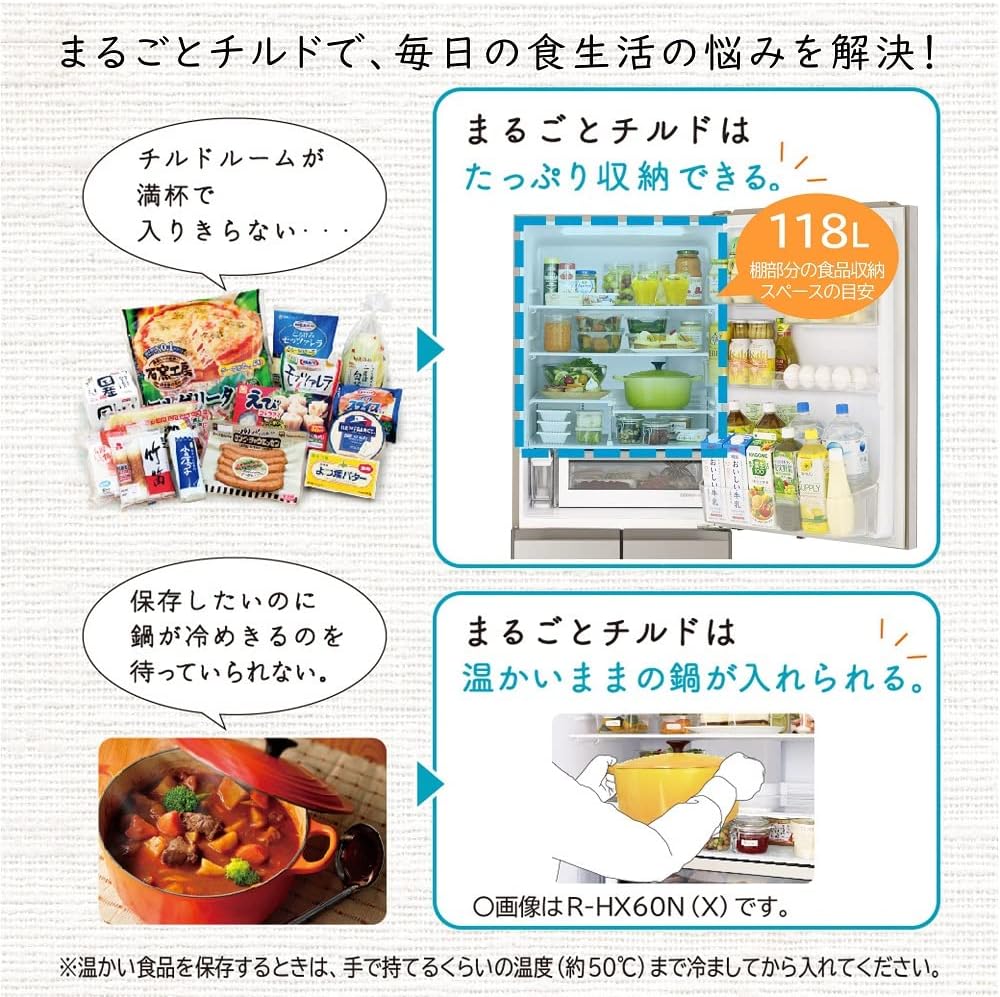

Figure 4: Benefits of the "Marugoto Chilled" feature, demonstrating its capacity for ample storage and the ability to store warm pots (after cooling to approximately 50°C).

3.2 Special Fresh Ice Temperature Room

This dedicated compartment maintains a temperature of approximately -1°C, preventing food from freezing while preserving the freshness and flavor of meat and fish. Indirect cooling and a highly airtight structure minimize drying and deterioration, allowing for storage without wrapping.

Figure 5: The "Special Fresh Ice Temperature Room" maintains an approximate -1°C temperature to preserve the taste and quality of meat and fish without freezing.

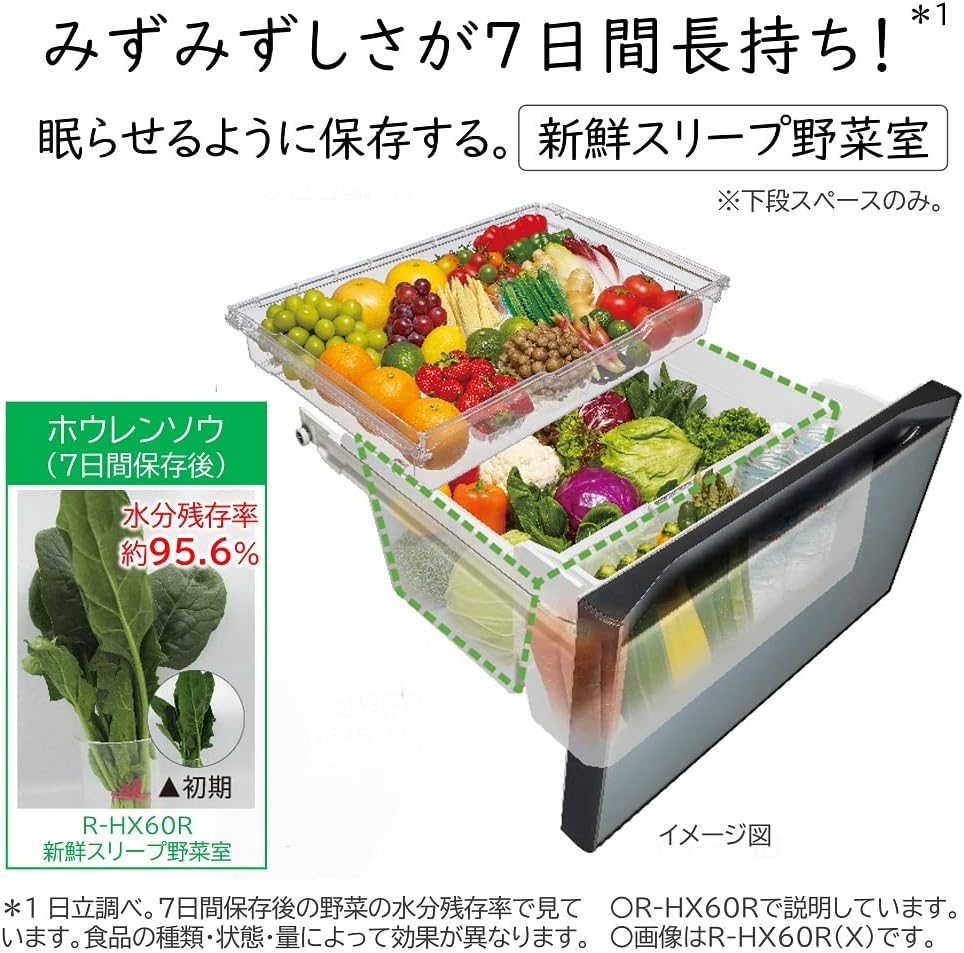

3.3 Fresh Sleep Vegetable Room

Located in the lower section, this vegetable room uses a platinum catalyst to decompose ethylene gas and odors released by vegetables, increasing carbon dioxide concentration. This process closes the stomata of vegetables, reducing their respiratory activity and nutrient loss, effectively putting them into a "sleep" state for extended freshness and crispness, lasting up to 7 days.

Figure 6: The "Fresh Sleep Vegetable Room" (lower space) helps maintain vegetable freshness and crispness for up to 7 days by controlling their respiration.

3.4 Quick Cooling Function

This function rapidly cools items by temporarily increasing the volume of cold air. It is useful for quickly chilling beverages, cooling down bento boxes, or removing residual heat from ingredients during meal preparation, saving time.

Figure 7: The Quick Cooling function rapidly chills drinks, bento boxes, and helps remove residual heat from ingredients.

3.5 Indvendige funktioner

The refrigerator is designed for efficient storage and easy access. It includes:

• LED indvendig belysning: Brightly illuminates the interior for clear visibility.
• Justerbare glashylder: Reinforced glass shelves can be adjusted to accommodate items of various heights.
• Large Door Pockets: Spacious pockets on the doors provide ample storage for bottles and other tall items.
• 3-Tier Freezer Case: The lower freezer compartment features a three-tier design for organized storage and includes a quick-freezing space with an aluminum tray.

Figure 8: Interior layout of the refrigerator, highlighting the LED lighting, adjustable shelves, and large door pockets for efficient storage.

Figure 9: The spacious 3-tier freezer compartment, designed for organized storage and featuring a quick-freezing space with an aluminum tray.

4. Vedligeholdelse og pleje

Regular cleaning and maintenance will help keep your refrigerator in optimal condition.

• Udvendig rengøring: Tør de udvendige overflader af med en blød, damp cloth. For stubborn stains, use a mild detergent and then wipe with a clean, damp klæde.
• Indvendig rengøring: Remove all food items and shelves. Wash shelves and drawers with mild soap and warm water. Wipe the interior walls with a solution of baking soda and water (about 2 tablespoons of baking soda to 1 quart of water) to neutralize odors. Rinse with a clean, damp klud og tør grundigt.
• Dørpakninger: Rengør dørpakninger regelmæssigt med enamp klud for at sikre en tæt forsegling.
• Kondensator spoler: Periodically clean the condenser coils (usually located at the back or bottom of the refrigerator) to ensure efficient operation. Refer to the full manual for specific instructions on accessing the coils.
• afrimning: This model features automatic defrosting, so manual defrosting is not required for the freezer compartments.

5. Fejlfinding

Før du kontakter kundeservice, bedes du læse følgende almindelige problemer og deres løsninger.

• Refrigerator is not cooling:
  • Kontroller, om netledningen er sat ordentligt i stikkontakten.
  • Ensure the temperature settings are not set too high.
  • Verify that the refrigerator is not overloaded with food, blocking air vents.
  • Check if the door is fully closed and the gasket is sealing properly.
• Usædvanlige lyde:
  • Gurgling or bubbling sounds are normal and indicate refrigerant flow.
  • Clicking sounds may occur when the thermostat cycles on and off.
  • If the noise is loud or persistent, ensure the refrigerator is level and not touching a wall or cabinet.
• Water on the floor or inside the refrigerator:
  • Check if the drain pan is properly positioned.
  • Ensure the drain tube is not clogged.
  • Verify that the door is closing completely to prevent condensation.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Hitachi customer support.

6. Specifikationer

Figure 10: Technical drawing showing the external dimensions and internal compartment capacities of the refrigerator.

7. Garanti og support

Your Hitachi refrigerator comes with a manufacturer's warranty to ensure your peace of mind.

• Garantiperiode: 1 år fra købsdatoen.
• Inkluderet tilbehør: Instruction Manual, Warranty Card.

For warranty claims, technical support, or service requests, please refer to the contact information provided on your warranty card or visit the official Hitachi webwebsted.

For after-sales support, please refer to the seller's information or Amazon's customer support channels.
