Gorenje WNEI 86 APS Vaskemaskine Brugermanual

Indledning

This user manual provides essential information for the safe and efficient operation of your Gorenje WNEI 86 APS washing machine. Please read these instructions carefully before using the appliance for the first time and keep them for future reference. This appliance is designed to simplify your daily laundry tasks with its advanced features and programs.

Sikkerhedsoplysninger

Følg altid følgende sikkerhedsretningslinjer for at forhindre personskade eller beskadigelse af apparatet:

• Sørg for, at apparatet er korrekt jordforbundet og tilsluttet en passende strømforsyning.
• Do not allow children to play with or operate the washing machine. The appliance includes a child safety lock feature.
• Tag altid stikket ud af stikkontakten før rengøring eller vedligeholdelse.
• Do not wash items that have been cleaned, washed, soaked, or spotted with combustible or explosive substances such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.
• In case of water leakage, the AquaStop feature is designed to prevent flooding. However, always check hoses and connections regularly.
• Never force the door open during operation. Wait until the cycle is complete and the door lock has disengaged.
• Refer to the installation instructions for proper transport bolt removal before first use.

Opsætning

Udpakning og placering

Carefully remove all packaging materials. It is crucial to remove the transport bolts located at the rear of the machine before operation. Failure to do so can cause significant damage to the appliance. Place the washing machine on a firm, level surface. Adjust the feet to ensure stability and minimize vibration during operation.

Billede: Forside view of the Gorenje WNEI 86 APS washing machine, showcasing its white body and black door.

Image: Diagram showing the dimensions of the Gorenje WNEI 86 APS washing machine: 85cm height, 60cm width, and 54.51cm depth.

Vand- og strømtilslutning

Connect the water inlet hose to a cold water tap and the washing machine. Ensure all connections are tight to prevent leaks. Position the drain hose into a suitable drain or sink. Plug the power cord into a grounded electrical outlet. The AquaStop system provides protection against water leakage.

Betjeningsvejledning

Kontrolpanel overview

The control panel features a program selector knob, a digital display, and various touch buttons for additional functions and settings. The display shows the selected program, remaining time, and other relevant information.

Billede: Detaljeret view of the washing machine's control panel, showing the program dial, digital display, and function buttons.

Indlæsning af vasketøj

Open the washing machine door. Load laundry into the drum, ensuring not to overload it. The machine has an 8 kg capacity. Close the door firmly until it clicks.

Image: The washing machine with its front-loading door open, revealing the stainless steel drum.

Tilsætning af vaskemiddel og skyllemiddel

Pull out the detergent dispenser drawer. Add the appropriate amount of detergent to the main wash compartment and softener to the designated softener compartment. Refer to your detergent packaging for recommended dosages.

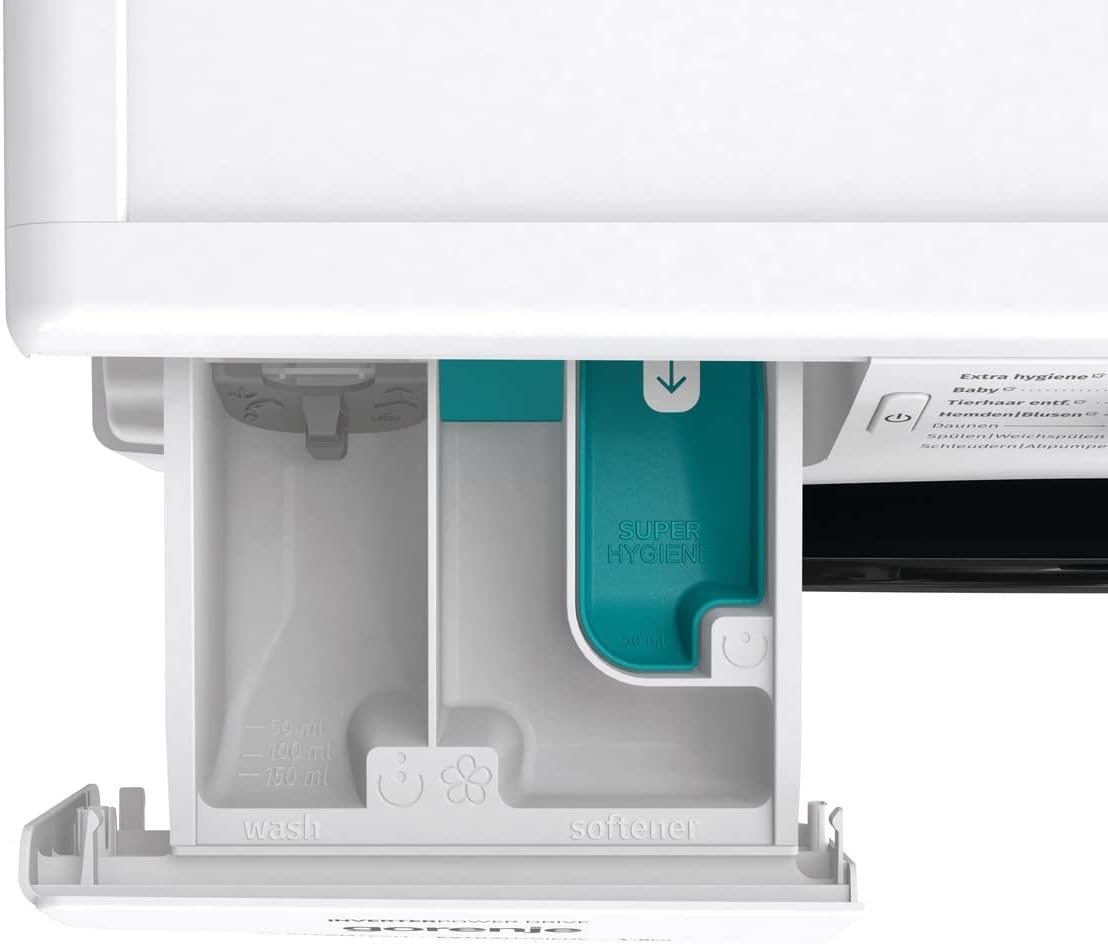

Image: Close-up of the detergent dispenser drawer, showing compartments for wash and softener.

Programvalg

Turn the program selector knob to choose one of the 16 available programs. The digital display will show the default settings for the selected program. Available programs include:

• Daglig vask
• Hvid Bomuld
• Colored Cotton
• Blande
• Uld
• Øko 40-60
• Power 59 min (Quick Wash)
• Hurtig 20 min
• Drum Cleaning (SterilTub)
• Spin/Pump
• Rinse/Softener
• Ned
• Skjorter/bluser
• Hårfjerning af kæledyr
• Baby Wash
• Ekstra hygiejne

Special Functions and Technologies

• Steam funktion: The SteamTech feature uses steam to deeply clean and refresh clothes, reducing wrinkles and eliminating allergens.
• Inverter PowerDrive-motor: This motor ensures quiet operation, energy efficiency, and a longer lifespan for the appliance.
• WaveActive Drum: The unique wave-patterned drum combined with special 3D ribs softens fibers to provide the most complete treatment for clothes, ensuring perfectly clean laundry with minimal wrinkles.
• AquaStop: A safety feature that prevents water leakage, providing peace of mind.
• StableTech: Side panels designed to reduce vibrations and noise during operation, enhancing stability.
• Extra Hygiene Program: This program uses higher temperatures and additional rinsing to effectively remove bacteria and allergens.
• PowerWash 59': A fast and efficient program for daily laundry, completing a full wash cycle in just 59 minutes.
• Børnesikringslås: Prevents accidental changes to settings or starting of cycles by children.

Image: An illustration depicting the WaveActive Drum's design, showing water droplets and a wave pattern for gentle yet effective washing.

Image: An illustration showing steam inside the washing machine drum, representing the SteamTech function for hygienic cleaning.

Image: An illustration demonstrating the AquaStop feature, showing a woman wringing out clothes with a bucket, implying protection against leaks.

Image: An illustration showing the washing machine with wavy lines indicating reduced vibrations, highlighting the StableTech feature.

Image: An illustration of the washing machine drum with a large '59' and a clock icon, indicating the PowerWash 59-minute quick program.

Image: An illustration of a wool sweater with bubbles, representing the gentle Wool and Handwash program.

Image: An illustration showing fabric on one side and bacteria on the other, representing the Extra Hygiene program's ability to remove germs.

Image: An illustration of a baby with a stained bib, indicating the Baby Clothing program designed for effective stain removal.

Start af en vaskecyklus

After selecting your program and any desired options, press the Start/Pause button to begin the wash cycle. The machine will automatically adjust water levels and cycle duration based on the load and selected program.

Opretholdelse

Regelmæssig vedligeholdelse sikrer din vaskemaskines levetid og optimale ydeevne.

Cleaning the Drum (SterilTub)

The SterilTub program is designed to clean the washing machine drum and remove any bacteria or residue. It is recommended to run this program periodically, especially if you frequently wash at low temperatures.

Image: An illustration showing a child smelling fresh laundry, representing the effectiveness of the drum cleaning program.

Rengøring af vaskemiddelbeholderen

Remove the detergent dispenser drawer and rinse it under running water to remove any detergent or softener residue. Clean the housing of the dispenser with a brush if necessary. Reinsert the drawer once clean.

Filterrensning

Periodically check and clean the pump filter, usually located at the bottom front of the machine. This prevents blockages and ensures proper drainage. Refer to the detailed instructions in the full manual for safe filter removal and cleaning.

Udvendig rengøring

Tør vaskemaskinens yderside af med en blød, tør klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, der kan beskadige overfladen.

Fejlfinding

Før du kontakter kundeservice, bedes du gennemgå følgende almindelige problemer og deres mulige løsninger:

For more complex issues or error codes not listed, please consult the full user manual or contact Gorenje customer support.

Specifikationer

Image: "Made in Europe" logo, indicating the product is designed, developed, and produced in Europe.

Garanti og support

For garantioplysninger henvises til garantikortet, der følger med dit apparat, eller besøg den officielle Gorenje-side. website. For technical support, spare parts, or service requests, please contact Gorenje customer service in your region. Ensure you have your model number (WNEI 86 APS) and serial number ready when contacting support.

Hvad er der i æsken: 1 washing machine, 1 instruction manual.
