1. Introduktion
Thank you for choosing the Arcchio Cuna LED Pendant Light. This modern black aluminum pendant light is designed to provide bright, universal white light, making it ideal for various indoor settings such as offices, studies, living rooms, dining rooms, and kitchens. This manual provides essential information for the safe installation, operation, and maintenance of your new light fixture.
The Arcchio Cuna LED Pendant Light features a sleek, rectangular design and includes integrated LED lamps, ensuring energy efficiency and immediate use upon installation. It is classified as an ambient product, meaning its light source can be disassembled for separate inspection.
Image 1.1: Arcchio Cuna LED Pendant Light in an office environment.
2. Sikkerhedsinstruktioner
Læs alle sikkerhedsinstruktioner omhyggeligt inden installation og brug. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.
- Uddannet elektriker: Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med lokale el-forskrifter og -regler.
- Strømafbrydelse: Always disconnect the power supply at the main circuit breaker before attempting any installation, maintenance, or repair.
- Kun indendørs brug: This product is designed for indoor use (IP20 protection class). Do not expose it to moisture or outdoor elements.
- Voltage: Sørg for, at forsyningen voltage matcher armaturets krav (230V).
- Håndtering: Handle the light fixture with care to avoid damage to the components, especially the LED light source.
- Rensning: Only clean the fixture when it is switched off and cooled down. Use a dry, soft cloth. Do not use abrasive cleaners or solvents.
3. Pakkens indhold
Pak forsigtigt kassen ud, og sørg for, at alle komponenter er til stede og ubeskadigede. Hvis der mangler eller er beskadigede dele, skal du ikke fortsætte med installationen, men kontakte din forhandler.
- Arcchio Cuna LED Pendant Light fixture (with integrated LED light source)
- Mounting hardware (screws, anchors, ceiling bracket)
- Instruktionsmanual
Billede 3.1: Overview of the light fixture components.
4. Opsætning og installation
This section outlines the general steps for installing the Arcchio Cuna LED Pendant Light. Professional installation is highly recommended.
- Forbered til installation: Ensure the power supply to the installation area is turned off at the main circuit breaker. Gather all necessary tools (e.g., screwdriver, drill, wire strippers, ladder).
- Marker monteringspunkter: Determine the desired hanging height and position for the pendant light. Mark the drilling points on the ceiling for the ceiling bracket. Refer to the dimensions image for guidance.
- Monter loftsbeslag: Drill holes at the marked points and insert appropriate wall anchors if necessary. Secure the ceiling bracket to the ceiling using the provided screws.
- Ledningsforbindelser: Connect the electrical wires from the ceiling to the light fixture's terminal block. Ensure correct polarity (Live, Neutral, Earth) according to local wiring standards. Double-check all connections for security.
- Fastgør armatur: Carefully attach the pendant light fixture to the ceiling bracket. Adjust the suspension cables to achieve the desired hanging height. Ensure the fixture is securely fastened and level.
- Gendan strøm: Når installationen er færdig, og alle forbindelser er sikre, skal strømmen genoprettes ved hovedafbryderen. Test lysarmaturet for at sikre, at det fungerer korrekt.
Billede 4.1: Produktmål til installationsplanlægning.
Video 4.1: Installation overståetview for a similar pendant light. Please note that specific features like dimming or remote control shown in this video may not apply to the Arcchio Cuna Model 9967046.
5. Betjeningsvejledning
The Arcchio Cuna LED Pendant Light is designed for simple operation.
- Tænd/sluk: Operate the light using a standard wall switch connected to the fixture's power supply.
- Lysoutput: The integrated LED provides a universal white light with high brightness (4000 Kelvin, 1400 lumens).

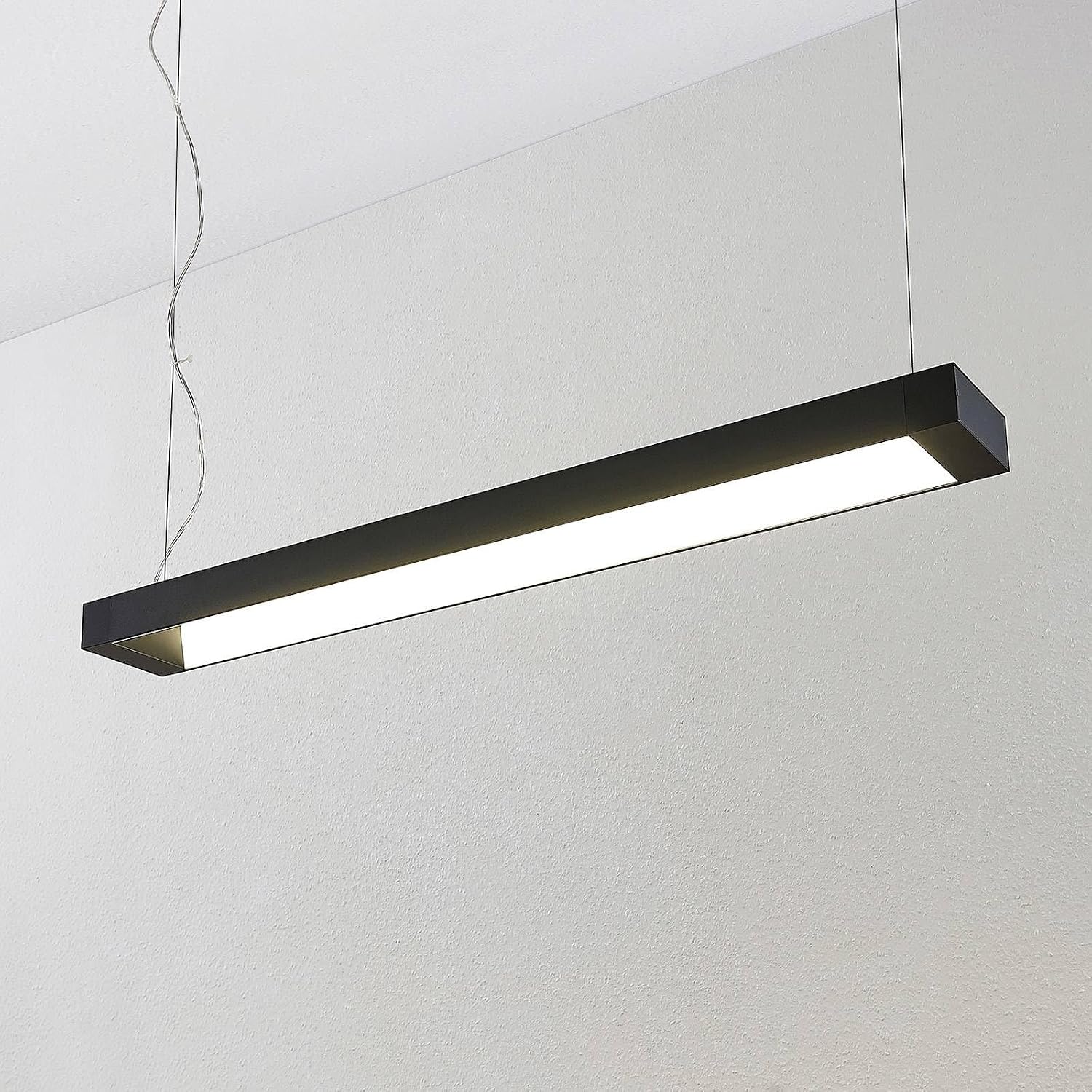

Image 5.1: The Arcchio Cuna LED Pendant Light illuminated.
6. Vedligeholdelse
Regelmæssig vedligeholdelse sikrer din lampes levetid og optimale ydeevne.
- Rensning: Before cleaning, ensure the light is switched off and has cooled down completely. Use a soft, dry, lint-free cloth to wipe the surface. Do not use liquid or abrasive cleaners, as they may damage the finish or electrical components.
- LED lyskilde: The LED light source is integrated and not user-replaceable. If the LED fails, the entire fixture may need to be replaced or serviced by a qualified technician.
- Inspektion: Periodically check the suspension cables and mounting points for any signs of wear or loosening. Tighten connections if necessary, ensuring power is disconnected first.
7. Fejlfinding
If you encounter issues with your Arcchio Cuna LED Pendant Light, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | Ingen strømforsyning. | Kontroller afbryderen og vægkontakten. Sørg for, at strømmen er genoprettet. |
| Lyse flimrer. | Løs ledningsforbindelse. | Disconnect power and check all wire connections. Ensure they are secure. If the problem persists, consult a qualified electrician. |
| Lyset er svagt. | Not applicable for this model as it is not dimmable. | Ensure the light is receiving full power. If the issue persists, contact support. |
If the problem persists after attempting these solutions, please contact Arcchio customer support or a qualified electrician.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Arcchio |
| Modelnummer | 9967046 |
| Materiale | Metal (aluminium) |
| Farve | Sort (RAL 9005) |
| Stil | Moderne |
| Produktmål (L x B x H) | 92.2 x 11.5 x 4.88 cm |
| Vægt | 1.46 kilo |
| Lyskilde | Integreret LED |
| Wattage | 16 Watts (total) / 18 Watts |
| Lysstrøm | 1400 lumen |
| Farvetemperatur | 4000 Kelvin (Universal White) |
| Voltage | 230V |
| Beskyttelsesklasse | IP20 |
| Specifikke anvendelser | Indendørs brug |
| Skift stil | Touch (referring to general operation, not integrated touch switch) |
| Monteringstype | Loftmontering |
| Energieffektivitetsklasse | D |
Image 8.1: Energy Efficiency Label. For more details, visit eprel.ec.europa.eu/qr/743128.
9. Garanti og support
Arcchio products are manufactured to high-quality standards. For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or contact your retailer. If you require technical assistance or have questions about your Arcchio Cuna LED Pendant Light, please contact Arcchio customer support through their official webwebstedet eller dit købssted.
