Indledning
Thank you for choosing the Toorx ERX-3500 Connected Ergometer Elliptical Trainer. This manual provides essential information for the safe and effective use of your new fitness equipment. Please read it thoroughly before assembly and operation, and keep it for future reference.
Figur 1: Forside view of the Toorx ERX-3500 Elliptical Trainer.
Sikkerhedsoplysninger
To ensure your safety and prolong the life of your equipment, please observe the following precautions:
- Kontakt en læge, før du starter et træningsprogram.
- Brug kun udstyret til det tilsigtede formål som beskrevet i denne manual.
- Place the elliptical trainer on a flat, stable surface with adequate clearance around it.
- Hold børn og kæledyr væk fra udstyret under drift.
- Sørg for, at alle bolte og møtrikker er forsvarligt spændt før hver brug.
- Overskrid ikke den maksimale brugervægt på 160 kg (352 lbs).
- Brug passende træningstøj og fodtøj.
- Hvis du oplever smerter, svimmelhed eller åndenød, skal du stoppe med at træne med det samme.
- Hold hænder og fødder væk fra alle bevægelige dele.
Opsætning og montering
The Toorx ERX-3500 requires assembly. Follow these steps carefully:
- Udpak komponenter: Carefully remove all parts from the packaging. Lay them out on a clean, flat surface and verify against the parts list (not provided in this manual, refer to original packaging).
- Fastgør stabilisatorer: Secure the front and rear stabilizers to the main frame using the provided bolts and washers. Ensure they are firmly attached.
- Install Upright Post: Mount the main upright post to the base frame. Connect any internal wiring as instructed in the detailed assembly guide.
- Saml styret: Attach the fixed and moving handlebars to the upright post and connecting arms.
- Mount Pedals: Secure the large pedals to the crank arms. Ensure they are correctly oriented (left and right).
- Forbind konsol: Attach the console to the top of the upright post. Connect all necessary cables from the upright post to the console.
- Endelig kontrol: Inspect all connections and ensure all bolts are tightened. Adjust the leveling feet on the rear stabilizer to ensure the machine is stable and does not wobble.

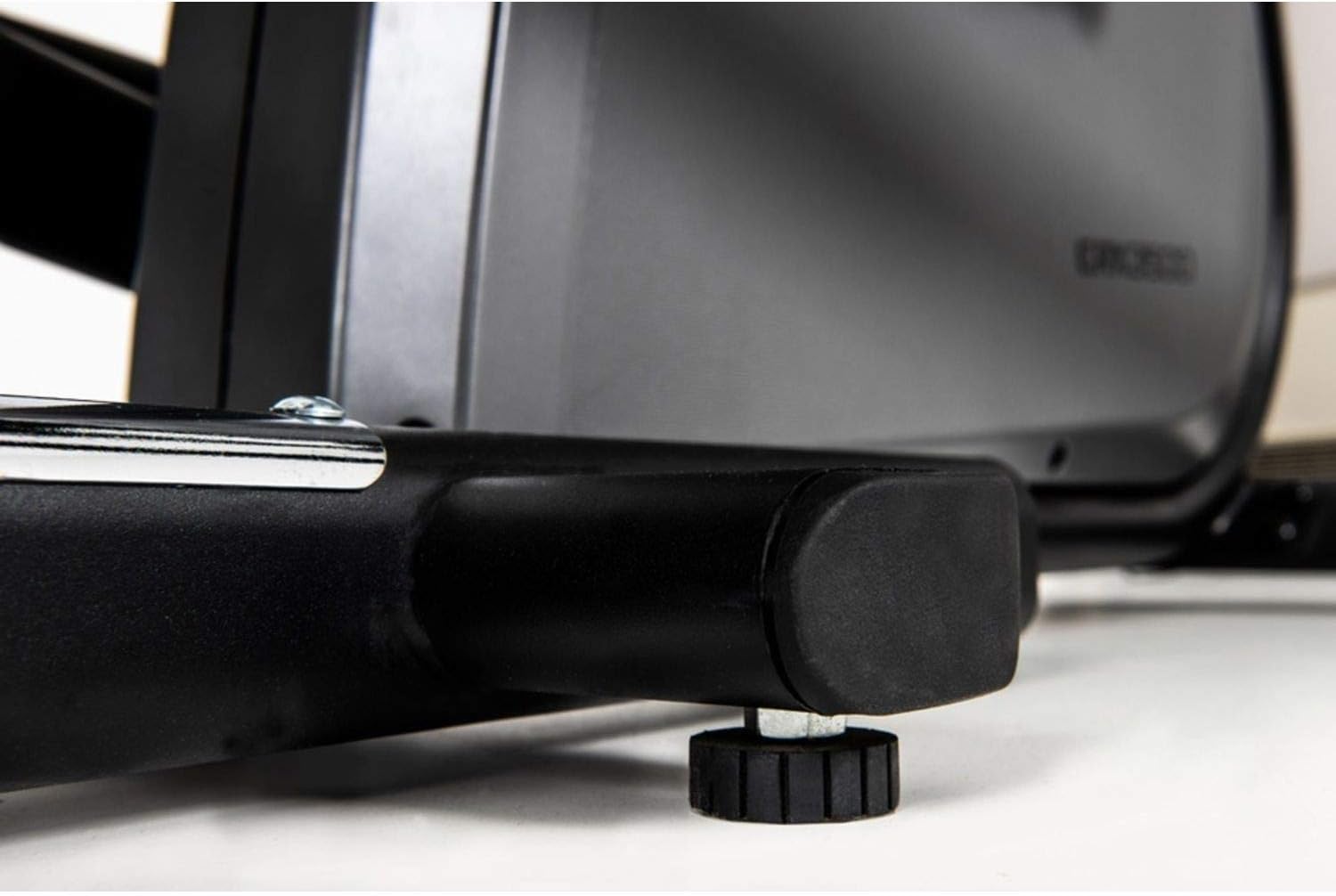

Figure 2: Rear stabilizer with adjustable leveling feet for stability.
Figure 3: Detail of the large pedals and smooth roller mechanism.
Betjeningsvejledning
Konsol overview
Figure 4: The LCD console with white backlight, displaying workout data.
The ERX-3500 features an LCD console with a white backlight. It displays key workout data including speed, calories burned, time, distance, heart rate, and RPM. The console's inclination is micrometrically adjustable for optimal viewing.
Træningsprogrammer
The elliptical trainer offers a variety of programs to suit your fitness goals:
- Manuel tilstand: Control resistance levels directly.
- 12 Pre-programmed Workouts: Diverse routines for various fitness levels.
- Recovery Program: Measures your recovery heart rate.
- Race Program: Simulate a race against a virtual opponent.
- 4 Bruger Profiles: Store personalized data and workout preferences for up to four users.
- 4 HRC (Heart Rate Control) Programs: Automatically adjust resistance to maintain your target heart rate zone. Requires a compatible chest strap (not included).
- Watt Program: Maintain a constant power output regardless of speed.
Connectivity (App Ready)
The ERX-3500 is equipped with an integrated smart Bluetooth system, allowing connection to various fitness applications:
- iConsole+-appen: Includes maps, routes, fitness plans, and training data tracking.
- Kinomap-appen: Compatible with Kinomap for interactive video workouts (subscription not included).
A smartphone and tablet holder is provided for convenience during connected workouts.
Figure 5: Integrated holder for smartphones and tablets.
Opretholdelse
Regular maintenance ensures the longevity and optimal performance of your ERX-3500 elliptical trainer:
- Rensning: Tør udstyret af efter hver brug med en reklameamp klud til at fjerne sved og støv. Undgå slibende rengøringsmidler.
- Inspektion: Kontrollér regelmæssigt alle bolte, møtrikker og bevægelige dele for fastspænding og slid. Spænd eventuelle løse fastgørelseselementer.
- Smøring: Consult the detailed product manual for specific lubrication points and recommended lubricants. Generally, moving joints and tracks may require occasional lubrication.
- Opbevaring: Opbevar crosstraineren et tørt og rent sted, væk fra direkte sollys og ekstreme temperaturer.
Fejlfinding
Se tabellen nedenfor for almindelige problemer og deres mulige løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen strøm til at trøste | Power adapter unplugged or faulty; loose cable connection. | Check power adapter connection to wall outlet and machine. Ensure all console cables are securely connected. |
| Unstable or wobbly machine | Ujævnt gulv; løse stabilisatorbolte. | Juster nivelleringsfødderne på stabilisatorerne. Spænd alle monteringsbolte. |
| Modstanden ændrer sig ikke | Electronic resistance system malfunction; console connection issue. | Check console cable connections. If issue persists, contact customer support. |
| Pulsmåler virker ikke | Chest strap not paired or faulty; hand sensors not properly gripped. | Ensure chest strap is worn correctly and paired. Grip hand sensors firmly with clean, moist hands. |
Specifikationer
| Feature | Detalje |
|---|---|
| Modelnavn | Toorx ERX-3500 |
| Modstandssystem | Magnetic induction braking with electronic resistance adjustment |
| Svinghjulets masse | 20 kg (44 lbs) |
| Skridtlængde | 51 cm (20 tommer) |
| Konsol display | LCD with white backlight, micrometrically adjustable inclination |
| Vist information | Speed, Calories, Time, Distance, Heart Rate, RPM, Program used |
| Programmer | Manual, 12 Pre-programmed, Recovery, Race, 4 User, 4 HRC, Watt |
| Forbindelse | Smart Bluetooth (App Ready), compatible with iConsole+ and Kinomap (subscription not included) |
| Pulsovervågning | Integrated wireless receiver for chest strap (chest strap not included) |
| Pedaler | Extra-large for optimal comfort |
| Maksimal brugervægt | 160 kg (352 lbs) |
| Produktets vægt | 89 kg (196.21 lbs) |
| Samlede mål (L x B x H) | 176 x 70 x 173 cm (69.3 x 27.6 x 68.1 tommer) |
| Materiale | Legeret stål |
| Certificeringer | CE-ROHS-EN957 |
Garantioplysninger
The Toorx ERX-3500 Connected Ergometer Elliptical Trainer comes with a 2 års garanti. This warranty covers manufacturing defects and material faults under normal use. Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the warranty card included with your product or visit the official Toorx webwebsted.
Støtte
If you encounter any issues not covered in the troubleshooting section, or require further assistance with your Toorx ERX-3500, please contact Toorx customer support. Have your model number (ERX-3500) and proof of purchase ready when contacting support.
For the most up-to-date contact information, please visit the official Toorx webwebsted.
