Indledning
The HealthmateForever T12AB2 is an FDA-cleared Transcutaneous Electrical Nerve Stimulation (TENS) and Electrical Muscle Stimulation (EMS) device designed for temporary pain relief and muscle stimulation. This portable unit features 12 pre-programmed massage modes, four outputs, and 20 intensity levels, allowing for customizable therapy sessions. It is equipped with a 1.75" W x 3.25" L LCD touchscreen, a pause button, and a safety lock for user convenience and safety. This manual provides essential information for the safe and effective use of your device.
Pakkens indhold
Kontroller venligst, at alle nedenstående varer er inkluderet i din pakke:
- 1 x TENS/EMS Machine (T12AB2)
- 8 x 3"x1.75" Hands Electrode Pads (medical-grade, reusable, non-irritating, self-stick, pre-gelled, latex-free)
- 4 x 2-in-1 Lead Wire Cables
- 1 x USB-kabel
- 1 x USB oplader
- 1 x brugermanual
- 1 x Pad Holder
Billede: All components included in the HealthmateForever T12AB2 Muscle Stimulator kit. This includes the main unit, electrode pads, lead wires, USB cable, USB charger, user manual, and pad holder.
Sikkerhedsoplysninger
Read all instructions and warnings before using this device. Failure to do so may result in injury or device malfunction.
- Må ikke bruges hvis: You have a pacemaker, implanted defibrillator, or other metallic or electronic implanted devices. You are pregnant. You have epilepsy or a heart condition. You have cancer.
- Rådfør dig med din læge: Before use if you have any medical conditions, are under medical care, or are unsure about the suitability of this device for your condition.
- Placering: Do not place pads on your head, face, neck (especially carotid sinus), chest, or over open wounds, rashes, or swollen, infected, or inflamed areas.
- Børn: Opbevares utilgængeligt for børn. Denne enhed er ikke beregnet til brug af børn.
- Operation: Do not operate while driving, operating machinery, or during any activity where involuntary muscle contractions could put you at risk of injury.
- Ubehag: Hvis du oplever ubehag, irritation eller bivirkninger, skal du straks stoppe brugen og kontakte en sundhedsperson.
- Strømkilde: Use only the provided USB cable and charger.
Opsætning
1. Opladning af enheden
Before first use, fully charge the device. Connect the USB cable to the TENS unit and the USB charger, then plug the charger into a standard wall outlet. The battery indicator on the screen will show charging status. A full charge provides up to 20 hours of continuous use.
2. Connecting Lead Wires and Pads
- Sørg for, at enheden er slukket.
- Insert the pin connectors of the lead wires into the electrode pads.
- Plug the lead wire connector into one of the output ports (A or B) on the top of the TENS unit. The device has four outputs, allowing for up to 8 pads to be used simultaneously.
3. Applying Electrode Pads
Clean and dry the skin area where the pads will be applied. Remove the protective film from the electrode pads and firmly press them onto the skin. Ensure good contact for effective stimulation. For optimal results, refer to the recommended pad placement diagrams in the Operating Instructions section.
Betjeningsvejledning
1. Tænd/sluk
Press and hold the power button (usually located on the side or top) to turn the device on or off.
2. Valg af en tilstand
The device offers 12 pre-programmed modes. Use the touchscreen to navigate and select your desired mode. Each mode provides a different massage sensation (e.g., Tuina, Tapping, Cupping, Acupuncture). The device allows for independent control of channels A and B, meaning you can set different modes and intensities for different body parts or users.

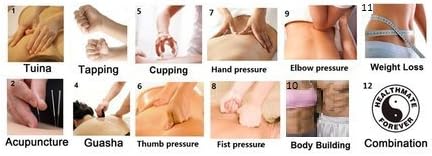

Billede: Visual representation of the 12 different massage modes available on the HealthmateForever T12AB2 unit, including Tuina, Tapping, Cupping, Hand pressure, Elbow pressure, Weight Loss, Acupuncture, Guasha, Thumb pressure, Fist pressure, Body Building, and Combination.
3. Justering af intensitet
After selecting a mode, use the '+' and '-' buttons on the touchscreen to adjust the intensity level for each channel (A and B) independently. Start with a low intensity and gradually increase until you feel a comfortable, yet strong, sensation. There are 20 intensity levels available.
4. Setting Session Duration
The device allows you to set the session duration from 10 to 80 minutes. Use the timer controls on the touchscreen to select your desired treatment time. The device will automatically shut off once the session is complete.
5. Using the Pause Button and Safety Lock
The pause button allows you to temporarily stop the stimulation without turning off the device or losing your settings. The safety lock feature prevents accidental changes to settings during use, especially when carrying the device.
6. Recommended Pad Placement
Proper pad placement is crucial for effective therapy. Place pads on clean, dry skin over or around the area of discomfort. Avoid placing pads directly over joints or bony prominences. Refer to the diagrams below for general guidance. For specific conditions, consult a healthcare professional.
Billede: Schematic presentation of normal treatment points on the human body for various conditions. This diagram illustrates common acupuncture and pressure points where electrode pads can be placed for therapeutic effect.

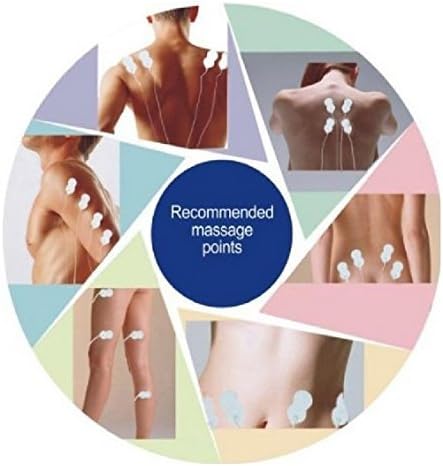

Billede: A circular diagram showing recommended massage points for electrode pad placement on different body areas, including the back, shoulders, legs, and abdomen, to target various muscle groups and pain points.
Opretholdelse
1. Rengøring af enheden
Tør enheden af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller nedsænk enheden i vand.
2. Cleaning and Storing Electrode Pads
Efter hver brug skal du forsigtigt tørre den klæbende side af puderne af med en advarsel.amp cloth to remove any skin oils or debris. Allow them to air dry completely (do not wipe dry). Reapply the protective film to the pads and store them on the provided pad holder or in a sealed bag to maintain their adhesive quality. Replace pads when they lose their stickiness or become damaged.
3. Opbevaring
Store the device and accessories in a cool, dry place, away from direct sunlight and extreme temperatures. Use the dust-proof storage pouch for protection when not in use or when traveling.
Fejlfinding
- Ingen følelse eller svag følelse:
- Ensure the device is turned on and charged.
- Check that lead wires are securely connected to both the device and the pads.
- Verify pads are firmly adhered to clean, dry skin.
- Øg intensitetsniveauet gradvist.
- Replace old or worn-out pads as their conductivity decreases with use.
- Puder sidder ikke fast:
- Rengør hudområdet grundigt før påføring.
- Clean the adhesive side of the pads with a damp klud og lad lufttørre.
- If pads are old, they may need to be replaced.
- Enheden tænder ikke:
- Sørg for, at enheden er fuldt opladet.
- Tryk og hold tænd/sluk-knappen nede i et par sekunder.
- Skærmfejl:
- If the screen is unresponsive or partially displayed, try restarting the device. If the issue persists, contact customer support.
Specifikationer
- Model: T12AB2
- Dimensioner: Approximately 1.75" W x 3.25" L (LCD touchscreen)
- Vægt: Approximately 1.01 Pounds (Package Dimensions: 5.7 x 3.8 x 2.7 inches)
- Tilstande: 12 forprogrammerede massagetilstande
- Intensitetsniveauer: 20
- Udgange: 4 (Independent A/B channels)
- Sessionsvarighed: 10 til 80 minutter
- Batterilevetid: Up to 20 hours of continuous use per charge
- Fabrikant: Healthmate International, LLC
- FDA Clearance: Ja
Garanti og support
Garantioplysninger
The HealthmateForever T12AB2 Muscle Stimulator comes with a 3-month warranty. Please retain your proof of purchase for warranty claims.
Kundesupport
For any questions, troubleshooting assistance, or warranty claims, please contact Healthmate International, LLC customer service. Local U.S.-based customer service is guaranteed.
Note: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This device is intended for temporary relief of pain associated with sore and aching muscles in the shoulder, waist, back, neck, upper extremities (arm), and lower extremities (leg) due to strain from exercise or normal household work activities.
