1. Introduktion
The HealthmateForever PM8 is a versatile electrical muscle stimulator designed for temporary relief of pain associated with sore and aching muscles in the back, shoulders, waist, and extremities due to strain from exercise or normal household and work activities. It features 8 different massage modes and can be used with electrode pads or the included abdominal belt for targeted application.
This manual provides essential information for the safe and effective use of your PM8 device. Please read it thoroughly before operation and retain it for future reference.
2. Vigtige sikkerhedsoplysninger
Ansvarsfraskrivelse: All information provided in this manual is for general knowledge only and is not a substitute for medical advice or treatment for specific medical conditions. Consult a medical doctor before using this product, especially if you have pre-existing medical conditions, are pregnant, have a pacemaker, or any other electronic medical device. Do not use this device to diagnose or treat any health problem or disease without consulting a qualified healthcare professional.
Discontinue use immediately if you experience any adverse reactions or side effects and seek professional healthcare advice.
3. Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke:
- HealthmateForever PM8 TENS Unit
- Elektrodepuder (flere par)
- Elektrode ledninger
- Mavebælte
- Brugermanual
- AAA batterier
Image: Contents of the HealthmateForever PM8 kit, including the device, electrode pads, wires, abdominal belt, user manual, and batteries.
4. Produktet er slutview
The PM8 device is a compact, battery-powered unit designed for portability and ease of use. It features a digital display, control buttons for mode selection and intensity adjustment, and output ports for connecting electrode wires or the abdominal belt.
Image: The HealthmateForever PM8 device shown alongside the abdominal belt, demonstrating their combined use.
Billede: Bagside view of the HealthmateForever PM8 device, showing the battery compartment and belt clip.
5. Opsætning
5.1 Batteriinstallation
- Locate the battery compartment on the back of the PM8 device.
- Skub batteridækslet åbent.
- Isæt AAA-batterierne, og sørg for at polariteten (+/-) vender korrekt.
- Luk batteridækslet forsvarligt.
5.2 Connecting Electrodes or Abdominal Belt
Ensure the device is turned off before connecting any accessories.
- For Electrode Pads: Connect the electrode wires to the output ports on the top of the device. Attach the other end of the wires to the electrode pads. Ensure the pads are clean and adhere firmly to the skin.
- For Abdominal Belt: Connect the abdominal belt's cable to an output port on the device. Ensure the belt is properly positioned around the waist with the conductive pads making contact with the skin.
Image: Illustration of compatible 3.5mm metal plug type for the HealthmateForever PM8 device, distinguishing it from incompatible plug types.
6. Betjeningsvejledning
6.1 Tænd/sluk
Press the 'ON/OFF' button located on the front of the device to turn it on or off.
6.2 Valg af tilstand
The PM8 offers 8 different massage modes. Use the 'MODE' button to cycle through the available modes. The selected mode will be displayed on the screen.
6.3 Justering af intensitet
After selecting a mode, use the '+' and '-' buttons to adjust the intensity level. Start with the lowest intensity and gradually increase it to a comfortable level. Avoid setting the intensity too high, which may cause discomfort.
6.4 Timerindstilling
The device typically has a pre-set treatment time. Refer to the on-screen display for the remaining time. The device will automatically shut off once the session is complete.
7. Tilstande og anvendelser
The PM8 offers various modes mimicking traditional massage techniques and targets specific body areas for pain relief and muscle stimulation.
7.1 massageteknikker
- Tapping: Rhythmic, percussive pulses.
- Tuina: A form of traditional Chinese massage.
- Cupping: Mimics the sensation of cupping therapy.
- Other modes provide varied sensations for comprehensive relief.
7.2 Targeted Body Areas
The device is suitable for use on various body parts, including:
- Shoulder and Upper Back
- Abs, Lower Back, and Hip
- Våben
- Joints (e.g., knees)
- Thighs, Calves, Ankles, and Feet

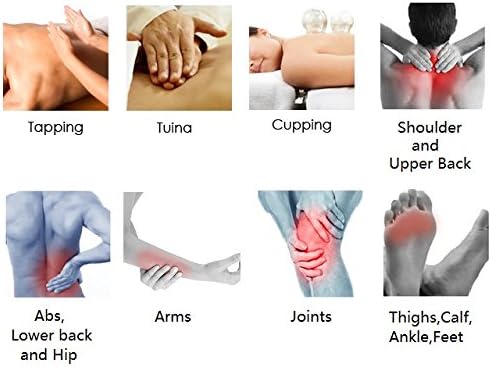

Image: Visual representation of various massage techniques (Tapping, Tuina, Cupping) and common body areas for application, such as shoulders, back, abdomen, arms, joints, and legs.
7.3 Recommended Massage Points
For optimal results, place electrode pads or the abdominal belt on the recommended massage points as illustrated below. Ensure pads are placed on clean, dry skin.

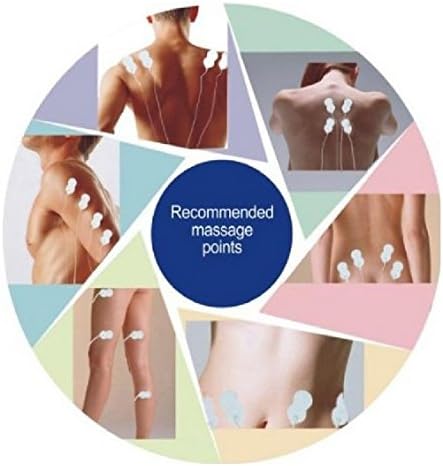

Image: Diagram illustrating recommended electrode pad placement on various body parts for effective muscle stimulation and pain relief.
Image: Detailed anatomical chart showing schematic presentation of normal treatment points with corresponding numbers and functions for various conditions.
8. Vedligeholdelse
8.1 Cleaning the Device and Pads
- Tør enheden af med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller nedsænk enheden i vand.
- The electrode pads can be gently cleaned with a small amount of water to restore adhesiveness. Allow them to air dry completely before re-applying to the storage sheet.
- The abdominal belt is made from a sturdy plastic material that is easy to clean. Wipe with a damp cloth and mild soap if necessary, then air dry.
8.2 Opbevaring
Store the device and accessories in a cool, dry place, away from direct sunlight and extreme temperatures. Remove batteries if the device will not be used for an extended period.
9. Fejlfinding
If you encounter issues with your PM8 device, consider the following:
- Ingen strøm: Kontroller, om batterierne er korrekt installeret og har tilstrækkelig opladning. Udskift batterierne om nødvendigt.
- Ingen sensation: Ensure electrode pads are firmly attached to the skin and wires are securely connected to both the pads and the device. Increase intensity gradually.
- Svag følelse: Replace old electrode pads as their conductivity may diminish over time. Ensure skin is clean and free of lotions or oils.
Hvis problemerne fortsætter, kontakt kundesupport for at få hjælp.
10. Specifikationer
- Modelnummer: PM8
- Strømkilde: Batteridrevet (AAA-batterier)
- Materiale: Acrylonitril Butadien Styren (ABS)
- Mærke: Healthmate Forever
- Farve: Blue (for this variant)
- Tilstande: 8 pre-set massage modes
11. Garanti og support
For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official HealthmateForever webwebstedet. Behold din købskvittering som købsbevis.
12. Vigtig juridisk ansvarsfraskrivelse
All information is intended for your general knowledge only and is not a substitute for medical advice or treatment for specific medical conditions. We cannot and do not give you medical advice. If you do not know what is causing the pain or other symptom, you should consult a medical doctor before you purchase any products from our store and start treating yourself. The information contained in this online site and email is presented in summary form only and intended to provide broad consumer understanding and knowledge of products offered. The information should not be considered complete and should not be used in place of a visit, call, consultation or advice of your physician or other health care provider. Should you have any health care-related questions, please call or see your physician or other health care provider promptly. You should never disregard medical advice or delay in seeking it because of something you have read here. If any adverse reaction or side effect, please discontinue to use it and seek professional healthcare provider for treatment.
