Indledning
The Digipower TC-55F is a compact and versatile travel charger designed for various Fuji digital camera Li-Ion batteries. It features Intellicharge Technology for efficient charging, a built-in USB port for simultaneous device charging, and a flip-close plug for portability. This charger supports 100V-240V auto voltage switching and includes an EU adapter plug, making it suitable for international travel.
Sikkerhedsoplysninger
- Do not expose the charger to moisture or extreme temperatures.
- Avoid disassembling the charger. Refer servicing to qualified personnel.
- Sørg for, at batteriet er isat korrekt i henhold til polaritetsmarkeringerne.
- Tag opladeren ud af stikkontakten, når den ikke er i brug.
- Opbevares utilgængeligt for børn.
Pakkens indhold
Bekræft, at din pakke indeholder følgende varer:
- Digipower TC-55F Travel Charger
- EU-adapterstik
Produktegenskaber
- Intellicharge Technology: Optimizes charging for various battery types.
- USB-port: Allows charging of a second device (e.g., smartphone) simultaneously.
- LCD-skærm: Provides charging status indication.
- Kompakt design: Features a flip-close plug for easy storage and travel.
- Universal Voltage: Supports 100V-240V AC input for worldwide use.
- EU Adapter: Includes an adapter for use in over 40 European countries.
- Kompatibilitet: Designed for Fuji NP40, NP45, NP50, NP60, NP70, NP95, and NP120 Li-Ion batteries.
Opsætning
- Unfold the AC Prongs: Gently flip out the AC prongs from the back of the charger until they lock into place.
Image: The back of the charger showing the extended foldable AC prongs ready for connection to a power outlet.
- Indsæt batteriet: Align your Fuji Li-Ion battery with the charging contacts in the charger's slot. Ensure the battery is inserted with the correct polarity. The charger is designed to accommodate various Fuji battery models.
Billede: En top-down view of the charger, highlighting the slot where the camera battery is inserted for charging.
- Tilslut til strøm: Plug the charger into a standard AC wall outlet. If traveling in Europe, attach the included EU adapter plug to the charger's prongs before plugging it into the wall outlet.
Betjeningsvejledning
- Opladningsproces: Once connected to power with a battery inserted, the LCD display on the charger will illuminate, indicating the charging status. The Intellicharge Technology will automatically detect the battery type and begin charging. The display will show the progress of the charge.
- Opladning fuldført: The LCD display will indicate when the battery is fully charged. Once charging is complete, remove the battery from the charger and unplug the charger from the power outlet.
- Brug af USB-porten: The charger includes a USB port on its side, allowing you to charge another USB-powered device (e.g., a smartphone or tablet) simultaneously with your camera battery. Connect your device's USB charging cable to this port.

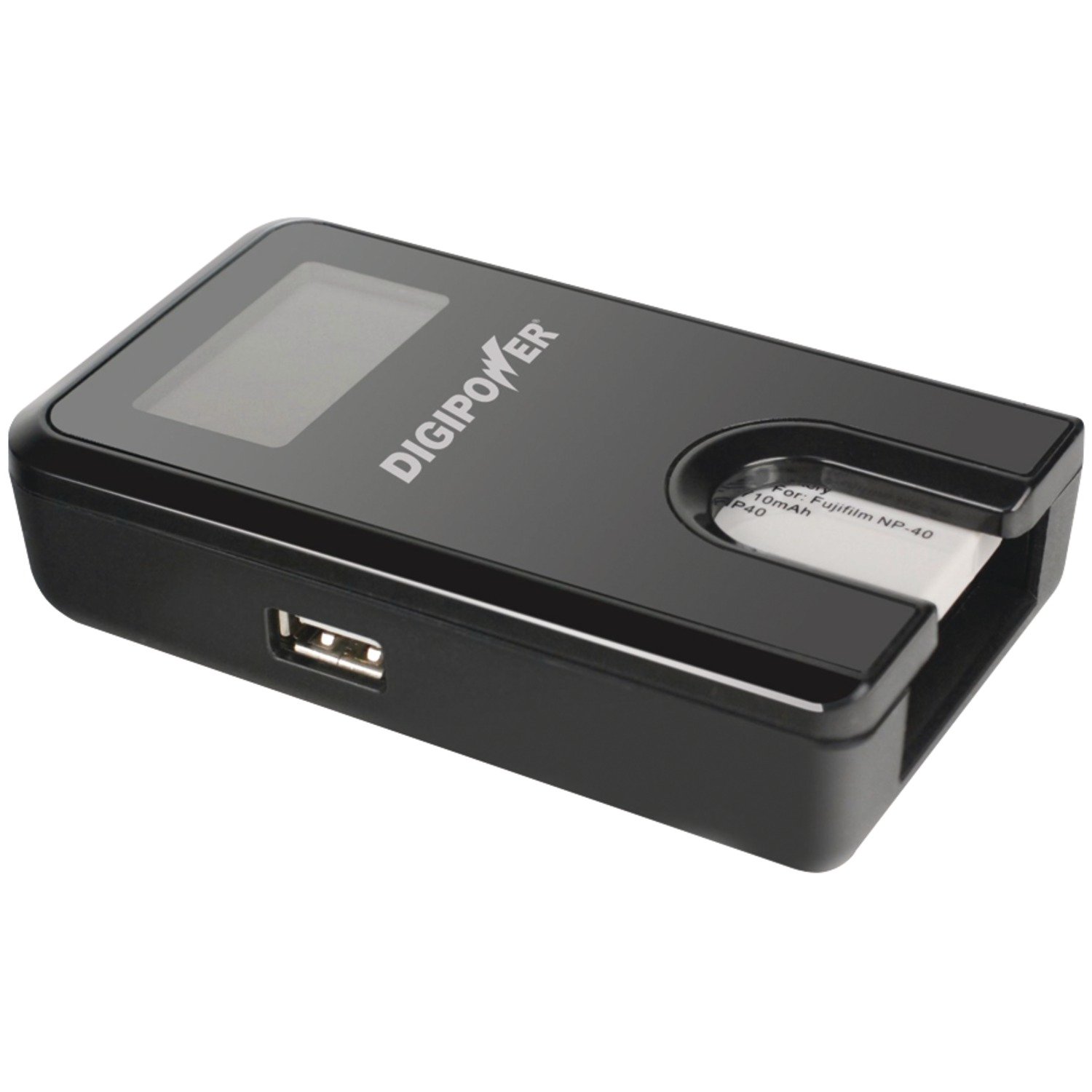

Billede: En side view of the charger, clearly showing the USB output port for charging additional devices.
Opretholdelse
- Rensning: Brug en blød, tør klud til at rengøre opladerens yderside. Brug ikke flydende rengøringsmidler eller opløsningsmidler.
- Opbevaring: When not in use, store the charger in a cool, dry place. Fold the AC prongs back into the charger for compact storage.
- Batterikontakter: Periodically check the charging contacts on the charger and battery for any debris and clean if necessary.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Battery not charging / LCD flashing error | Incorrect battery insertion, incompatible battery, faulty battery, or charger malfunction. | Ensure battery is inserted with correct polarity. Verify battery compatibility (Fuji NP40, NP45, NP50, NP60, NP70, NP95, NP120). Try a different battery if available. If the issue persists, contact customer support. |
| USB-enhed oplades ikke | USB cable issue, device not compatible with charger's USB output, or charger not powered. | Ensure the charger is plugged into a live power outlet. Try a different USB cable. Verify your device can charge via a standard USB port. |
| Opladeren tænder ikke | No power from outlet, prongs not fully extended, or internal fault. | Check the power outlet with another device. Ensure AC prongs are fully extended and securely plugged in. If using the EU adapter, ensure it is correctly attached. |
Specifikationer
- Modelnummer: TC-55F
- Input bindtage: 100V-240V AC
- Udgang Voltage (batteri): Varies by battery type (Intellicharge)
- Udgang Voltage (USB): 5V DC
- Varens vægt: Cirka 0.19 kg
- Kompatible batterier: Fuji NP40, NP45, NP50, NP60, NP70, NP95, NP120
Garantioplysninger
This Digipower TC-55F Travel Charger is covered by a Et års begrænset garanti fra købsdatoen. Denne garanti dækker defekter i materialer og udførelse ved normal brug. Den dækker ikke skader forårsaget af misbrug, ulykker, uautoriseret ændring eller eksterne årsager.
For warranty service, please retain your proof of purchase and contact customer support.
Støtte
If you encounter any issues or have questions regarding your Digipower TC-55F Travel Charger that are not addressed in this manual, please visit the official DigiPower website or contact their customer support for assistance. Please have your product model number (TC-55F) and proof of purchase ready when contacting support.
