Filluck Automotive Electrical Wire Connectors Instruction Manual

Konec produktuview

The Filluck 349PCS Car Automotive Electrical Wire Connectors kit provides a comprehensive solution for automotive electrical wiring needs. This kit includes a ratchet crimping tool, various pin connectors (1, 2, 3, and 4 pin), male and female terminals, dust plugs, and heat shrink terminals. Designed for durability and ease of use, these waterproof connectors ensure reliable and secure electrical connections in a wide range of applications, from car repairs to DIY projects.

Obsah balení

Your Filluck 349PCS Automotive Electrical Wire Connectors kit includes the following components:

• 1 x Ratchet Crimping Tool
• 24 sets of 1/2/3/4 pin connectors (6 sets of 1-pin, 8 sets of 2-pin, 6 sets of 3-pin, 4 sets of 4-pin)
• 140 x zátky proti prachu
• 70 pairs of Male and Female Terminals
• 20 x Heat Shrink Terminals

Image: Complete kit showing the storage box, various connectors, terminals, and the crimping tool.

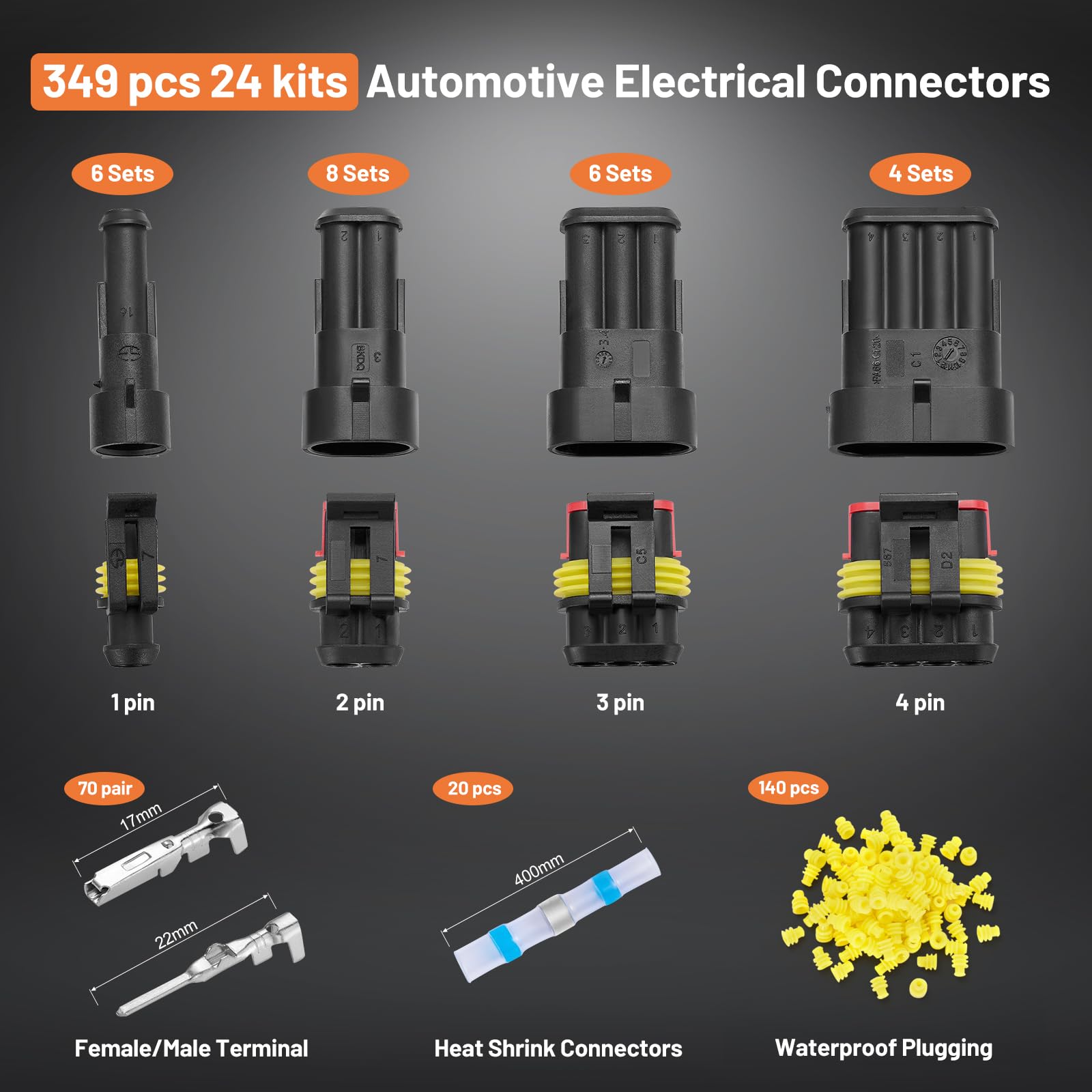

Image: Detailed breakdown of the kit's components, including 1-pin, 2-pin, 3-pin, and 4-pin connectors, female/male terminals, heat shrink connectors, and waterproof plugging.

Bezpečnostní informace

Always prioritize safety when working with electrical components. Follow these guidelines:

• Disconnect power: Ensure all power sources are disconnected before working on electrical systems.
• Use appropriate tools: Only use tools designed for electrical work, such as the included crimping tool.
• Inspect components: Before assembly, inspect all connectors and terminals for damage.
• Proper insulation: Ensure all connections are properly insulated to prevent short circuits.
• Ventilation: Work in a well-ventilated area.
• Keep out of reach of children: Store the kit and its components safely away from children.

Nastavení a montáž

This section details the steps for preparing wires and assembling the connectors using the provided crimping tool.

Crimping Terminals

1. Připravte dráty: Strip approximately 3-4mm of insulation from the end of your electrical wires.
2. Insert Dust Plug: Slide a yellow dust plug onto one end of the stripped wire.
3. Crimp Terminal: Insert the stripped wire into the appropriate male or female terminal. Place the terminal into the correct crimping slot on the ratchet crimping tool (suitable for 22-14 AWG wires). Press the handles firmly until the ratchet mechanism releases, ensuring a secure crimp.
4. Verify Crimp: Gently pull on the wire to ensure the terminal is securely crimped and will not pull out. Repeat for all necessary wires.

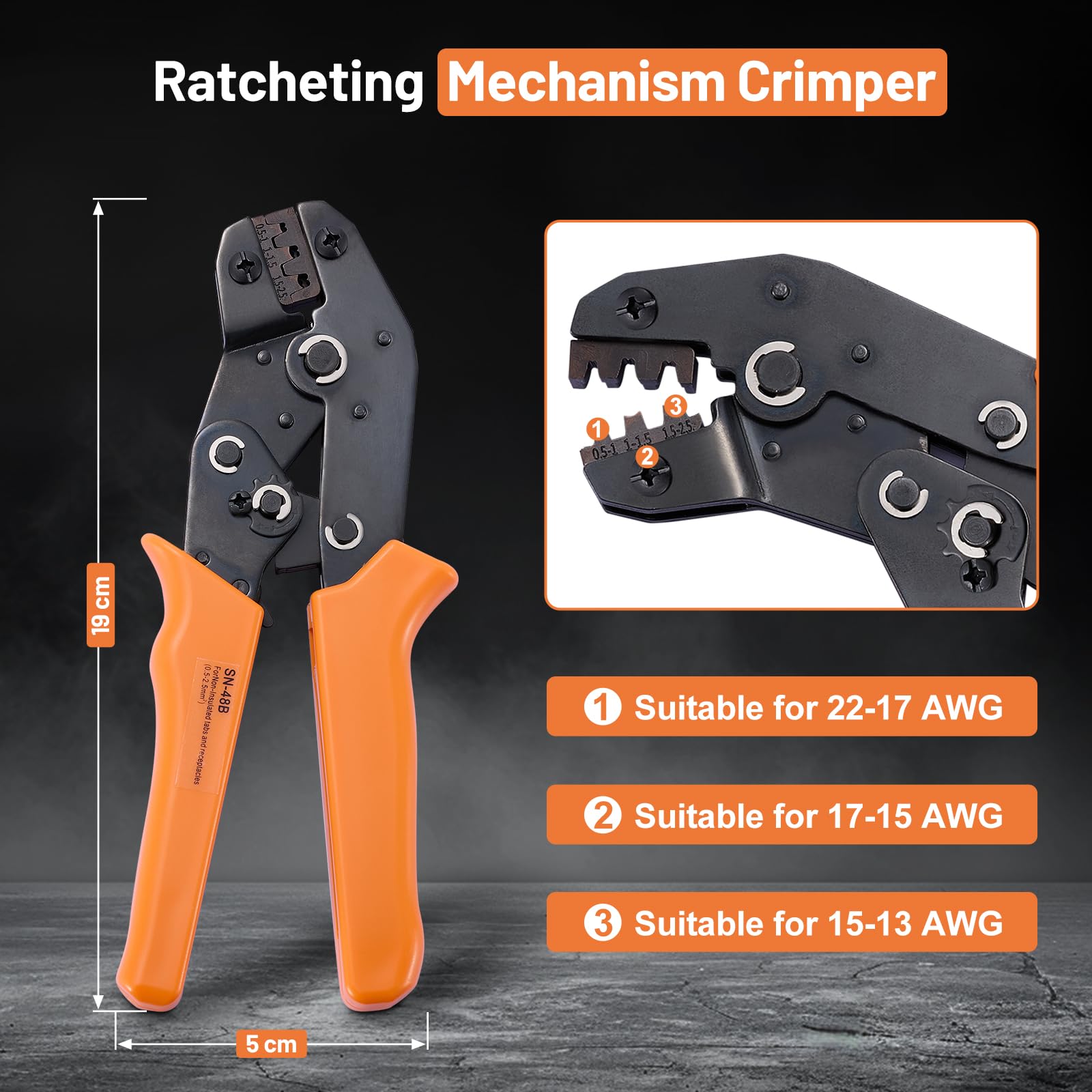

Image: Close-up of the ratchet crimping tool, showing its dimensions and compatibility with 22-17 AWG, 17-15 AWG, and 15-13 AWG wires.

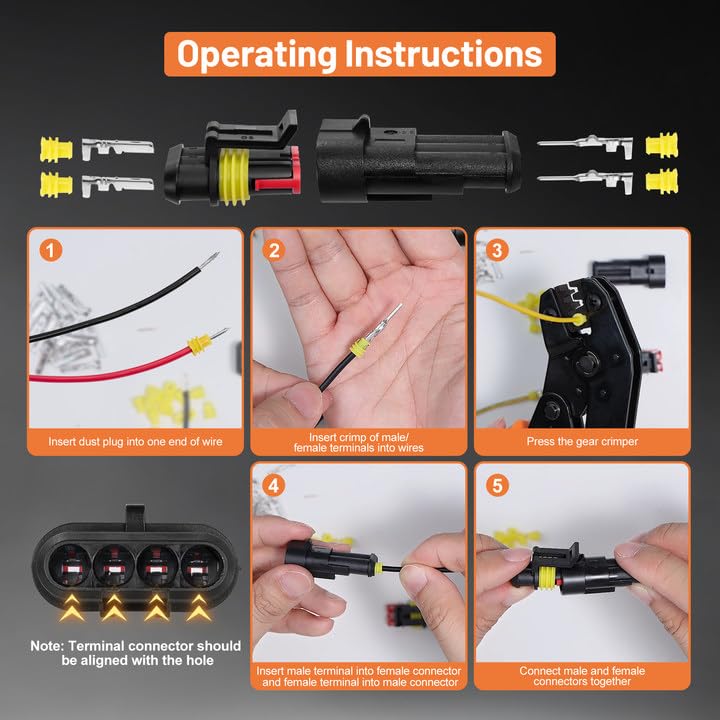

Image: Step-by-step visual guide for inserting dust plugs, crimping terminals, and inserting terminals into connector housings.

Inserting Terminals into Connectors

1. Align Terminal: Carefully insert the crimped male terminal into the male connector housing, ensuring it aligns with the designated hole. Push until you hear a click, indicating it is locked in place.
2. Align Female Terminal: Similarly, insert the crimped female terminal into the female connector housing, ensuring proper alignment and a secure click.
3. Secure Dust Plugs: Ensure the yellow dust plugs are properly seated against the back of the connector housing to provide a waterproof seal.

Návod k obsluze

Once the terminals are securely installed in their respective male and female connector housings, you can connect them.

1. Zarovnání konektorů: Align the male and female connector housings, ensuring the pins and receptacles are correctly oriented.
2. Push Together: Firmly push the male and female connectors together until they click into place. The snap fasteners will secure the connection.
3. Odpojení: To disconnect, press the release tab on the connector and pull the two halves apart.

Image: This diagram illustrates the final step of connecting the male and female connector housings after terminals are inserted.

How to Use Heat Shrink Terminals

The kit includes heat shrink terminals for creating sealed, waterproof wire-to-wire connections.

1. Připravte dráty: Strip insulation from the ends of the two wires you wish to connect.
2. Vložte dráty: Insert the stripped ends of the wires into opposite sides of a heat shrink terminal, ensuring they meet in the middle.
3. Aplikujte teplo: Use a heat gun to evenly heat the heat shrink terminal. The tubing will shrink and the hot melt adhesive inside will melt, creating a waterproof seal around the wires. Do not use a crimping tool or lighter for this step.

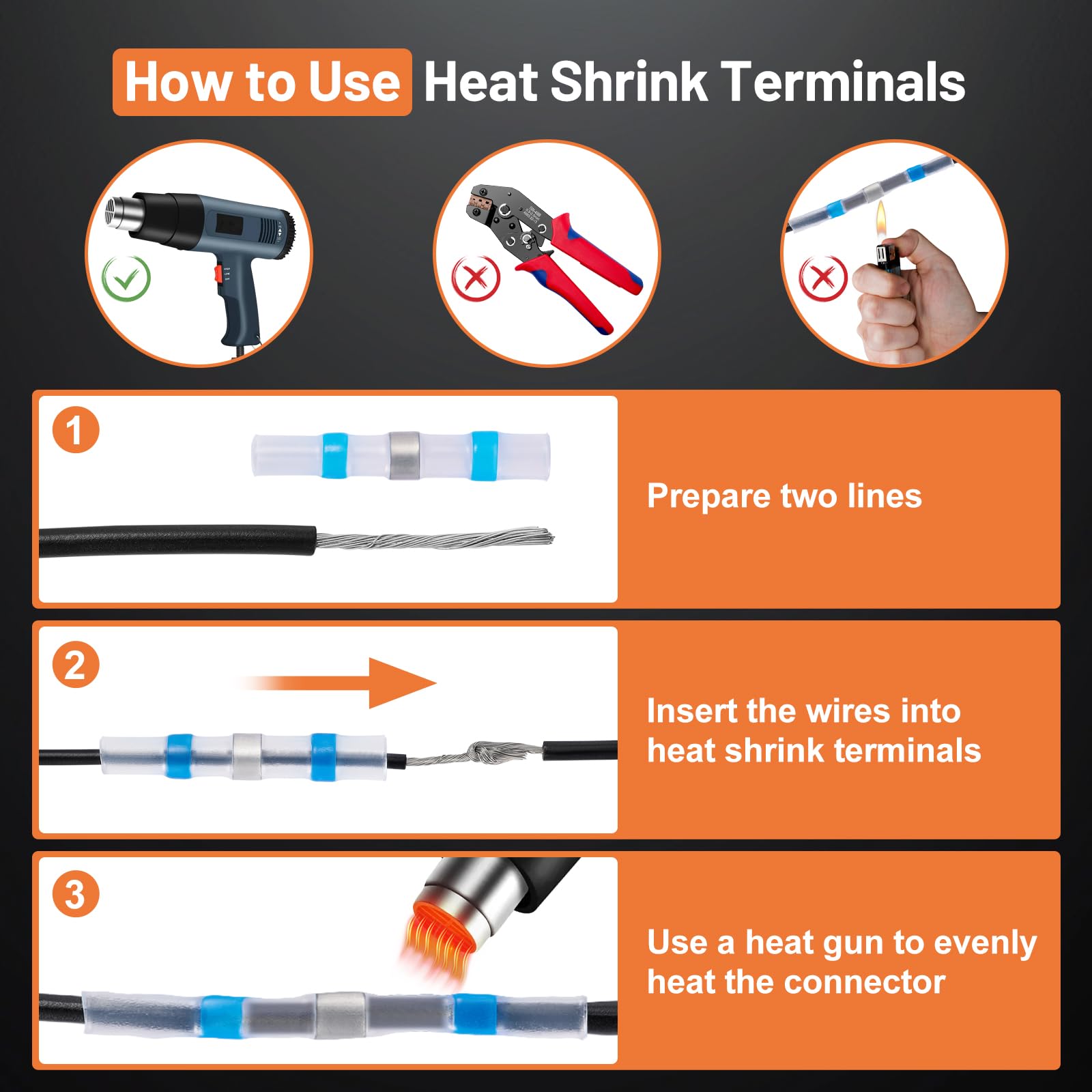

Image: Visual guide demonstrating the correct method of using heat shrink terminals with a heat gun, and incorrect methods using a crimper or lighter.

Product Details and Features

The Filluck automotive electrical wire connectors are designed with high-quality materials to ensure performance and durability:

• Vodotěsná funkce: The hot melt adhesive and double-wall shrink tubing within the heat shrink connectors provide a sealed, waterproof environment. This prevents moisture and air leakage, making them suitable for outdoor and underground use.
• Vysoce kvalitní materiály:
  • nylon: Used for good waterproofing in connector housings.
  • Mosaz: For terminals, ensuring good conductivity and stability.
  • Oxid křemičitý: For dust plugs, providing dustproof and unbreakable properties.
  • Hotmelt: Ensures a good waterproof environment for heat shrink connections.
• Spolehlivé připojení: Pin connectors are copper plated for improved conductivity, easy soldering, and reliable crimp installation, ensuring a secure connection without loosening.
• Všestranná aplikace: Suitable for wire connections in various vehicles and tools, including cars, tractors, snow machines, fans, and trucks. Ideal for both home DIY and professional auto repair shops.
• Organizované úložiště: The kit comes with a transparent storage box for easy organization and storage of all components.

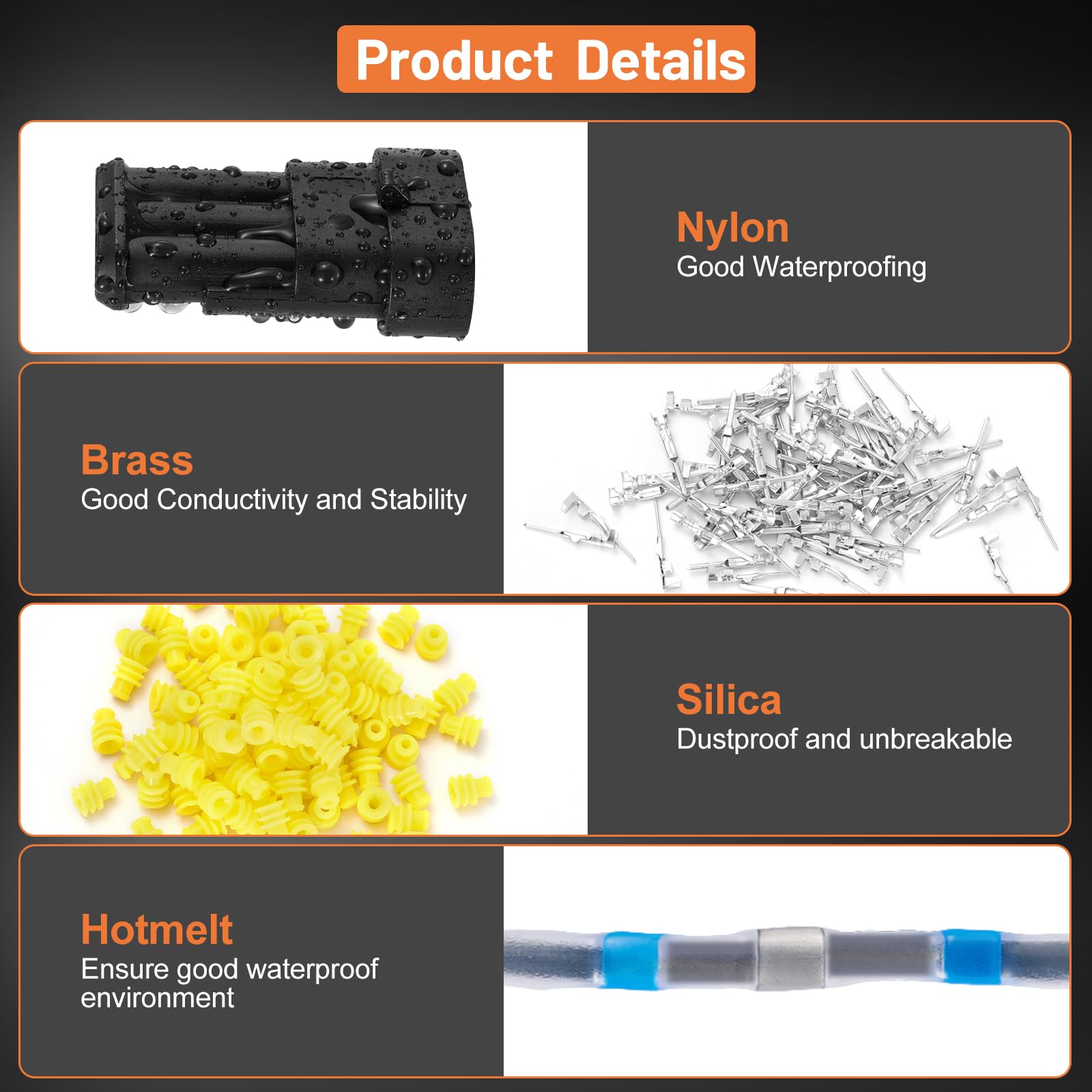

Image: Illustrates the key materials used in the connectors and their benefits, such as Nylon for waterproofing and Brass for conductivity.

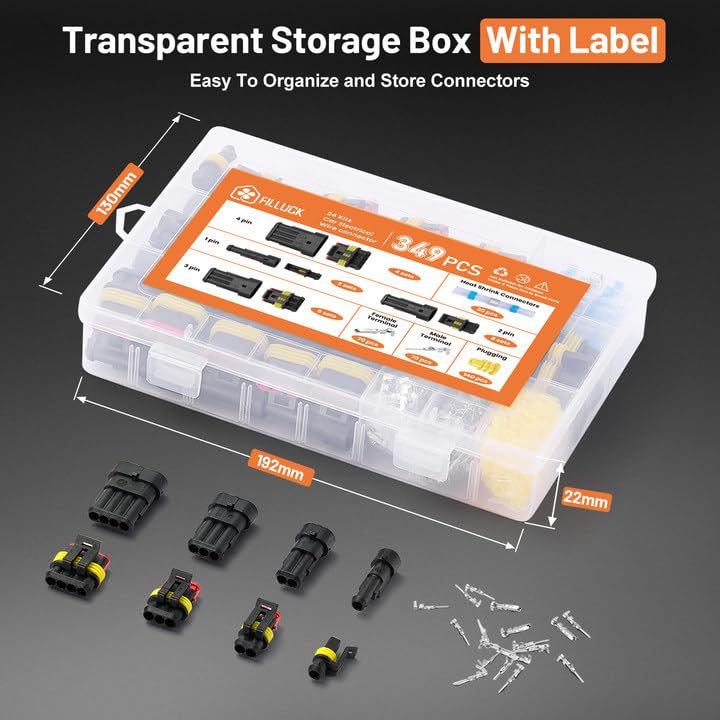

Image: Shows the transparent storage box with labeled compartments, highlighting its dimensions and organization features.

Image: Depicts various scenarios where the connectors can be used, including automotive wiring, RC car wiring, and general electrical repairs.

Údržba

To ensure the longevity and optimal performance of your Filluck electrical wire connectors and crimping tool:

• Skladování: Store all components in the provided transparent storage box in a dry, cool place to prevent corrosion and damage.
• Crimping Tool Care: Keep the crimping tool clean and free of debris. Apply a light oil to moving parts periodically to ensure smooth operation.
• Kontrola konektoru: Periodically inspect installed connectors for any signs of wear, damage, or corrosion, especially in harsh environments.
• Čistota: Keep terminals and connector housings clean before assembly to ensure proper electrical contact and sealing.

Odstraňování problémů

Pokud se během montáže nebo používání setkáte s problémy, zvažte následující:

Specifikace

Záruka a podpora

For any questions, concerns, or support regarding your Filluck Automotive Electrical Wire Connectors kit, please contact Filluck customer service through the retailer's platform or the official Filluck website. Please refer to your purchase documentation for specific warranty details.
