Fast Craft W10525353 W10205848 Washer Control Board Instruction Manual

Zavedení

This manual provides comprehensive instructions for the safe and effective installation, operation, maintenance, and troubleshooting of the Fast Craft W10525353 W10205848 Washer Control Board. This control board is designed as a replacement part for various Kenmore washer models, including those compatible with part numbers PS11755954, W10022340, W10110073, W10133560, W10160261, W10205848R, W10217417, and W10246297. Please read this manual thoroughly before proceeding with any installation or repair work.

Bezpečnostní informace

VAROVÁNÍ: Before attempting any installation, repair, or maintenance, always disconnect the washer from its power source to prevent electric shock. Failure to do so can result in serious injury or death.

• Ensure all power to the appliance is disconnected at the circuit breaker or fuse box.
• Používejte vhodné osobní ochranné prostředky, jako jsou rukavice a ochranné brýle.
• Pokud si nejste jisti některým krokem, poraďte se s kvalifikovaným technikem pro spotřebiče.
• Udržujte děti a domácí zvířata mimo pracovní oblast.
• S elektronickými součástkami zacházejte opatrně, abyste předešli poškození statickou elektřinou.

Nastavení a instalace

1. Kontroly před instalací

• Verify that the replacement control board (W10525353 W10205848) is compatible with your specific Kenmore washer model. Refer to your washer's original manual or manufacturer's specifications.
• Inspect the new control board for any visible damage before installation.

2. Požadované nástroje

• Screwdriver (Phillips and/or flathead, depending on your washer model)
• Sada nástrčných klíčů nebo objímek (pokud je k dispozici)
• Needle-nose pliers (optional, for connectors)
• Pracovní rukavice

3. Kroky instalace

1. Odpojit napájení: Unplug the washer from the electrical outlet and turn off the circuit breaker supplying power to the laundry area.
2. Přístup k ovládacímu panelu: Depending on your washer model, you may need to remove the top panel, back panel, or control console to access the existing control board. Refer to your washer's service manual for specific access instructions.
3. Propojení dokumentů: Před odpojením jakýchkoli vodičů si pořiďte jasné fotografie nebo si vytvořte schéma všech vodičových připojení ke staré řídicí desce. To bude zásadní pro správnou opětovnou montáž.
4. Odpojení vodičů: Opatrně odpojte všechny kabelové svazky a konektory od staré řídicí desky. Upozorňujeme, že některé konektory mohou mít pojistné západky, které je třeba stisknout nebo zvednout.
5. Odstraňte starou desku: Odšroubujte nebo uvolněte starou řídicí desku z jejích montážních držáků.
6. Instalace nové desky: Position the new W10525353 W10205848 control board in the same location and secure it with the original screws or clips.
7. Znovu zapojte vodiče: Using your photos or diagram, carefully reconnect all wire harnesses and connectors to the new control board. Ensure each connection is secure and correctly seated.
8. Znovu sestavte pračku: Reattach any panels or the control console that were removed. Ensure all screws are tightened and panels are securely in place.
9. Obnovit napájení: Plug the washer back into the electrical outlet and restore power at the circuit breaker.

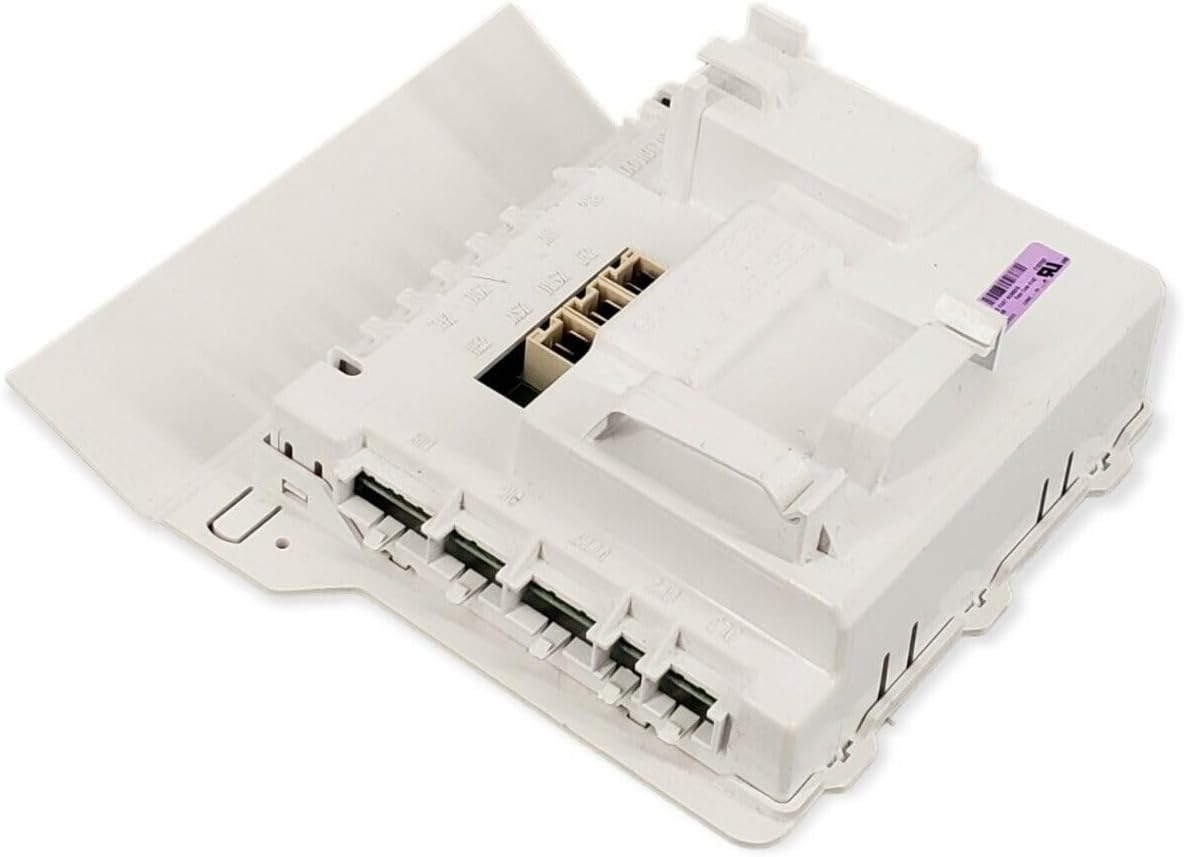

Image: The Fast Craft W10525353 W10205848 Washer Control Board. This image displays the white plastic housing of the control board with various electrical connectors and terminals visible on its surface, designed for integration into a washing machine's control system.

Návod k obsluze

After successful installation of the W10525353 W10205848 control board, the washer should function according to its original design specifications. Refer to your specific Kenmore washer's user manual for detailed operating instructions, cycle selections, and feature usage. The control board facilitates the proper functioning of these operations.

First Use After Installation: Run a short, empty wash cycle to ensure all functions are operating correctly and there are no error codes displayed.

Údržba

The W10525353 W10205848 control board is a sealed electronic component and generally requires no routine maintenance. To ensure its longevity and proper function:

• Ensure the washer is kept in a dry environment, free from excessive moisture or humidity.
• Avoid exposing the washer to extreme temperature fluctuations.
• If cleaning the washer's exterior, ensure no liquids penetrate the control panel area where the board is housed.

Odstraňování problémů

If your washer experiences issues after installing the W10525353 W10205848 control board, consider the following troubleshooting steps:

If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance repair technician for further diagnosis and repair.

Specifikace

• Číslo dílu: W10525353 W10205848
• Číslo modelu položky: WPW10525353 W10525353
• Rozměry produktu: 7 x 4.99 x 1 palce
• Zahrnuté komponenty: Kontrolní rada
• Výrobce: OEMNYCL (Brand: Fast Craft)
• Kompatibilita: Designed for various Kenmore washer models (replaces PS11755954, W10022340, W10110073, W10133560, W10160261, W10205848R, W10217417, W10246297, AP6022620)

Záruka a podpora

The product specifications mention a warranty description of "1". For detailed warranty information, including terms, conditions, and duration, please contact the seller, NYCL (USA), or the manufacturer, OEMNYCL, directly. Keep your purchase receipt as proof of purchase.

For technical support or assistance with installation and troubleshooting beyond the scope of this manual, please reach out to the seller or a certified appliance technician.
