Zavedení
The JDIAG TPMS Relearn Tool T508 is designed to activate and reset Tire Pressure Monitoring System (TPMS) sensors in various vehicle models. This tool facilitates the relearning process after tire rotation, sensor replacement, or seasonal tire changes, ensuring accurate tire pressure monitoring.
It supports tire sensors operating at 315 MHz or 433 MHz frequencies.
Konec produktuview
The JDIAG T508 tool features a compact design with an LCD screen and intuitive button controls for easy navigation and operation.

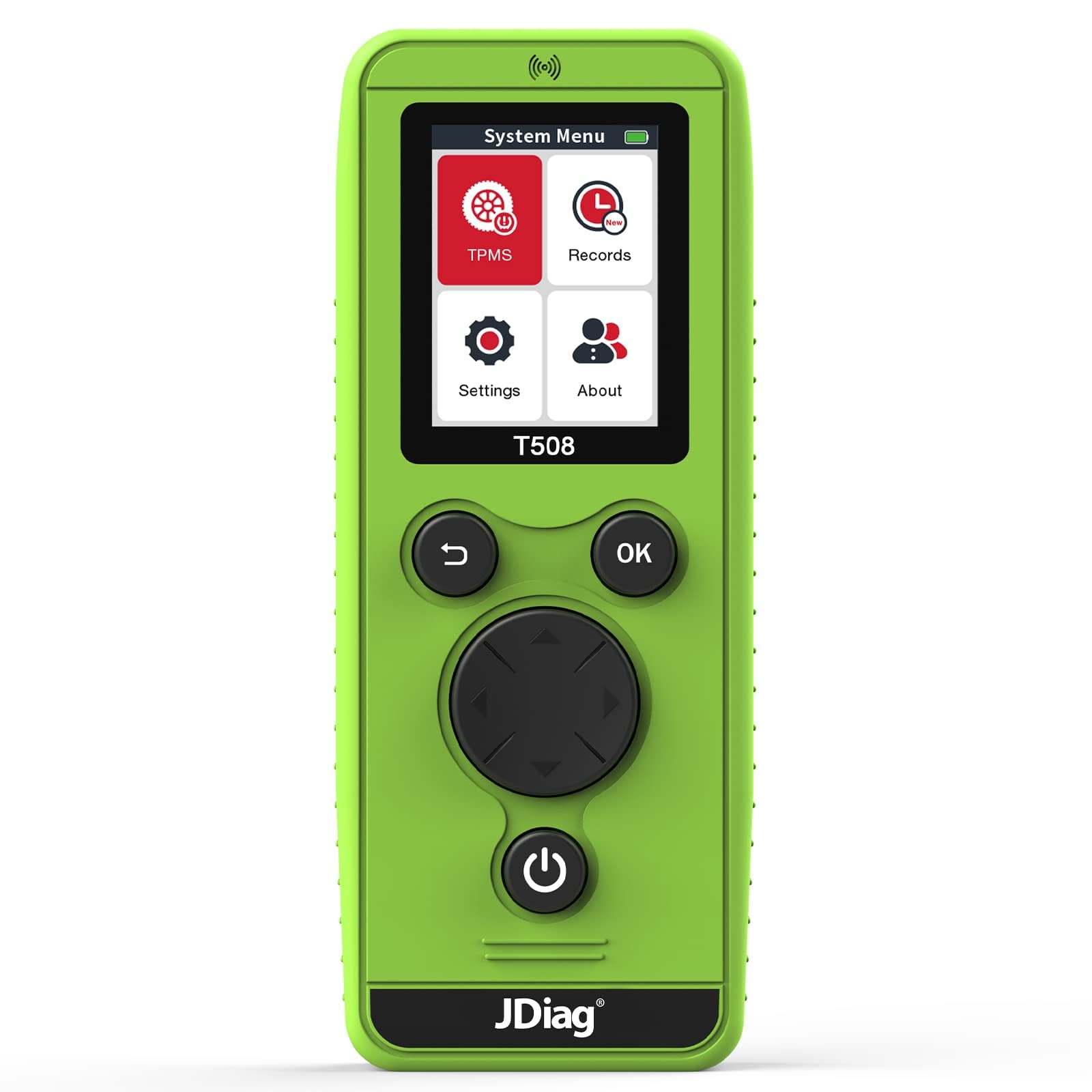

Obrázek: Přední strana view of the JDIAG TPMS Relearn Tool T508.
Součásti a ovládací prvky zařízení
Obrázek: Podrobný view of the JDIAG T508 tool with labeled components and controls.
- Anténa: Located at the top for signal transmission and reception.
- USB rozhraní: For connecting to a computer to perform firmware upgrades.
- Obrazovka: Displays the system menu, vehicle information, and relearn procedures.
- TPMS System Menu: Select to choose vehicle brand and year for TPMS relearn.
- Evidence: View previously tested vehicle data.
- Nastavení: Adjust language, region, power-off time, and other device preferences.
- O: Zobrazuje základní informace o zařízení.
- Zpětný klíč: Returns to the main menu (long press).
- Tlačítko OK: Confirms selections and initiates relearn procedures.
- Navigační klávesy (nahoru, dolů, vlevo, vpravo): Pro navigaci v menu.
- Vypínač: Turns the device on/off (long press).
- Přihrádka na baterie: Located at the back, requires 3 AA batteries.
Nastavení
Instalace baterie
- Locate the battery compartment on the back of the T508 tool.
- Otevřete kryt bateriového prostoru.
- Vložte 3 nové baterie typu AA a dbejte na správnou polaritu (+/-).
- Bezpečně zavřete kryt bateriového prostoru.
Důležitá poznámka: New AA batteries are required for optimal performance. The signal strength of the TPMS tool is affected by battery voltage.
Počáteční zapnutí
Long press the Power Key (⏻) to turn on the device. The main menu will appear on the screen.
Operating Instructions: TPMS Sensor Activation
Follow these steps to activate and relearn TPMS sensors:
Image: Visual guide illustrating the four steps for TPMS sensor activation.
- Step 1: Enter TPMS System. From the main menu, select the 'TPMS' option. Choose your car's brand and year.
- Step 2: Set Vehicle to Learning Mode. Ensure your vehicle is in TPMS learning mode. Refer to your vehicle's owner's manual or the 'Relearn Procedure' option within the T508 tool (after selecting your vehicle) for specific instructions on how to enter learning mode.
- Step 3: Scan Single Sensor. Select 'Scan Single Sensor' on the T508. Place the tool's antenna near the tire valve stem, against the tire sidewall. Press the 'OK' key to initiate the relearn process for that tire. The vehicle's horn will typically chirp once to confirm successful reset of the tire.
- Step 4: Complete Relearn Sequence. Proceed to relearn the remaining tires in the following order: Front Left, Front Right, Rear Left, Rear Right. The vehicle's horn will chirp twice, indicating that the entire tire relearn process is complete.
Ensure the tool's antenna is correctly positioned during scanning for optimal signal reception.
Kompatibilita vozidel
The JDIAG T508 TPMS Relearn Tool is compatible with a wide range of vehicles equipped with 315 MHz or 433 MHz TPMS sensors. Supported brands include, but are not limited to:

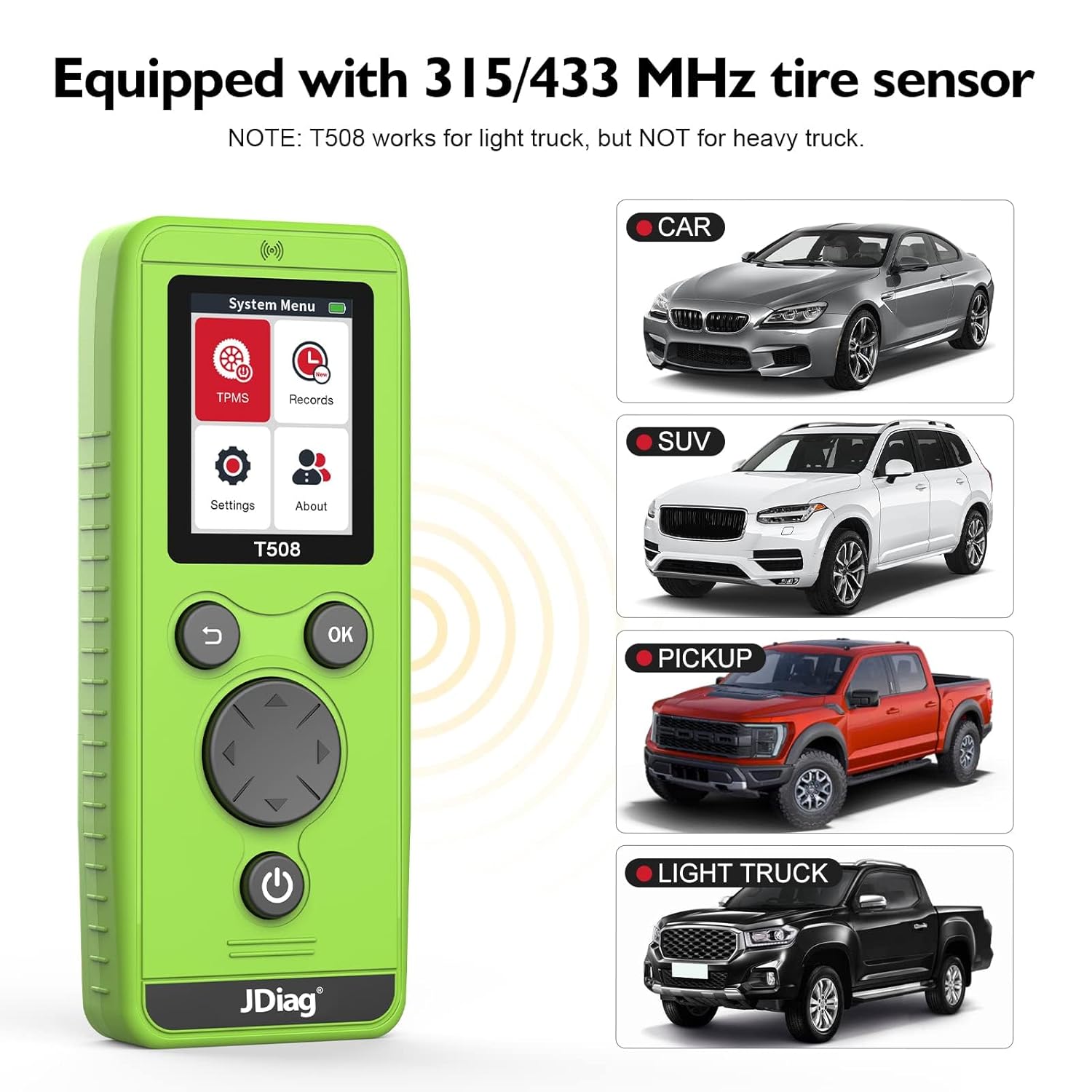

Image: The JDIAG T508 tool is compatible with various vehicle types including cars, SUVs, pickups, and light trucks.
- General Motors (GM) Series: Buick, Cadillac, Chevrolet, GMC, Opel, Saturn.
- Ford Series: F150, F250, Focus, Mustang, Lincoln, Mercury.
- Chrysler Series: Chrysler, Dodge, RAM, Jeep.
- Volkswagen Series.
- Volvo, Skoda.
- Mercedes, BMW.
- A další.
Poznámka: For Subaru, Toyota, Honda, and similar vehicles, an additional OBD tool may be required to assist the T508 in entering learning mode and completing the tire pressure relearn process. The T508 is designed for light trucks but is not compatible with heavy trucks and vans.
Důležité poznámky a tipy
- Always use new AA batteries for optimal signal strength and performance.
- Ensure the antenna is correctly positioned on the tire sidewall near the valve stem during the scanning process.
- For certain vehicle brands (e.g., Subaru, Toyota, Honda), an OBD tool might be necessary in conjunction with the T508 to complete the TPMS relearn procedure.
- The device firmware can be upgraded via USB cable. Check the manufacturer's webstránky pro nejnovější aktualizace.
Image: Illustration of the T508's signal strength and range during operation.
Údržba
- Udržujte zařízení čisté a bez prachu a vlhkosti. K čištění používejte měkký, suchý hadřík.
- Store the tool in a cool, dry place when not in use.
- Pokud zařízení nebudete delší dobu používat, vyjměte baterie, abyste zabránili jejich vytečení.
- Zabraňte pádu zařízení nebo jeho vystavení silným nárazům.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Zařízení se nezapne. | Slabé nebo vybité baterie; nesprávná instalace baterií. | Vyměňte za nové baterie typu AA a dbejte na správnou polaritu. |
| Sensor not activating/relearning. | Vehicle not in learning mode; incorrect tool positioning; weak battery signal; incompatible sensor frequency. | Verify vehicle is in learning mode. Reposition the tool closer to the valve stem. Replace device batteries. Confirm sensor frequency (315/433 MHz). |
| Inconsistent signal or activation. | Nízký objem baterietage; antenna not correctly aligned. | Ensure fresh batteries are used. Adjust antenna position for better contact with the tire sidewall. |
Specifikace
- Značka: JDiag
- Model: T508 Relearn tool
- Číslo dílu výrobce: T508
- Zdroj napájení: Napájení z baterií (3 x AA baterie, nejsou součástí balení)
- Operační systém: Linux
- Supported TPMS Frequencies: 315 MHz, 433 MHz
- Konektivita: USB for upgrades
Záruka a podpora
For warranty information, technical support, or service inquiries, please contact JDiag customer service directly. Refer to the product packaging or the official JDiag webkontaktní údaje a nejaktuálnější záruční podmínky naleznete na webových stránkách.
