Zingbabu Photography Lighting Kit

1. Úvod

Thank you for choosing the Zingbabu Photography Lighting Kit. This comprehensive kit is designed to provide professional-grade lighting solutions for various photography and videography needs, including product photography, portraiture, and video production. It features dimmable LED bulbs, CFL bulbs, softboxes, umbrellas, and a versatile backdrop stand with multiple backdrops. This manual will guide you through the setup, operation, and maintenance of your new lighting equipment.

2. Důležité bezpečnostní pokyny

Před použitím výrobku si prosím přečtěte a pochopte všechny bezpečnostní pokyny. Nedodržení těchto pokynů může vést k úrazu elektrickým proudem, požáru nebo vážnému zranění.

• Always ensure the power is off and the kit is unplugged before assembly, disassembly, or maintenance.
• Nevystavujte elektrické součásti vodě ani nadměrné vlhkosti.
• Use only the specified bulbs and accessories provided or recommended by Zingbabu.
• Ensure all stands are stable and securely tightened to prevent tipping.
• Během provozu udržujte děti a domácí zvířata mimo dosah zařízení.
• Avoid direct eye exposure to the light source, especially the LED bulbs, as they can be very bright.
• Do not cover the bulbs or softboxes with flammable materials. Ensure adequate ventilation.
• If any part of the kit is damaged, discontinue use immediately and contact customer support.

3. Obsah balení

Ověřte, zda jsou všechny níže uvedené komponenty součástí balení. Pokud některé položky chybí nebo jsou poškozené, kontaktujte zákaznickou podporu.

Obrázek 3.1: Přesview všech zahrnutých komponent.

4. Pokyny k nastavení

4.1 Assembling the Light Stands

1. Unfold the legs of the aluminum light stand (27-80 inch) until they are fully extended and stable.
2. Adjust the height of the stand by loosening the locking knobs on each section, extending the pole to the desired height, and then securely tightening the knobs.

4.2 Attaching Softboxes

1. Open the softbox frame. Insert the support rods into the designated holes on the softbox and the lamp držák.
2. Attach the softbox to the top of a light stand by sliding the lamp holder onto the stand's spigot and tightening the locking screw.
3. Insert the diffuser cloth into the front of the softbox, securing it with the Velcro fasteners.

Figure 4.1: Softbox assembly details.

4.3 Attaching Umbrellas

1. Mount the E27 lamp holder for umbrella lights onto the top of a light stand and secure it.
2. Open the umbrella and insert its shaft through the hole in the lamp holder. Adjust the umbrella's position to control light spread.

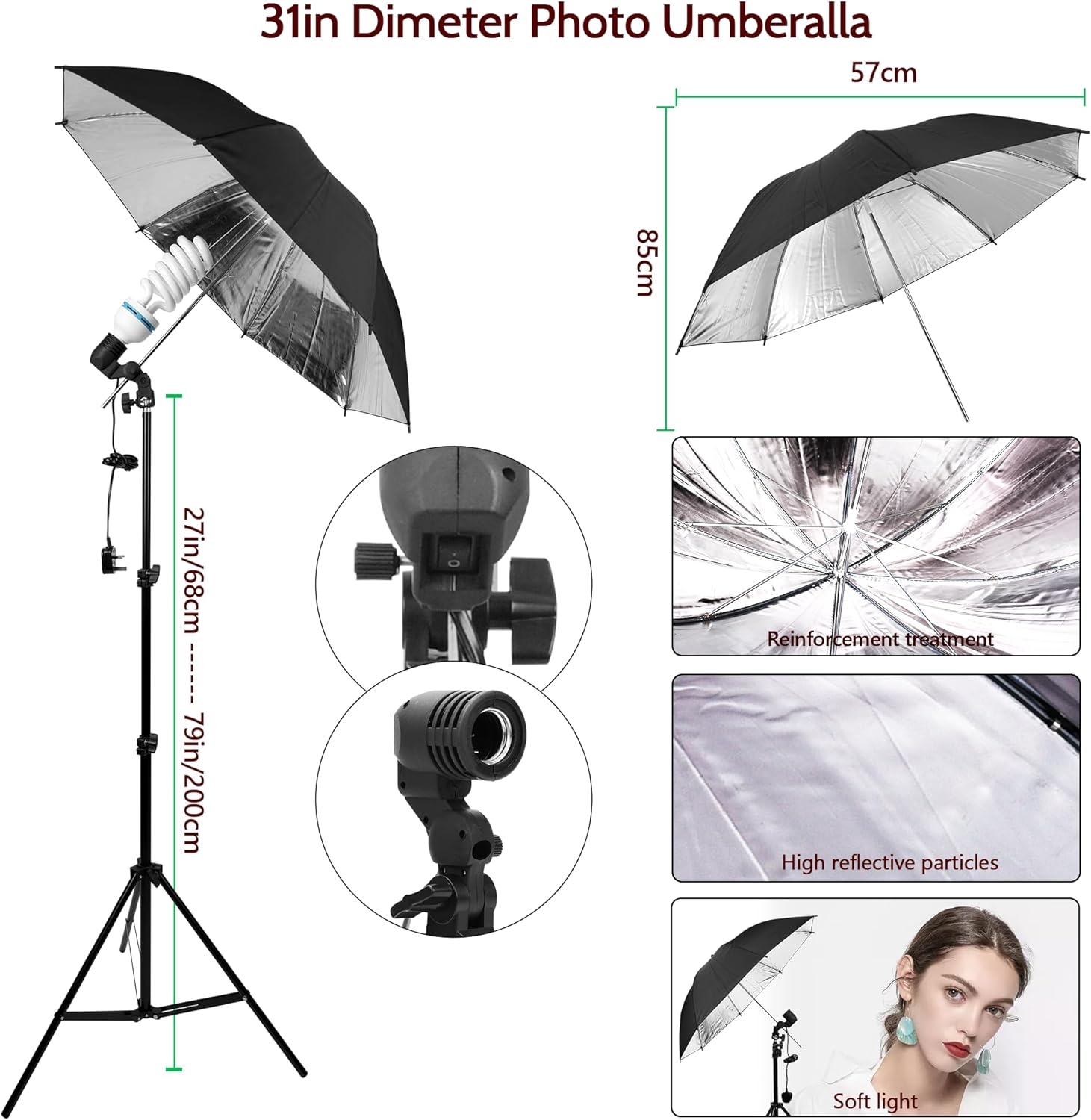

Figure 4.2: Umbrella setup with lamp držák.

4.4 Installing Bulbs

1. Carefully screw the 85W Dimmable LED Bulbs or 135W CFL Bulbs into the E27 sockets of the softbox lamp holders or umbrella lamp držáky. Ujistěte se, že jsou bezpečně utažené, ale nepřetahujte je.

Figure 4.3: 85W Dimmable LED Bulbs.

Figure 4.4: 135W CFL Bulbs and lamp držák.

4.5 Setting up the Backdrop Stand

1. Assemble the two vertical stands for the backdrop support system by extending their legs and adjusting their height.
2. Connect the horizontal crossbar sections to form the desired width.
3. Attach the assembled crossbar to the top of the vertical stands.
4. Drape your chosen backdrop (Black, White, Gray, or Green) over the crossbar.
5. Use the backdrop clamps to secure the backdrop to the crossbar and the backdrop straighten clamps to smooth out wrinkles and secure the sides if needed.

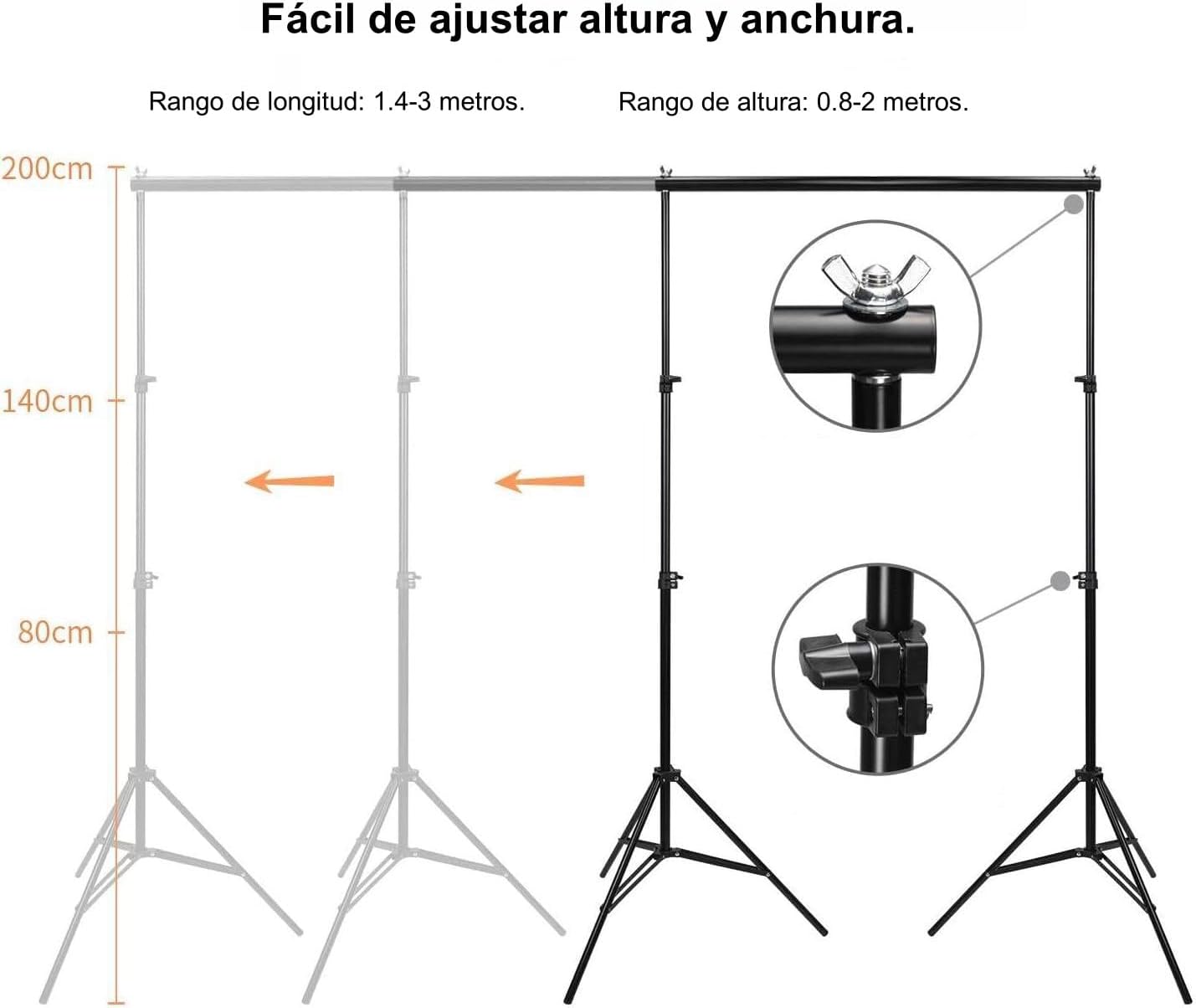

Figure 4.5: Backdrop stand height and width adjustment.

Figure 4.6: Available backdrop colors and their applications.

5. Návod k obsluze

5.1 Zapnutí/vypnutí

Plug the power cords of the lamp holders into a standard electrical outlet. For softboxes, use the integrated on/off switch on the power cord. For umbrella lights, the power is controlled by plugging/unplugging or using a wall switch if connected to a switched outlet.

5.2 Adjusting Dimmable LED Bulbs

The 85W Dimmable LED Bulbs can be controlled using the included remote control.

• Nastavení jasu: Use the '+' and '-' buttons on the remote to increase or decrease the light intensity.
• Nastavení teploty barev: Use the dedicated buttons on the remote to switch between Cold White (5500K), Daylight White, and Warm White (3200K) color temperatures.

Figure 5.1: Softbox with remote control.

5.3 Using the 5-in-1 Reflector

The 60cm 5-in-1 reflector offers various surfaces for light modification:

• Zlato: Adds a warm tone to the light.
• Stříbro: Provides a bright, high-contrast reflection.
• Bílý: Offers a soft, neutral reflection.
• Černý: Used to block light or create shadows.
• Průsvitný: Acts as a diffuser to soften harsh light.

6. Údržba

6.1 Čištění

• Always unplug the kit before cleaning.
• Wipe down light stands and lamp holders with a soft, dry cloth.
• For softboxes and umbrellas, use a slightly damp cloth to gently wipe surfaces. Ensure they are completely dry before storage.
• Backdrops can be machine washed on a gentle cycle with cold water and air-dried. Iron on a low setting if necessary.

6.2 Skladování

• Disassemble the kit and store all components in the provided carry bags to protect them from dust and damage.
• Skladujte na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.

6.3 Výměna žárovky

• Ensure the power is off and the bulb has cooled down before attempting to replace it.
• Carefully unscrew the old bulb and screw in a new E27 base bulb of the appropriate wattage (85W LED or 135W CFL).

7. Řešení problémů

If you encounter any issues with your Zingbabu Photography Lighting Kit, please refer to the following table for common problems and solutions.

8. Specifikace

9. Záruka a podpora

Zingbabu products are manufactured with high-quality materials and craftsmanship. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Zingbabu website. Please have your model number (Set Completo 135W) and purchase date ready when contacting support.
