Installation Instructions
Line Feed
SingleFlexLine Program 0815
Technical Data
- For straight and bended rails r ≥ 1000 mm
- Imax = 54 A
- Cable Cross Section = 4-6 mm²
Installation
Work steps:

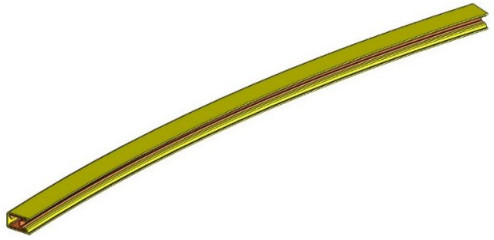

- Bend the rail to the desired radius (see BAL0800-0004).

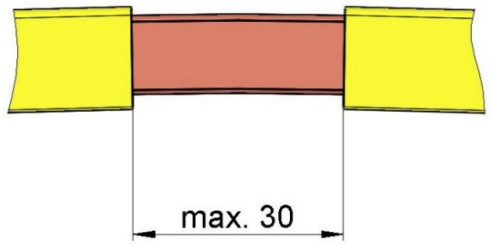

- Cut the insulation profile on the needed position.
- Put the U-plate on the right position and drill a hole with Ø = 3.1 mm (one hole on each side with a staggered arrangement).
Notice: The holes (1) for the blind rivets are no through holes!
- Put a blind rivet at each side, notice a staggered arrangement.
- Crimp the cable and cable lug.
- Consider the required arrangement of small parts and fix it with the hexagon nut. Tighten the screw with 2 Nm.
All parts included in delivery!
Pos. Description 1 Contact Plate Line Feed 0815 2 Blind Rivet Copper/Bronze Ø3×5 Flat Head 3 Cable Lug M4/6mm² 4 Detent-Edged Washer SHB-K-D4,1-A4 5 Hexagon Nut DIN934-M4-A4 6 Power Feed Cover 0815 SP - After the assembly it should be like following:
- After the cable was connected, put the feed cap over the feeding point and consider the direction for the cable.
- Installation position (feed offset): Mount the power feeds with an offset
- Do not mount the power feeds directly next to the hanger clamp.
| Conductix-Wampfler GmbH Rheinstraße 27 + 33 79576 Weil am Rhein – Märkt Germany |
Phone: +49 (0) 7621 662-0 Fax: +49 (0) 7621 662-144 info.de@conductix.com www.conductix.com |
 Importer for the United Kingdom:Conductix-Wampfler Ltd. 1, Michigan Avenue Salford M50 2GY United Kingdom |
Phone: +44 161 8480161 Fax: +44 161 8737017 info.uk@conductix.com www.conductix.com |
Order Number: 08-E015-0570
MV0815-0009b-EN
www.conductix.com
original document
