TOPPING D900 Ultra-Flagship DAC User Manual

Introduzione

This manual provides comprehensive instructions for the setup, operation, and maintenance of your TOPPING D900 Ultra-Flagship DAC. The D900 is engineered for high-fidelity audio reproduction, featuring a self-developed PSRM 1-Bit decoding architecture, advanced I/V conversion, and extensive connectivity options.

E caratteristiche chjave includenu:

• Self-Developed PSRM 1-Bit Decoding Architecture for exceptional fidelity.
• Proprietary I/V Conversion Circuit ensuring clean and detailed analog output.
• Wide Format Compatibility with USB-C, USB-B, optical, coaxial, AES, IIS-LVDS, and Bluetooth 5.1 (LDAC/aptX/HD/AAC/SBC).
• Precisione Preamp Functionality with high-accuracy volume control.
• Ultra-Low Jitter Performance via advanced CPLD clock processing.
• Customizable 10-Band PEQ for fine-tuning sound.
• Interactive Full-Color Display with multiple views and customizable background colors.
• Premium CNC-Machined Remote for convenient control.

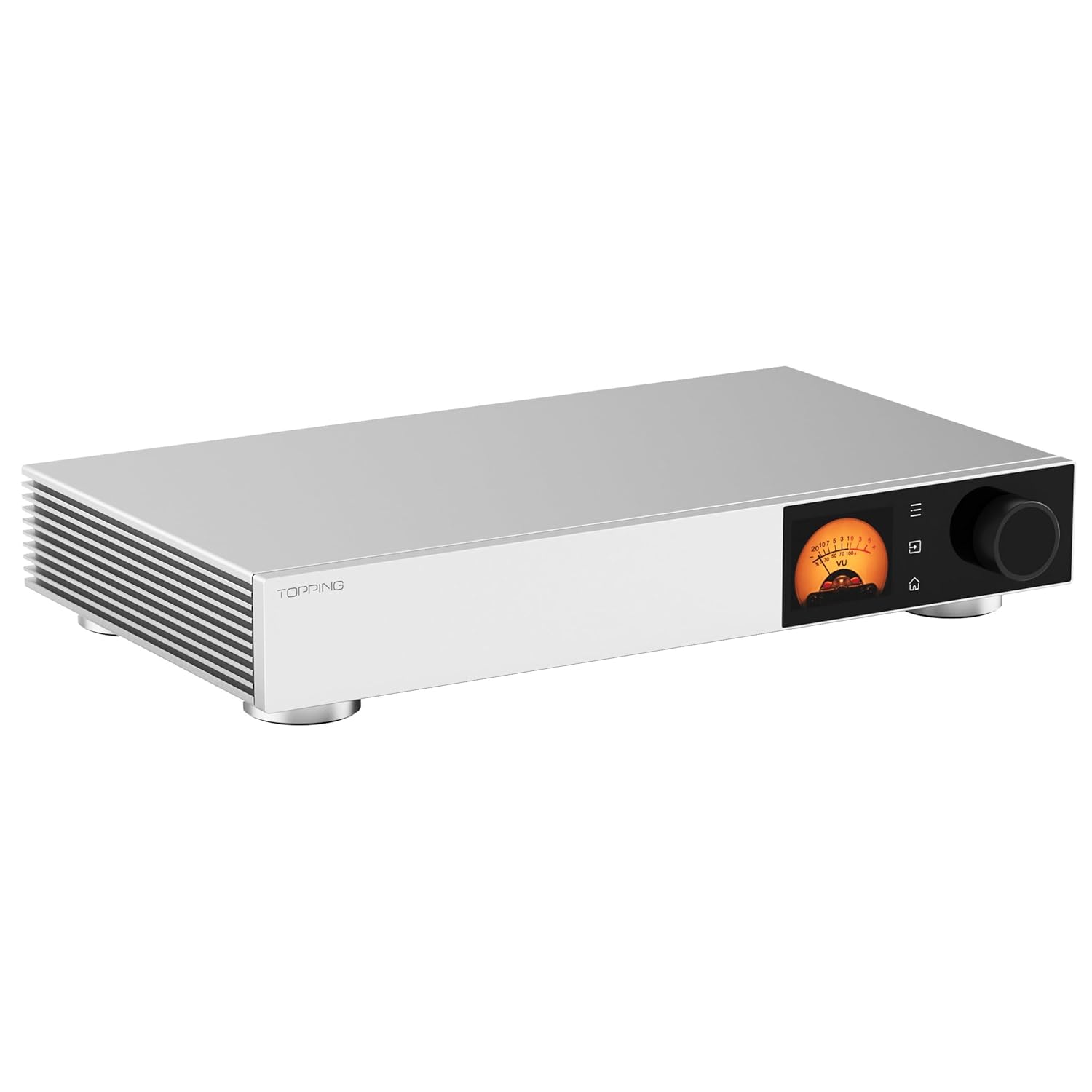

Figura 1: Fronte view of the TOPPING D900 DAC, showcasing its sleek silver chassis and integrated display.

Istituisci

1. Disimballaggio è piazzamentu

Carefully remove the D900 from its packaging. Ensure all accessories, including the power cable and remote control, are present. Place the unit on a stable, flat surface with adequate ventilation to prevent overheating. Avoid placing it near strong magnetic fields or heat sources.

2. Connection Power

Connect the provided power cable to the AC inlet on the rear panel of the D900 and then to a suitable wall outlet. Ensure the power switch is in the OFF position before connecting.

3. Cunnessioni Audio

The D900 offers a variety of input and output options. Select the appropriate cables for your audio system.

Figura 2: Pannellu frontale è posterioreview of the TOPPING D900, showing all available connections.

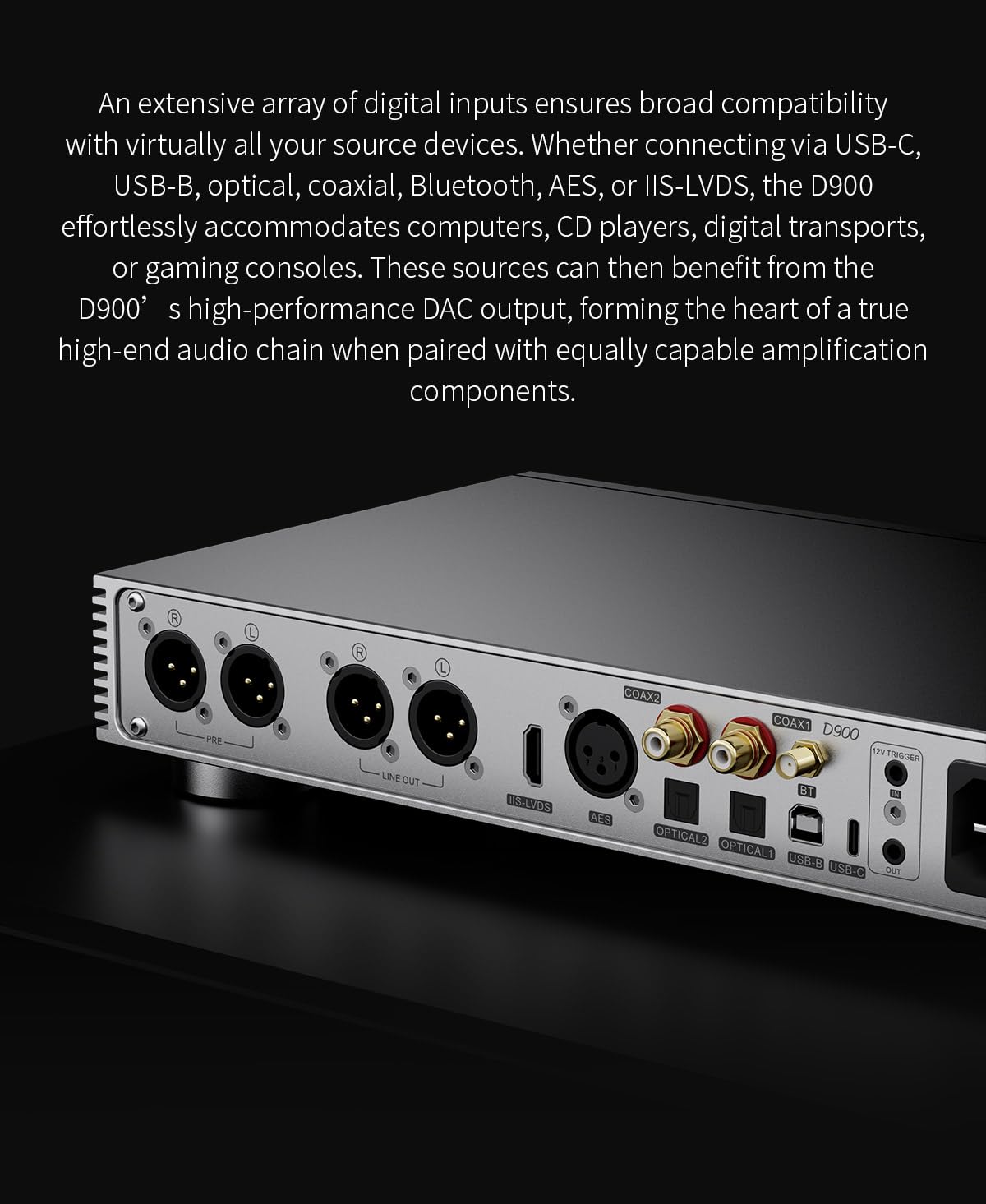

Figura 3: Angulata view of the TOPPING D900 rear panel, detailing the various input and output ports.

• Uscite analogiche:
  • Uscita bilanciata XLR: Connect to balanced inputs of an amplifier or active speakers using XLR cables.
  • RCA Single-Ended Output: Connect to single-ended inputs of an amplificatore o altoparlanti attivi chì utilizanu cavi RCA.
• Input Digitale:
  • USB-B / USB-C: Connect to a computer or digital audio player.
  • Otticu (TOSLINK): Connect to devices with optical digital output (e.g., CD players, TVs).
  • Coaxial (RCA): Connect to devices with coaxial digital output.
  • AES (XLR): Connect to professional audio equipment with AES/EBU digital output.
  • IIS-LVDS (HDMI): Connect to compatible devices for high-quality digital audio transmission.
  • Bluetooth: Per a trasmissione audio senza filu da dispositivi cumpatibili.

Figura 4: Primu pianu view of the TOPPING D900's rear panel, clearly labeling each input and output port for easy connection.

Istruzzioni di funziunamentu

1. Powering On / Off

After connecting all cables, flip the power switch on the rear panel to the ON position. The unit will power on and display the TOPPING logo before showing the main interface.

2. Cuntrolli di u Pannellu Frontale è Display

The D900 features a full-color display and a multi-function knob for intuitive control.

• Maniglia multifunzione: Girate per aghjustà u vulume o navigà in i menu. Appughjà per cunfirmà e selezzione.
• Display: Shows current input, volume level, sample rate, and various display modes (e.g., FFT spectrum, VU meter).

Figure 5: The interactive full-color display of the TOPPING D900, showing various customizable display modes and background color options.

3. Selezzione Input

Use the front panel knob or the remote control to cycle through available digital inputs (USB-B, USB-C, Optical 1/2, Coaxial 1/2, AES, IIS-LVDS, Bluetooth). The selected input will be indicated on the display.

4. Volume Control and Preamp Funzione

The D900 can function as a DAC with fixed output or as a preamplifier with variable volume control. Rotate the knob to adjust the volume in 0.5dB steps. The current volume level is shown on the display. For direct connection to active speakers or power amplifiers, enable the preamp function in the settings menu.

5. Abbinamentu Bluetooth

To pair a Bluetooth device, select the Bluetooth input. The D900 will enter pairing mode. On your device, search for "TOPPING D900" and connect. The D900 supports LDAC, aptX HD, aptX, AAC, and SBC codecs.

6. PEQ Tuning (Parametric Equalizer)

The D900 features a customizable 10-band parametric equalizer. This function requires the use of TOPPING's desktop PEQ software (available for download from the official TOPPING website). The software allows you to adjust frequency, gain, and Q value for each band, supporting target curve matching and multiple user profiles. The PEQ function supports PCM up to 192kHz/32bit.

Figure 6: Screenshot of the TOPPING PEQ software interface, demonstrating the 10-band adjustment capabilities.

7. Control Remote

The included CNC-machined aluminum remote control provides full functionality for the D900, including power, input selection, volume adjustment, and menu navigation.

Figure 7: The premium CNC-machined remote control for the TOPPING D900, offering convenient operation.

Mantenimentu

To ensure the longevity and optimal performance of your TOPPING D900, follow these maintenance guidelines:

• Pulizia: Use a soft, dry cloth to wipe the exterior of the unit. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the finish.
• Ventilazione: Ensure the ventilation slots on the sides and rear of the unit are not obstructed. Proper airflow is crucial for heat dissipation.
• Conservazione: If storing the unit for an extended period, disconnect it from power and store it in a cool, dry place, ideally in its original packaging.
• Trattamentu: Maneghjà l'unità cun cura. Evitate di fà la cascà o di sottumette la à forti impatti.

Risoluzione di prublemi

If you encounter issues with your D900, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact TOPPING customer support or refer to the official TOPPING websitu per più assistenza.

Specificazioni

The following table outlines the key specifications of the TOPPING D900 DAC:

Note: Specifications are subject to change without prior notice. For the most up-to-date information, please refer to the official TOPPING websitu.

Garanzia è Supportu

Infurmazioni di Garanzia

The TOPPING D900 comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging or visit the official TOPPING websitu per i termini è e cundizioni di garanzia dettagliate. Conservate a vostra ricevuta d'acquistu cum'è prova d'acquistu per e richieste di garanzia.

Assistenza Clienti

For technical assistance, troubleshooting, or service inquiries, please contact TOPPING customer support. You can find contact information on the official TOPPING website or through the seller, Toppingaudio, on Amazon.

Risorse supplementari:

• A Guida Quick Start is included with your product.
• Visita l'ufficiale Negoziu TOPPING nant'à Amazon per più infurmazioni è aghjurnamenti di u produttu.
