Circutor logoePick GPRS NET

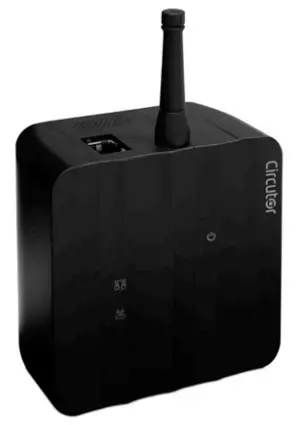

GATEWAY FOR Data Box PLATFORMCircutor ePick GPRS NET DataBox Gateway

ePick GPRS NET Data Box Gateway

This manual is a ePick GPRS NET installation guide. For further information, please download the full manual from the CIRCUTOR web site: www.circutor.com
Warning icon IMPORTANT!
The unit must be disconnected from its power supply sources before undertaking any installation, repair or handling operations on the unit’s connections. Contact the after-sales service if you suspect that there is an operational fault in the unit. The unit has been designed for easy replacement in case of malfunction.
The manufacturer of the unit is not responsible for any damage resulting from failure by the user or installer to heed the warnings and/or recommendations set out in this manual, nor for damage resulting from the use of non-original products or accessories or those made by other manufacturers.

DESCRIPTION

ePick GPRS NET is a gateway designed to communicate with machines and sensors, collect and store their data and send it to the web for processing.
The device features Ethernet and RS-485. ePick GPRS NET can communicate with the DataBox platform via GPRS or via the customer’s Ethernet/router.

INSTALLATION

The epic GPRS NET has been designed for assembly on DIN rail.
Warning icon IMPORTANT!
Take into account that when the device is connected, the terminals may be hazardous to the touch, and opening the covers or removing elements may provide access to parts that are dangerous to the touch. Do not use the device until it is fully installed.
The device must be connected to a power circuit protected by gL (IEC 60269) or M class fuses between 0.5 and 2A. It must be fitted with a circuit breaker or equivalent device to disconnect the device from the power supply.
The epic GPRS NET can be connected to a device (machines, sensors …) via Ethernet or RS-485:

  • Ethernet:
    A category 5 or higher network cable is required for the Ethernet connection.
  • RS-485:
    The connection via RS-485 requires a twisted communication cable to be connected between terminals A+, B- and GND.

START-UP

The device must be configured from the Circutor Databox web platform, after it is connected to the auxiliary power supply (terminals L and N). See Instruction Manual M382B01-03-xxx.

Technical features

Power supply CA /AC CC/DC
Rated voltage 85 … 264 V ~ 120… 300 V
Frequency 47 … 63 Hz
Consumption 8.8… 10.5 VA 6.4… 6.5 W
Installation category CAT III 300 V CAT III 300 V
Radio connection
External antenna  Included
Connector SMA
SIM Not included
RS-485 Communications
Bus RS-485
Protocol Modbus RTU
Baud rate 9600-19200-38400-57600-115200 bps
Stop bits 1-2
Parity  none – even -odd
Ethernet Communications
Type Ethernet 10/100 Mbps
Connector RJ45
Protocol TCP/IP
Secondary service IP address 100.0.0.1
User interface
LED 3 LED
Environmental features
Operating temperature -20ºC … +50ºC
Storage temperature -25ºC … +75ºC
Relative humidity (non-condensing) 5 … 95%
Maximum altitude 2000 m
Protection degree IP IP20
Protection degree IK IK08
Pollution degree 2
Use Interior / Indoor
Mechanical features
Terminals Circutor ePick GPRS NET DataBox Gateway - icon Circutor ePick GPRS NET DataBox Gateway - icon1 Circutor ePick GPRS NET DataBox Gateway - icon2
1 … 5 1.5 mm2 0.2 Nm

Circutor ePick GPRS NET DataBox Gateway - icon3M2

Dimensions 87.5 x 88.5 x 48 mm
Weight 180 g.
Surround Polycarbonate UL94 Self-extinguishing V0
Attachment Carrel DIN / DIN rail
Electrical safety
Protection against electric shock  Double insulation class II
Isolation 3 kV~
Norma’s
UNE-EN 61010-1, UNE-EN 61000-6-2, UNE-EN 61000-6-4

Circutor ePick GPRS NET DataBox Gateway - Fig3Note: Device images are for illustrative purposes only and may differ from the actual device.

LEDs
Power Device status
 ON
Green color:  Device ON
RS-485  RS-485 Communications status
 ON
Red color:  Data transmission
 Green color:  Data reception
Modem  Communications status
 ON
 Red color: Data transmission
 Green color:  Data reception

Circutor ePick GPRS NET DataBox Gateway - Fig1

Terminal connections designations
1 V1,  Power supply
2 N,  Power supply
3 B-,  RS-485 Connection
4 A+,  RS-485 Connection
5 GND, RS-485 Connection
6 Ethernet, Ethernet Connection

Circutor ePick GPRS NET DataBox Gateway - Fig2

Circutor logo

CIRCUTOR SAT: 902 449 459 (SPAIN) / (+34) 937 452 919 (out of Spain)
Vial Sant Jordi, s/n
08232 – Viladecavalls (Barcelona)
Tel: (+34) 937 452 900 – Fax: (+34) 937 452 914
e-mail: sat@circutor.com
M383A01-44-23A
