VEVOR 100 Gallon Resin Outdoor Storage Box Instruction Manual

1. Informació de seguretat

Llegiu atentament totes les instruccions abans del muntatge i l'ús. Si no seguiu aquestes instruccions, podeu patir lesions o danys al producte.

• This storage box is designed for outdoor storage of household and garden items. Do not use for purposes other than intended.
• Keep children away from the storage box during assembly. Small parts may pose a choking hazard.
• Do not allow children to play inside or climb on the storage box. There is a risk of entrapment or injury.
• Ensure the storage box is placed on a flat, level, and stable surface to prevent tipping.
• No emmagatzemeu materials perillosos, líquids inflamables ni substàncies corrosives dins de la caixa.
• Distribute weight evenly inside the box. Do not overload. The lid has a maximum load capacity of 660 lbs (300 kg) when used as a bench.
• Exercise caution when opening and closing the lid. The hydraulic lifts are designed for smooth operation but keep hands clear to avoid pinching.
• Periodically inspect the storage box for any signs of wear, damage, or loose components. Address any issues promptly.

2. Contingut del paquet

Verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact VEVOR customer support.

This image illustrates the various components included in the package, labeled for easy identification during assembly. It shows the main panels and the lid structure.

• Side Panels (C) - 2 pieces
• Front Panel (D) - 1 piece
• Back Panel (D) - 1 piece
• Bottom Panel (B) - 1 piece
• Lid (A) - 1 piece
• Lid Top Cover (E) - 1 piece
• Hydraulic Rods - 2 pieces
• Hardware Pack (screws, pins, etc.)
• Manual d'instruccions

3. Instruccions de muntatge

Assembly typically requires two people and takes approximately 20 minutes. Follow these steps carefully.

This image provides a visual guide for the assembly process, showing the sequential steps to construct the storage box.

1. Step 1: Assemble Side and Front/Back Panels.

   Connect one side panel (C) to a front panel (D). Ensure the "D side" of the panel is facing inward as indicated in the diagram. Repeat for the other side panel and back panel.
2. Step 2: Attach Bottom Panel.

   Secure the bottom panel (B) to the assembled side and front/back panels. Ensure all tabs align and click into place firmly.

3. Step 3: Install Lid Base.

   Place the main lid component (A) onto the top edges of the assembled box. Ensure it sits securely and aligns with the attachment points.

4. Step 4: Secure Lid Top Cover and Hydraulic Rods.

   Attach the lid top cover (E) to the main lid component (A). Install the hydraulic rods to the designated points on the lid and the box body. Refer to the diagram for correct orientation and attachment. Ensure the rods are securely fastened to allow for smooth opening and closing.



   This image demonstrates the hydraulic rod mechanism, which assists in opening and closing the lid smoothly and prevents accidental slamming or pinching.

After assembly, gently open and close the lid a few times to ensure proper function of the hydraulic rods and overall stability.

4. Instruccions de funcionament

4.1 Obrir i tancar la tapa

• To open, lift the lid from the front handle. The hydraulic rods will assist in a smooth, controlled opening.
• To close, gently pull the lid down. The hydraulic rods will provide a soft-close action, preventing sudden drops. Keep hands clear of the closing path.

4.2 Capacitat d'emmagatzematge

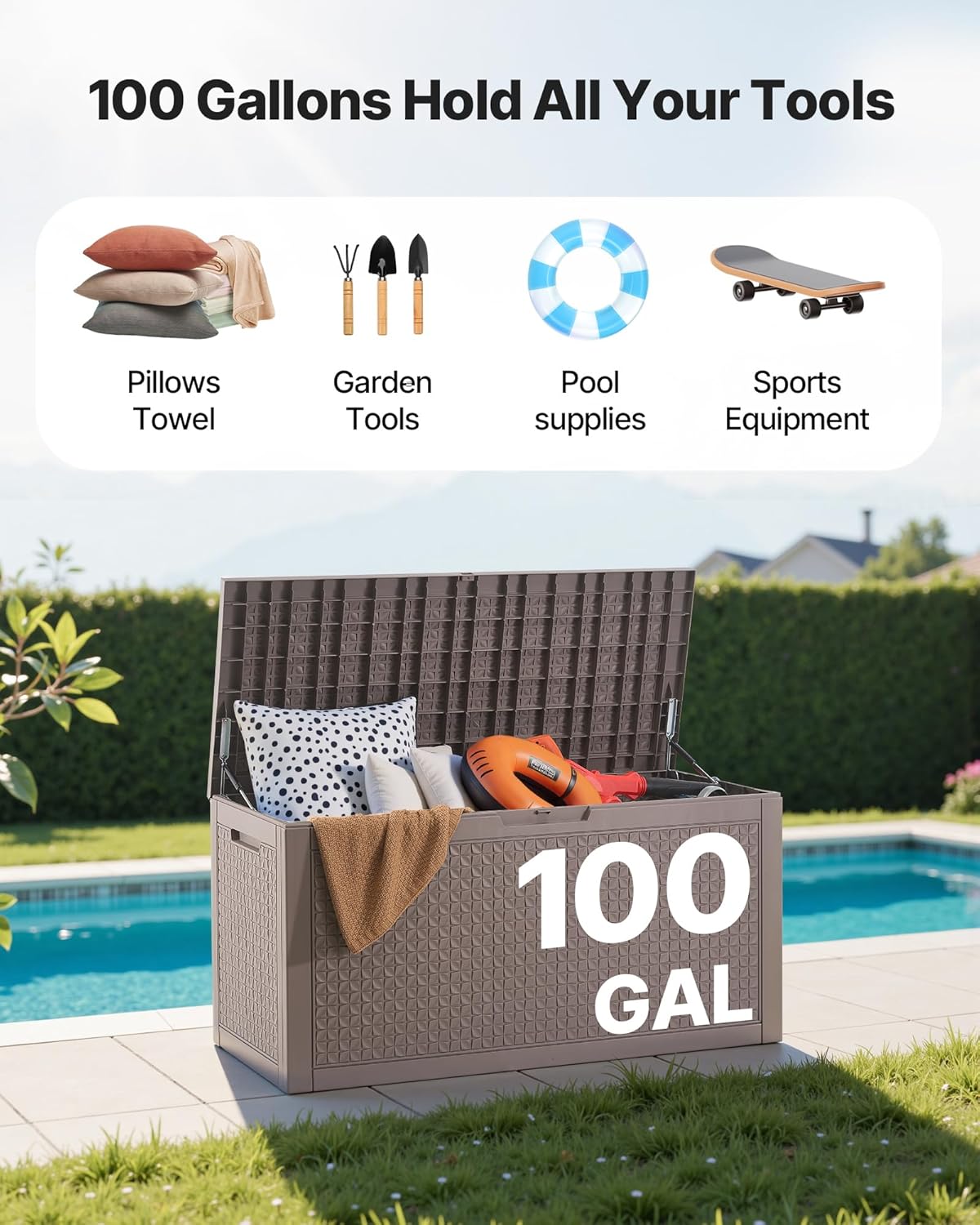

This image illustrates the generous 100-gallon capacity of the storage box, capable of holding a variety of outdoor items such as cushions, garden tools, and pool accessories.

• The box has a 100-gallon capacity. Store items such as patio cushions, garden tools, pool supplies, and outdoor toys.
• Distribuïu el pes uniformement per mantenir l'estabilitat.
• Avoid overfilling the box, which could prevent the lid from closing properly or damage the contents.

4.3 Using as a Bench or Table

This image shows an individual comfortably seated on the storage box, highlighting its dual functionality as a sturdy outdoor bench with a load capacity of 660 lbs.

• The flat top of the storage box is designed to be used as a bench or a table.
• The maximum load capacity for the lid is 660 lbs (300 kg). Do not exceed this weight.
• Ensure the lid is fully closed and secured before sitting on it or placing heavy objects on top.

4.4 Portabilitat

This image depicts two individuals easily transporting the storage box using its integrated grooved side handles, emphasizing its portability.

• The storage box features integrated grooved handles on the sides for easy carrying.
• For best results and to prevent injury, have two people carry the box when it is empty or contains light items.
• Do not attempt to move the box when it is heavily loaded. Empty it first.

5. Manteniment

Regular maintenance will help prolong the life and appearance of your VEVOR Outdoor Storage Box.

• Neteja: Clean the box periodically with mild soap and water. Use a soft cloth or sponge. Avoid abrasive cleaners or harsh chemicals, which can damage the PP plastic material. Rinse thoroughly with clean water.
• Inspecció: Annually, or more frequently if exposed to harsh weather, inspect all panels, the lid, and hydraulic rods for any signs of damage, cracks, or loose connections.
• Drenatge: Ensure the drainage points (if present) are clear of debris to prevent water accumulation inside the box.
• Emmagatzematge: If storing the box for an extended period, ensure it is clean and dry. Store in a sheltered area if possible to further protect it from extreme weather conditions.

6. Solució De Problemes

Refer to the following common issues and their solutions.

7. Especificacions

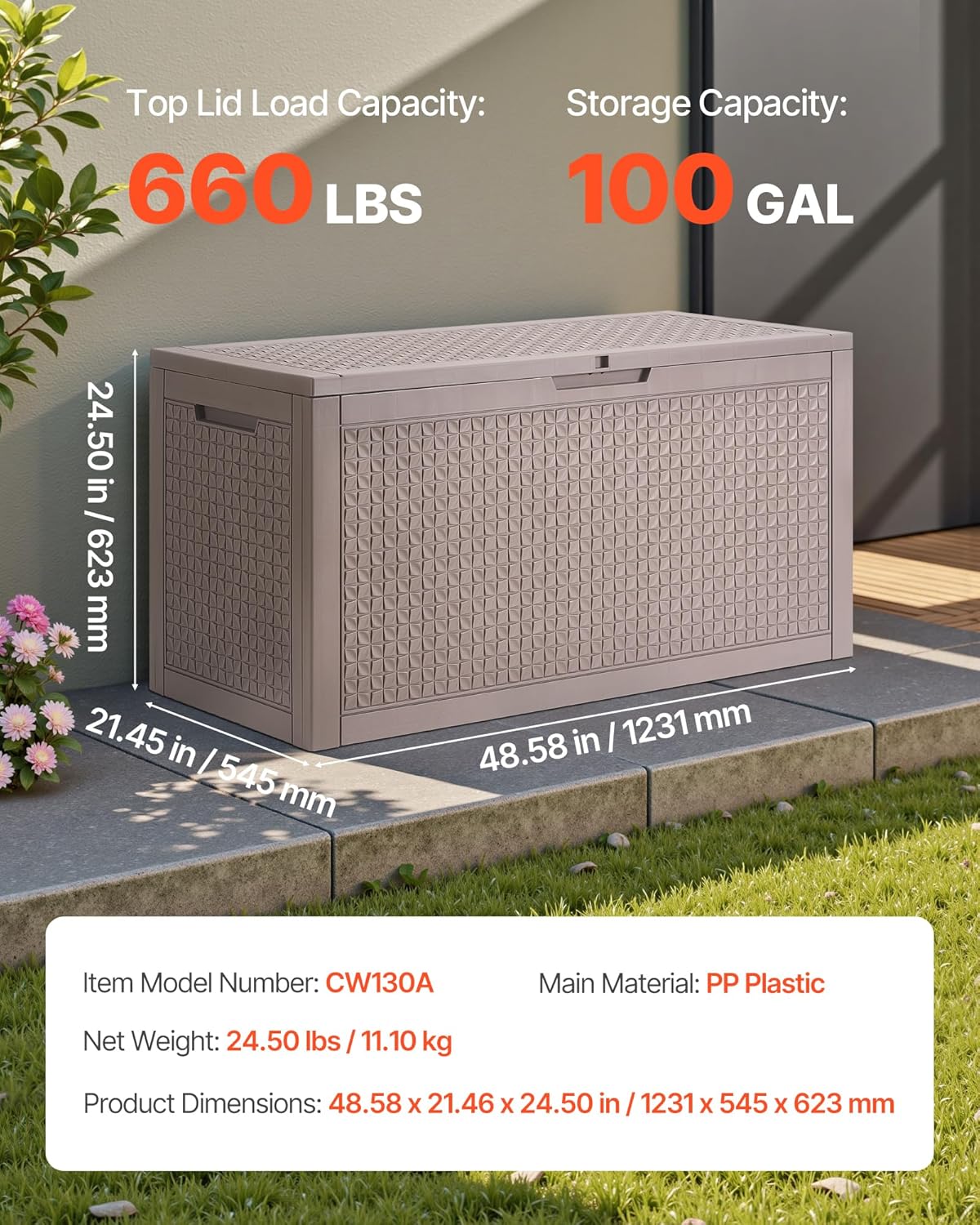

Aquesta imatge ofereix una visió més detalladaview of the product's dimensions, storage capacity, and load capacity, along with other key specifications.

8. Garantia i Suport

VEVOR products are designed for durability and performance. For specific warranty details, please refer to the warranty card included with your purchase or visit the official VEVOR weblloc.

If you encounter any issues or have questions regarding your VEVOR 100 Gallon Resin Outdoor Storage Box, please contact VEVOR customer support through their official channels. Provide your model number (CW130A) and purchase details for faster assistance.

Assistència en línia: www.vevor.com/support
