INGCO 20V Cordless Oscillating Multi-Tool (Model CMLI2001)

1. Instruccions de seguretat importants

Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this tool.

• Seguretat de l'àrea de treball: Mantingueu la vostra zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden als accidents. No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Seguretat elèctrica: Eviteu el contacte corporal amb superfícies connectades a terra. No exposeu les eines elèctriques a la pluja ni a condicions humides.
• Seguretat personal: Always wear eye protection, hearing protection, and a dust mask when necessary. Dress properly; avoid loose clothing or jewelry. Secure long hair.
• Ús i cura de l'eina: No forceu l'eina elèctrica. Feu servir l'eina elèctrica adequada per a la vostra aplicació. Desconnecteu la bateria de l'eina elèctrica abans de fer qualsevol ajust, canviar accessoris o guardar eines elèctriques.
• Ús i cura de l'eina de la bateria: Recarrega només amb el carregador especificat pel fabricant. Utilitza eines elèctriques només amb bateries específicament designades.

2. Producte acabatview

The INGCO 20V Cordless Oscillating Multi-Tool is a versatile power tool designed for a wide range of applications including cutting, grinding, scraping, and polishing. It features a durable metal gearbox, precise transmission control, and multi-angle adjustment for various tasks. The tool is equipped with a variable speed control dial, an LED work light, and a comfortable rubber-covered handle for enhanced user experience and safety.

Figura 2.1: Diagram of the multi-tool highlighting key components such as the LED work light, aluminum head shell, switch, rubber-covered handle, and variable speed control dial.

Components inclosos:

• 1x INGCO Oscillating Multi-Tool (Model CMLI2001)
• 3x Sandpaper sheets
• 1x Sanding base
• 1x Flexible scraper blade
• 1x Cutting saw blade
• 1x Segmented saw blade
• 1x clau hexagonal

Note: Battery and charger are NOT included with this tool and must be purchased separately.

Figura 2.2: Visual confirmation that the battery and charger are not supplied with the tool.

3. Configuració

3.1 Instal·lació de la bateria

1. Assegureu-vos que l'eina estigui apagada abans d'instal·lar o treure la bateria.
2. Alineeu el paquet de bateries amb el port de bateria del mànec de l'eina.
3. Feu lliscar la bateria al port fins que encaixi correctament al seu lloc.
4. Per treure-la, premeu el botó d'alliberament de la bateria i feu-la lliscar cap a fora.

3.2 Col·locació d'accessoris

The multi-tool uses a quick-change system for accessories. Follow these steps to attach or change blades and sanding pads:

1. Assegureu-vos que l'eina estigui apagada i que la bateria estigui treta.
2. Locate the accessory mounting bolt on the tool head.
3. Place the desired accessory (e.g., saw blade, sanding base) onto the mounting bolt, ensuring it aligns with the tool's oscillating mechanism.
4. Use the provided hex key to tighten the mounting bolt securely. Ensure the accessory is firmly attached and does not wobble.
5. For sanding, attach sandpaper to the sanding base using its hook-and-loop fastening system.

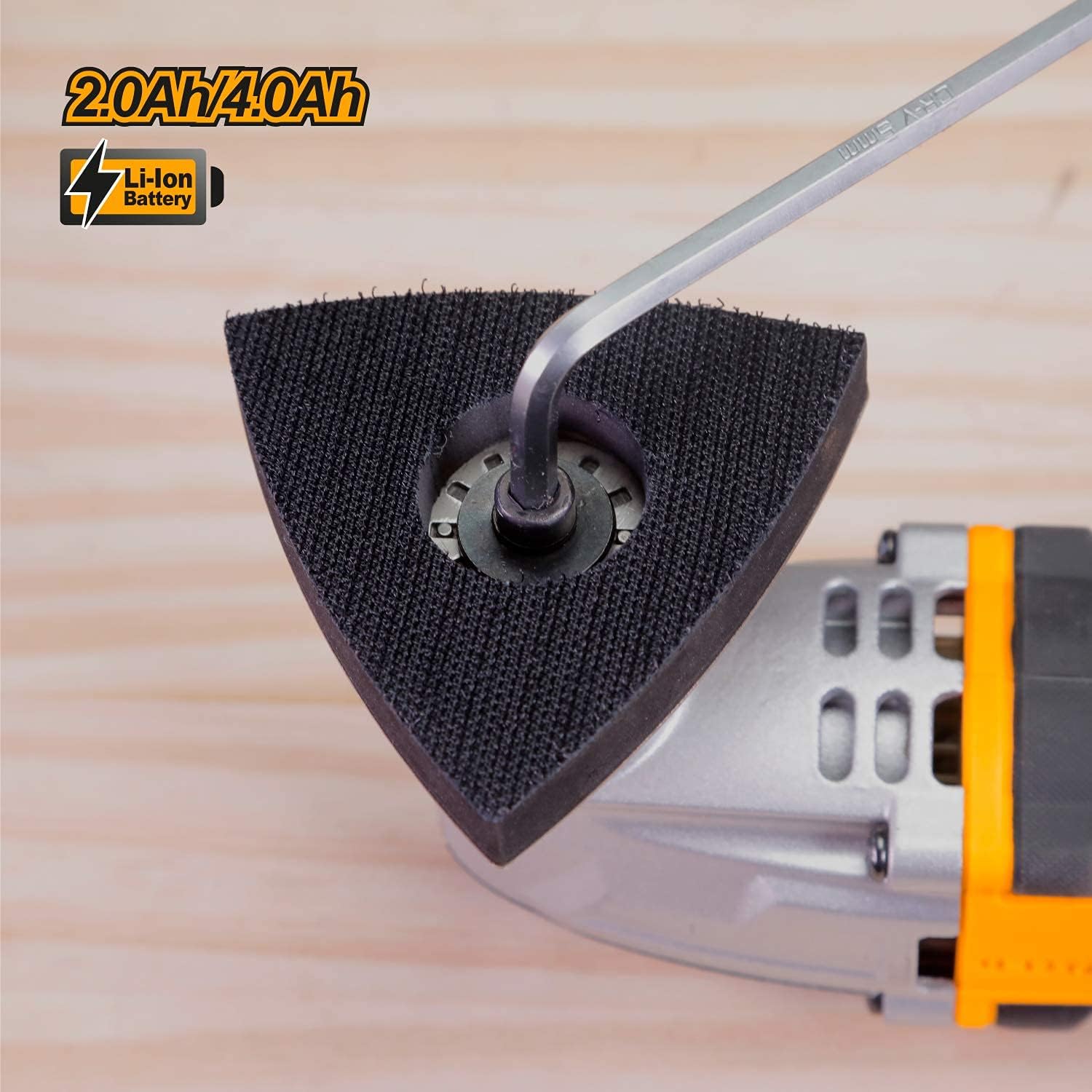

Figura 3.1: Securing an accessory to the multi-tool using the hex key.

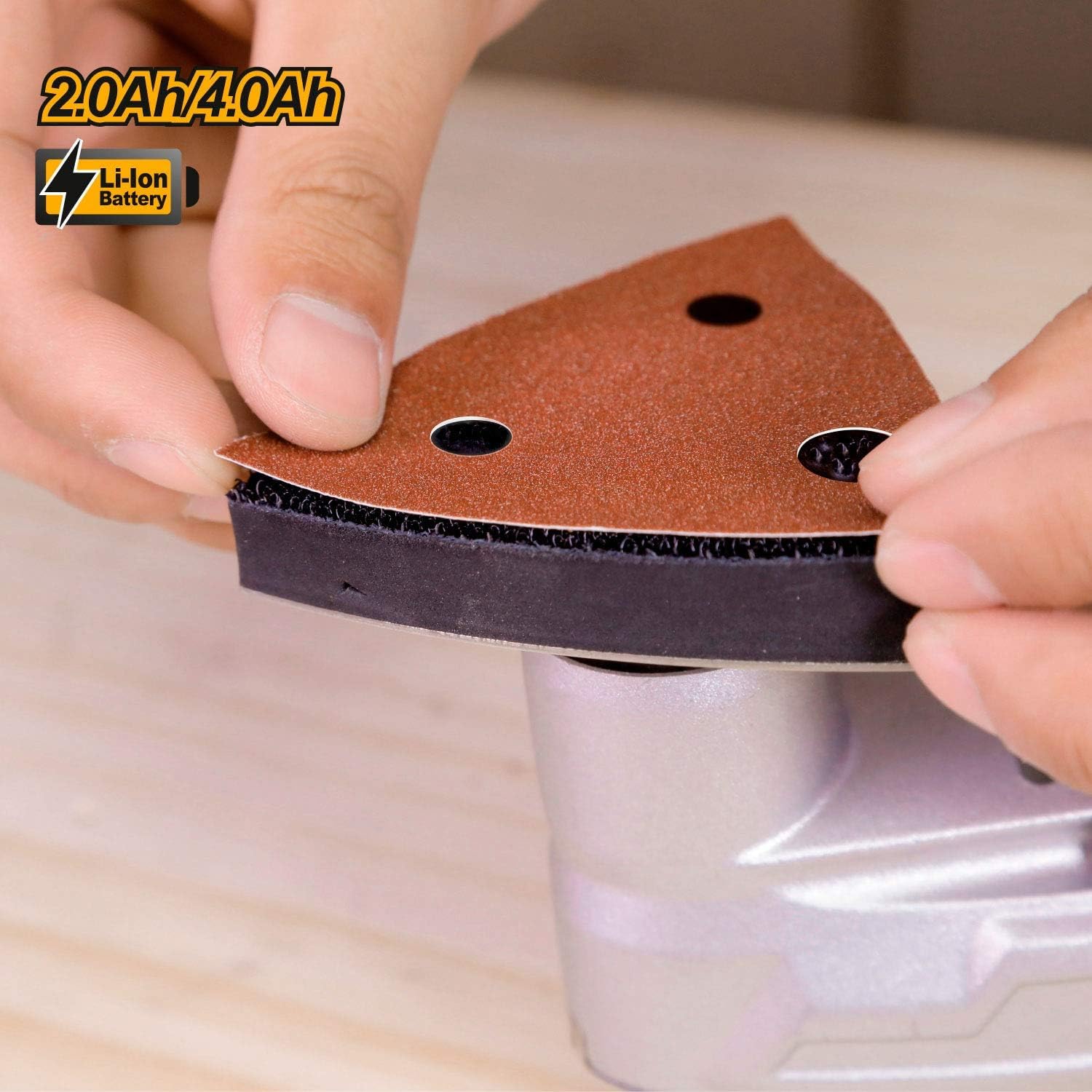

Figura 3.2: Attaching sandpaper to the sanding base.

Figura 3.3: A selection of common accessories for the multi-tool.

4. Instruccions de funcionament

4.1 Engegada/apagada

Per engegar l'eina, feu lliscar l'interruptor d'alimentació a la posició "ON". Per apagar-la, feu lliscar l'interruptor a la posició "OFF".

4.2 Ajust de la velocitat

The INGCO Multi-Tool features 6 variable speed settings, ranging from 5000 to 20000 oscillations per minute (OPM). Rotate the variable speed control dial to select the appropriate speed for your task. Lower speeds are suitable for delicate work or softer materials, while higher speeds are for aggressive material removal or harder materials.

4.3 Consells generals d'operació

• Tall: Use appropriate saw blades for wood, metal, or plastic. Apply steady, even pressure.
• Esmolat/Lijat: Attach the sanding base and desired grit sandpaper. Move the tool in a consistent pattern to ensure even material removal.
• Raspat: Use the scraper blade for removing paint, adhesive, or caulk. Hold the tool at a shallow angle to the surface.
• Polit: Use specific polishing pads (not included) with appropriate polishing compounds.

Figura 4.1: Examples of the multi-tool in use for cutting, scraping, and sanding applications.

Figura 4.2: The multi-tool being used for precision cutting on wood.

Figura 4.3: The multi-tool performing a grinding operation on a metal pipe.

Figura 4.4: The multi-tool effectively scraping a surface.

5. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la vostra eina.

• Neteja: Després de cada ús, netegeu l'eina amb un drap suau iamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure ventilation openings are clear of dust and debris.
• Inspecció d'accessoris: Regularly inspect accessories for wear or damage. Replace worn blades or sanding pads to maintain efficiency and safety.
• Emmagatzematge: Guardeu l'eina i els accessoris en un lloc sec i segur, fora de l'abast dels nens.
• Cura de la bateria: Guardeu les piles en un lloc fresc i sec. No emmagatzemeu les piles completament descarregades durant períodes prolongats.

6. Solució De Problemes

If you encounter issues with your INGCO Multi-Tool, refer to the following common troubleshooting steps:

• L'eina no s'inicia:
  • Check if the battery is fully charged and properly installed.
  • Assegureu-vos que l'interruptor d'alimentació estigui a la posició "ON".
• Rendiment reduït:
  • Verify that the correct accessory is being used for the material.
  • Inspect accessories for wear; replace if dull or damaged.
  • Ensure the accessory is securely tightened.
• Vibracions o sorolls excessius:
  • Check if the accessory is correctly installed and tightened.
  • Inspect the accessory for damage or imbalance.

If problems persist, contact INGCO customer support for further assistance.

7. Especificacions

8. Garantia i Suport

Information regarding product warranty and customer support is not provided in the available product data. Please refer to the product packaging or the official INGCO website for detailed warranty terms and contact information for support.
