1. Introducció
This manual provides essential information for the safe and effective operation, installation, and maintenance of the Magnetek GPD 505 VS Drive, model GPD505V-B003. The GPD 505 is a robust variable speed drive designed for industrial applications, offering precise control over motor speed and torque. It is crucial to read and understand all instructions before attempting to install, operate, or service this equipment.
2. Informació de seguretat
ADVERTIMENT: Aquest equip funciona amb un alt volumtages and currents that can cause severe injury or death. Installation, operation, and maintenance must only be performed by qualified and trained personnel who are familiar with electrical equipment and the hazards involved.
- Always disconnect all power sources before working on the drive or connected equipment.
- Ensure proper grounding of the drive and motor according to local electrical codes.
- No feu funcionar l'accionament amb les cobertes retirades.
- Protegiu la unitat de la humitat, la pols i els ambients corrosius.
- Observe all warning labels on the drive itself.

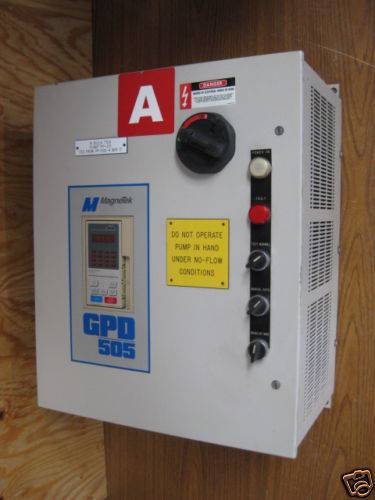

Figure 2.1: Front panel of the GPD 505 VS Drive. Note the prominent "DO NOT OPERATE PUMP IN HAND UNDER NO-FLOW CONDITIONS" warning label, indicating specific operational constraints. The panel includes a digital display, control buttons, and a large red "A" symbol, likely indicating an alarm or active status.
3. Configuració i instal·lació
Proper installation is critical for the safe and reliable operation of the GPD 505 VS Drive. Refer to the detailed wiring diagrams and mounting instructions provided with the physical product for specific connections.
3.1. Muntatge
Mount the drive vertically on a flat, stable surface, ensuring adequate clearance for ventilation. Avoid locations with excessive vibration, direct sunlight, or extreme temperatures.
3.2. Cablatge
All wiring must comply with national and local electrical codes. Use appropriate wire gauges for power, motor, and control circuits. Ensure all connections are secure and properly insulated.
Figure 3.1: Internal components and wiring of the GPD 505 VS Drive. This view illustrates the complexity of the internal circuitry, including power terminals, control boards, and various relays, emphasizing the need for professional installation and servicing.
3.3. Connexió d'alimentació
Connect the main power supply to the designated input terminals. Verify voltage and phase compatibility with the drive's specifications before applying power.
4. Instruccions de funcionament
Once installed and powered, the GPD 505 VS Drive can be operated via its front panel controls or external control signals. Refer to the specific programming manual for detailed parameter settings.
4.1. Funcionament bàsic
- Encès: Apply main power to the drive. The display should illuminate.
- Inici/Parada: Use the designated start/stop buttons or external control inputs to initiate or halt motor operation.
- Ajust de velocitat: Adjust the motor speed using the potentiometer or digital input on the front panel, or via external analog/digital signals.
4.2. Indicadors d'estat
The front panel includes various indicators (LEDs, display messages) to show the drive's operational status, warnings, and fault conditions. Consult the drive's programming manual for a complete list of status codes.
5. Manteniment
Regular maintenance ensures the longevity and optimal performance of the GPD 505 VS Drive. Always disconnect power before performing any maintenance.
- Neteja: Periodically clean the drive's exterior and ventilation openings to prevent dust buildup. Use a soft, dry cloth. Do not use liquid cleaners.
- Inspecció: Annually inspect all wiring connections for tightness and signs of wear or corrosion. Check cooling fans for proper operation.
- Control ambiental: Assegureu-vos que l'entorn de funcionament es mantingui dins dels rangs de temperatura i humitat especificats.
6. Solució De Problemes
This section provides guidance for common issues. For complex problems or persistent faults, contact qualified service personnel.
| Problema | Causa possible | Solució |
|---|---|---|
| La unitat no s'encén. | No input power; Blown fuse; Internal fault. | Check power supply; Inspect fuses; Contact service. |
| El motor no funciona. | Fault condition; Incorrect wiring; Motor issue. | Check fault codes on display; Verify motor wiring; Test motor independently. |
| Avís de sobreescalfament. | Insufficient ventilation; High ambient temperature; Overload. | Clear obstructions; Improve cooling; Reduce load. |
7. Especificacions
- Model: GPD505V-B003
- Marca: Magnetek
- Potència nominal: 2 CV (cavallos de potència)
- Dimensions del paquet: 25 x 18 x 12 polzades
- ASIN: B00J2I2IC4
- Fabricant: Magnetek
- Primer disponible: 13 de març de 2014
8. Garantia i Suport
For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact Magnetek directly. Warranty coverage typically applies to defects in materials and workmanship under normal use.
For technical support, service, or parts inquiries, please contact your authorized Magnetek distributor or visit the official Magnetek website for contact information. When contacting support, please have your model number (GPD505V-B003) and serial number ready.
