Uvod
This manual provides detailed instructions for the installation, operation, and maintenance of your Genpai 72-inch Wall-Mounted Bathroom Vanity. Please read this manual thoroughly before beginning installation or use to ensure proper function and safety. Keep this manual for future reference.

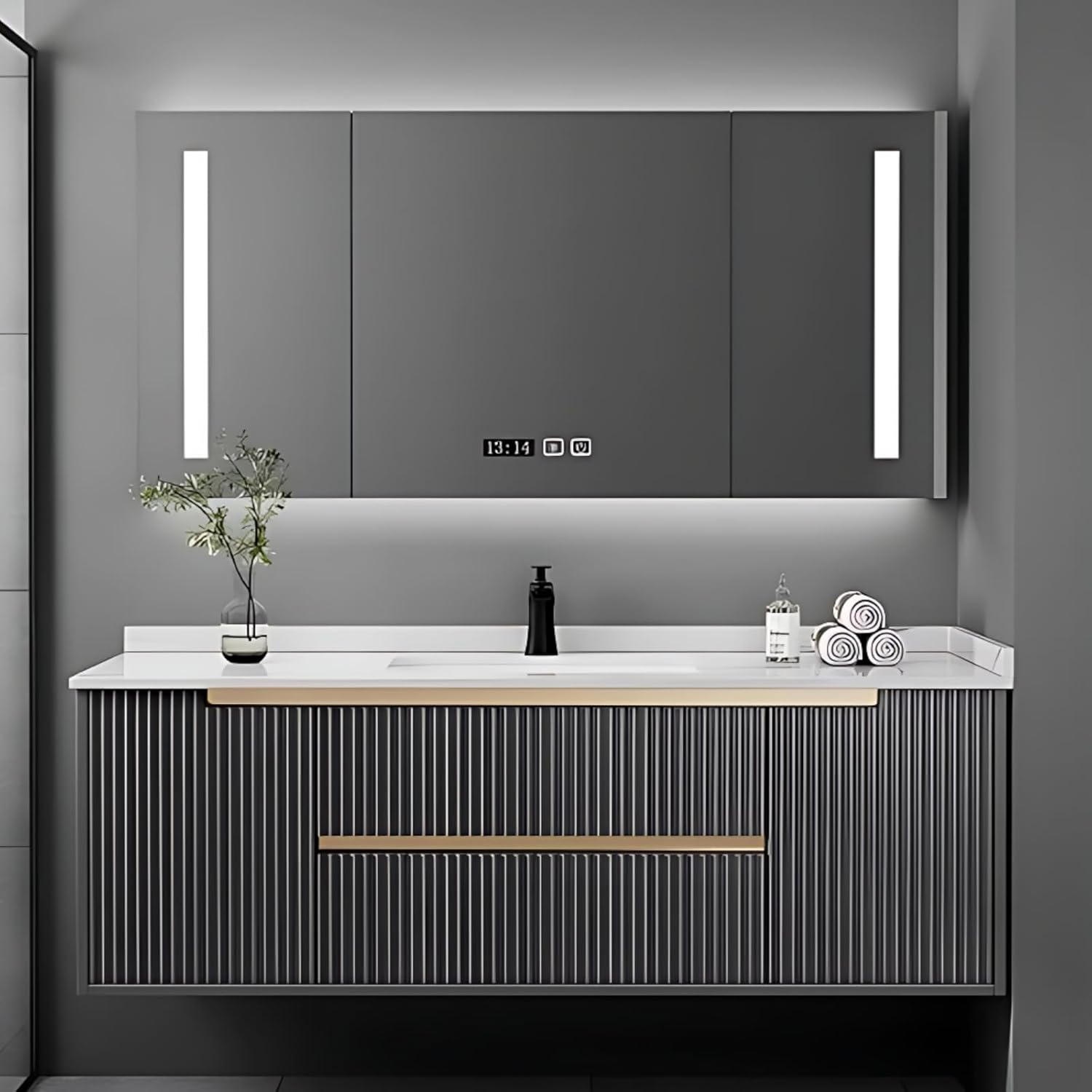

Image: The Genpai 72-inch wall-mounted bathroom vanity, featuring a grey finish, integrated sink, and an intelligent defogging LED mirror cabinet.
Sigurnosne informacije
Always follow basic safety precautions when installing and using this product to reduce the risk of fire, electric shock, and personal injury.
- Osigurajte da sve električne spojeve izvodi kvalificirani električar i da su u skladu s lokalnim propisima.
- Disconnect power before performing any installation, maintenance, or cleaning.
- Handle glass and mirror components with care to prevent breakage and injury.
- Ne preopterećujte ladice ili ormariće.
- Držite djecu podalje od područja instalacije.
- Verify wall structure can support the weight of the vanity and its contents.
Sadržaj paketa
Prije početka montaže provjerite jesu li sve komponente prisutne i neoštećene. Ako bilo koji dijelovi nedostaju ili su oštećeni, obratite se korisničkoj podršci.
- Wall-Mounted Vanity Cabinet (72-inch, Grey)
- Integrated Sink Top (Rock Slab)
- Intelligent Defogging LED Mirror Cabinet
- Montažni hardver
- Uputstvo za instalaciju (ovaj dokument)
- Faucet (if included in your specific package)
Postavljanje i instalacija
Professional installation is recommended for this wall-mounted vanity due to its size and electrical components.
1. Priprema lokacije
- Ensure the installation wall is structurally sound and capable of supporting the vanity's weight.
- Confirm plumbing and electrical outlets are correctly positioned according to local building codes and the vanity's dimensions.
Image: Dimensional diagram of the Genpai bathroom vanity, showing the 72-inch width for the main cabinet and a mirror cabinet width ranging from 42 to 70 inches, with a height of 27.5 inches for the mirror and 19.6 inches for the vanity base.
2. Vanity Cabinet Installation
- Mark the desired height for the top of the vanity cabinet on the wall.
- Locate wall studs and securely attach the mounting brackets (provided) to the studs.
- Carefully lift the vanity cabinet and align it with the wall brackets. Secure the cabinet to the brackets using the appropriate fasteners.
- Ensure the cabinet is level before proceeding.
3. Sink Top Installation
- Apply a bead of silicone sealant along the top edges of the vanity cabinet.
- Carefully place the integrated sink top onto the vanity cabinet, ensuring it is centered and aligned.
- Press down firmly to create a seal. Allow the sealant to cure as per manufacturer's instructions.
- Install the faucet and drain assembly according to their respective manufacturer's instructions. Connect plumbing lines.
4. Mirror Cabinet Installation
- Determine the optimal height for the mirror cabinet above the sink, ensuring comfortable viewing.
- Mark mounting points on the wall.
- Securely attach the mirror cabinet mounting hardware to the wall.
- Hang the mirror cabinet onto the installed hardware.
- Connect the electrical wiring for the LED lighting and defogging functions to a dedicated circuit, following all electrical codes.
Uputstvo za upotrebu
Intelligent Defogging and LED Lighting
Image: Close-up of the mirror cabinet showing the intelligent defogging and LED lighting controls, including a time display and defogging icon.
- LED rasvjeta: The mirror cabinet features integrated LED light strips. Activate the lighting by touching the designated sensor on the mirror surface.
- Funkcija odmagljivanja: To clear fog from the mirror after showering, touch the defogging sensor. The defogging element will warm the mirror surface, providing a clear reflection.
- Prikaz vremena: Some models include a digital time display on the mirror. Refer to the specific mirror cabinet manual for setting instructions.
Storage Access
Image: Diagram illustrating the storage zoning of the vanity, highlighting the mirror cabinet storage, countertop item placement area, and drawer-style storage design in the main cabinet.
- Mirror Cabinet: The upper mirror cabinet provides enclosed storage for smaller items such as cosmetics and skincare products.
- Main Cabinet Drawers: The lower main cabinet features drawers for personal items, offering private and organized storage.
- Main Cabinet Doors: Larger toiletries and supplies can be stored behind the cabinet doors.
- Concealed Handles: Drawers and cabinet doors are equipped with concealed handles for a sleek appearance and smooth operation. Gently pull the top or bottom edge of the drawer/door to open.

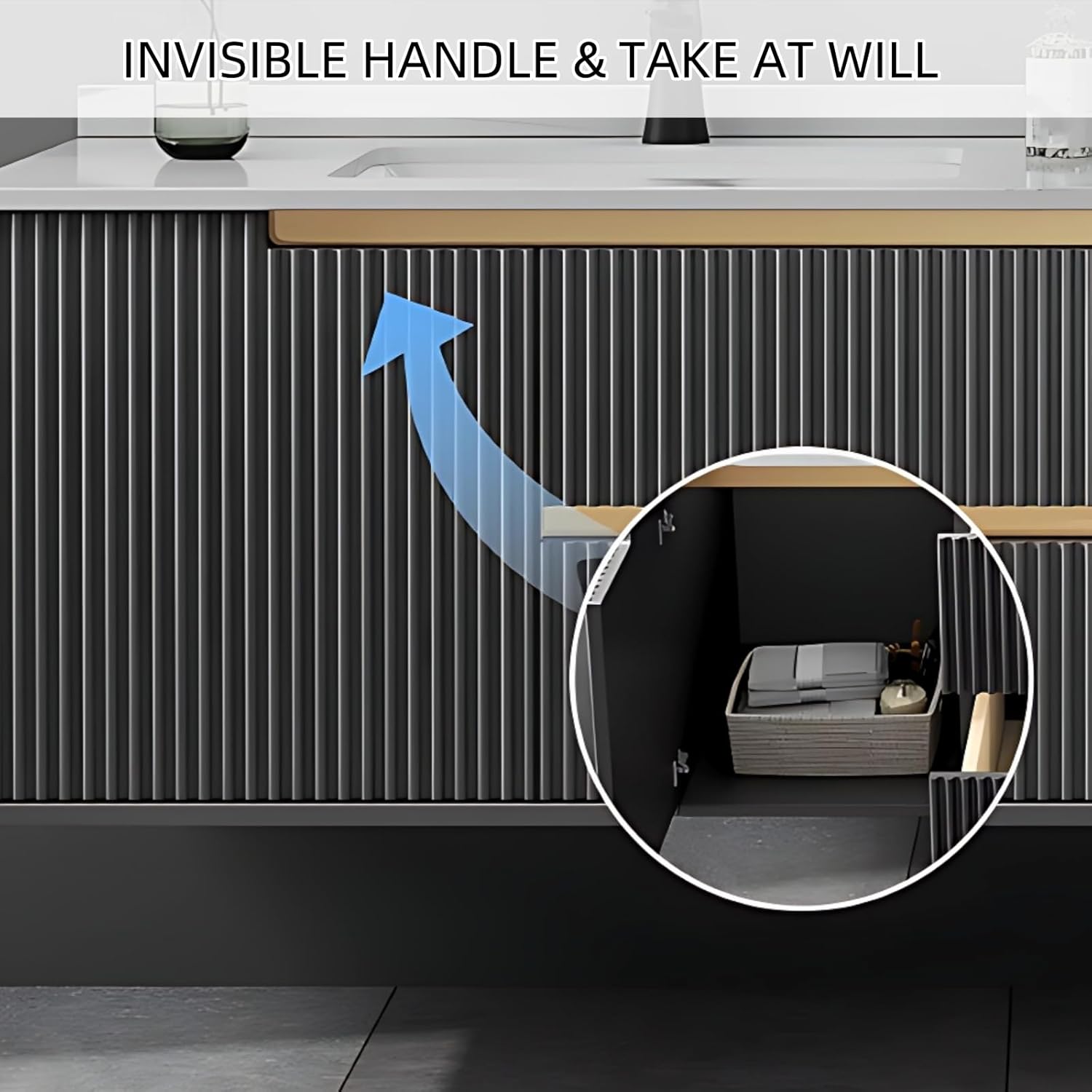

Image: An arrow indicating how to open a cabinet door with a concealed handle, revealing the interior storage space.
Održavanje i njega
Cleaning the Sink and Countertop
Image: Graphic highlighting the features of the high-quality rock slab sink: strong stain resistance, high hardness, and easy to handle for cleaning.
- The integrated sink and countertop are made from a high-hardness rock slab material, designed for strong stain resistance and easy cleaning.
- For daily cleaning, wipe the surface with a soft, damp krpom i blagim neabrazivnim sredstvom za čišćenje.
- Avoid using harsh chemicals, abrasive pads, or acidic cleaners, as these can damage the surface.
- The three-dimensional water-blocking edge helps prevent water overflow. Wipe away any standing water promptly to maintain cleanliness.
Briga o ormaru
- Wipe cabinet surfaces with a soft, damp krpu. Izbjegavajte prekomjernu vlagu.
- Do not use silicone-based polishes or waxes, as they can build up over time.
- Periodically check all hardware and fasteners to ensure they are secure.
Mirror Care
- Očistite površinu ogledala sredstvom za čišćenje stakla i mekom krpom koja ne ostavlja dlačice.
- Avoid spraying cleaner directly onto the mirror; instead, apply it to the cloth first.
Rješavanje problema
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| LED svjetla ne rade | No power, loose connection, faulty LED driver. | Check power supply. Ensure all electrical connections are secure. Consult a qualified electrician if the issue persists. |
| Defogging function not working | No power, faulty defogger element. | Verify power connection. Ensure the defogging function is activated via the touch sensor. |
| Water leakage from sink/faucet | Loose plumbing connections, improper sealant application, damaged drain. | Tighten all plumbing connections. Reapply silicone sealant if necessary. Inspect drain for damage. |
| Drawers/doors not closing smoothly | Misaligned hinges/slides, obstruction. | Check for obstructions. Adjust hinges or drawer slides as needed. |
Specifikacije
- Brand: Genpai
- Broj modela: HFTBVS-KJ-4472
- Dimenzije: 72 inches (Width) x 20 inches (Depth) x 19.6 inches (Height of cabinet)
- Materijal: Wood (Cabinet), Rock Slab (Sink/Countertop)
- Boja: Grey
- Broj ladica: 2
- Težina artikla: Otprilike 200 funti
- Posebne karakteristike: Intelligent Defogging LED Mirror, Vertical Stripe Modeling, Three-Dimensional Water-Blocking Edge, Concealed Handles
- Potrebna montaža: Da
Garancija i podrška
Genpai is committed to providing high-quality products and customer service. If you encounter any issues during the purchase or use of your bathroom vanity, please contact our customer support team.
- Korisnička podrška: We promise to reply to your inquiries within 8 hours.
- For assistance with installation, usage, or quality concerns, please reach out to the seller via your purchase platform.
Molimo sačuvajte svoj dokaz o kupovini za zahtjeve u vezi s garancijom.
