RICOH IM C4500 - Color Laser Multifunction Copier User Manual

1. Introduction to the RICOH IM C4500

The RICOH IM C4500 is a high-performance color laser multifunction copier designed for demanding office environments. It offers robust capabilities including copying, printing, and scanning, with a rapid output of up to 45 pages per minute (ppm) in both color and monochrome. This device features automatic duplexing for efficient two-sided operations, network connectivity, and Wi-Fi for flexible placement and usage. It comes equipped with pre-installed Postscript 3 Supplement for enhanced compatibility and functionality.

This manual provides detailed instructions to help you set up, operate, and maintain your RICOH IM C4500, ensuring optimal performance and longevity.

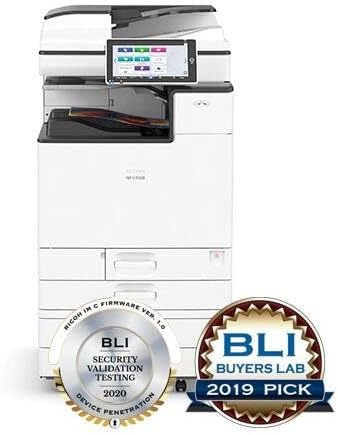

Slika 1.1: Front view of the RICOH IM C4500 Color Laser Multifunction Copier. The image shows the main unit with its control panel, paper trays, and output tray. Two award seals are visible at the bottom: a silver seal for "BLI Security Validation Testing 2020" and a gold seal for "BLI Buyers Lab 2019 Pick." This image illustrates the overall design and recognized quality of the device.

2. Postavljanje i instalacija

Follow these steps carefully to ensure proper setup of your RICOH IM C4500.

2.1 Raspakivanje i postavljanje

1. Carefully remove the copier from its packaging. Retain all packaging materials for future transport or service.
2. Place the copier on a sturdy, level surface capable of supporting its weight (approximately 29.1 x 26.3 x 47.5 inches). Ensure adequate space around the unit for ventilation and access to trays and covers.
3. Remove all protective tapes and packing materials from the exterior and interior of the machine, including inside the paper trays and toner compartments.

2.2 Priključak za napajanje

1. Connect the power cord securely to the power inlet on the back of the copier.
2. Plug the other end of the power cord into a grounded electrical outlet. Avoid using extension cords or power strips if possible.
3. Press the main power switch, usually located on the side or back of the unit, to turn on the copier. The control panel will illuminate.

2.3 Initial Configuration and Network Setup

1. Follow the on-screen prompts on the control panel to complete the initial setup, including language selection, date, and time.
2. Mrežna veza:
   • Žični (Ethernet): Connect an Ethernet cable from your network router/switch to the LAN port on the copier. The copier will typically obtain an IP address automatically via DHCP.
   • Bežično (Wi-Fi): From the control panel, navigate to Network Settings, select Wi-Fi, and follow the instructions to connect to your wireless network. You may need to enter your Wi-Fi password.
3. Instalacija drajvera: Install the appropriate printer drivers on your computers. Drivers can usually be found on the Ricoh support website by searching for "RICOH IM C4500 drivers."

3. Uputstvo za upotrebu

This section covers the basic operations of your RICOH IM C4500.

3.1 Umetanje papira

The RICOH IM C4500 features 4 paper trays and supports various paper sizes including Letter, Legal (Bypass), and 12 x 18. The maximum input sheet capacity is up to 4,700 pages (total across all trays).

1. Pull out the desired paper tray until it stops.
2. Podesite vodilice papira da odgovaraju veličini papira koji ubacujete.
3. Load the paper stack with the print side facing up (or as indicated by the tray diagram). Do not overload the tray.
4. Gently push the paper tray back into the copier until it clicks into place.
5. If prompted on the control panel, confirm the paper size and type.

3.2 Kopiranje dokumenata

1. Postavite originalni dokument licem prema dolje na staklo skenera ili licem prema gore u automatski uvlakač dokumenata (ADF).
2. Na kontrolnoj ploči odaberite funkciju "Kopiranje".
3. Adjust settings such as number of copies, color/black & white, duplex (two-sided), and zoom as needed. The copier supports automatic duplexing.
4. Pritisnite dugme "Start" da biste započeli kopiranje.

3.3 Štampanje dokumenata

1. Sa računara otvorite dokument koji želite odštampati.
2. Izaberite "Štampaj" iz menija aplikacije (npr. File > Štampaj).
3. Choose the RICOH IM C4500 from the list of available printers.
4. Adjust print settings such as paper size, orientation, number of copies, and duplex printing (automatic). The maximum print resolution is 1200x1200 dpi.
5. Click "Print" to send the job to the copier.

3.4 Skeniranje dokumenata

The RICOH IM C4500 features a flatbed scanner and an Automatic Document Feeder (ADF).

1. Postavite originalni dokument na staklo skenera ili u ADF.
2. Na kontrolnoj ploči odaberite funkciju "Skeniraj".
3. Odaberite željeno odredište za skeniranje (npr. Skeniraj u e-poštu, Skeniraj u mapu, Skeniraj na USB).
4. Configure scan settings such as color/black & white, resolution, and file formatu.
5. Pritisnite dugme "Start" da biste započeli skeniranje.

4. Održavanje

Regular maintenance ensures the longevity and optimal performance of your RICOH IM C4500.

4.1 Zamjena toner kaseta

The RICOH IM C4500 uses Black, Cyan, Magenta, and Yellow toner cartridges.

1. When a toner cartridge is low or empty, a message will appear on the control panel.
2. Open the front cover of the copier.
3. Locate the empty toner cartridge. Press the release lever and pull the cartridge straight out.
4. Unpack the new toner cartridge and gently shake it a few times to distribute the toner.
5. Insert the new cartridge into the slot until it clicks firmly into place.
6. Zatvorite prednji poklopac.

4.2 Cleaning the Copier

• Eksterijer: Obrišite vanjske površine mekom krpom, damp, krpa koja ne ostavlja dlačice. Ne koristite abrazivna sredstva za čišćenje ili rastvarače.
• Staklo skenera: Gently wipe the scanner glass with a soft cloth dampened with glass cleaner. Ensure no residue is left behind.
• ADF valjci: Periodically clean the ADF rollers with a lint-free cloth lightly dampened with water or isopropyl alcohol to prevent paper feeding issues.

5. Otkrivanje problema

This section provides solutions to common issues you might encounter with your RICOH IM C4500.

6. Specifikacije

Key technical specifications for the RICOH IM C4500.

7. Garancija i podrška

Your RICOH IM C4500 comes with a limited warranty and support options.

7.1 Informacije o garanciji

This renewed product is covered by a 90-dnevna ograničena garancija. Please refer to the warranty documentation provided with your purchase for specific terms and conditions. This warranty typically covers defects in materials and workmanship under normal use.

7.2 Korisnička podrška

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact the seller or Ricoh customer support. Have your product model (IM C4500) and serial number ready when contacting support.

• Podrška prodavača: Refer to your purchase documentation for contact information for "Depot4Buyers" or the specific seller from whom you purchased the renewed unit.
• Ricoh Official Support: For general product information and driver downloads, visit the official Ricoh website.
