MINISO X23 Slušalice otvorenog tipa, uputstvo za upotrebu

1. Uvod

The MINISO X23 Open Ear Headphones are designed to provide a comfortable and immersive audio experience while maintaining awareness of your surroundings. Unlike traditional in-ear headphones, the X23 rests on the outer ear, reducing pressure and discomfort, making them suitable for extended wear during various activities such as walking, running, or working.

2. Šta se nalazi u kutiji

Ensure all items are present upon unboxing your MINISO X23 Open Ear Headphones:

• MINISO X23 slušalice otvorenog tipa (lijeve i desne)
• Futrola za punjenje
• USB kabl za punjenje
• Uputstvo za upotrebu

3. Ključne karakteristike

• 3.1 Open-Ear Design for Enhanced Awareness

  The MINISO X23 headphones feature an innovative open-ear design that does not insert into the ear canal. This reduces ear pressure and allows you to hear ambient sounds, increasing safety and alertness in various environments. This design is ideal for long-term use without discomfort.



• 3.2 Immersive Listening Experience

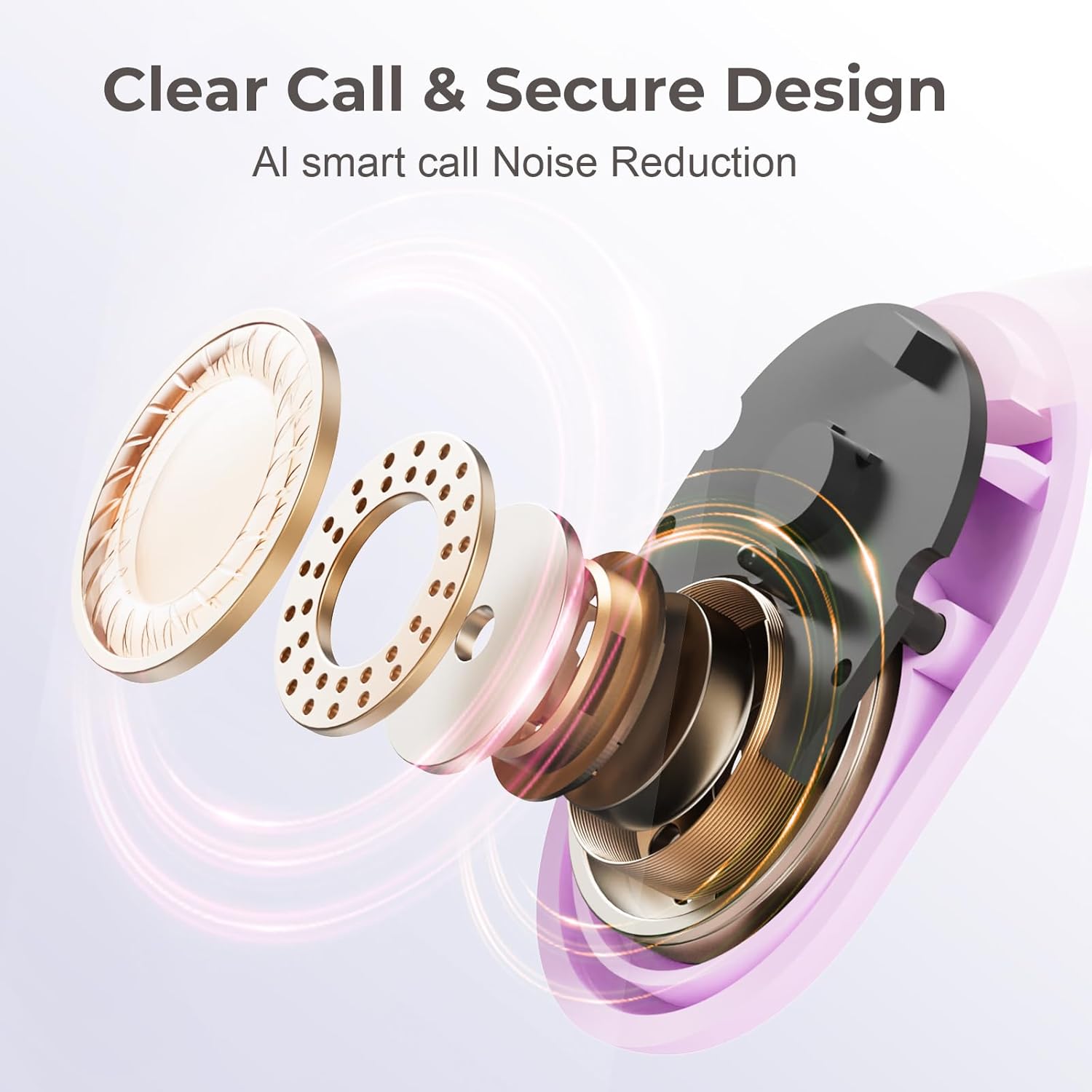

  Equipped with a new diaphragm structure and dual 16mm drivers, these Bluetooth headphones deliver smooth treble and powerful bass, creating a wide and immersive sound field. The open-back design provides a natural listening experience without isolating you from your surroundings.



• 3.3 Long Battery Life and Fast Charging

  The X23 utilizes low-power technology, offering approximately 6 hours of continuous music playback on a full charge. The 300mAh charging case extends the total usage time to 40 hours. Fast charging allows for 4 hours of playtime with just 15 minutes of charging, and a full charge takes only 2 hours.



• 3.4 Bluetooth 5.4 and Fast Pairing

  Featuring an advanced Bluetooth 5.4 chip, the X23 supports high-resolution AAC and SBC audio transmission. This ensures seamless pairing with smart devices, ultra-low latency, and perfect synchronization. After initial pairing, the earbuds will automatically connect to the last paired device upon opening the charging case.

• 3.5 Comfortable and Secure Fit

  The soft ear hooks and ergonomic "three points and one line" support structure provide a comfortable and stable fit. Weighing only 8.5 grams each, the earbuds minimize pressure points, preventing discomfort or pain even during prolonged use. This design is suitable for work, running, and other activities.

4. Podešavanje

4.1 Punjenje slušalica i futrole

1. Stavite obe slušalice u futrolu za punjenje.
2. Connect the provided USB charging cable to the charging port on the case and to a compatible USB power source.

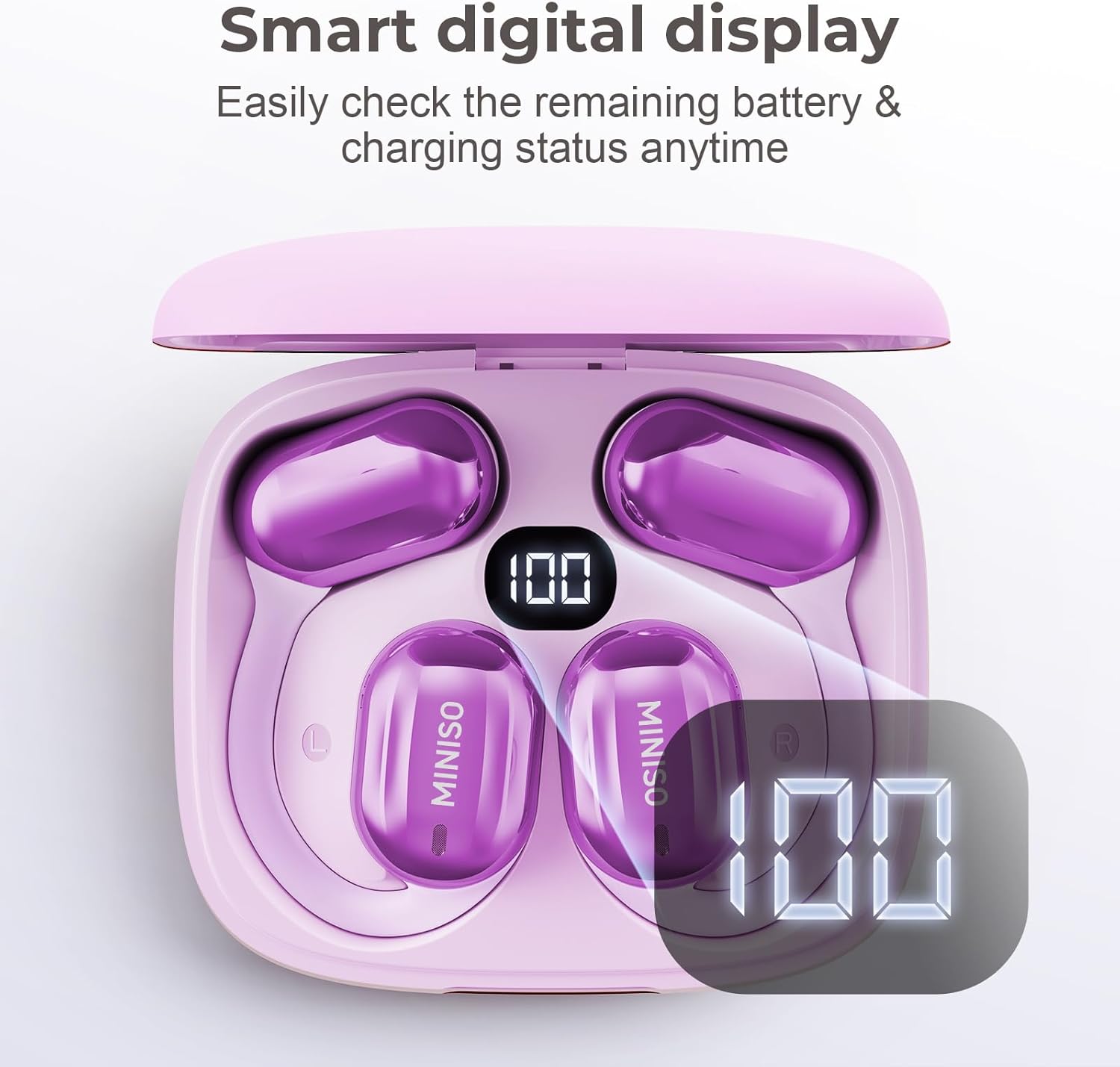

3. The digital display on the charging case will indicate the battery percentage. Allow approximately 2 hours for a full charge of the case and earbuds.
4. Punjenje od 15 minuta može obezbijediti do 4 sata reprodukcije.

4.2 Uparivanje s vašim uređajem

1. Uvjerite se da su slušalice potpuno napunjene.
2. Otvorite poklopac kutijice za punjenje. Slušalice će automatski ući u način rada za uparivanje.
3. Na vašem uređaju (pametnom telefonu, tabletu, laptopu) idite na postavke Bluetootha.
4. Izaberite "MINISO X23" sa liste dostupnih uređaja.
5. Nakon povezivanja, glasovna poruka će potvrditi uspješno uparivanje.
6. For subsequent uses, the earbuds will automatically connect to the last paired device when the case is opened.

5. Uputstvo za upotrebu

5.1 Nošenje slušalica

The MINISO X23 headphones are designed to hook over your ear, with the main speaker unit resting outside your ear canal. This ensures comfort and stability.

1. Identifikujte lijeve (L) i desne (R) slušalice.
2. Gently hook the earbud over the top of your ear, ensuring the speaker unit is positioned comfortably near your ear canal.
3. Podesite kuku za uho za sigurno i udobno prianjanje.

5.2 Kontrole na dodir

The MINISO X23 headphones feature intuitive touch controls on each earbud. Refer to the diagram below for specific functions:

• Click L/R: Odgovori/završi poziv, pusti/pauziraj
• Long Press 2s L/R: Odbiti poziv
• Quick-Click L Three: Prethodna pjesma
• Quick-Click R Three: Next Song
• Double Click R: Volume Up
• Double Click L: Utišavanje zvuka
• Long Press 2s L (Siri): Aktivirajte Glasovnog asistenta (Siri/Google Assistant)

6. Održavanje

6.1 Čišćenje

Regularly clean your headphones and charging case with a soft, dry, lint-free cloth. Avoid using abrasive materials or harsh chemicals.

6.2 Otpornost na vodu (IPX5)

The MINISO X23 headphones are IPX5 waterproof, meaning they are resistant to splashes and sweat. They are suitable for workouts and light rain. Do not submerge the headphones in water or expose them to strong jets of water.

7. Otkrivanje problema

• 7.1 Headphones Not Pairing

  Ensure the earbuds are fully charged. Turn off and on your device's Bluetooth. Place the earbuds back in the case, close the lid, wait a few seconds, then open it again to re-enter pairing mode. If issues persist, try forgetting the device in your Bluetooth settings and re-pairing.

• 7.2 Nema zvuka ili je jačina zvuka niska

  Check the volume levels on both your device and the headphones. Ensure the headphones are properly connected to your device. If using only one earbud, ensure the other is in the charging case or powered off.

• 7.3 Problemi s naplatom

  Verify that the charging cable is securely connected to both the case and the power source. Try a different USB port or charging adapter. Clean the charging contacts on the earbuds and inside the case with a dry cotton swab.

• 7.4 Problemi s kvalitetom poziva

  Ensure the earbuds are properly positioned on your ears. Move closer to your connected device to avoid interference. Check for any obstructions around the microphone area.



8. Specifikacije

9. Garancija i podrška

For warranty information, technical support, or any inquiries regarding your MINISO X23 Open Ear Headphones, please refer to the official MINISO webstranicu ili direktno kontaktirajte MINISO korisničku službu. Sačuvajte račun za kupovinu u slučaju reklamacije.
