1. Uvod
Thank you for choosing the ANCHEER 14-inch Folding Electric Bike. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your electric bicycle. Please read this manual thoroughly before your first ride to ensure proper use and to maximize your riding experience.
The ANCHEER 14-inch Folding Electric Bike is designed for efficient and eco-friendly city commuting, offering a blend of power, portability, and comfort. It features a 350W/500W Peak motor, a 48V 374Wh battery, and a triple shock absorber system for a smooth ride.

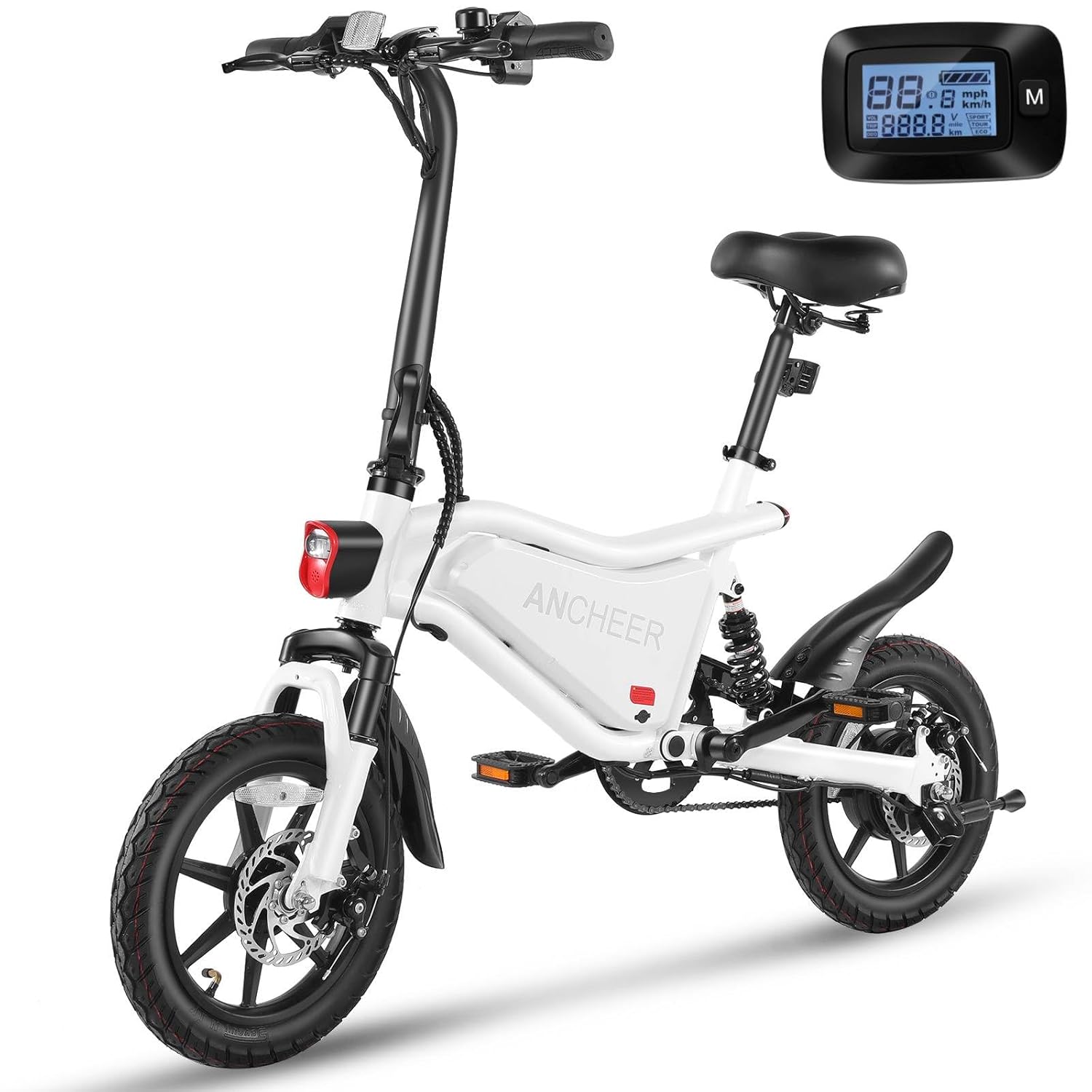

Image 1.1: The ANCHEER 14-inch Folding Electric Bike, showcasinsvojim kompaktnim dizajnom i integriranim LCD zaslonom.
2. Sigurnosne informacije
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to local traffic laws and regulations. This electric bike is UL 2849 certified, ensuring it meets specific safety standards for electrical systems.
- Perform a pre-ride inspection: Check tire pressure, brake function, and battery level.
- Budite svjesni svoje okoline i vozite defanzivno.
- Nemojte voziti pod uticajem alkohola ili droga.
- Ensure all quick releases and folding mechanisms are securely locked before riding.
- The maximum weight recommendation for this bike is 120.2 kg (265 lbs).
3. Sadržaj paketa
Prilikom raspakivanja, molimo Vas da provjerite da li su sve komponente prisutne i neoštećene:
- ANCHEER 14-inch Folding Electric Bike (95% pre-assembled)
- Punjač baterija
- Korisnički priručnik (ovaj dokument)
- Basic Assembly Tools (may vary)
4. Podešavanje
4.1 Montaža
Your ANCHEER electric bike arrives 95% pre-assembled. Minimal assembly is required, typically involving attaching the pedals, adjusting the handlebar, and securing the seat post. Refer to the included quick start guide or visual instructions for detailed steps.
4.2 Početno punjenje baterije
Before your first ride, fully charge the 48V 7.8Ah/374.4Wh lithium-ion battery. The charging time is approximately 5-6 hours. Use only the provided charger. The charge port is typically located on the side of the battery housing.
Image 4.1: The 48V/7.8Ah Lithium-Ion Battery and its charge port, indicating a full charge takes 5-6 hours.
4.3 Sklapanje i rasklapanje
The ANCHEER 14-inch electric bike is designed for portability. It can be folded in a few simple steps for easy storage and transport in car trunks or small spaces. Ensure all folding mechanisms are securely latched before and after folding.
Image 4.2: The ANCHEER 14-inch Folding Electric Bike being folded and stored, demonstrating its compact size and ease of transport.
5. Uputstvo za upotrebu
5.1 Uključivanje/isključivanje napajanja
Locate the power button on the handlebar or battery. Press and hold to turn the bike on or off. The LCD display will illuminate upon power-on.
5.2 Načini vožnje
Your electric bike offers three distinct riding modes:
- Throttle (E-bike) Mode: Engage the throttle to propel the bike without pedaling.
- Pedal-Assist (PAS) Mode: The motor provides assistance as you pedal. Adjust the assist level via the LCD display.
- Normalni biciklistički način rada: Vozite kao tradicionalni bicikl bez pomoći motora.
5.3 Tempomat
To activate cruise control, twist the throttle and maintain a consistent speed for 6-8 seconds. The bike will then hold that speed automatically. To disengage, lightly apply the brakes or twist the throttle again.
5.4 Speed Limits (Throttle & PAS Mode)
The bike features three adjustable speed limit levels:
- EKO: Do 6 mph
- OBILAZAK: Do 14 mph
- SPORT: Do 22 mph
5.5 LCD zaslon
The intuitive LCD display provides real-time information, including:
- Pedal-assist levels
- Trenutna brzina
- Distance traveled (miles)
- Battery voltage
- Indikator trajanja baterije
5.6 Kočioni sistem
The bike is equipped with dual disc brakes (front and rear) for reliable stopping power. Always apply both brakes smoothly and evenly.
5.7 Apsorpcija udara
Enjoy a comfortable ride thanks to the triple shock absorber system, which includes a suspension front fork, rear shock absorption, and a spring shock saddle. This system is designed to handle various road conditions.
Image 5.1: Illustration of the dual shock absorber system, including saddle damping and fork damping, for enhanced ride comfort.
Slika 5.2: Detaljno views of key operational components: Intelligent LCD Display, Softer & Comfier Saddle, Brake Tail Light, and 30MM Rear Suspension Travel.
5.8 Rasveta
The bike is equipped with a bright headlight and an integrated taillight with a brake-light indicator to enhance visibility, especially in low-light conditions or during night riding.
Image 5.3: The illuminated front headlight and rear taillight, demonstrating enhanced visibility for night riding.
6. Održavanje
Redovno održavanje osigurava dugotrajnost i siguran rad vašeg električnog bicikla.
- gume: Check tire pressure before each ride. The 14-inch flexible and grippy rubber tires feature an anti-slip layer, sealed steel rims, and anti-puncture properties.
- kočnice: Regularly inspect brake pads and discs for wear. Adjust brake tension as needed.
- baterija: Bateriju čuvajte na hladnom i suhom mjestu. Redovno je punite, čak i ako se ne koristi, kako biste održali njeno zdravlje. Izbjegavajte potpuno pražnjenje baterije.
- čišćenje: Očistite bicikl damp krpom. Izbjegavajte direktno korištenje visokotlačnih perača na električnim komponentama.
- Pričvršćivači: Povremeno provjeravajte sve vijke, matice i brze otpuštače kako biste se uvjerili da su čvrsto zategnuti i sigurni.
Image 6.1: The 14-inch flexible and grippy rubber tire with anti-slip layer, sealed steel rims, and anti-puncture design, alongside the dual disc brakes.
7. Otkrivanje problema
Ovaj odjeljak se bavi uobičajenim problemima na koje možete naići. Za probleme koji nisu ovdje navedeni, obratite se korisničkoj podršci.
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Bicikl se ne uključuje | Slaba baterija; labav kontakt baterije; problem s dugmetom za uključivanje/isključivanje | Napunite bateriju; provjerite je li baterija sigurno postavljena; kontaktirajte podršku ako tipka ne reagira |
| Motor ne pomaže | PAS level too low; brake lever engaged; motor cable disconnected | Increase PAS level; release brake levers; check motor cable connection |
| Kočnice su slabe | Istrošene kočione pločice; labava sajla kočnice; zrak u hidrauličnom sistemu (ako je primjenjivo) | Inspect/replace brake pads; adjust cable tension; seek professional service |
| Neobični zvukovi | Loose components; chain issues; motor malfunction | Check all fasteners; lubricate chain; contact support for motor issues |
8. Specifikacije
Key technical specifications for the ANCHEER 14-inch Folding Electric Bike (Model: AMA005931).
| Feature | Specifikacija |
|---|---|
| Naziv modela | AMA005931 |
| Vrsta bicikla | Električni bicikl |
| Veličina kotača | 14 inča |
| Motor | 350W/500W Peak Brushless Motor |
| Najveća brzina | 22 MPH |
| Baterija | 48V 7.8Ah / 374.4Wh Lithium-Ion |
| Range per Charge (PAS) | 20-45 milja |
| Vrijeme punjenja | 5-6 sati |
| Materijal okvira | Iron |
| Tip suspenzije | Front (Triple Shock Absorber System) |
| Brake Style | Disk (dvostruke disk kočnice) |
| Težina artikla | 26 kg (48.5 lbs) |
| Preporuka za maksimalnu težinu | 120.2 kg (265 lbs) |
| Recommended Height Range | 4'6'' - 5'6'' |
| Posebna karakteristika | Sklopivi |
| Certifikacija | Certificirano prema UL 2849 |
Image 8.1: The 350W/500W Peak Powerful Motor, designed for efficient propulsion.
Image 8.2: Dimensional diagram and load capacity information for the ANCHEER 14-inch Folding Electric Bike.
9. Garancija i podrška
ANCHEER provides a 1-year guarantee on the electric motor, battery, and charger. Additionally, lifelong technical support and update services are available for ANCHEER products.
If you have any questions, require technical assistance, or need to claim warranty service for your ANCHEER 14-inch foldable electric bike, please contact our customer service team through the retailer's platform or the official ANCHEER website.
