Inkbird ITDS-01 Water Quality Tester User Manual

1. Proizvod je gotovview

The Inkbird ITDS-01 is a versatile 3-in-1 digital water quality tester designed for accurate and instant measurement of Total Dissolved Solids (TDS), Electrical Conductivity (EC), and Temperature. Equipped with food-grade stainless steel probes and a backlit LCD screen, it provides clear readings even in low-light conditions. This device is ideal for testing drinking water, aquarium water, swimming pools, ponds, and reverse osmosis systems.

Slika 1: Prednja strana view of the Inkbird ITDS-01 Water Quality Tester.

2. Podešavanje

2.1 Instalacija baterije

The ITDS-01 tester requires 2x AAA batteries (not included). To install the batteries:

1. Remove the battery compartment cover located at the top of the device.
2. Umetnite 2x AAA baterije, pazeći na ispravan polaritet (+/-).
3. Vratite sigurno poklopac odeljka za baterije.

Slika 2: Eksplodirao view of the ITDS-01, highlighting the battery compartment and components.

3. Uputstvo za upotrebu

3.1 Uključivanje/isključivanje napajanja

• Pritisnite ON/OFF dugme za uključivanje uređaja.
• Pritisnite ON/OFF ponovo dugme da isključite uređaj.
• The device features an automatic shutdown function and will power off after 5 minutes of inactivity to conserve battery life.

3.2 Mjerenje

1. Uvjerite se da je uređaj uključen.
2. Carefully immerse the EC/TDS probes into the water sample up to the immersion line.
3. Wait for the readings on the LCD screen to stabilize.
4. Pritisnite HOLD button to lock the current reading on the display for easier viewing. Pritisnite ponovo za otpuštanje.

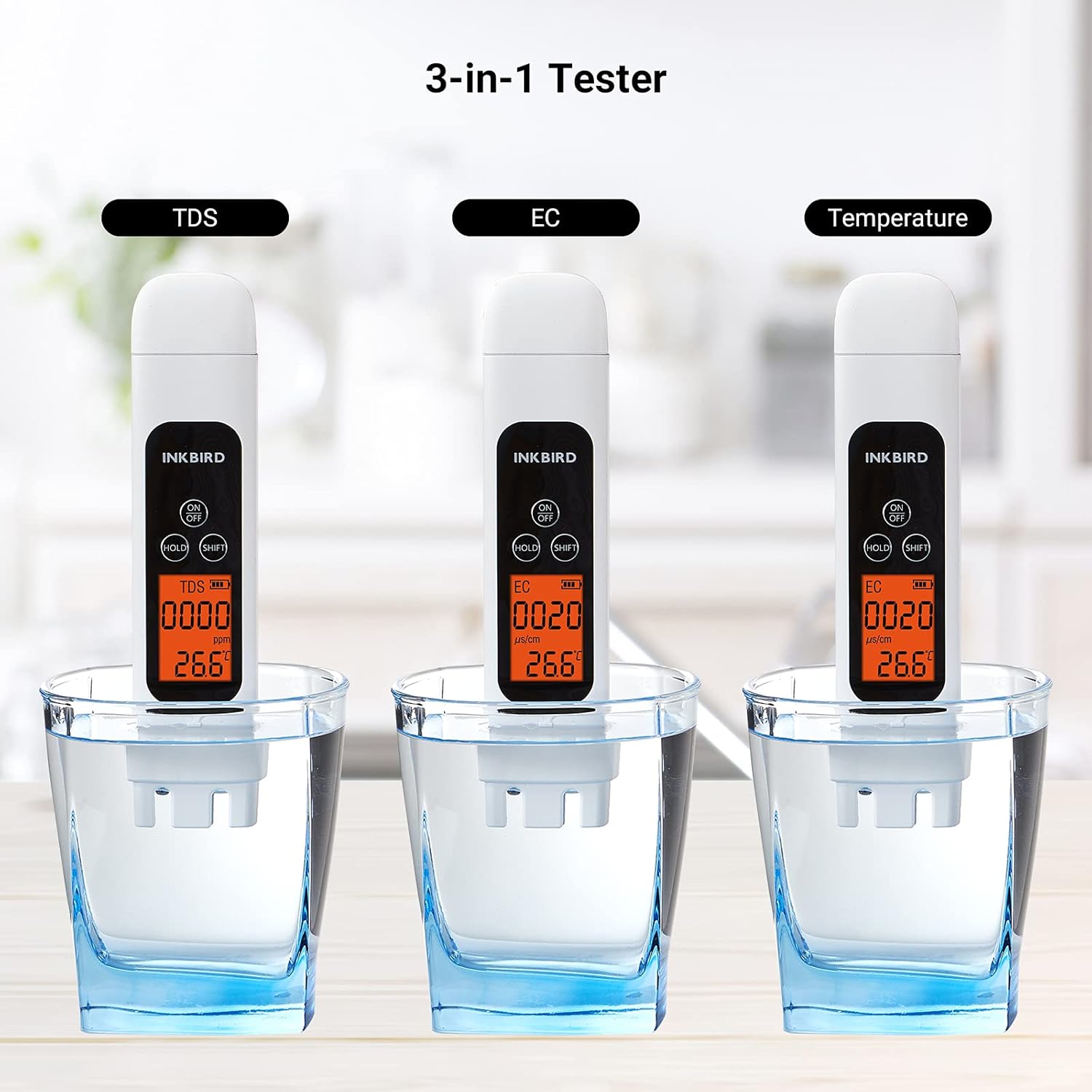

Figure 3: The ITDS-01 can measure TDS, EC, and Temperature.

3.3 Odabir načina rada

The ITDS-01 supports multiple display modes:

• Pritisnite SHIFT button to cycle through TDS (ppm), EC (µS/cm), and Temperature (°C/°F) display modes.
• Za prebacivanje između Celzijusa (°C) i Fahrenheita (°F) za temperaturu, pritisnite i držite SHIFT dugme na nekoliko sekundi.

Figure 4: Selectable display modes for TDS, EC, and temperature units.

4. Razumijevanje pročitanih tekstova

4.1 TDS (Total Dissolved Solids)

TDS refers to the total concentration of dissolved substances in water. A lower TDS value generally indicates purer water. The ITDS-01 measures TDS in parts per million (ppm).

4.2 EC (Electrical Conductivity)

EC measures the ability of water to conduct an electric current, which is directly related to the concentration of ionized solids in the water. The ITDS-01 measures EC in microsiemens per centimeter (µS/cm).

4.3 Water Quality Classification (TDS)

Use the following table as a general guide for interpreting TDS readings:

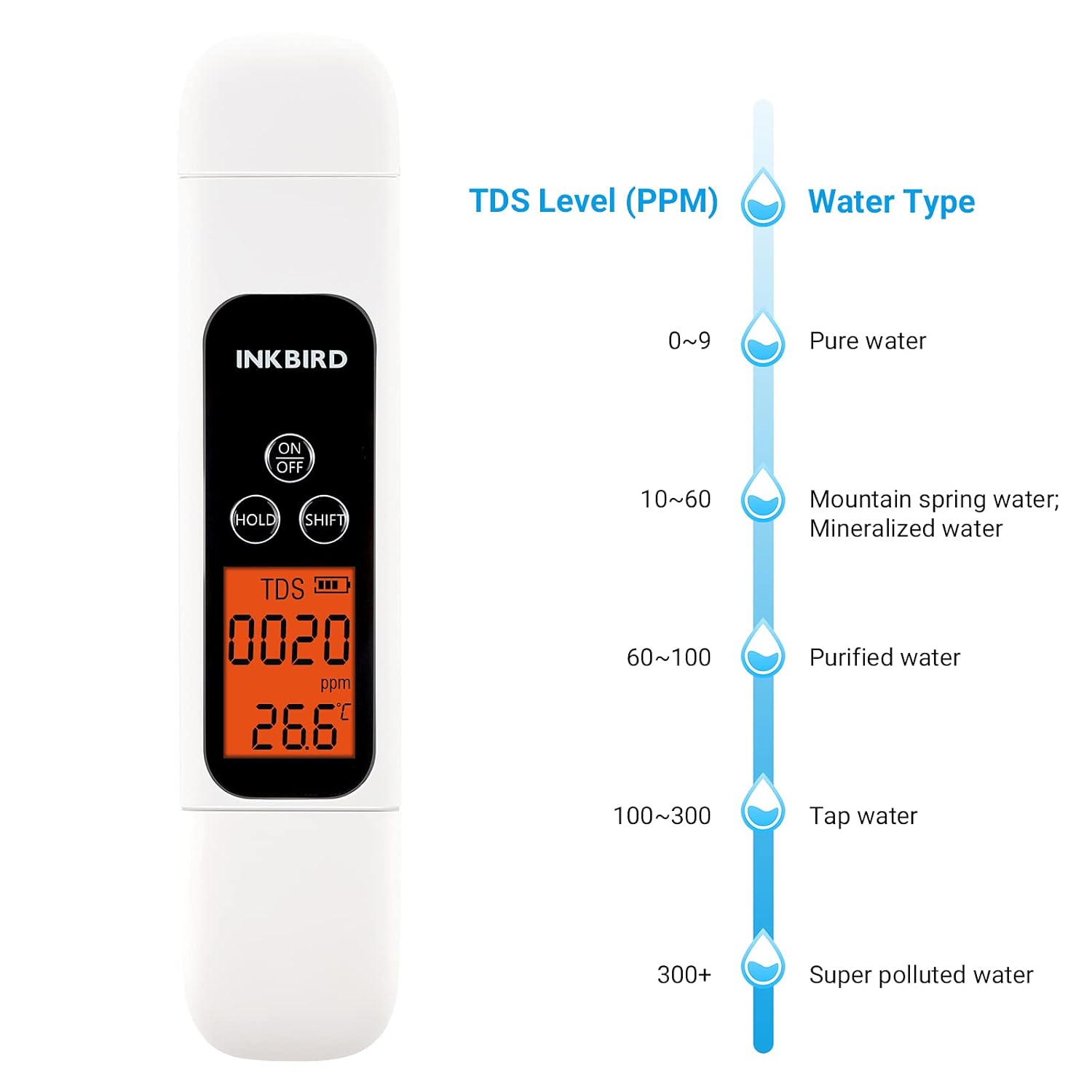

Figure 5: General TDS level classification for water types.

5. Održavanje

5.1 Čišćenje

After each use, rinse the probes with clean water to remove any residue. Gently wipe the device with a soft, dry cloth. Do not use abrasive cleaners or immerse the entire device in water.

5.2 Skladištenje

Store the ITDS-01 in a cool, dry place away from direct sunlight and extreme temperatures. Ensure the protective cap is placed over the probes when not in use.

6. Otkrivanje problema

• Nema ekrana/uređaja koji se ne uključuje: Provjerite jesu li baterije ispravno postavljene i uvjerite se da nisu ispražnjene. Po potrebi zamijenite baterije.
• Netačna očitavanja: Ensure probes are clean and fully immersed. Readings may fluctuate if the water is not still. Recalibration may be required if persistent inaccuracies occur (refer to advanced user guide if available).
• Zamrzavanje ekrana: Check if the HOLD function is activated. Press the HOLD button to release the data lock.

7. Specifikacije

8. Garancija i podrška

For warranty information and customer support, please refer to the product packaging or visit the official Inkbird website. Sačuvajte račun o kupovini za reklamacije.
