Epson EcoTank L3150 višenamjenski pisač Korisnički priručnik

Uvod

This manual provides essential instructions for the safe and efficient use of your Epson EcoTank L3150 multifunction printer. Please read this manual thoroughly before using the product and keep it for future reference. The Epson EcoTank L3150 is designed for home use, offering print, scan, and copy functionalities with integrated ink tanks and Wi-Fi Direct connectivity.

Image: The Epson EcoTank L3150 printer in operation, showing a document being printed from the output tray.

1. Podešavanje

1.1 Raspakivanje i postavljanje

• Pažljivo izvadite štampač i svu dodatnu opremu iz ambalaže.
• Uklonite sve zaštitne trake i materijale sa štampača.
• Postavite štampač na ravnu, stabilnu površinu sa dovoljno prostora oko njega za ventilaciju i rad.

1.2 Punjenje rezervoara za mastilo

The EcoTank L3150 uses integrated ink tanks. Follow these steps to fill them:

1. Otvorite poklopac jedinice sa rezervoarom za mastilo sa strane štampača.
2. Open the cap for each color tank (Black, Yellow, Magenta, Cyan).
3. Uncap the corresponding ink bottle and insert it into the correct tank. The bottles are designed to prevent incorrect filling.
4. Pustite da se tinta iscijedi u spremnik. Nemojte stiskati bočicu.
5. Kada se rezervoar napuni, izvadite bocu i čvrsto zatvorite čep rezervoara.
6. Ponovite za sve boje.
7. Zatvorite poklopac jedinice sa rezervoarom za mastilo.

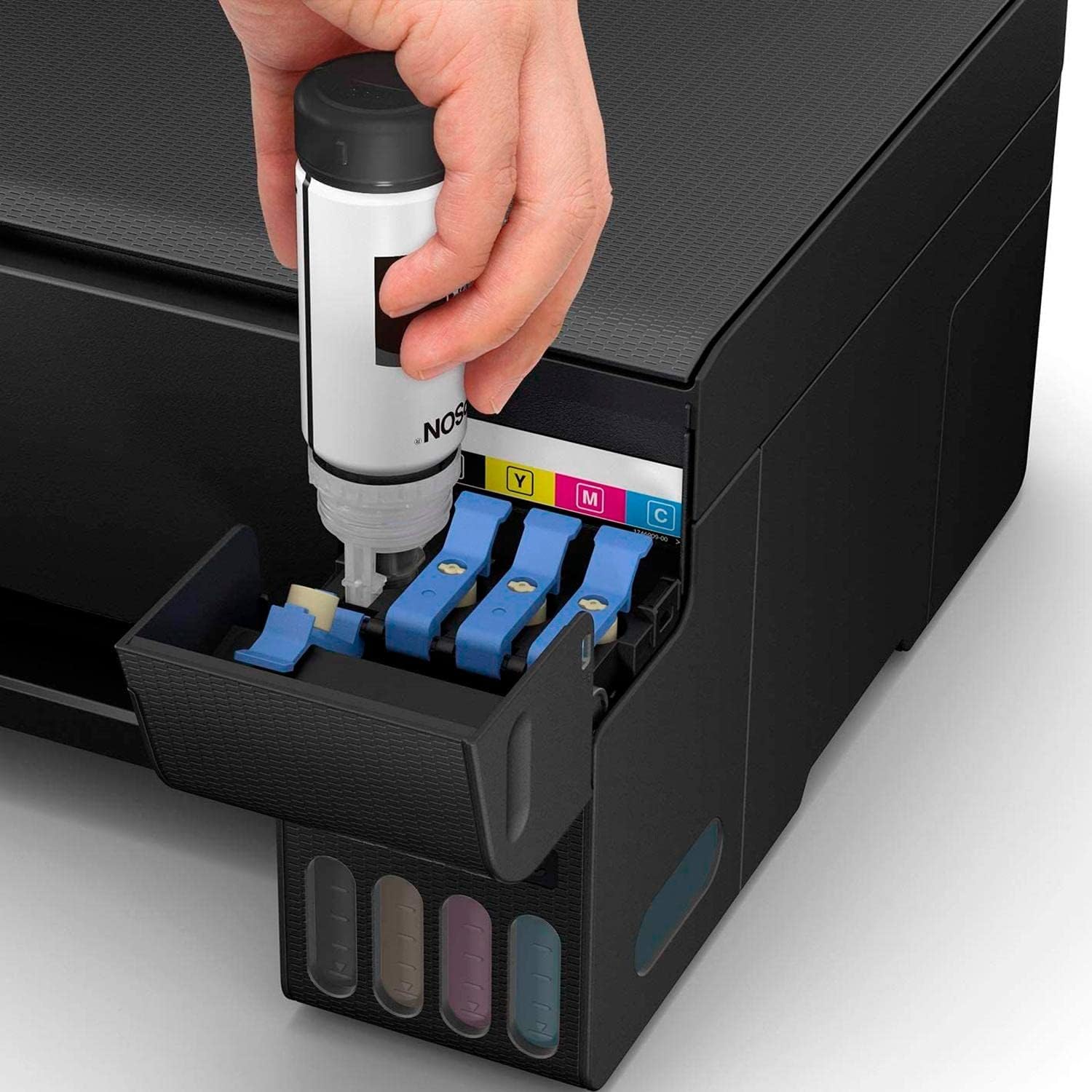

Slika: Detaljna view of the ink refilling process for the Epson EcoTank L3150.

Važno: After filling, you will need to initialize the ink system. Refer to the on-screen instructions during software installation for this process. This typically takes about 10-15 minutes.

1.3 Priključak za napajanje

• Spojite kabel za napajanje na ulaz za napajanje pisača, a zatim na zidnu utičnicu.
• Pritisnite dugme za napajanje da uključite štampač.

1.4 Instalacija softvera

Insert the provided installation CD into your computer's CD/DVD drive or download the latest drivers and software from the official Epson support website. Follow the on-screen instructions to install the printer drivers and utilities. This process includes setting up the ink levels and cleaning the print heads.

1.5 Wi-Fi Direct Setup

To connect your printer directly to a mobile device or computer without a router:

1. Press the Wi-Fi Direct button on the printer's control panel.
2. On your mobile device or computer, go to Wi-Fi settings and select the printer's Wi-Fi Direct network (e.g., "DIRECT-xx-EpsonL3150").
3. Enter the password displayed on the printer's control panel or printed on the network status sheet.

For standard Wi-Fi network connection, follow the instructions provided by the Epson software installer.

2. Uputstvo za upotrebu

2.1 Umetanje papira

• Otvorite nosač papira i izvucite produžetak.
• Pomaknite rubne vodilice prema širini papira.
• Umetnite papir sa stranom za štampanje okrenutom prema gore u zadnji otvor za uvlačenje papira.
• Podesite rubne vodilice prema papiru.

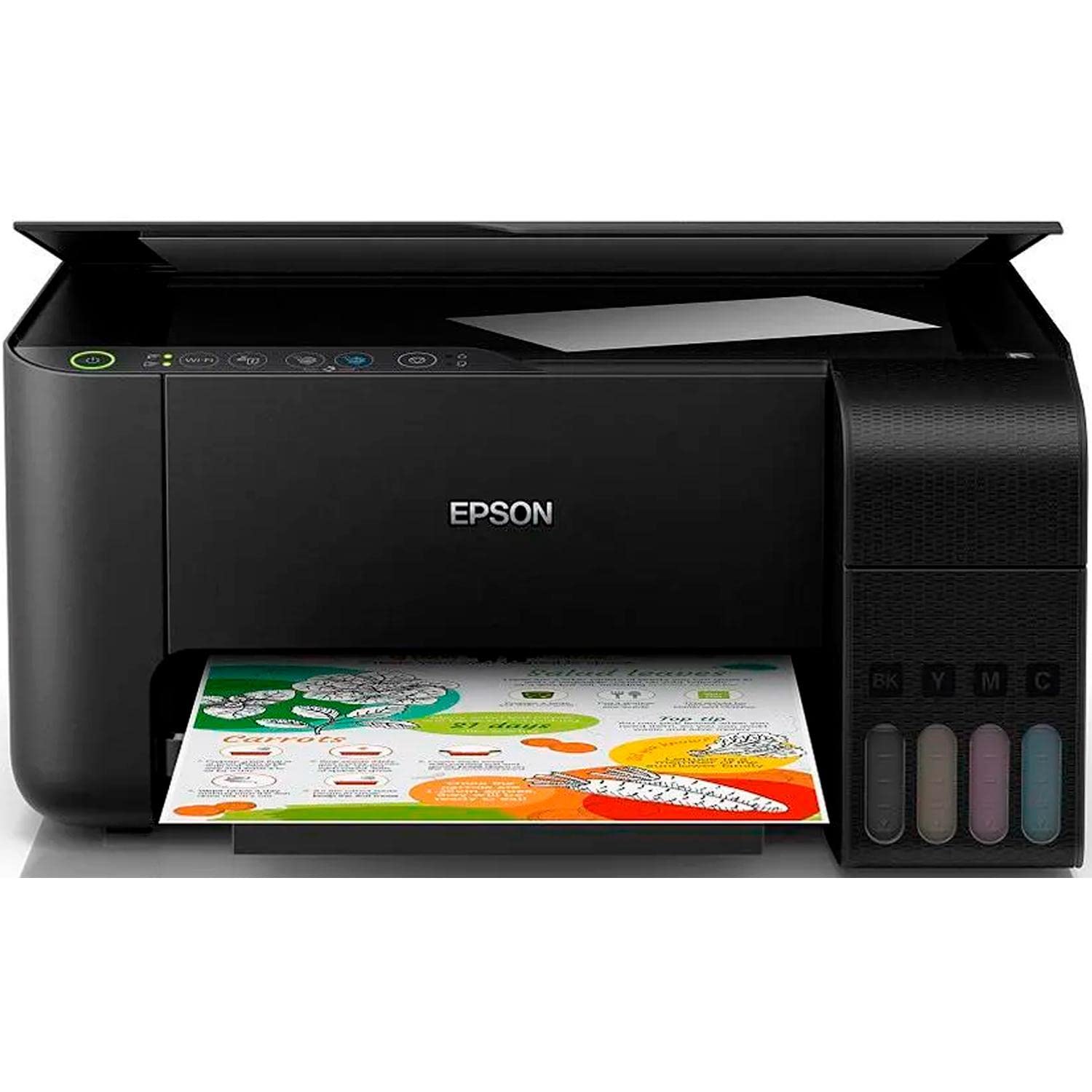

Image: The Epson EcoTank L3150 with paper loaded, ready for printing.

2.2 Štampanje sa računara

1. Otvorite dokument ili sliku koju želite ispisati.
2. Odaberite Print from the application's File meni.
3. Choose your Epson L3150 printer.
4. Adjust print settings (paper size, type, quality, color/grayscale) as needed.
5. Kliknite Print.

2.3 Printing from a Mobile Device (Epson iPrint App)

Download the Epson iPrint app from your device's app store. Connect your mobile device to the same Wi-Fi network as your printer or use Wi-Fi Direct. The app allows you to print documents and photos, scan directly to your device, and monitor printer status.

2.4 Skeniranje dokumenata

1. Podignite poklopac skenera.
2. Postavite dokument licem prema dolje na staklo skenera, poravnavajući ga s oznakom u uglu.
3. Pažljivo zatvorite poklopac skenera.
4. On your computer, open the Epson Scan software or use the Epson iPrint app on your mobile device.
5. Select scan settings (document type, resolution, destination).
6. Kliknite Skeniraj.

2.5 Kopiranje dokumenata

1. Place the document on the scanner glass as described in section 2.4.
2. Na kontrolnoj tabli štampača pritisnite dugme Kopija u boji dugme za kopiju u boji ili Black & White Copy dugme za monohromatsku kopiju.
3. To make multiple copies, press the button repeatedly for the desired number of copies.

2.6 Remote Printing (Epson Email Print)

During setup, you can register your printer for Epson Email Print, which assigns a unique email address to your printer. You can then print documents by sending them as attachments to this email address from any location with internet access.

3. Održavanje

3.1 Provjera nivoa tinte

The Epson EcoTank L3150 features visible ink tanks on the front, allowing you to visually monitor ink levels. Ensure ink levels do not fall below the minimum line to prevent air from entering the ink system.

Slika: Front view of the Epson EcoTank L3150, highlighting the transparent ink tanks.

3.2 Punjenje rezervoara za mastilo

When an ink tank is low, refill it using genuine Epson ink bottles. Refer to section 1.2 for detailed instructions on filling ink tanks. After refilling, you may need to reset the ink levels through the printer software.

3.3 Čišćenje glave štampača

If print quality declines (e.g., missing lines, faded prints), perform a print head cleaning. This can be done through the Epson printer utility software on your computer. Follow the on-screen prompts.

3.4 Provjera mlaznica

To check if the print head nozzles are clogged, perform a nozzle check. This prints a pattern that reveals any missing segments. If segments are missing, perform a print head cleaning. This function is also available through the Epson printer utility software.

4. Otkrivanje problema

4.1 Štampač ne reaguje

• Ensure the printer is powered on and connected to the computer via USB or the correct Wi-Fi network.
• Check for any error messages on the printer's control panel or your computer screen.
• Ponovo pokrenite i štampač i računar.
• Provjerite da li je u dijalogu za štampanje vaše aplikacije odabran ispravan štampač.

4.2 Loš kvalitet ispisa

• Check ink levels and refill any low tanks (see section 3.1).
• Perform a nozzle check and print head cleaning (see sections 3.3 and 3.4).
• Provjerite da li koristite originalnu Epson tintu.
• Verify that the paper type setting in your print driver matches the paper loaded.

4.3 Zaglavljivanje papira

• Isključite štampač i izvucite kabl za napajanje.
• Carefully remove any jammed paper from the paper feed slot or output tray.
• Open the printer cover and remove any paper fragments from inside.
• Zatvorite sve poklopce, priključite kabel za napajanje i uključite pisač.
• Provjerite je li papir pravilno umetnut i nije li zgužvan iliurled.

4.4 Problemi s Wi-Fi povezivošću

• Ensure your printer is within range of your Wi-Fi router.
• Ponovo pokrenite ruter, štampač i računar/mobilni uređaj.
• Re-run the Wi-Fi setup utility from the Epson software.
• For Wi-Fi Direct, ensure you are connected to the printer's direct network and have entered the correct password.

5. Specifikacije

6. Informacije o garanciji

The Epson EcoTank L3150 printer comes with a warranty provided directly by the manufacturer, Epson. For specific terms, conditions, and duration of your warranty, please refer to the warranty card included with your product or visit the official Epson support webstranicu za vašu regiju. Sačuvajte dokaz o kupovini za potrebe reklamacije.

7. Korisnička podrška

For further assistance, technical support, driver downloads, or to find service centers, please visit the official Epson support website. You can typically find comprehensive FAQs, troubleshooting guides, and contact information for customer service there.

Epsonov službeni Webstranica: www.epson.com/support
