echosari Control Handle Kit P021044483 Instruction Manual

Uvod

This manual provides essential instructions for the installation, operation, and maintenance of the echosari Control Handle Kit, model P021044483. This genuine Echo OEM part is designed for specific outdoor power tools, including PAS225, PAS225B, SHC225, and GT225L models. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Sigurnosne informacije

Uvijek dajte prioritet sigurnosti pri radu s električnim alatima i rezervnim dijelovima. Nepoštivanje sigurnosnih uputa može dovesti do ozbiljnih ozljeda ili oštećenja opreme.

• Ensure the power tool is turned off and disconnected from its power source before beginning any installation or maintenance.
• Nosite odgovarajuću ličnu zaštitnu opremu (LZO), kao što su rukavice i zaštita za oči.
• Ako niste sigurni u vezi s bilo kojim korakom, obratite se kvalificiranom serviseru.
• Držite djecu i prolaznike dalje od radnog područja.

Kit Components

The echosari Control Handle Kit P021044483 typically includes the following:

• Sklop upravljačke ručke
• Vijak(i) za montažu
• Wiring harness (integrated)

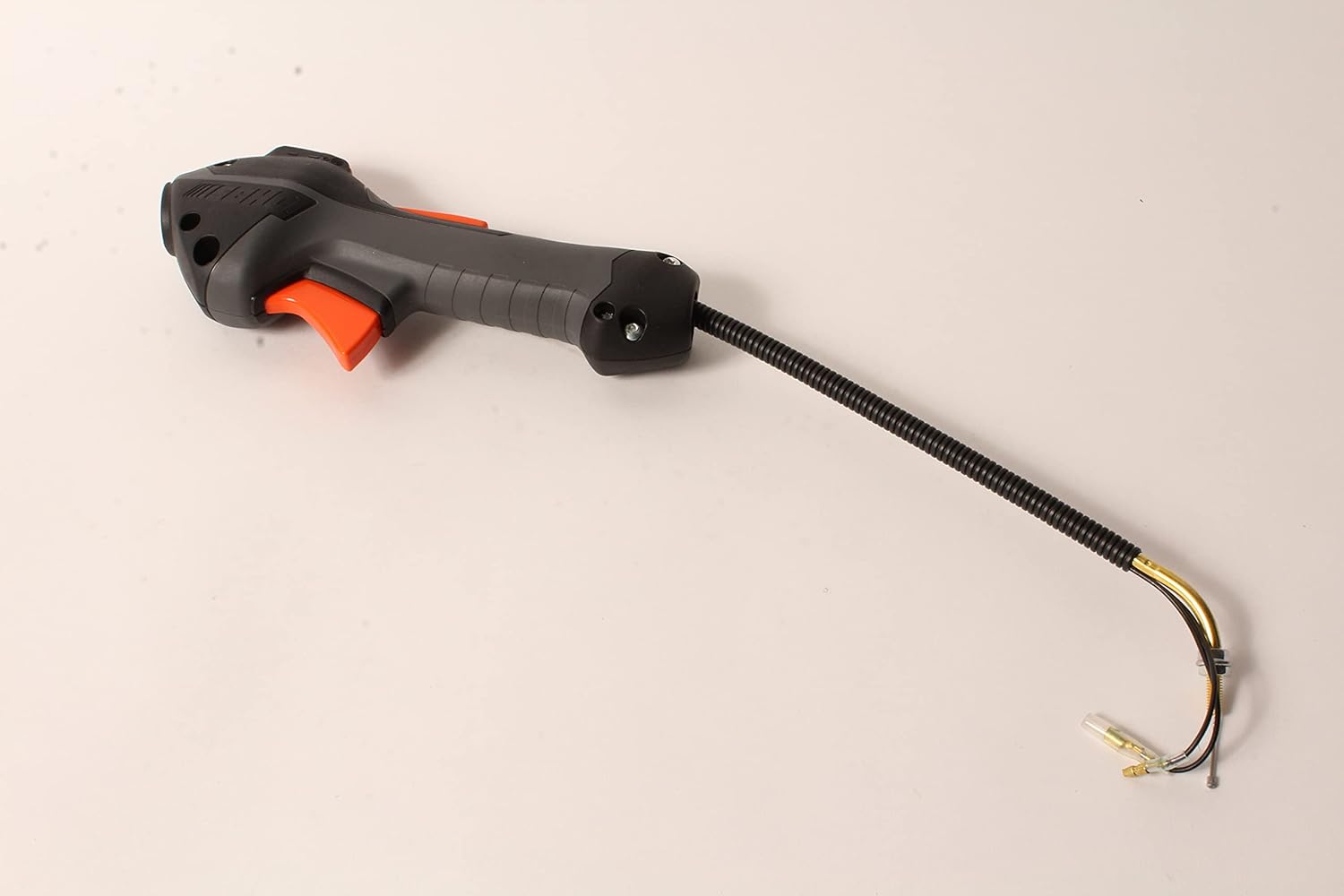

Slika 1: Gotovoview of the echosari Control Handle Kit P021044483. This image displays the complete control handle assembly, featuring the ergonomic grip, orange trigger, and integrated wiring harness extending from the base.

Uputstva za instalaciju

This section outlines the general steps for installing the control handle kit. Specific procedures may vary slightly depending on your power tool model (PAS225, PAS225B, SHC225, GT225L).

1. Priprema: Ensure the power tool is completely off and disconnected from any fuel or electrical source. Place the tool on a stable, flat surface.
2. Uklonite staru ručku (ako je primjenjivo): Carefully disconnect any wiring from the existing control handle. Unscrew and remove the old handle assembly from the tool's shaft. Note the routing of the wires for reinstallation.
3. Pozicija nove ručke: Slide the new echosari Control Handle Kit onto the tool's shaft. Ensure it is oriented correctly for comfortable operation.
4. Sigurna ručka: Use the provided screw(s) or existing hardware to firmly attach the control handle to the shaft. Do not overtighten.
5. Povežite ožičenje: Carefully connect the wiring harness from the new control handle to the corresponding connections on the power tool. Refer to your power tool's specific wiring diagram if necessary. Ensure all connections are secure and properly insulated.
6. Test funkcionalnost: Once installed, reconnect the power tool to its power source. Perform a functional test to ensure the throttle trigger, stop switch, and any other controls on the handle operate correctly before using the tool for work.

Slika 2: Krupni plan view of the echosari Control Handle Kit, highlighting the ergonomic grip and trigger mechanism. This perspective shows the details of the control buttons and the textured surface for improved handling.

Uputstvo za upotrebu

The control handle provides the primary interface for operating your power tool. Familiarize yourself with its functions before use.

• Okidač gasa: The orange lever controls the engine speed or motor power. Squeeze to increase speed, release to decrease.
• Stop prekidač: Located on the handle, this switch is used to immediately shut off the engine/motor. Always ensure it is functioning correctly before starting the tool.
• Throttle Lock (if applicable): Some models may include a throttle lock or cruise control feature. Refer to your power tool's main manual for specific instructions on its use.

Always hold the tool firmly with both hands, maintaining a balanced stance. Do not operate the tool if the control handle feels loose or damaged.

Održavanje

Regular inspection and minor maintenance will extend the life of your control handle kit.

• čišćenje: Keep the handle clean from dirt, debris, and oil. Use a damp cloth to wipe surfaces. Avoid using harsh chemicals that could damage the plastic.
• inspekcija: Periodically check the handle for any signs of damage, cracks, or loose components. Ensure the throttle trigger moves freely and returns to its idle position.
• Ožičenje: Inspect the wiring harness for fraying, cuts, or exposed wires. Repair or replace if damage is found.
• Pričvršćivači: Check that all screws securing the handle are tight.

Rješavanje problema

If you encounter issues with your control handle, consider the following common problems and solutions:

For issues not listed here or if troubleshooting steps do not resolve the problem, contact a qualified service technician or the manufacturer.

Specifikacije

Informacije o garanciji

For warranty details regarding the echosari Control Handle Kit P021044483, please refer to the warranty documentation provided with your original power tool or contact the manufacturer directly. Warranty terms typically cover defects in materials and workmanship under normal use.

Korisnička podrška

If you require further assistance or have questions regarding the installation or operation of this control handle kit, please contact your retailer or the manufacturer, Echo, for support.

Manufacturer: Echo

Broj dijela: P021044483

ASIN: B073VRVXPY
