1. Proizvod je gotovview

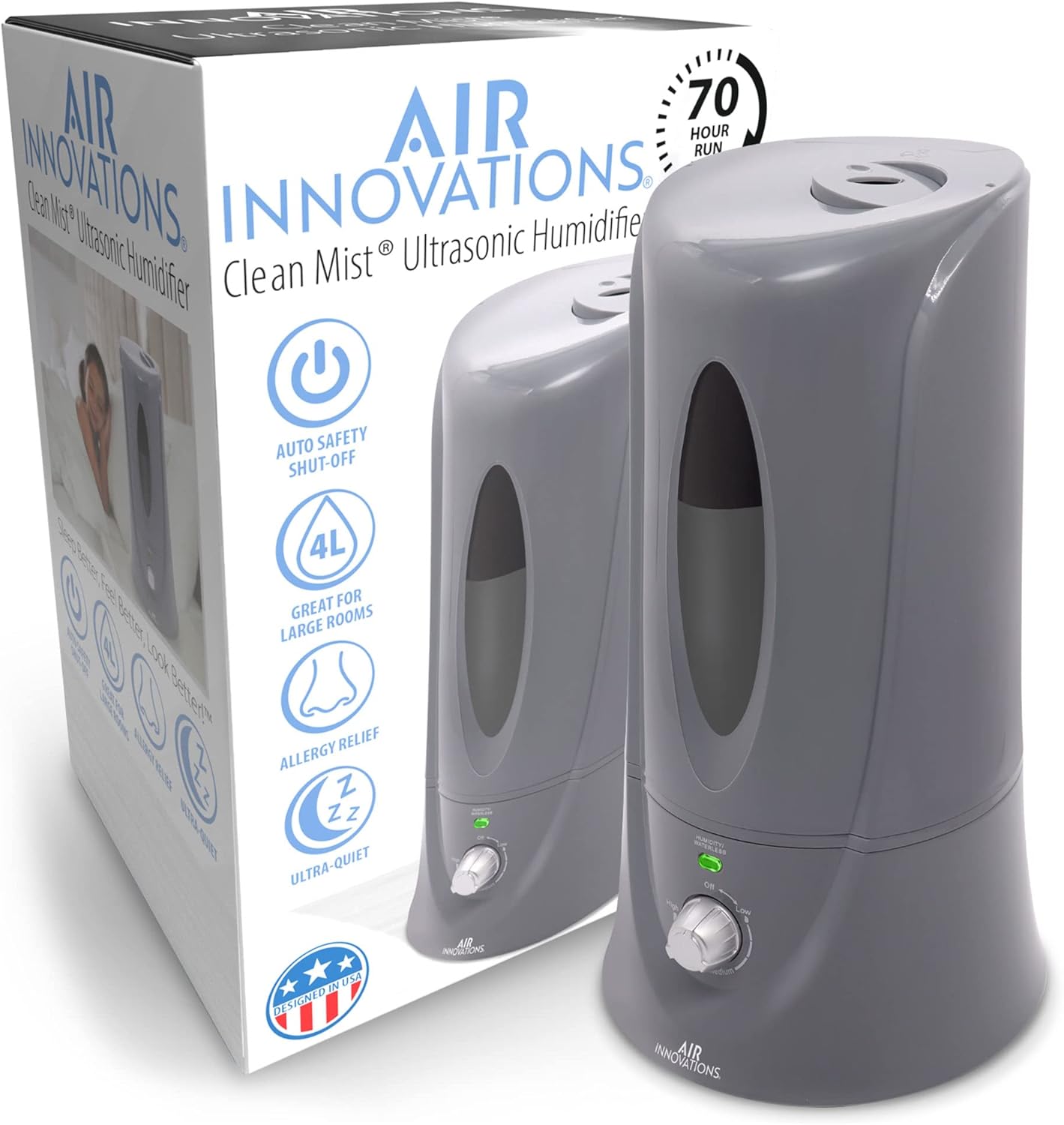

The Air Innovations MH-408 is an ultrasonic cool mist humidifier designed for medium-sized rooms up to 400 square feet. It features a 1.1-gallon water tank that can operate for up to 70 hours on a low setting. The unit operates silently and includes a permanent ceramic filter, eliminating the need for replacements. A 360-degree rotating mist nozzle allows for directional mist output. Convenient features include a built-in handle on the tank for easy filling and carrying, an extra-wide tank opening, and an automatic shut-off function when the water level is low.
Ključne karakteristike:
- Permanent Ceramic Filter: No replacement filters are required.
- Produženo vrijeme rada: 1.1-gallon tank provides up to 70 hours of operation on the low setting.
- 360-Degree Rotating Mist Nozzle: Omogućava podešavanje smjera magle.
- tihi rad: Dizajniran za tihe performanse.
- Easy Refill and Carry: Features a built-in handle and wide tank opening.
- Automatsko isključivanje: Unit powers off when water runs out.
2. Važna sigurnosna uputstva
Read all instructions before using this humidifier to reduce the risk of fire, electric shock, or injury.
- Always place the humidifier on a firm, flat, level surface at least 12 inches (30 cm) away from walls and 3 feet (90 cm) from heat sources such as stoves, radiators, or heaters.
- Ensure the humidifier is unplugged before filling, cleaning, or moving.
- Do not operate the humidifier with a damaged cord or plug. If the unit malfunctions or has been damaged, discontinue use and contact customer support.
- Keep the mist nozzle pointed away from walls, furniture, and appliances.
- Do not add essential oils, medications, or other additives directly into the water tank or base, as this may damage the unit and void the warranty.
- Ne uranjajte bazu u vodu ili druge tečnosti.
- Ovaj uređaj nije namijenjen za upotrebu od strane osoba (uključujući djecu) sa smanjenim fizičkim, senzornim ili mentalnim sposobnostima, ili nedostatkom iskustva i znanja, osim ako im je dat nadzor ili upute o korištenju uređaja od strane osobe odgovorne za njihovu sigurnost .
- Djeca trebaju biti pod nadzorom kako bi se osiguralo da se ne igraju s uređajem.
3. Komponente proizvoda
Familiarize yourself with the parts of your Air Innovations MH-408 Humidifier.
Image: Air Innovations MH-408 Humidifier with key components labeled, including the rotating mist nozzle, water tank, water level indicator window, built-in handle, humidity/water sensor, power/control knob, and base.
- Rotating Mist Nozzle: Directs the mist output.
- Spremnik za vodu: Holds up to 1.1 gallons of water.
- Water Level Indicator Window: Allows visibility of the water level.
- Ugrađena ručka: For easy removal and carrying of the water tank.
- Humidity/Water Sensor: Detects water levels and humidity.
- Power/Control Knob: Turns the unit on/off and adjusts mist output.
- baza: Contains the ultrasonic nebulizer and electronic components.
- Permanent Ceramic Filter: Located inside the water tank, purifies water.
4. Upute za postavljanje
- Raspakujte ovlaživač zraka: Carefully remove all packaging materials and place the unit on a flat, waterproof surface.
- Separate Tank and Base: Lift the water tank from the base.
- Napunite rezervoar za vodu:
- Remove the mist nozzle from the top of the tank.
- Using the built-in handle, carry the tank to a sink. The wide opening allows for easy top-filling.
- Fill the tank with clean, cool tap water. Distilled or demineralized water is recommended to minimize white dust. Do not fill with hot water.
- Replace the mist nozzle securely on top of the tank.
- Postavite rezervoar na bazu: Carefully place the filled water tank back onto the humidifier base, ensuring it is seated correctly.
- Position the Humidifier: Place the assembled humidifier in the desired location, ensuring it is on a stable, level surface and away from obstacles.
- Priključak: Uključite kabl za napajanje u standardnu električnu utičnicu.
Image: A user separating the water tank from the base of the Air Innovations MH-408 Humidifier for filling or cleaning.

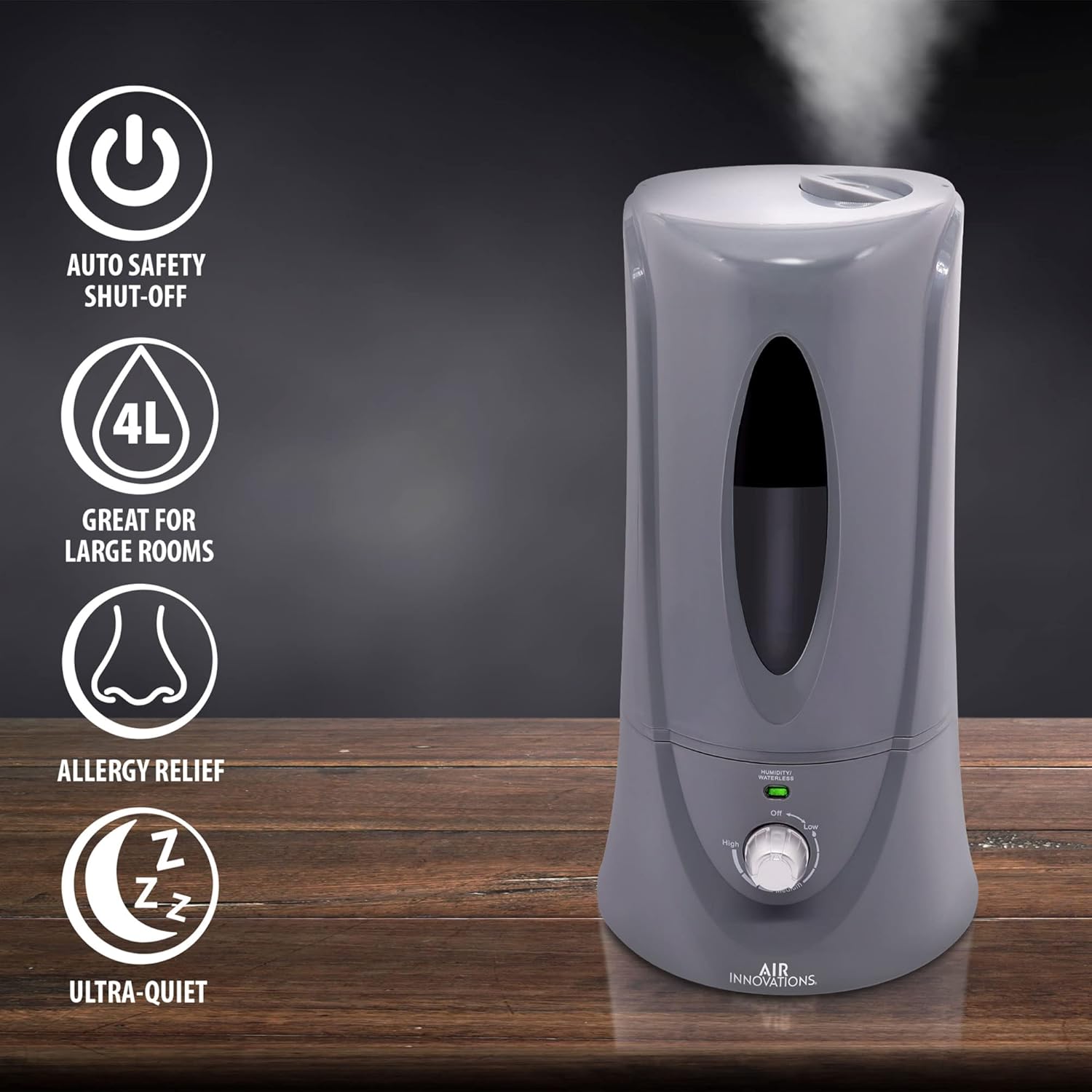

Image: The Air Innovations MH-408 Humidifier positioned on a wooden surface, ready for operation.
5. Uputstvo za upotrebu
- Uključeno: Turn the Power/Control Knob clockwise from the 'Off' position. The power indicator light will illuminate.
- Podesite izlaz magle: Continue turning the Power/Control Knob clockwise to increase the mist output. Turn counter-clockwise to decrease it.
- Direktna magla: Rotate the 360-degree mist nozzle to direct the mist flow to your preferred area.
- Automatsko isključivanje: The humidifier will automatically turn off when the water tank is empty. The 'Waterless' indicator light will illuminate.
- Dopunjavanje: When the unit shuts off due to an empty tank, turn the Power/Control Knob to 'Off', unplug the unit, and refill the water tank as described in the Setup section.
- Iskljuciti: To turn off the humidifier, rotate the Power/Control Knob counter-clockwise until it clicks into the 'Off' position.
Image: A close-up of a hand turning the control knob on the humidifier to adjust settings.
Slika: Detaljna view of the humidifier's control knob, showing settings for Off, Low, Medium, and High mist output.
Image: The Air Innovations MH-408 Humidifier actively producing and dispersing cool mist into the air.
6. Održavanje
Redovno čišćenje je neophodno za optimalne performanse i sprečavanje nakupljanja minerala i rasta bakterija.
Svakodnevno održavanje:
- Isključite i isključite jedinicu.
- Ispraznite svu preostalu vodu iz rezervoara i baze.
- Isperite rezervoar i bazu svježom vodom.
- Ostavite sve dijelove da se osuše na zraku prije ponovnog sastavljanja ili skladištenja.
Weekly Maintenance (Mineral Buildup Removal):
- Isključite i isključite jedinicu.
- Odvojite rezervoar za vodu od osnove.
- Pour 2 cups of undiluted white vinegar into the water tank and into the base reservoir.
- Ostavite da odstoji 20 minuta.
- Use a soft brush or cloth to gently clean any mineral buildup from the inside of the tank and the ultrasonic nebulizer in the base.
- Rinse both the tank and base thoroughly with fresh water until the smell of vinegar is gone.
- Ne uranjajte bazu u vodu.
Permanent Ceramic Filter Cleaning:
The permanent ceramic filter does not require replacement. To clean, simply rinse it under running tap water for 30 seconds every time you refill the tank. This helps maintain its effectiveness.
7. Otkrivanje problema
If your humidifier is not operating correctly, please refer to the following common issues and solutions:
| Problem | Mogući uzrok | Rješenje |
|---|---|---|
| Nema magle ili vrlo malo magle | Unit not plugged in; Water tank empty; Mineral buildup on nebulizer; Mist nozzle blocked. | Ensure power cord is securely plugged in; Refill water tank; Clean the ultrasonic nebulizer with white vinegar; Check and clear mist nozzle. |
| Bijela prašina oko ovlaživača zraka | Korištenje tvrde vode iz slavine. | Use distilled or demineralized water. Clean the unit regularly to remove mineral residue. |
| Neobičan miris | Dirty water or tank; New unit odor. | Clean the water tank and base thoroughly; For new unit odor, run for a few hours in a well-ventilated area. |
| Curenje vode | Water tank not seated correctly; Damaged tank. | Ensure the water tank is properly aligned and seated on the base; Inspect tank for cracks or damage. |
8. Specifikacije
- Model: MH-408
- Brand: Vazdušne inovacije
- Način rada: Ultrasonic
- Kapacitet rezervoara za vodu: 1.1 Gallons (approximately 4.16 Liters)
- Vrijeme rada: Do 70 sati na niskoj postavci
- Preporučena veličina sobe: Do 400 kvadratnih stopa
- Posebne karakteristike: Permanent Ceramic Filter, Quiet Operation, Adjustable Mist Output, 360-Degree Dual Directional Mist Nozzle, Auto Shut-Off
- Dimenzije proizvoda: 9.5"D x 9.5"Š x 16"H
- Težina artikla: 2.9 funti
- Voltage: 127 Volts
9. Garancija i podrška
For warranty information or technical support, please contact Air Innovations customer service directly. Refer to the product packaging or the official Air Innovations webstranicu za najnovije kontakt podatke.
Proizvođač: Vazdušne inovacije
