MS6 SCR IMSA GTP Scrutineering System
Instruction Manual

Scope

This document contains application notes on the installation and operation of the IMSA Scrutineering System.

Contact
For technical information please contact: SUPPORT.IMSA@US.BOSCH.COM
2.1 Sales
Contact Bosch Motorsport for purchasing information via the contacts above.
For non-Bosch third-party parts order information, refer to IMSA. documentation
2.1.1 Track Sales
Customers requiring spare parts purchased and delivered at the racetrack are subject to a 10% service fee.

Components

3.1 Electronic Hardware
Component List:

* Denotes component available from other IMSA suppliers. Please refer to IMSA documentation for ordering information
** Denotes homologated component supplied by GTP Manufacturer
3.1.1 Logger – MS6 SCR
Functional Description: Logger for GTP Class Scrutineering System
Homologation Mounting Note:

• Device should be mounted in an easily accessible area that allows access to all main connectors. This device must be mounted away from heat sources.
  Note maximum temperature range below.
• This device should be mounted to sustain vibrations within the Vibration
  Profile 1 defined in the appendix.
  Part Number: F02U.V03.353-01
  Temperature Range: -20 to 80 °C
  Recommended Inspection: 2 years or 220 hours

3.1.2 Display – XAP NTX

Functional Description: Marshalling Display for IMSA GTP Class Scrutineering System Homologation Mounting Note:

• This device should be mounted so that the display can be easily seen by the driver while on course, and away from any heat sources.
  Brightness Control: Brightness must be commanded via CAN by a dimming value of 0-255 (0 is full bright and 255 is off) for both LED and Screen brightness. The SCR then interpolates the 0-255 value to a 0-7 value sent to the NTX Display on CAN Foxtrot. Message details found in the DBC.

3.1.3 Telemetry – LTE65
Functional Description: Telemetry Radio for IMSA GTP Class Scrutineering System Homologation Mounting Note:

• Device should be mounted in a dry area away from direct heat sources, and with the status LEDs plainly visible.
• Use of the specified antennas are required.
• External antennas must be mounted as homologated.
• SMA cables are provided in the kit. Competitors can supply their own cables that have an impedance of 50Ω and meet or exceed the standards of RG316.
  The cable must be SMA male on both ends.
• This device should be mounted to sustain vibrations within the Vibration Profile 1 defined in the appendix.

Part Number: F02U.V02.910-02
External Antenna Parts:
Antenna Part Number: F02U.00U.087-01
SMA Bulkhead: F02U.00U.088-01
Cable (if not provided by competitor): F02U.00U.089-01 (66″ length) OR
F02U.00U.089-02 (120″ length)
Temperature Range: -30 to 65 °C
Team Private Telemetry Stream: Each individual team will be allowed a stream that is sent to the telemetry radio via RS232 at 115.2K Baud. The stream can be from any data logger type and is not decoded by the scrutineering system – allowing for free control of the telemetry stream by competitors.
External Antennas Installation

• Ground plane is required.
  o Can be made with copper tape – is included in the kit if needed.
  o Use heli-tape or similar to isolate the ground plane from the body panel.
  o Size: 4” x 5” (3” x 4” is minimum size)
  o Ground planes must not be shared between devices.

3.1.4 Accident Data Recorder
Functional Description: Accident Data Recorder for IMSA GTP Class Scrutineering System
Homologation Mounting Note:

• Device should be mounted in an easily accessible area that allows access to all main connectors. This device must be mounted away from heat sources.
• See LMDh and LMH Technical Regulations regarding installation requirements.

3.1.5 High Speed Camera
Functional Description: High Speed Camera for GTP Class Scrutineering System
Homologation Mounting Note:

• See LMDh and LMH Technical Regulations regarding installation requirements.

3.1.6 IMU/GNSS – VMPS
Functional Description: 6 axis inertial measurement unit with GNSS.
Homologation Mounting Note:

• Device should be mounted in an easily accessible area that allows access to all main connectors. This device must be mounted away from heat sources.
• Device must be installed with supplied mounting hardware.
• Using provided grommets as shown below.
• Vibration isolating mounts are preferred but not required.
• The metal housing should not be allowed to contact any part of the chassis during normal operating conditions.
• Using 3x M6 bolts or studs, competitors to provide.
• Device to be mounted:
• With connector interfaces facing towards the rear of the car
• Aligned within 1 degree of vehicle centerline.
• Within 0.5 degrees of horizontal
• Nearest to vehicle center of gravity as possible
• Use of the specified antenna is required.
• Antenna must be mounted as homologated.
• An SMA cable is provided in the kit.
• Competitors can supply their own cables that have an impedance of 50Ω and meet or exceed the standards of LMR-100A.
• The length of the cable is not to exceed 3 meters.
• All reasonable efforts should be made to run the antenna cable away from strong sources of electrical noise, including but not limited to:
• TV cameras and cables
• Ignition cables
• Radio transmitters and cables
• High voltage sources

Part Number: F02U.V0U.445-01
Antenna Part Number: F02U.00U.081-01
Temperature Range: -40 to 65 °C

3.1.7 USB Stick/Diagnostic Port
Functional Description: IMSA Scrutineering USB Stick and Diagnostic Port Homologation Mounting Note:

• Device and diagnostic connector must be mounted in an area easily accessible via the passenger side door opening.
• Both ports must be clearly labeled as IMSA Diag and IMSA USB respectively.
• Both ports should be mounted securely, so that the USB stick and Diagnostic connector can be inserted and removed with one hand.
• USB Wiring must be shielded. See wiring schematic for more details.

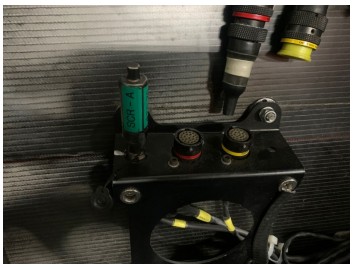

• Mounting example:

Temperature Range: -40 to 85 °C
Removal Note: To remove the USB stick from the connector, the collar at the connector end of the USB stick must be pulled away from the connector. Do not pull on the main body to remove. USB Stick Possession: IMSA will distribute and collect USB Sticks at every race; teams will not receive sticks with scrutineering components, nor are they required to purchase these separately.
3.1.8 X2 Transponders
Functional Description: CAN based transponder for IMSA GTP Class Scrutineering
System
Homologation Mounting Note:

• Each car will carry two X2 Transponders.
• The Main Transponder should be mounted at the front of the car, and the Backup Transponder should be mounted in the rear of the car. The designation of the transponders will be based on the CAN layout detailed in section below.
• Refer to technical regulations for mounting location.
  Temperature Range: 0 to 60 °C

3.1.9 Leaderlight Panels
Functional Description: Leaderlight panels
Homologation Mounting Note:

• This device(s) must be fitted securely.
• Refer to technical regulations for mounting location.

The pinout of the leaderlight power connector/s is shown in the table. No changes are allowed to this arrangement. This connector is for providing power to the leaderlights from the team harness.
Team Harness Connector: AS(0/1)10-98SN
Scrutineering Harness Connector:

3.1.10 Track Condition Radio
Functional Description: Track condition radio system for FCY notification
Homologation Mounting Note:

• This device(s) must be fitted securely.
• Refer to technical regulations for mounting location.

3.2 Sensors
This section declares sensors that must be directly connected to the IMSA scrutineering system. IMSA will define required engine sensors and locations for each engine application. These signals will be fed back to the teams via CAN.
For all sensors refer to the Homologation for installation and mounting location with numbering referring to the fed engine bank.
As a reference to the technical regulations, all GTP cars must run:

• Cockpit Temperature
• Wheel Speed Sensors (one per wheel)
• Tire Pressures (one per wheel)
• Driveshaft Torque Sensors
• Input Shaft Torque Sensor (Optional)
• Anti-roll Bar Actuator Position Sensor
• Air Jack Pressure Sensor
• Refueling Coupling Sensor
• IVT Sensor (LMH Hybrid Only)
• Engine Sensors
  o Driver’s Throttle Pedal Sensor
  o Manifold Pressure(s) (NA only)
  o Manifold Temperature(s)
  o Boost Pressure(s) (Turbo only)
  o Fuel Pressure/Temperature
  o Lambda(s)
  o Fuel Flow Meter
  o Engine Speed Sensor
  o Oil Catch Tank Level Sensor
  o Fuel Tank Pressure
  o Fuel Tank Temperature

Sensors must be installed in an IMSA approved location as identified in the Homologation with numbering referring to the fed engine bank. 3.2.1 1 Bar Pressure
Functional Description: Air pressure sensor
Use Case:

• Manifold Pressure (NA engines): The sensor must be fitted in each intake manifold downstream the throttle valve—for example, in the intake runners or intake ports—in an IMSA approved location.

Part Number: F02U.V0U.267-02 (A/S terminated) or F02U.V0U.204-01 (Automotive Connector)
Pressure Range: 0.1 – 1.15 bar
Temperature Range: -40 to 125°C
3.2.2 3.5 Bar Boost Pressure
Functional Description: Boost pressure sensor
Use Case:

• Boost Pressure (Turbo engines): The sensor must be fitted to measure pressure in each intake manifold downstream the throttle valve in an IMSA approved location.

Part Number: F02U.V0U.205-01
Pressure Range: 0.5 – 3.5 bar
3.2.3 10 Bar Fuel Pressure/Temperature
Functional Description: Fuel Pressure/Temperature sensor
Use Case:

• Fuel Pressure/Temperature: The sensor must be fitted to the fuel line at the level of the feed line fuel flow meter(s) (max 20cm from FFM inlet(s))
• Pressure is the only measured signal.
  Part Number: F02U.V0U.194-01
  Pressure Range: 0 – 10 bar

3.2.4 Temp Sensor
Functional Description: Temperature sensor
Use Case:

• Manifold Temperature: On each independent intake manifold in an IMSA approved location close to the Boost/Manifold pressure sensor
• Intake Temperature: A single sensor must be installed in an IMSA approved location.
• Cockpit Temperature: In the cockpit, mounted per Technical Regulations

Part Number: F02U.V02.356-01
Temperature Range: -55 to 300 °C
Thread: M6 x 1
Installation Torque: 8 Nm
3.2.5 LSU 4.9 Lambda Sensor
Functional Description: Exhaust gas lambda sensor
Use Case:

• See Appendix for required sensor mounting information.
• One sensor per cylinder bank is required.
• IMSA Sensor should be mounted as close to Team Sensor as possible

Part Number: 0258.988.001
Thread: M18 x 1.5
Installation Torque: 40 to 60 Nm
3.2.6 Engine Speed Sensor
Functional Description: Inductive or Hall effect speed sensor
Use Case:

• Each manufacturer may select a sensor and trigger wheel pattern to be approved by IMSA.
• See below for application recommendation. Trigger wheel must include 30-60 teeth and must include 1-4 missing teeth in 1 spot around the wheel.
• If choosing an inductive sensor, the depth of the missing tooth gap must be half the depth of the normal gaps.
• If choosing an inductive sensor, polarity for pin 2 is positive, and pin 3 is negative.
• Wiring from sensor to MS6 SCR must be twisted and shielded.

Recommendation:

• Bosch P/N: Mini HA-P: F02U.V00.564-02 Mini HA-P (Sealed): F02U.V00.500-01
• 60 tooth symmetrical wheel, 2 missing teeth

Trigger Wheel Reccomendation (for HA-P above):

• Diameter: 162.34mm
• Gap Width: 4.7mm
• Tooth Width: 3.8mm
• Missing Tooth Gap Width: 20.79mm
• Height of tooth: 3.4mm
• Thickness: 12.5mm
• Sensor Air Gap: 0.2 to 1.5mm

3.2.7 Wheel Speed Sensors
Functional Description: Hall Effect Speed Sensor
Use Case:

• Each manufacturer may select a sensor and trigger wheel pattern to be approved by IMSA.

3.2.8 Driveshaft Torque Sensors
Functional Description: CAN based driveshaft torque sensor for IMSA GTP Class Scrutineering System

• On driveshaft of each driven wheel
• Team must be able to send CAN message to trigger offset calibration for each sensor
• CAN buses must be laid out in a linear fashion, with 120Ω termination resistors are required at both ends of each bus.
• The interfaces for the Scrutineering Harness to Team (contains Torque Master) must follow the specified pinout.

3.2.9 Input Shaft Torque Sensor (Optional)
Functional Description: CAN based Input Shaft torque sensor for IMSA GTP Class
Scrutineering System

• On input shaft of transmission
• Sensor is optional, but must be included on public CAN Bus for it to be potentially used as a backup in the case of driveshaft torque sensor failure
• Team must be able to send CAN message to trigger offset calibration

PPU Test Mode Function Description:

• Purpose: Allow teams to independently run different PPU Limits and Energy
  Tank limits in private testing
• Use instructions:
  o PPU Test Mode is automatically disabled for all IMSA sanctioned sessions and is automatically re-enabled after a fixed time has passed since the car was on track for an IMSA sanctioned session.
  o PPU Limit will take the last calibrated BOP curve offset by a modifier sent by the team ECU.
• CAN Delta, message 0x269 OR 0x270. See IMSA.com/competitors for the latest CAN communication spec in .DBC format.
•  Units in kW, integer values only, signed format, min/max of 127kW. Send negative values to lower PPU limit, positive to increase.
• If values are sent on both 0x269 and 0x270, these values will be summed.
• PPU Limit atmospheric correction will default to 1.0 when test mode is active.
• PPU Energy Tank will take the value sent on CAN directly.
• CAN Delta, message 0x269 OR 0x270. See IMSA.com/competitors for the latest CAN communication spec in .DBC format.
• Units in MJ, single decimal precision, unsigned format, maximum of 6553.5MJ. If no value is sent, PPU Energy Tank will default to 0MJ.
• If values are sent on both 0x269 and 0x270, these values will be summed.
• The PPU limit integrator will act the same as it does during IMSA sanctioned sessions but will use the offset PPU Limit instead.
• The energy replenishment rate will be automatically adjusted based on the received PPU Energy Tank value.

3.2.10 Oil Catch Tank Level Sensor
Functional Description:
Use Case:

• See technical regulations for placement

3.2.11 Refueling Coupling Switch
Functional Description:
Use Case:

• See technical regulations for placement

3.2.12 Anti-Roll Bar Actuator Position Sensor
Functional Description:
Use Case:

• See technical regulations for placement

3.2.13 Air Jack Pressure Sensor
Functional Description: Air Jack Pressure Sensor
Use Case: Sensor must be mounted to show a pressure reading when the air jacks are deployed
Part Number: F02U.V00.990-03 (A/S Terminated) – or – 0261.545.040 (Prod. Conn) Pressure Range: 0 – 260 bar
3.2.14 Fuel Tank Pressure
Functional Description:
Use Case:

• See technical regulations for placement
• Sensor for FIA scrutineering system is to be used.

3.2.15 Fuel Tank Temperature
Functional Description:
Use Case:

• See technical regulations for placement Sensor for FIA scrutineering system is to be used.

3.2.16 Fuel Flow Meter
Functional Description: CAN based fuel flow meter for IMSA GTP Class Scrutineering System

• On each feed and any return line if applicable.
• Use CAN-ID 0x190 (R=22kohm) for Feed1, 0x194 (R=5.6kohm) for Feed2, 0x198 (R=1.8kohm) for Return line

Mounting Note: Refer to technical regulations for mounting location.
Temperature Range: 0 to 85 °C
3.2.17 IVT Sensor
Functional Description:
Use Case:

• See technical regulations for placement

3.2.18 Throttle Sensor
Functional Description:
Use Case:

• See technical regulations for placement
• The throttle position sensor must have a working range of at least 2.5V

3.2.19 Tire Pressure Monitoring System (TPMS)
Functional description: CAN based tire pressure and temperature sensor system (One sensor per wheel)

• Only TPMS systems Homologated on FIA TECHNICAL LIST N° 106 are permitted.
• The TPMS system must be connected to scrutineering CAN bus Echo
• The scrutineering expansion connector may be used to access CAN bus Echo
• New loom constructions may choose to wire the TPMS CAN connections directly to CAN bus Echo
• The use of a CAN gateway device is permitted with IMSA approval. Manufacturers are open to source their own gateway.
• The TPMS messages must be transmitted to and received on CAN Echo as they are received by the gateway device (oneto-one).
• Transmit speed of 0x500 and 0x281 are to be sent at a cycle at 100 milliseconds.
• Manufacturers must provide the gateway manufacturer documentation and configuration software to IMSA to allow for scrutineering.

3.4 Public CAN Bus Message Declaration
Manufacturers must submit a Public CAN Message Declaration Form that includes all the messages that the manufacturer is sending on scrutineering CAN bus Delta and Echo, minus the required messages defined in IMSA CAN Public 1 and 2 DBC’s.

• If there are team-specific messages being sent on the public CAN busses, Manufacturers must submit a form for each team specific deviation from the Manufacturer declaration.
•  If the messages change between events the Public CAN Message Declaration Form must be resubmitted.

3.5 Component Seals
All Scrutineering system primary components (MS6, LTE65, VMPS) must have no evidence of tampering with the device.

 System Architecture

4.1 Team CAN
4.1.1 Team Connector – Scrutineering Harness
The pinout of the Team Connector is shown in the table. No changes are allowed to this arrangement. Termination of the CAN busses must be done in the car’s loom as depicted in 4.1.3, 4.1.4, 4.1.5 and 4.1.6.
Team Harness Connector: AS(0/1)14-35SN
Scrutineering Harness Connector:

4.1.2 Hybrid Connector – Scrutineering Harness
The pinout of the Hybrid Connector is shown in the table. No changes are allowed to his arrangement. Termination of the CAN busses must be done in the car’s loom as depicted in 4.1.3, 4.1.4, 4.1.5 and 4.1.6.
Team Harness Connector: AS(0/1)12-35SN
Scrutineering Harness Connector:

4.1.3 CAN Bus Delta
CAN Bus Delta is the same layout as FIA CAN 1 Public.

• The order of components and compartment interfaces is open to constructors.
• CAN buses must be laid out in a linear fashion, with 120Ω termination resistors are required at both ends of each bus.
• The interfaces for the Scrutineering Harness to Team (contains Torque Master) and Scrutineering Harness to Hybrid Harness (LMDh only) must follow the specified pinout.
• Additional components are required for LMH Hybrid as defined in the technical regulations
• Only LMDh vehicles will have the HCU.
• Bus load must be kept at or below 70%. IMSA may install a CAN logging device to test bus load as required.

4.1.4 CAN Bus Echo
CAN Bus Echo is the same layout as FIA CAN 2 Public.

• The order of components and compartment interfaces is open to constructors.
• 120Ω termination resistors are required at both ends of the CAN bus.
• CAN buses must be laid out in a linear fashion, with 120Ω termination resistors are required at both ends of each bus.
• The interfaces for the Scrutineering Harness to Team (contains Torque Master) and Scrutineering Harness to Hybrid Harness (LMDh only) must follow the specified pinout.
• Additional components are required for LM Hypercar with ERS fitted.
• nly LMDh vehicles will have the HCU.
• Bus load must be kept at or below 70%. IMSA may install a CAN logging device to test bus load as required.

CAN Bus Echo
Scrutineering Public Bus 1. Scrutineering Interface, RL FIA CAN 2 Public4.1.5 CAN Bus Foxtrot
CAN Bus Foxtrot is a private CAN bus for the scrutineering system.

• The order of components and compartment interfaces is open to constructors, with the exception of the HCU.
  o Only LMDh vehicles will have the HCU.
  o The interface from the Scrutineering Harness to Hybrid Harness must follow the specified pinout.
  o The HCU must be located at the end of the CAN bus.
• 120Ω termination resistors are required at both ends of the CAN bus.
  o In vehicles with an HCU, the termination resistor is included in the Hybrid Harness.
• CAN buses must be laid out in a linear fashion, with 120Ω termination resistors are required at both ends of each bus.

4.1.6 CAN Bus Golf
CAN Bus Golf is a private CAN bus for the scrutineering system.

• The order of components and compartment interfaces is open to constructors, with the exception of the HCU.
  o Only LMDh vehicles will have the HCU.
  o The interface from the Scrutineering Harness to Hybrid Harness must follow the specified pinout.
• 120Ω termination resistors are required at both ends of the CAN bus.
  o In vehicles with an HCU, the termination resistor is included in the Hybrid Harness.
• CAN buses must be laid out in a linear fashion, with 120Ω termination resistors are required at both ends of each bus. HCU can be located at end or in middle of bus.

4.1.7 Driver ID
The Driver ID will be an input to a dedicated connector on the harness. The Driver ID signal will be controlled by a different resistance value for each driver. The resistor will go between the two pins for Driver ID with nothing else in the circuit. The Driver ID and resistor value pairings are in the table below:

4.2 Power Supply
All power supplied should be at least 11.0V and below 15.0V. Power must always remain supplied when the car is in pit-lane or on-track. Interruptions of specified scrutineering power may result in IMSA applied penalties.
4.3 Harness
The scrutineering system harness can be integrated into the main vehicle harness following guidelines provided by Bosch and in compliance with IMSA regulations.
Harnesses for teams must be manufactured by the GTP manufacturer and per the homologation. Manufacturers must register drawings and pinouts per the IMSA homologation documentation. IMSA reserves the right to request testing of any portion of the scrutineering harness at any time; no annual re-certification is required.

CAN Specification

There are two IMSA CAN interfaces that may be used for communication, on these buses the team is required to send the all messages specified in the provided DBC.
GTP Manufacturers will be responsible for informing IMSA and Bosch which buses will be used for ECU and team communications as per Section 3.4 of this manual. These messages may be on the same bus.
CAN Buses:
The CAN buses will be used to transfer vital information between the team and the Scrutineering System. The buses are required to be 1 Mbit and conform to CAN 2.0B specifications.
The DBC file for the transmitted and received channels will be available at https://www.imsa.com/competitors/.

 Display Pages

6.1 Standard
While on track the display will show:

• Current Driver ID
• Current Laptime
• Last Laptime
• Note: The laptimes shown are calculated internally and are not the timing and scoring laptimes.

Loom Layout

IMSA Scrutineering
IMPORTANT
The maximal total resistance of the wiring line is limited to assure proper functionality of the component. The worst case value for this resistance including the ECU resistances is 360 m2. The value comprises the resistance of the lines, the resistance of the conductor paths inside the ECU and the contact resistances of all of the electrical connector pins in the line from the main relay to the ground terminal of the battery. The temperature of the harness and the ECU have to be considered for the calculation of the worst-case resistances, respectively. The maximal total resistance of 360m can be split up into the harness resistance and the ECU resistance, whereas the ratio of the two parts is not crucial but eventually given by the ECU design
Attention

• all not marked wire’ are AWG26
• small letters are underlined
• rc = ringwire
• use ethernetcable CAT5
• firewirecable as spec IEE1394
• all CAN networks must be terminated with 1200 at the end of each network
• the CAN networks may extend to another harness, respect that the ends of the network have the termination resistor and that there are only 2 termination resistors for the entire network – resulting in a 600 network
• order of devices within the CAN networks can be determined by the customer
• lease respect strictly the pairs while using datawires like USB or Ethernet
• ethernet wire’s must be wired separately
• wire diametre must be adapted depending on usage

RESPECT WIRE SPEC !
– use the right SPECed wire signed “Ethernetwire”
-twisted / twisted pair
CAUTION!!
Wire gauges depends on the applied wire quality labeled dimensions refer Raychem SPEC44A/55A

Appendix

STANDING OR PERMANENTLY RUNNING WATER IS NOT PERMISSIBLE IN THE AREA OF CIRCUMFERENTIAL SEALING GROOVES, AS WELL IN THE AREA OF THE PRESSURE COMPENSATION ELEMENT.
PERMITTED IMPACT OF WATER ACCORDING TO PROJECT-SPECIFIC USER MANUAL.
MOUNTING IN VEHICLE:

THE CONTROL UNIT HAS TO BE FASTENED AT POSITIONS, AND.
MAXIMUM TOLERANCE OF THE CUSTOMERS SCREW-ON SURFACES BETWEEN THE POSITIONS, AND D: 0.5 CZ
IT HAS TO BE ASSURED THAT BOUNCING OF CONTROL UNIT OR POTENTIAL ADDITIONAL FASTENING ELEMENTS OF THE CONTROL UNIT CANNOT OCCUR DUE TO THE MOUNTING IN THE VEHICLE.
IN CASE OF DEVIATIONS FROM THIS DRAWING, PERMITTED MECHANICAL INTERFACES TO VEHICLE AND RESULTANT LOAD ON COVER AND BOTTOM HAVE TO BE DISCUSSED WITH BOSCH ENGINEERING GmbH.
MAXIMUM INTERNAL TEMPERATURE ACCORDING TO PROJECT-SPECIFIC USER MANUAL.
PROTECTION AGAINST HUMIDITY ACCORDING TO PROJECT-SPECIFIC USER MANUAL.
IT HAS TO BE ASSURED THAT WATER CANNOT INFILTRATE INTO THE CONTROL UNIT THROUGH WIRING HARNESS IN MOUNTING POSITION.

GENERAL DESCRIPTIONS AND REFERENCES FOR THE DRAWING:
THE CONTROL UNIT CAN DEVIATE FROM THIS DRAWING IN NOT DIMENSIONED NON-FUNCTIONAL GEOMETRIES.
PERMITTED APPLICATION AREA: ACCORDING TO ENVIROMENTAL CONDITIONS SPECIFIED IN PROJECT-SPECIFIC USER MANUAL.
WIRING HARNESS PLUG:
THE WIRING HARNESS PLUG IS NOT INCLUDED IN DELIVERY.
IT HAS TO BE ASSURED THAT DUE TO MECHANICAL FIXATION THE EXCITATION OF THE WIRING HARNESS IS IN THE SAME SEQUENCE AS THE CONTROL UNIT.
ATTENTION
OBSERVE PRECAUTIONS FOR HANDLING
ELECTROSTATIC SENSITIVE DEVICES

VMPS Dimensions

GENERAL DESCRIPTIONS AND REFERENCES FOR THE DRAWING:
CONTROL UNIT ICUI CAN DEVIATE FROM THIS DRAWN CONSTRUCTION IN NOT DIMENSIONED NON-FUNCTIONAL GEOMETRIES.
IT HAS TO BE ASSURED IN MOUNTING POSITION THAT WATER CANNOT INFILTRATE THROUGH WIRING HARNESS INTO THE CU..
IT HAS TO BE ASSURED IN MOUNTING POSITION THAT THE PRESSURE COMPENSATION ELEMENT AND THE SEALING IN THE REVOLVING GROOVE DO NOT GET SUBMERGED IN WATER.
CU FULFILLS REQUIREMENTS ACCORDING TO PROJECT SPECIFIC TCD.
PERMITTED APPLICATION AREA: ACCORDING TO ENVIROMENTAL CONDITIONS SPECIFIED IN PROJECT SPECIFIC TCD.
PERMITTED MOUNTING LOCATION: CHASSIS AND ENGINE COMPARTMENT, 50 THAT THE ENVIRONMENTAL CONDITIONS SPECIFIED IN PROJECT SPECIFIC TCD ARE COMPLIED WITH.
MOUNTING CU IN VEHICLE:
THE FASTENING OF THE CU IN THE VEHICLE HAS TO BE DESIGNED IN A WAY THAT BOUNCING OF CU AGAINST OTHER VEHICLE PARTS AND EVENTUALLY ADDITIONAL FASTENING ELEMENTS OF THE CU CANNOT OCCUR.
WIRING HARNESS PLUG:
THE WIRING HARNESS PLUG IS NOT INCLUDED IN DELIVERY.
WIRING HARNESS NEEDS TO BE FIXED MECHANICALLY AT THE AREA OF CU IN A WAY THAT EXCITATION OF CU HAS THE SAME SEQUENCE.
MAXIMUM INTERNAL TEMPERATURE ACCORDING TCD
WATER PROTECTION ACCORDING TCD

Kabelbaumstecker: RB-Kompaktstecker A 928 000 453, 3-polig, Kodierung 1, 0.5-1.0mm²
WIRE HARNESS CONNECTOR RB KOMPAKT CONECOR 1.1A ACC. TO RB DRAWING A 928 000 453, 3 PINS, CODING I.
BOK TRMINALS GOLD-PLATED, 0.5-1.0 mm²
Am Sensor: RB-Kompaktstecker 1.1 nach RB-Zeichnung
1 928 A00 755 Variante B vom 11.05.2004 (in hochschuettell’ester Ausivehrung!
3-polig, Kodierung 1. Kontakte vergoldet
Werktorf: PBT GF30
AT SENSOR: RB KOMPAKT CONNECTOR 1.1 ACC. TO RB DRAWING
1928 A00 75S VARIANT B FROM 11.05.2004 (IN HIGH VIBRATION RESISTANT DESIGNI 3 PINS, CODING 1, TERMINALS GOLD-PLATED
MATERIAL: PBT GF30IMPORTANT NOTES
-RB WARRANTY WILL COVER THE FUNCTION OF THE CONNECTOR SYSTEM ONLY IN CASE OF COMBINATION WITH HARNESS CONNECTOR SYSTEM PARTS ACCORDING TO THIS OFFER DRAWING.
-FIRST CABLE MOUNTING POINT MAX. 150 MM AFTER THE PLUG (STRAIGHT CABLE LENGTH). IT MUST BE LOCATED ON THE SENSOR CARRIER.
-ANGLE OF BENING THE CABLE (DEVIATION FROM STRAIGHT LINE) BETWEEN CABLE EXIT AT SENSOR AND FIRST MOUNTING POINT: 20…90°
-ADMISSIBLE BENDING RADIUS OF THE CABLE UP TO THE FIRST CABLE MOUNTING POINT: R2 50MM.
-INSTALLATION INSTRUCTIONS SEE CORRESPONDING OFFER DRAWING RAIL RESPECTIVELY TKU RAIL
-MAX. AUTHORIZED STRESS TO SCREW IN: 35Nm
-ASSEMBLY INSTRUCTIONS SEE Y 61 F26 048
ATTENTION: USE HARNESS CONNECTOR FOR PROTECTION AGAINST WATER INGRESS.ORIFICE DIRECTED DOWNWARDS.
RECOMMENDED POSITION: 0…90° FROM VERTICAL.

Vibration Profile 1

Motorsport
IMSA GTP Class Scrutineering System
Order Form – 2025

Notes
To order parts please fill out this order form and create a Purchase Order matching your order and send both to Support.IMSA@us.bosch.com
All orders submitted are subject to the Bosch Motorsport terms and conditions.
All prices are in USD and are valid until 12/31/2025.
Unless customer has credit terms established with Bosch, all orders will require payment before parts will be shipped.
Customer is responsible for all shipping costs.
For sales/deliveries at the track, there is a 10% service charge
Robert Bosch LLC – Bosch Engineering North America
Motorsport Sales Terms & Conditions
Version: January 20, 2020

1. GENERAL. THE SALE OF COMPONENTS, PARTS, OR A SYSTEM INTENDED FOR SERIES PRODUCTION (“SERIAL PRODUCTION PRODUCTS” OR “PRODUCTS”), ALL SAMPLES, PROTOTYPES, NON-PRODUCTION PRODUCTS, AND COMPONENTS (INCLUDING SOFTWARE CONTAINED THEREIN) NOT APPROVED FOR SERIES PRODUCTION OR THAT ARE INTENDED FOR EVALUATION PURPOSES ONLY (“PROTOTYPES”), AND/OR DESIGN AND ENGINEERING OR SIMILAR SERVICES (“SERVICES”) PROVIDED BY ROBERT BOSCH LLC, THROUGH ITS BOSCH ENGINEERING NORTH AMERICA DIVISION (“BOSCH”) TO THE CUSTOMER (“CUSTOMER”) (EACH A “PARTY” AND COLLECTIVELY REFERRED
   TO AS “PARTIES”) IS EXPRESSLY LIMITED TO CUSTOMER’S ACCEPTANCE OF THE TERMS OF BOSCH’S OFFER (ALSO REFERRED TO AS THE “QUOTATION”) AND THESE BOSCH TERMS, EXCLUDING MODIFICATIONS TO THESE BOSCH TERMS SET FORTH IN THE APPLICABLE BOSCH QUOTATION. NO MODIFICATION OR WAIVER OF ANY OF THESE BOSCH TERMS AND NO ADDITIONAL OR DIFFERENT TERMS OR CONDITIONS WILL BE EFFECTIVE UNLESS EXPRESSLY SET FORTH IN BOSCH’S QUOTATION OR AGREED TO IN WRITING SIGNED BY BOSCH. NO ORAL AGREEMENT, COURSE OF PERFORMANCE, OR OTHER MEANS WILL BE DEEMED TO WAIVE THESE BOSCH TERMS OR ANY OF THE TERMS OF THE QUOTATION.
   CUSTOMER’S ACCEPTANCE OF THE PRODUCTS, PROTOTYPES, AND/OR SERVICES SOLD HEREUNDER WILL CONSTITUTE CUSTOMER’S ACCEPTANCE OF THE BOSCH QUOTATION AND BOSCH TERMS.
2. SCOPE. CUSTOMER acknowledges that Serial Production Products, whether or not modified, are not designed to meet the requirements and demands of motorsport racing. CUSTOMER acknowledges that modified Serial Production Products and CUSTOMER specified Products cannot be tested to the same degree as Serial Production Products and that production of such modified Serial Production Products or CUSTOMER specified Products does not follow the testing and validation standards applicable to Serial Production Products. CUSTOMER acknowledges that the use of the Products in motorsport racing applications will lead to early wear, and that modified Serial Production Products or CUSTOMER specified products are produced with a focus on race performance and not on endurance. The terms of Sections 1 to 2 above apply irrespective of the CUSTOMER’s application of the Products.
3.  USE OF THE PRODUCTS. The Products are provided solely for use by (i) racing professionals and CUSTOMER warrants and represents that it possesses the appropriate engineering and professional racing experience to use the Products for motorsport racing and (ii) research institutions trained by professionals. CUSTOMER acknowledges that the use of the Products may be dangerous and that the Products shall not be used in any consumer application. CUSTOMER shall use the Products: (i) only for motorsport racing purposes; (ii) only through engineers and mechanics who are trained and experienced in motorsport racing; (iii) only in vehicles, which are suitable for use in motorsport racing; (iv) only in such suitable vehicles that are operated by trained, professional motorsport race drivers; and (iiv) research purposes by trained professionals. CUSTOMER shall not use, nor permit any other party to use, the Products in any vehicle operated on the public roads, or in connection with any consumer application.
   BOSCH shall not be liable for any use of the Products on the public roads. Should a Product be used on the public roads or in connection with any consumer application, all Product warranties are void.
4. PRICES; TAXES; CURRENCY. All prices are subject to the shipping terms defined in Section 6 below. Bosch reserves the right to adjust prices due to cost increases resulting from variations in labor rates, material costs, or other costs (including but not limited to variations  Robert Bosch LLC – Bosch Engineering North America, Motorsport Sales Terms & Conditions  related to tariffs). To the extent the Products contain raw materials, raw material fluctuations will be reviewed on a quarterly basis. Actual material price increases of 5% or more will be paid in lump sum by CUSTOMER. The prices are exclusive of any applicable Federal, State, Provincial, or local sales, use, and other similar taxes or assessments.
   Such taxes and assessments will be included in Bosch’s invoice and paid by CUSTOMER. CUSTOMER shall be solely responsible for its tax administration and tax liability based upon governing Federal, State, and local laws that relate to these BOSCH Terms. All prices are subject to adjustment, at any time, by Bosch for changes in volume forecasts, economics, or exchange rates as applicable. To the extent CUSTOMER’s actual purchases fall short of the volume forecasts upon which the prices were based, any price adjustments by Bosch will be retroactive. Prices are per piece in U.S. Dollars or EUR. All North American CUSTOMER facilities will be invoiced in U.S. Dollars. Each payment by CUSTOMER is subject to the terms of Section 8 below and will be made without withholding any taxes, unless required by law.
   CUSTOMER shall inform Bosch of any withholding tax obligation on payments due to Bosch under an invoice as soon as CUSTOMER becomes aware of such withholding tax obligation. If Bosch believes that it is eligible for exemption from, or reduction of, any U.S. withholding tax (or other withholding or similar tax of one or more other jurisdictions), Bosch will deliver to CUSTOMER a completed, duly executed IRS Form W-9 or Form W-8 (or other appropriate form of such other jurisdiction(s) as required under the laws of such other jurisdiction) valid through the date of payment. In such event, CUSTOMER shall promptly deliver to Bosch a certificate evidencing the payment of any tax actually withheld.
5. CANCELLATIONS AND CHANGES. No cancellations of or changes ordered by CUSTOMER to the Products, Prototypes, and/or Services or any delivery or pickup terms related thereto will be effective without Bosch’s written consent and in the event of any such cancellation or change, Bosch will be entitled to all remedies available by law or equity, including without limitation cancellation costs, warehousing fees, and/or increased prices. At a minimum, CUSTOMER will be liable for the following items, or any applicable combination thereof: (a) Products, Prototypes delivered, and/or Services performed prior to cancellation or change that comply with the specifications and other requirements of the Quotation; (b) the reasonable cost of raw materials and components that were purchased by Bosch to meet the requirements of the Quotation and that cannot be returned for refund or credit or immediately used for or sold to any of Bosch’s other CUSTOMERs; (c) the reasonable costs to settle all claims by subcontractors for actual costs that are rendered unrecoverable due to cancellation or change; and (d) the reasonable costs of reassignment of Bosch’s employees specifically dedicated to the satisfaction of Bosch’s obligations under the Quotation, provided Bosch uses reasonable efforts to reassign each such employee.
6. SHIPMENT AND DELIVERY. All delivery dates are estimates only. Bosch’s only obligation with respect to delivery dates will be to use reasonable efforts to meet such delivery dates. Unless specified otherwise in the Quotation, the delivery terms will be will be FCA (as defined in Incoterms® 2010) at the designated Bosch facility. Title and risk of loss to the Products and Prototypes will transfer upon completion of delivery of the Products and Prototypes per the applicable delivery term specified above. Unless otherwise instructed, Bosch will ship via industry standard means for the applicable Products and Prototypes. Bosch will not be liable for any delays, breakage, loss, or damage after having made delivery in good order to the first transportation carrier. All claims for loss or damage in transit are to be made by CUSTOMER directly to the transportation carrier and the appropriate insurance carrier retained by CUSTOMER. CUSTOMER shall not make any deductions of any kind from the invoice amount. Unless otherwise specified in the Quotation, standard packing for domestic shipment is included in the quoted price. When special domestic or export packing is requested, CUSTOMER will be charged for any additional expenses. Shipments will be deemed accepted by CUSTOMER unless written notice of rejection is received by Bosch within ten (10) days after receipt of the Products and Prototypes by CUSTOMER. For rejected shipments, CUSTOMER will bear the risk of loss or damage to the Products and/or Prototypes in transit. If Bosch reasonably determines that the rejection was improper, CUSTOMER will be responsible for all expenses incurred by Bosch arising from the improper rejection.
7. FORCE MAJEURE. In the event either Bosch or CUSTOMER is unable to fully perform its obligations hereunder (except for CUSTOMER’s obligation to pay invoices for Products, Prototypes, and/or Services) due to events beyond its reasonable control, including without limitation, acts of God, action by any governmental authority (whether valid or invalid), fires, floods, windstorms, explosions, riots, natural disasters, wars, sabotage, labor problems (including lockouts, strikes, or slowdowns), inability to obtain power, material, labor, equipment or transportation, or court injunction or order (collectively referred to herein as a “Force Majeure Event”), that party shall be relieved of its obligations to the extent it is unable to perform such obligations. A Party experiencing a Force Majeure Event shall provide reasonable notice of such Force Majeure Event to the other Party. In the event of Bosch’s inability to perform due to a Force Majeure Event, Bosch may allocate available goods and materials among its CUSTOMERs and CUSTOMER will be entitled to reduce its purchase obligations toward Bosch by the quantities purchased from other
   sources, but shall not have the right to terminate these BOSCH Terms.
8. PAYMENT TERMS. Unless specified otherwise in the Quotation, terms of payment are net thirty (30) days from the earlier of the date of shipment or the date of an invoice, with no discount allowed for early payment. Bosch reserves the right to reclaim any Products, Prototypes, and/or Services that have not been paid for in full and Bosch reserves the right to alter or suspend credit terms or require C.O.D. or advance payment whenever Bosch has reasonable doubt as to CUSTOMER’s credit worthiness or the ability of CUSTOMER to pay in a timely manner.
   If CUSTOMER becomes delinquent in payment or refuses to accept C.O.D. shipments, Bosch will have the right to, in addition to all other available rights and remedies, cancel any or all CUSTOMER orders, withhold further deliveries, and declare all unpaid amounts for Products, Services, and/or Prototypes previously delivered immediately due and payable. Amounts past due will be subject to an interest charge of 1.5% per month or the maximum rate allowed by law, whichever is less. CUSTOMER shall pay all costs and expenses incurred by Bosch as a result of non-payment or delinquent payment by CUSTOMER, including without limitation collection costs, interest, and reasonable attorneys’ fees.
9. WARRANTY
   9.1 Unless specified otherwise in BOSCH’s quotation BOSCH warrants that, upon delivery, the Products will be free of defects in material and workmanship. BOSCH’s warranty covers only defects, that existed at the time of delivery. The foregoing warranty: (i) is personal to CUSTOMER and does not extend to any subsequent owner of the Products; and (ii) does not cover defects which occur due to the use in a motorsport environment.
   9.2 CUSTOMER acknowledges that the Products are designed for race performance, with reduced durability and stability, and that the extreme wear inherent in a racing environment may result in Product malfunction which will not be covered by the limited warranty set forth above.
   9.3 BOSCH does not warrant that modified Serial Production Products or CUSTOMER specified Products will display the features or operational performance requested or expected by CUSTOMER.
   9.4 BOSCH will provide free of charge to CUSTOMER, replacement Products or, at BOSCH’s option, credit in a fair amount not to exceed the purchase price for Products which prove to be defective under the limited warranty set forth above, provided, however, that CUSTOMER has returned to BOSCH 100% or a statistically relevant share, as mutually agreed upon, of any Products claimed to be defective. BOSCH shall have the right to request reasonable evidence of, and impose reasonable requirements for, submission of a warranty claim including, by way of example and not limitation, printouts of diagnostic test results performed at the CUSTOMER’s dealer level or by CUSTOMER.
   9.5 In the event of (a) improper installation or misuse of the Products, (b) use of Products outside of BOSCH approved applications, specified environments or installation conditions, (c) use of Products for racing or testing applications, (d) failure to maintain Products in accordance with applicable maintenance instructions, or (e) alteration or damage caused to the Product, or similar circumstances, no warranty shall apply and BOSCH shall not be liable for such Products or any damage caused by such products.
   9.6 THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE FOREGOING WARRANTY DOES NOT APPLY TO ANY ISSUES STEMMING FROM CUSTOMER’S USE OF THE PRODUCT IN ANY APPLICATION. THE REMEDIES SET FORTH IN THIS SECTION REPRESENT CUSTOMER’S SOLE AND EXCLUSIVE REMEDIES FOR ANY BOSCH BREACH OF WARRANTY.
10. PROTOTYPE WARRANTY AND USE.
    10.1 PROTOTYPES ARE PROVIDED “AS IS” AND ALL WARRANTIES, EXPRESSED OR IMPLIED, ARE DISCLAIMED AND EXCLUDED, INCLUDING WITHOUT LIMITATION WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR FREEDOM FROM THIRD PARTY RIGHTS, WHETHER ARISING BY LAW, COURSE OF DEALING, COURSE OF PERFORMANCE, OR OTHERWISE. BOSCH DOES NOT WARRANT THAT THE PROTOTYPES WILL BE ERROR FREE OR SECURE. PROTOTYPES ARE NOT DESIGNED FOR AND SHOULD NOT BE USED IN ANY FAIL-SAFE APPLICATIONS.
    10.2 CUSTOMER acknowledges that Prototypes are intended only for use in evaluation and testing in a suitable and safe evaluation and testing environment and by suitably trained and qualified persons. CUSTOMER shall ensure safe operating conditions for all evaluation and testing purposes at all times during the evaluation and testing. CUSTOMER warrants that no vehicles containing any Prototypes will be driven on public roads, unless and until CUSTOMER and Bosch agree in writing. CUSTOMER shall only use the Prototypes in accordance with written instructions from Bosch. Any use or application of Prototypes, which deviates from written instructions from Bosch, will be considered an impermissible use in breach of these BOSCH Terms. Any use, testing or evaluation of the Prototypes outside the scope of this Section 10.2 or as agreed in writing between the parties shall be at CUSTOMER’s sole risk.
11. TERMINATION/CANCELLATION.
    11.1 Bosch may terminate the CUSTOMER’s purchase
    order/acceptance of the Quotation: (a) upon written communication to CUSTOMER in the event CUSTOMER breaches any material term of the Quotation or these BOSCH Terms, provided CUSTOMER has not remedied the breach within 30 days of Bosch providing notice to CUSTOMER of such breach; or (b) if CUSTOMER becomes insolvent or makes an assignment for the benefit of creditors, or CUSTOMER institutes any voluntary proceeding under bankruptcy, reorganization, arrangement, readjustment of debt, or insolvency law of any jurisdiction or for the appointment of a receiver or trustee in respect to any of CUSTOMER’s property, then termination shall be automatic and immediate; however, in the event any such proceeding is initiated by a third party against CUSTOMER, termination will be automatic if the such proceeding is not dismissed or cured by CUSTOMER within thirty (30) days after the filing thereof. Bosch shall not be liable to CUSTOMER for any claims arising out of or based on termination in accordance with this Section 11.1.
    11.2 In the event that CUSTOMER cancels the program after business award but before the agreed upon end of program duration, CUSTOMER shall reimburse Bosch for reasonable cancellation charges for unrecoverable costs and investments, including without limitation capital equipment, finished Products, cost of all work in process, Bosch paid tooling or licenses (including software licenses and maintenance agreements), engineering costs, application costs, development services, samples, and material obsolescence. CUSTOMER shall pay such cancellation charges in accordance with Section 8.
12.  INTELLECTUAL PROPERTY/SOFTWARE.
    12.1 INTELLECTUAL PROPERTY RIGHTS. As between Bosch and CUSTOMER, Bosch exclusively owns and shall retain exclusive ownership of all right, title, and interest, including all worldwide patent, trademark, copyright, trade secret, and other intellectual property and proprietary rights (collectively, “Intellectual Property Rights”) in and related to (a) the Products; (b) the Prototypes; (c) the Services; and (d)all other ideas, inventions (whether patentable or not), concepts, designs, methods, processes, software (including source code and object code), data, and works of authorship authored, developed, or conceived by Bosch in connection with the Products, Prototypes, or Services, along with all software, functions, and related documentation provided by Bosch or any division or affiliate thereof. Bosch reserves the right to brand, mark, or label the Products, Services, and Prototypes and accompanying packaging with Bosch trademarks. Products or Services delivered from Bosch to the independent aftermarket will bear the Bosch trademarks only.
    12.2 THIRD PARTY INTELLECTUAL PROPERTY RIGHTS INDEMNIFICATION. Bosch shall indemnify, defend, and hold harmless CUSTOMER against all final judgments of infringement in the United States of the Intellectual Property Rights of any third party registered and published in the United States (specifically excluding claims of infringement of any affiliate of CUSTOMER) and resulting direct damages and expenses (including reasonable attorney’s fees) arising out of use of any Product or Service as delivered by Bosch, provided Bosch shall have no liability and shall not indemnify, defend, or hold harmless CUSTOMER for or against any claim arising from (i) CUSTOMER’s gross negligence or willful or intentional acts or omissions; or (ii) any modification or alteration of any Products or Services, unless prior written authorization for such modification or alteration is provided by Bosch in writing; or (iii) use of the Products or Services in combination with any other equipment, software, products  or services not supplied by Bosch and the use of such combination was not authorized by Bosch; or (iv) CUSTOMER’s designs, specifications, requirements, or instructions; or (v) the application or use of any Products or Services which fails to comply with the specification or other written instruction from Bosch; or (vi) the implementation of Standardized Technologies, to the extent the indemnification obligation stems from the Standardized Technologies or implementation related thereto (as used herein “Standardized Technologies” means technical specifications or functions (x) adopted by a standards organization (e.g., ETSI or IEEE), (y) defined by research institutes, industrial companies, or market participants to ensure technical conformity or  ompatibility, or (z) established by common practice in a particular field). For the sake of clarity, no indemnification or warranty is provided for Prototypes.
    12.3 Bosch shall be entitled, at its discretion, to: (i) obtain a right of use for a Product or Service alleged to infringe an Intellectual Property Right, (ii) to modify the Product or Service so that it no longer infringes the Intellectual Property Right, or (iii) to replace the Product or Service with an equivalent substitute that no longer infringes the Intellectual Property Right. Bosch reserves the right to carry out the actions of (i)(iii) in the sentence above at  its disposal even if the infringement of the Intellectual Property Right has not been ruled on by a court of law with res judicata effect or acknowledged by Bosch.
    If Bosch determines that options (i), (ii) or (iii) are not reasonably available, Bosch shall be considered to have fulfilled its obligations under this Section 12 by returning the fees paid by CUSTOMER for Products or Services which are subject to the infringement claim.
    12.4 INDEMNIFICATION FROM CUSTOMER. To the fullest extent permitted by applicable law, and subject to the conditions applicable to claims by CUSTOMER against Bosch under Section 12.2, CUSTOMER shall indemnify, defend, and hold harmless Bosch, its affiliates, and their respective directors, officers, employees, successors, and assigns for all claims, liabilities, damages, costs, and expenses (including reasonable attorney fees) asserted by a third party (specifically excluding any affiliate of Bosch) and incurred by Bosch in connection with such claims (including lawsuits, administrative claims, regulatory actions, and other proceedings to recover for personal injury or death, property damage, or economic losses) to the extent caused by: (i) CUSTOMER’s or Bosch’s infringement or misappropriation of any Intellectual Property Rights of any third party caused by (a) CUSTOMER’s technology, products, or services, or Bosch’s use thereof in accordance with these BOSCH Terms or any applicable Quotation, or (b) any modification or alteration of any Products or Services by CUSTOMER, unless prior written authorization for such modification or alteration is provided by Bosch in writing; or (ii) bodily injury or property damage resulting from CUSTOMER’s integration of the Products or Services into vehicle systems or other components within the vehicle system in a manner that is not approved by Bosch or in compliance with all applicable laws; or (iii) any grossly negligent act or omission of CUSTOMER or any of its employees or agents; or (iv) CUSTOMER’s failure to comply with representations, performance, or obligations under these BOSCH Terms or the applicable Quotation; or (v) any design, hardware, software, data, instructions, requirements, or material expressly required or supplied by CUSTOMER.
    12.5 The indemnified Party under Sections 12.2 or 12.4 shall give prompt written notice to the indemnifying Party of the claim for which it seeks indemnification (provided that the failure to give such notice will not relieve the indemnifying Party of its obligations under Sections 12.2 or 12.4, except to the extent that such failure materially prejudices the indemnifying Party’s ability to carry out its obligations under Sections
    12.2 or 12.4). The indemnifying Party will assume and direct the defense and settlement of any such claim with counsel of the indemnifying Party’s reasonable choosing; the indemnified Party will provide the indemnifying Party, at the indemnifying Party’s expense, with such information and assistance as may be reasonably necessary for the defense and settlement of the claim. CUSTOMER will not settle or resolve any such claim without the advance written approval of Bosch, approval not to be unreasonably withheld or delayed, unless such settlement or resolution includes a full and unconditional release of Bosch with no admission of guilt from Bosch or its affiliates.
    2.6 SOFTWARE. Notwithstanding anything to the contrary set forth in an applicable Quotation or these BOSCH Terms, and excluding any OSS (defined below), all Bosch software and firmware that has been loaded onto, incorporated into, or provided by Bosch in connection with the Products, Prototypes, or Services (the “Software”) is and remains owned by Bosch. or its affiliates. All Software is provided with only a limited right to use as delivered in connection with hardware and/or in accordance with the applicable software license provided to CUSTOMER. In the event any Software contains a click-through, popup, or other end-user license agreement (collectively, “EULA”), the terms of such EULA shall control over the terms of the applicable Quotation or these BOSCH Terms to the extent the terms of the EULA conflict with the Quotation or BOSCH Terms. In the event CUSTOMER does not accept the EULA at the time of delivery, (i) CUSTOMER shall not use the applicable Software or hardware incorporating such Software for any purpose and return the Software or corresponding hardware within ten (10) days of receipt thereof, and (ii) any use of the Software will be considered an unauthorized use in breach of these BOSCH Terms and the EULA. Unless expressly agreed otherwise, Bosch has no obligation to provide any updates or upgrades to the Software (including, without limitation correcting any bugs identified by Bosch, CUSTOMER, or any third party). Notwithstanding the foregoing sentence, Bosch reserves the right to make the availability of updates, upgrades, and new releases at its sole discretion or conditional upon the existence of a valid service contract.
    12.7 OPEN SOURCE SOFTWARE. Products, Prototypes and Services which incorporate Software may contain free or open source software (“OSS”). Such OSS is always subject to separate third party OSS licensing terms and conditions (“OSS-Terms and Conditions”).
    The OSS-Terms and Conditions come into effect between CUSTOMER and the authors of the respective OSS. Under such OSS-Terms and Conditions, Bosch is required to provide the same to CUSTOMER and CUSTOMER itself has to obey all of the OSS-Terms and Conditions and to fulfill all corresponding obligations in case CUSTOMER further disposes of the Products, Prototypes, or Services through sales or other transfer to third parties. Such obligations may include, for example, documentation obligations or obligations to provide the source code of any software integrated in a product in which the OSS has also been integrated by CUSTOMER. An overview about all OSS components contained in the Products, Prototypes, or Services as well as corresponding license text of the OSS-Terms and Conditions (of all originating OSS authors) are part of Bosch’s delivery of the Product, Prototype, or Service (e.g. as part of the provided documentation, in a display field within a device, etc.). To the extent that new software versions included in Bosch’s Products, Prototypes, and Services may contain other and/or additional OSS, the same terms and conditions apply as stated in this Section 12.7.
    12.8 CUSTOMER’S USE OF OPEN SOURCE SOFTWARE. CUSTOMER shall use reasonable commercial efforts to not combine or request or otherwise cause others to combine Bosch Software, Products, Prototypes, and/or Services with any OSS or other data in any manner that would result in the Bosch Software, Products, Prototypes, and/or Services becoming subject to the terms of an OSS license. For any software provided to Bosch by CUSTOMER or on behalf of CUSTOMER, CUSTOMER shall disclose in writing a list of all applicable OSS-Terms and Conditions and/or third party license terms at the time of delivery of such software to Bosch, and CUSTOMER shall indemnify Bosch for all costs, expenses, and damages caused by CUSTOMER’s failure to disclose OSS-Terms and Conditions and/or third party license terms in software provided by CUSTOMER, directed by CUSTOMER, or on behalf of CUSTOMER.
    12.9 NO REPRODUCTION. Unless otherwise permissible under law or agreed to by Bosch in writing, CUSTOMER shall not itself and shall not enable or instruct others to copy/reproduce, reverse engineer, decompile, disassemble, translate, or fragment parts of Software or Prototypes provided by Bosch and CUSTOMER shall treat such Software and Prototypes as Confidential Information as defined in Section 12 of these BOSCH Terms.
13. GOVERNMENT CONTRACTS. If Products, Prototypes, and/or Services are purchased under a government contract or sub-contract, CUSTOMER shall promptly notify Bosch of the provisions of any government procurement laws and regulations which are required to be included in the contract covering the Products, Prototypes, and/or Services ordered. If compliance with such provisions increases Bosch’s costs or liability, or encumbers any Bosch Intellectual Property Rights, Bosch will be entitled, at its option, to adjust the prices accordingly, request separate payment of the additional costs, or terminate this Agreement. CUSTOMER shall be responsible for all costs incurred by Bosch related to such compliance.
14. CONFIDENTIAL INFORMATION. Any and all non-public information and data concerning the Products, Prototypes, Services, or any other transaction covered hereunder which Bosch discloses to CUSTOMER, is generated by the Products, Prototypes, or Services, or which CUSTOMER otherwise obtains knowledge of hereunder, and any non-public technical, financial, or business information, trade secrets, orders, content, Prototype, or other information provided by Bosch to CUSTOMER (collectively, “Confidential Information”) remains the exclusive property of Bosch and shall not be disclosed by CUSTOMER to third parties without Bosch’s express written consent. Confidential Information shall be held in confidence and shall not be disclosed and shall not be used except to the extent necessary to carry out CUSTOMER’s obligations or express rights hereunder, unless otherwise authorized by Bosch in writing. For the sake of clarity, CUSTOMER shall have no right whatsoever to such Confidential Information other than to use it for evaluation for the purpose of the transaction covered hereunder. If the CUSTOMER is compelled by law to disclose Bosch’s Confidential Information, and a protective order or other remedy is not obtained, CUSTOMER shall furnish only that portion of the Confidential Information that is legally required and CUSTOMER shall use commercially reasonable efforts to obtain assurance that confidential treatment shall be accorded the Confidential Information.
    This Section 14 (Confidentiality) shall survive the termination or expiration of any purchase order, accepted Quotation, or other termination of CUSTOMER’s use of or CUSTOMER’s right to use the Products, Prototypes, and/or Services.
15. REMEDIES/LIMITATION OF REMEDIES. Bosch’s rights and remedies set forth herein shall be in addition to any legal or equitable right or remedy available to Bosch. No waiver of any of Bosch’s rights or remedies shall be effective without Bosch’s express written consent. CUSTOMER’s sole and exclusive remedy after acceptance of the Products or Services shall be the remedy available under the respective warranty provision.
16. LIMITATION OF LIABILITY.
    The liability of BOSCH, and its respective affiliates, officers, directors, employees, shareholders, agents, licensors, or representatives (collectively the “BOSCH Parties”) for any claim, regardless of the form of action, whether in contract, tort or negligence, for any damages resulting from or in any manner connected with this Agreement and any Products, shall be limited to the lesser of (i) CUSTOMER’s actual direct damages related thereto, or (ii) the amount of the fees paid by CUSTOMER for the portion of the Products which are in error. In no event shall the liability of the BOSCH Parties exceed the fees paid by CUSTOMER during the period such damages were incurred, such period not to exceed three (3) months, for the specific Products that allegedly give rise to the damages.
    In no event shall any of the BOSCH Parties be liable for any indirect, incidental, special or consequential damages including, but not limited to, loss of data, lost business, lost profits and other economic damages, whether foreseeable or not, even if advised of the possibility of such damages. Without limiting the generality of the foregoing, the BOSCH Parties shall not be liable to CUSTOMER with respect to the quality or sufficiency of any business results or motorsport racing results to be achieved with the use of the Products.
    CUSTOMER agrees, acknowledges and confirms that the limitations of liability set out in this Section are fair and reasonable in the commercial circumstances of this Agreement and that BOSCH would not have entered into this Agreement but for CUSTOMER’s agreement to limit the liability of the BOSCH Parties in the manner, and to the extent, provided herein. The limitations of liability set out in this Section shall apply even in the event of a breach of condition, a breach of an essential or fundamental term, or a fundamental breach of this Agreement.
17. EXPORT. CUSTOMER will not sell, distribute, resell, or transfer (hereinafter collectively, “Transfer”) any Product, Prototype, or Services, including commodities, software and technology/technical data, plans, and specifications relating to the Product, Prototype, or Services (collectively, “Export Control Products”) or take any actions in relation to or in furtherance of these BOSCH Terms, which are contrary to U.S. Export Regulations, including but not limited to U.S. Department of Commerce Export Administration Regulations (“EAR”), the U.S. Treasury Office of Foreign Assets Controls (“OFAC”), U.S. Department of State International Traffic in Arms Regulations (“ITAR”), or any other applicable export control, import control, and economic sanction laws and regulations of the US or any country or countries (collectively, “Export/Import Control Laws”). CUSTOMER further acknowledges that Export/Import Control Laws, include but are not limited to, prohibitions against: (a) Transfer any product to U.S. embargoed countries (currently, Cuba, Iran, North Korea, Syria, and Sudan); (b) Transfer of ITAR product to any country with which the U.S. maintains an Arms Embargo; (c) Transfer of certain EAR controlled product for China, Russia, and Venezuela military end-use; (d) Transfer to certain OFAC sanctioned persons or countries; and (e) other restrictions as defined in the Export/Import Control Laws. CUSTOMER will immediately notify Bosch and cease activities with respect to a sale if CUSTOMER knows or has a reasonable suspicion that an Export Control Product has been or may be exported, re-exported, transferred, or released in violation of Export/Import Control Laws. Unless otherwise mutually agreed in writing, CUSTOMER agrees that it will not use an Export Control Product in connection with any activity involving nuclear fission or fusion, any use or handling of any nuclear material, or any nuclear, chemical or biological weapons. CUSTOMER shall defend, indemnify, and hold Bosch harmless from any and all losses suffered by Bosch as a direct result of CUSTOMER’s or its CUSTOMERs’ noncompliance with Export/Import Control Laws.
    Bosch will not be liable to CUSTOMER for failure to provide Products, Prototypes, Services, transfers, or technical data as a result of any government actions that impacts Bosch’s ability to perform, including: (a) the failure to provide or the cancellation of export or re-export licenses; or (b) any subsequent interpretation of applicable import, transfer, export, or re-export law or regulation after the date of any order or commitment that has a material adverse effect on Bosch’s performance.
18. ELECTRONIC DATA EXCHANGE; VEHICLE DATA; PRIVACY.
    18.1 ELECTRONIC DATA EXCHANGE. Bosch supports most electronic data exchange systems. Each party bears responsibility for its data input and for the part of the system for which it is responsible.
    18.2 VEHICLE DATA. CUSTOMER hereby grants to Bosch the unlimited right to use and sublicense to Bosch affiliates, agents, consultants, and subcontractors the unlimited right to use Vehicle Data (defined below) or any portion thereof, wherein such use may include, without limitation, copying, aggregating, creating derivatives, and/or anonymizing such Vehicle Data, for the following purposes: (i) the investigation of any accidents or claims related to a defect, failure, or alleged defect or failure of Bosch’s Products, Prototypes, or Services; (ii) research and development related to improvement, analyses, and modification of Bosch’s Products, Prototypes, and Services; (iii) the defense of any claim against Bosch brought by CUSTOMER or any third party; and (iv) any other purpose as mutually agreed in writing between the parties. To the extent Bosch does not have direct access to or does not directly receive Vehicle Data, CUSTOMER shall provide access or otherwise deliver to Bosch all Vehicle Data in the possession of CUSTOMER within thirty (30) days after written request from Bosch or on a continual basis, if mutually agreed between the parties. Bosch shall not disclose Vehicle Data to any third party, other than (i) affiliates, and (ii) agents, consultants, and subcontractors contractually required to maintain the confidentiality of Vehicle Data. As used herein, “Vehicle Data” means any and all data produced, collected, transmitted, or processed by Bosch’s Products, Prototypes, or Services, including without limitation components, systems, modules and electronic control units.
    18.3 PROTECTION OF PERSONAL INFORMATON. The terms of the Data Protection Addendum at, available upon request, are hereby incorporated by reference and shall apply to the extent that Vehicle Data includes Personal Data (as defined below) or Bosch processes Personal Data for or on behalf of CUSTOMER as part of the Services. Bosch and CUSTOMER shall complete Bosch’s Data Protection Addendum. “Personal Data” means any information relating to any identified or identifiable natural person.
19. COMPLIANCE WITH LAWS. Each party represents and warrants to the other party that it and its employees and agents are and will continue to be in compliance with all applicable laws and regulations relating to its performance under the Quotation and these BOSCH Terms, including without limitation laws associated with testing and evaluation of vehicles and Prototypes on a public roadway, and any laws or regulations relating to the processing of Vehicle Data. The applicable laws and regulations that Bosch must comply with are only those jurisdictions set forth in the applicable Quotation.
20. SET-OFF. CUSTOMER is not entitled to and shall not set-off any amounts due or allegedly due from Bosch to CUSTOMER from CUSTOMER’s debts towards Bosch.
21. ASSIGNMENT. Neither Party shall assign its rights or obligations hereunder without the other Party’s prior written consent. A corporate reorganization, which does not result in a change of control or beneficial owner, will not be deemed an assignment.
22. RELATIONSHIP OF THE PARTIES. CUSTOMER and Bosch are independent contracting parties. Nothing hereunder or in the course of performance under the Quotation or these BOSCH Terms will grant either Party the authority to create or assume an obligation on behalf of or in the name of the other Party or will be deemed to create the relationship of joint venture, partnership, association, or employment between the Parties.
23. SEVERABILITY. In the event that any provision of these BOSCH Terms or the Quotation is declared by a court to be void or unenforceable, the validity of any other provisions and of the entire BOSCH Terms or the Quotation will not be affected thereby.
24. APPLICABLE LAW; ARBITRATION. These BOSCH Terms, the Quotation, and all disputes between the Parties arising out of or related thereto shall be governed by the laws of the State of Michigan except for its choice of law rules; the United Nations Convention on the International Sale of Goods shall not apply. The Parties acknowledge that these BOSCH Terms and the applicable Quotation evidences a transaction involving interstate commerce. The Parties shall first endeavor to resolve through good faith negotiations any dispute arising under or relating to these BOSCH Terms and the applicable Quotation.
    If a dispute cannot be resolved through good faith negotiations within thirty (30) days either Party may request non-binding mediation by a mediator approved by both Parties. If mediation fails to resolve the dispute within thirty (30) days after the first mediation session, then, upon notice by either Party to the other, any and all disputes, controversies, differences, or claims arising out of or relating to these BOSCH Terms and the applicable Quotation (including the formation, existence, validity, interpretation (including of this Arbitration clause), breach, or termination thereof) shall be resolved exclusively through binding arbitration, except that either Party shall have the right, at its option, to seek injunctive relief, under seal to maintain confidentiality to the extent permitted by law, (i) in either the Michigan Circuit Court for the County of Oakland or the United States Court for the Eastern District of Michigan, or (ii) pursuant to the American Arbitration Association (“AAA”) Optional Rules for Emergency Measures of Protection. A request by a Party to a court of competent jurisdiction for such interim measures shall not be deemed incompatible with, or a waiver of, this agreement to arbitrate. The Parties agree that any ruling by the arbitration tribunal on interim measures shall be deemed to be a final award for purposes of enforcement. The arbitration proceedings shall be conducted in accordance with the Commercial Arbitration Rules of the AAA including application of the Optional Rules for Emergency Measures of Protection as amended from time to time, except as modified by this clause or by mutual agreement of the Parties, and shall be governed by the United States Federal Arbitration Act. Within 14 days after the commencement of arbitration, each Party shall select one person to act as arbitrator and the two selected shall select a third arbitrator within 10 days of their appointment. If the arbitrators selected by the Parties are unable or fail to agree upon the third arbitrator, the third arbitrator shall be selected by the AAA. The arbitration shall be conducted in Detroit, Michigan, and the language of the arbitration shall be English. The arbitrators’ award shall be final and binding. The arbitrators shall issue a written opinion setting forth the basis for the arbitrators’ decision. The written opinion may be issued separately from the award, in the arbitrators’ discretion. Each Party shall bear its own attorney fees and costs, and each Party shall bear one half the cost of the arbitration hearing fees, and the cost of the arbitrators, unless the arbitrators find the claims or defenses to have been frivolous or harassing, in which case the arbitrators may award the party responding to such frivolous or harassing claims/defenses its costs of the arbitration and/or reasonable attorney fees, in the arbitrators’ discretion. Either Party may apply to have the arbitration award confirmed and a court judgment entered upon it. Venue for confirmation of or any challenge to the Arbitration Award shall be in either the Michigan Circuit Court for the County of Oakland or the United States Court for the Eastern District of Michigan and shall be done under seal to maintain confidentiality to the maximum extent permitted by law. The arbitrators shall have no authority to award punitive damages or any other damages excluded herein, to the maximum extent permitted by law. Except as may be required by law, neither a Party nor their counsel nor an arbitrator may disclose the existence, content, or results of any arbitration hereunder without the prior written consent of both Parties.
25. SURVIVAL. Any right or obligation of a Party which, by its nature or context is intended to survive termination or expiration of the applicable Quotation or these BOSCH Terms, will survive any such termination or expiration, including without limitation Sections 14-26.
26. VALIDITY OF QUOTATION. Any Quotations issued subject to these BOSCH Terms will be valid for 30 days from the date of issuance unless stated otherwise in the Quotation.

Revisions

© All rights reserved by Bosch Engineering GmbH,
also for the case of patent reports. All rights such
as copying and forwarding through us.
Modifications reserved.

Documents / Resources

BOSCH MS6 SCR IMSA GTP Scrutineering System [pdf] Instruction Manual MS6 SCR, XAP NTX, MS6 SCR IMSA GTP Scrutineering System, MS6 SCR, IMSA GTP Scrutineering System, Scrutineering System

References

• User Manual
