bluebuilt 9-in-1 USB-C Docking station User Manual

bluebuilt 9-in-1 USB-C Docking
station User Manual

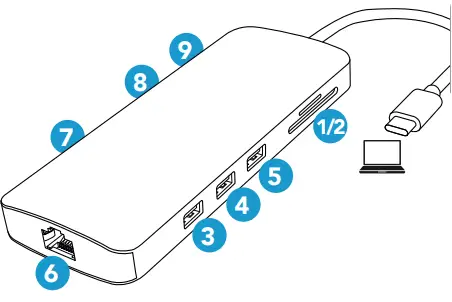

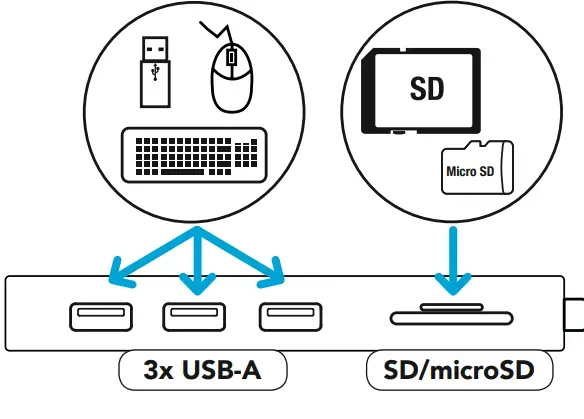

1/2 SD / microSD (SD/SDHC/SDXC, microSD/HC/XC)
3/4/5 3x USB TYPE-A – USB 3.1 GEN 1 (max. 5 Gbps)
6 LAN/ETHERNET (10/100/1000 Mbps)
7 HDMI (max. 3840 X 2160, 30Hz)
8 DISPLAYPORT (max. 3840 X 2160, 30Hz)

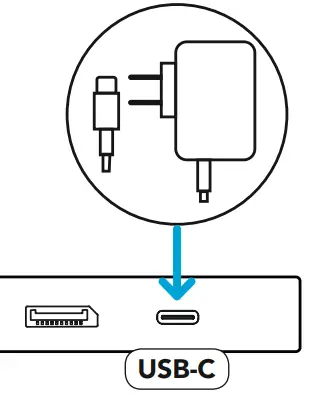

9 USB TYPE-C POWER DELIVERY (5-20V = max. 5A,100W)

Charging of laptop via docking station only works if your laptop supports Power Delivery(PD) or Thunderbolt3technology.Check your manual of laptop if it supports one of these two.

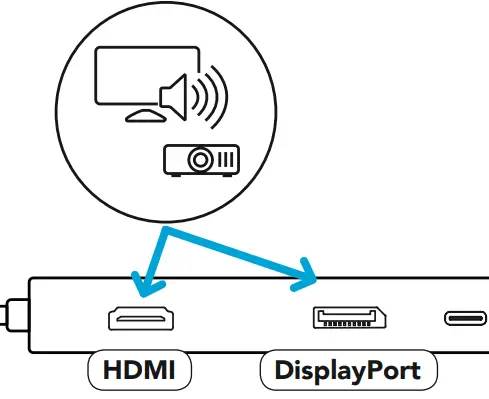

HDMI or Display Port connection to show your screen on additional monitor or beamer only works if your laptop supports Display Port Alternate Mode or Thunderbolt technology. Check your manual of laptop if it supports one of these two.

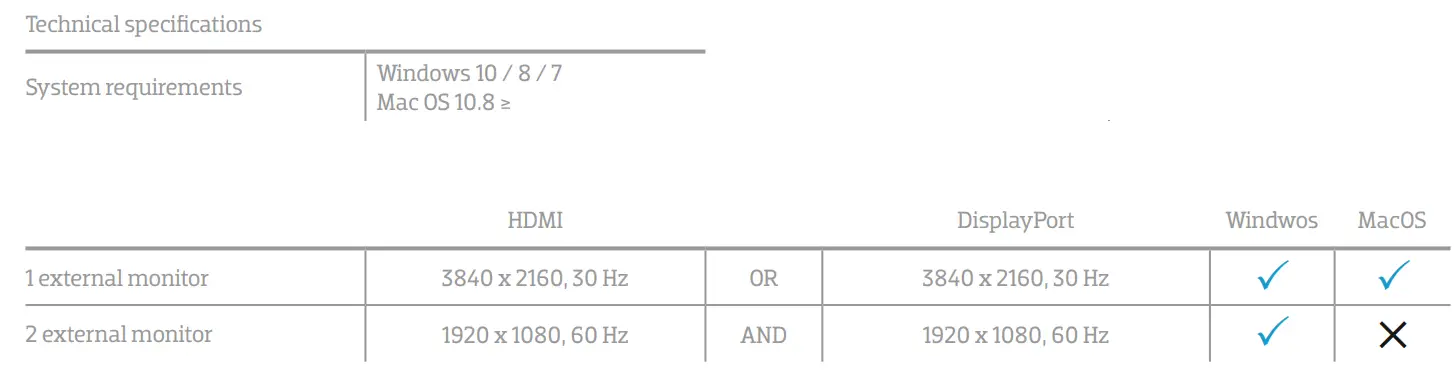

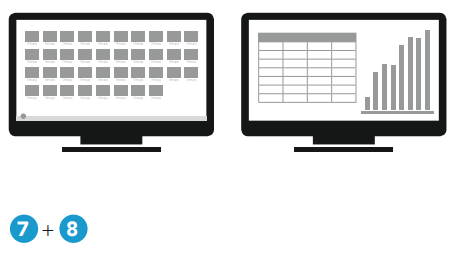

Display port & HDMI: MST(Multi-Stream Transport) support for simultaneous use of two monitors displaying different contents.

Passive Display Port/HDMI™ cables (without chipset / signal converter)must be used for MST. Set the connected monitors to maximum resolution of 1920 x 1080 (Full HD resolution).

Need help?
Call 010 798 89 99 or
visit Coolblue.nl/en/customerservice

Safety Instructions

Do not expose to excessive heat such as sunshine or fire, avoid abrupt changes in temperature.
Don’t use or store in a damp or wet environment.
Do not use near explosive gases or flammable materials.
Do not burn or incinerate.
Avoid contact with battery chemicals.
Do not throw, shake, vibrate, drop, crush, impact, or mechanically abuse.
Do not cover with objects which may affect the heat dissipation.
Only use the included cables or the cables included with your device.
Disconnect when not in use, do not charge or discharge unattended.
Keep out of reach of children.
This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Do not dispose of the product together with other waste. In order to avoid possible environmental pollution, the product must be disposed antirecycling center.
