Tilswall HVLP Paint Sprayer User Manual

1. Уводзіны

Thank you for choosing the Tilswall HVLP Paint Sprayer. This ultra-lightweight paint spray gun is designed for both DIY enthusiasts and professional tasks, offering efficient and precise paint application for various surfaces. Please read this manual thoroughly before operation to ensure safe and effective use of the product.

Figure 1: Tilswall HVLP Paint Sprayer with its components, including the main spray gun unit, paint container, and various nozzles.

2. Інфармацыя па бяспецы

Always observe the following safety precautions to prevent personal injury or damage to the product:

• Прачытайце ўсе інструкцыі: Familiarize yourself with the sprayer's operation and safety guidelines before use.
• Карыстайцеся адпаведнымі сродкамі індывідуальнай абароны (СІА): This includes safety glasses, gloves, and a respirator, especially when spraying paints or solvents.
• Забяспечце належную вентыляцыю: Use the sprayer in a well-ventilated area to avoid inhaling fumes.
• Трымайце дзяцей і хатніх жывёл далей: Do not allow children or pets near the work area.
• Do not spray flammable materials: Avoid spraying highly flammable liquids near open flames or ignition sources.
• Адключыць харчаванне: Always unplug the sprayer before cleaning, maintenance, or changing parts.
• Праверце наяўнасць пашкоджанняў: Inspect the power cord, housing, and components for any damage before each use.

3. Камплектуючыя і спіс дэталяў

The Tilswall HVLP Paint Sprayer package includes the following items:

• 1 x Paint Spray Gun Unit
• 1 x 600ml Paint Container
• 4 x Nozzles (1.0 mm, 1.5 mm, 1.5 mm, 2.0 mm)
• 5 x 190 Micron Filter Paper
• 1 х ачышчальная іголка
• 1 x Thru Needle
• 1 х шчотка для чысткі
• 1 х Кіраўніцтва карыстальніка на англійскай мове (гэты дакумент)

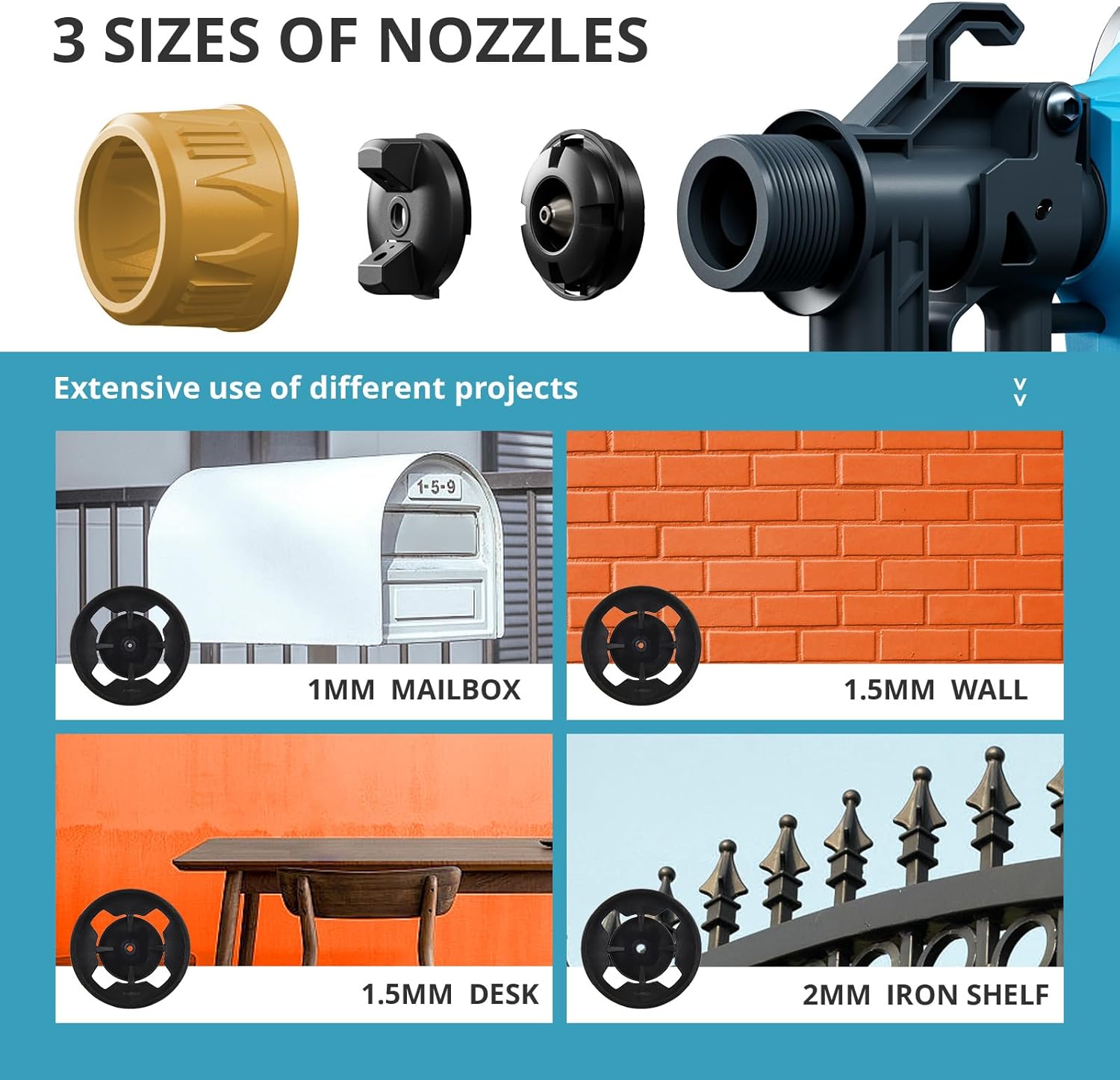

Figure 2: The paint sprayer comes with multiple nozzle sizes (1.0mm, 1.5mm, 2.0mm) for various applications, allowing for different spray patterns and paint flow.

4. Настройка

1. Падрыхтуйце працоўную зону: Ensure the area is clean, well-ventilated, and free from obstructions. Cover any surfaces not intended for painting.
2. Выберыце правільную фарсунку: Choose the appropriate nozzle size (1.0mm, 1.5mm, or 2.0mm) based on the paint viscosity and desired spray pattern.
   • 1.0 мм: Ideal for fine detail work or thin materials like stains.
   • 1.5 мм: Suitable for general purpose painting with medium viscosity paints.
   • 2.0 мм: Best for thicker paints or larger surfaces, providing faster coverage.
3. Падрыхтуйце фарбу:
   • The sprayer is compatible with oil-based, latex, and epoxy paints.
   • Развядзенне фарбы: It is crucial to thin the paint before use to achieve an even and smooth finish. The maximum viscosity supported is 100 DIN-s. Use the included viscosity cup (if available, not explicitly listed but implied by DIN-s) or follow paint manufacturer's recommendations for thinning.
   • Фільтраванне фарбы: Always filter the paint through the provided 190 micron filter paper to prevent clogging of the nozzle.
4. Запоўніце кантэйнер: Pour the prepared paint into the 600ml paint container. Do not overfill.
5. Attach the Container: Securely screw the paint container onto the spray gun unit.
6. Падключыце харчаванне: Plug the sprayer into a standard AC power outlet.

5. Інструкцыя па эксплуатацыі

1. Адрэгулюйце форму распылення: The sprayer offers three spray patterns:
   • Вертыкальны ўзор: Для гарызантальных паверхняў.
   • Гарызантальны ўзор: Для вертыкальных паверхняў.
   • Round Pattern: Для невялікіх участкаў або дэталёвай працы.
   Rotate the air cap to select the desired pattern.
2. Рэгуляванне патоку: Use the adjustable flow control knob located on the sprayer to regulate the paint output. Start with a lower setting and gradually increase until the desired flow is achieved.
3. Тэставы спрэй: Before painting your main project, always perform a test spray on a piece of scrap material to check the spray pattern and flow. Adjust as necessary.
4. Тэхніка распылення:
   • Hold the sprayer approximately 6-8 inches (15-20 cm) from the surface.
   • Maintain a consistent distance and speed for even coverage.
   • Move the sprayer in smooth, overlapping passes.
   • Адпускайце курок у канцы кожнага праходу, каб пазбегнуць назапашвання фарбы.
5. Некалькі слаёў: If multiple coats are required, allow sufficient drying time between coats as recommended by the paint manufacturer.

Figure 3: The sprayer features three distinct spray patterns and an adjustable flow control knob for precise application.

Figure 4: The Tilswall paint sprayer is capable of handling paints with a maximum viscosity of 100 DIN-s, suitable for various wood, wall, and metal paints.

6. Тэхнічнае абслугоўванне

Proper cleaning and maintenance are essential for the longevity and optimal performance of your paint sprayer. Clean immediately after each use to prevent clogging.

1. Пусты кантэйнер з фарбай: Disconnect the power. Empty any remaining paint from the container back into its original can.
2. Прамыйце кантэйнер: Fill the container with an appropriate cleaning solution (water for water-based paints, mineral spirits for oil-based paints).
3. Раствор для ачысткі ў выглядзе спрэю: Reattach the container and spray the cleaning solution through the gun until it runs clear. This cleans the internal passages.
4. Разабраць і пачысціць:
   • Unscrew the paint container and remove the nozzle assembly.
   • Use the provided cleaning brush and cleaning needle to thoroughly clean the nozzle, air cap, and paint tube.
   • Clean the exterior of the spray gun with a damp тканіна.
5. Test with Clean Water: After cleaning, fill the container with clean water and spray to ensure all paint residue is removed and the sprayer functions correctly. If it sprays clear, cleaning is complete.
6. захоўванне: Захоўвайце чысты і сухі распыляльнік у прахалодным, сухім месцы, удалечыні ад прамых сонечных прамянёў і экстрэмальных тэмператур.

7. Выпраўленне непаладак

8. Тэхнічныя характарыстыкі

• Назва мадэлі: TW-Alien 500-Parents-CA
• Марка: ТЫЛЬСВОЛЬ
• Крыніца харчавання: AC
• Аб'ём танка: 600 мілілітраў
• Макс. глейкасць: 100 DIN-с
• Памеры соплаў: 1.0 mm, 1.5 mm, 2.0 mm (4 nozzles included, with 1.5mm duplicated)
• Памеры прадукту: 7.01"Ш х 6.89"В
• Вага прадмета: 2.86 фунта
• матэрыял: Пластыкавыя
• стыль: Ручны

9. Гарантыя і падтрымка

For warranty information or technical support, please refer to the warranty card included with your product or visit the official TILSWALL website. You can also contact customer service through the retailer where you purchased the product.

TILSWALL Store Link: Visit the TILSWALL Store on Amazon
