Heelay 1200 ml Electric Portable Dehumidifier

Уводзіны

Thank you for choosing the Heelay 1200 ml Electric Portable Dehumidifier. This device is designed to efficiently reduce humidity in small spaces, creating a more comfortable environment. It features ultra-quiet operation, automatic shut-off, and optional 7-color ambient lighting. Please read this manual thoroughly before operating the dehumidifier to ensure safe and optimal performance.

Важныя інструкцыі па бяспецы

• Always use the dehumidifier on a stable, level surface.
• Пераканайцеся, што шнур харчавання не пашкоджаны і правільна падключаны да адпаведнай разеткі.
• Do not block the air inlet or outlet. Maintain at least 10 cm (4 inches) clearance from walls or other objects.
• Не апускайце прыладу, шнур харчавання або вілку ў ваду або іншыя вадкасці.
• Unplug the dehumidifier before cleaning or when not in use for extended periods.
• Захоўваць у месцах, недаступных дзецям і хатнім жывёлам.
• Do not operate the dehumidifier in temperatures below 5°C (41°F) or above 40°C (104°F).
• Avoid using the dehumidifier in areas with open windows or doors, as this reduces efficiency.

Прадукт скончаныview

Familiarize yourself with the components of your Heelay dehumidifier.

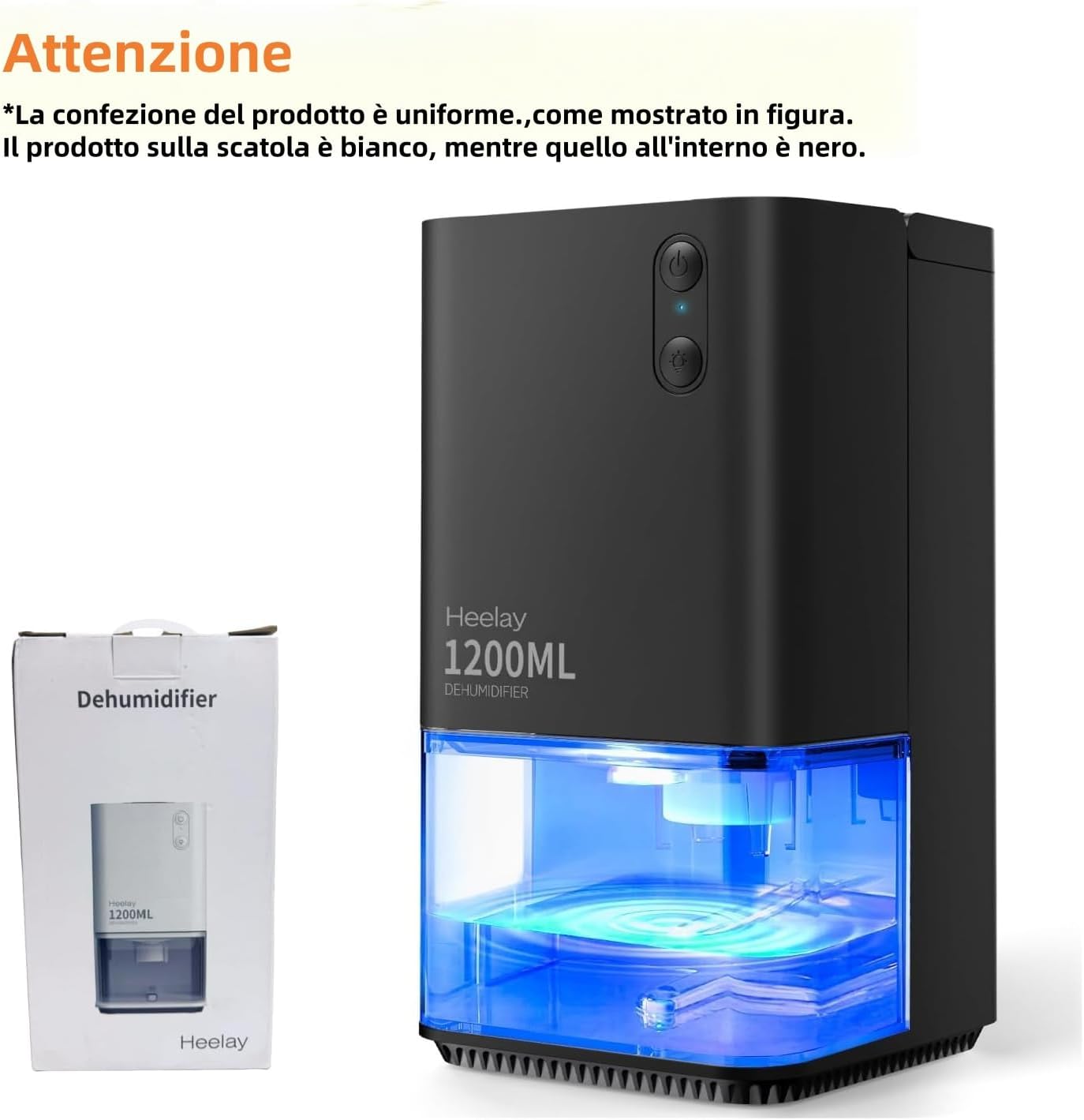

Малюнак 1: The Heelay 1200 ml Dehumidifier (black unit) shown next to its packaging (white box). Note that the product inside the box is black, as depicted, despite the box illustration.

Малюнак 2: Фронт view of the Heelay 1200 ml Dehumidifier, showing the control panel at the top and the transparent water tank at the bottom.

Малюнак 3: Diagram illustrating the efficient semiconductor dehumidification process within the unit, highlighting air intake, condensation, and dry air output.

Ключавыя кампаненты:

• Панэль кіравання: Power button and light button.
• Уваход/выхад паветра: Located at the rear and top for air circulation.
• Рэзервуар для вады: 1200 ml (40 oz) capacity, transparent for easy monitoring, removable for emptying.
• Ручка: Інтэграваны для зручнай пераноскі.
• Порт харчавання: Для падлучэння адаптара сілкавання.

Настройка

1. Распакуйце: Асцярожна дастаньце асушальнік паветра з упакоўкі. Захавайце ўпакоўку для наступнага захоўвання або транспарціроўкі.
2. Размяшчэнне: Place the dehumidifier on a firm, level surface in the desired room. Ensure there is at least 10 cm (4 inches) of space around the air inlet (rear) and outlet (top) for optimal airflow. The unit is suitable for rooms between 50 to 220 sq ft². Avoid placing it too close to walls or in areas with open windows, as this can reduce its effectiveness.
3. Падключэнне сілкавання: Connect the power adapter to the dehumidifier's power port, then plug the adapter into a standard electrical outlet.

Малюнак 4: The dehumidifier positioned in a bedroom, illustrating suitable placement for effective operation in small rooms.

Інструкцыя па эксплуатацыі

Малюнак 5: The control panel showing the power button (top) and the light button (bottom). The image also depicts the red warning light when the water tank is full.

1. Уключэнне/выключэнне харчавання: Націсніце Кнопка харчавання (top button on the control panel) once to turn the dehumidifier on. Press it again to turn the unit off.
2. 7-каляровае навакольнае асвятленне: Націсніце Светлавая кнопка (bottom button on the control panel) to cycle through the 7 available colors or to turn the light off. The colors can be set to cycle continuously or remain on a single color.
3. Аўтаматычнае адключэнне: The dehumidifier is equipped with an automatic shut-off function. When the 1200 ml water tank is full, the unit will automatically stop operating, and a red indicator light will flash to alert you. This prevents water overflow.
4. Маніторынг вадзянога рэзервуара: The transparent water tank allows for easy visual monitoring of the collected water level.

Малюнак 6: Illustration of the dehumidifier's energy efficiency, consuming only 0.79 kWh over 24 hours of operation.

Тэхнічнае абслугоўванне

Малюнак 7: Visual guide demonstrating the removal of the water tank and the detachable rear cover for easy cleaning and maintenance.

1. Апаражненне рэзервуара для вады:
   • When the red indicator light flashes, the water tank is full.
   • Выключыце асушальнік паветра і адключыце яго ад разеткі.
   • Асцярожна выміце рэзервуар для вады з пярэдняй часткі прылады.
   • Выліце набраную ваду.
   • Slide the empty water tank back into the dehumidifier until it clicks into place.
   • Plug in and restart the dehumidifier.
2. Cleaning the Unit and Filter:
   • Ensure the dehumidifier is turned off and unplugged before cleaning.
   • Працярыце вонкавую частку прылады мяккай, damp тканіна. Не выкарыстоўвайце абразіўныя ачышчальнікі або растваральнікі.
   • The rear air inlet cover is removable for access to the filter. Gently detach the rear cover and clean the filter with a soft brush or vacuum cleaner to remove dust and debris.
   • The water tank can be rinsed with clean water. Ensure it is completely dry before reinserting.
   • Regular cleaning of the filter and water tank helps maintain optimal performance and extends the lifespan of the unit.

Ліквідацыю непаладак

Калі ў вас узніклі праблемы з асушальнікам паветра, звярніцеся да наступных распаўсюджаных праблем і іх рашэнняў:

Тэхнічныя характарыстыкі

Гарантыя і падтрымка

Heelay is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, we stand behind every electric dehumidifier sold.

If you have any questions, concerns, or require assistance with your Heelay dehumidifier, please do not hesitate to contact our customer support. We guarantee to resolve any issues you may encounter.

For support, please refer to the contact information provided with your purchase or visit the official Heelay store on Amazon: Heelay Store.
