SD2080 Elaborate Metal
Design Splitter and Converter
User Manual
2×8 SDI/ HDMI
SPLITTER & CONVERTER
Brief Introduction
1.1 Overview
SD2080 is an elaborate metal design 8-Ch SDI/HDMI splitter and converter for broadcasting and Pro AV applications. It supports SDI or HDMI input, the signal will be converted and split to 4-CH SDI and 4-Ch HDMI outputs simultaneously. Both inputs and outputs support up to 1080P60. Professional chips are adopted to ensure video processing and transmission quality. It’s your ideal choice in many scenarios where multiple signals are needed.
1.2 Main Features
- Auto-detected input: 1×HDMI/1×3G-SDI
- Pass through output: 4×3G-SDI, 4×HDMI
- Distribute and convert between SDI & HDMI
- SDI with equalization and re-clock
- Input and output support up to 1080p60
- Switching input signal easily via DIP switches
- USB and threaded locking DC power supply
- Detachable bracket design for wall mounting
Interfaces
Specification
| INPUTS | HDMI Video Input | HDMI Type A x1 |
| SDI Video Input | SD/HD/3G-SDI x1 | |
| OUTPUTS | HDMI Video Output | HDMI Type A x4 |
| SDI Video Output | SD/HD/3G-SDI x4 | |
| FORMAT | SDI Input Format Support | 1080p 60/59.94/50 1080p 30/29.97/25/24/23.98 |
| 1080psf 30/29.97/25/24/23.98 | ||
| 1080i 60/59.94/50 | ||
| 720p 60/59.94/50/30/29.97/25 | ||
| 625i 50, 525i 59.94 | ||
| SDI Video Rate | SD/HD/3G-SDI | |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 424M | |
| SDI Color Space and Precision | YUV 4:2:2 | |
| SDI Output Format Support | 1080p 60/59.94/50 | |
| 1080p 30/29.97/25/24/23.98/23.976 | ||
| 1080i 60/59.94/50 | ||
| 720p 60/59.94/50 | ||
| 625i 50 | ||
| 525i 59.94 | ||
| HDMI Input Format Support | 1080p 60/59.94/50 | |
| 1080p 30/29.97/25/24/23.98 | ||
| 1080i 60/59.94/50 | ||
| 720p 60/59.94/50/30/29.97/25 | ||
| 576i 50, 480i 59.94 | ||
| HDMI Color Space and Precision | RGB 4:4:4, YUV 4:2:2, YUV 4:4:4 |
| 1-IDMI Output Format Support | 1080p 60/59.94/50 1080p 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25 576i 50, 480i 59.94 | |
| SIZE | Dimension (LWD) | 125.5x104x24.5mm |
| Weight | 485g | |
| POWER(USB) | Power Connector | DC 12V |
| Current | 550mA | |
| Voltage Range | 6-28V | |
| Power Consumption | 6.6W | |
| ENVIRONMENT | Operating Temperature | -20t- 60’C |
| Storage Temperature | -30t- 70’C | |
| Relative Humidity | 0%-90% non-condensing | |
| Accessories | Accessories | 1 x power supply (12V 2A) , 2 x Bracket |

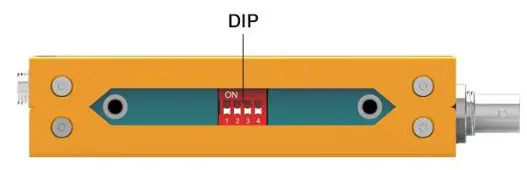

DIP Function
- DIP SW 1
This switch is used to switch input between SDI and HDMI
When SW1 is set as “ON” mode, it switches the input to SDI, when SW1 is set to “OFF”, it switches the input to HDMI. - DIP SW 2-SW4 are reserved, without any function.
Connection Diagram
Bracket Mounting
