Distance Learning Tracking Camera
DL30/DL10
Control Codes

Contents hide

1 Revision History

2 Product Introduction

3 Visca Command Table-DL Series

4 Visca over IP Settings

5 CGI Command Table-DL Series

6 Example Codes-DL Series

7 Documents / Resources

7.1 References

Revision History

Revision	Published	Description
V1.0	February 2021	• First edition.
V1.1	February 2021	• Swap page between CGI command and VISCA over IP settings.
V1.2	March 2021	• Update CGI command and example code.
V1.3	December 2021	• Added DL10 into control code; • Refreshed More Help and Contact Information for Headquarters and regional offices.

Product Introduction

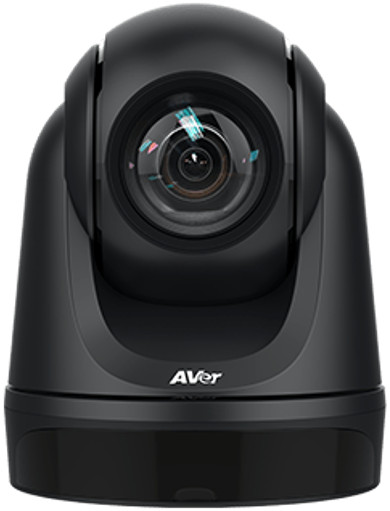

Overview-DL30

(1) Camera Lens	(4) Kensington Lock	(7) USB Port
(2) IR Sensor	(5) Audio In*	(8) DC Power Jack
(3) LED Indicator	(6) HDMI Port**	(9) PoE+ Port***

*Line input level: 1Vrms (max)
*Mic input level: 50mVrms (max); Supplied voltage: 3.3V
**DL30 does not support HDMI port.
***Only support IEEE 802.3at PoE+ standard.
Overview-DL10

(1) Camera Lens	(4) LED Indicator	(7) Ethernet Port
(2) Built-in Microphones	(5) Audio In*	(8) DC Power Jack
(3) IR Sensor	(6) USB Port	(9) Kensington Lock

*Line input level: 1Vrms (max)
*Mic input level: 50mVrms (max); Supplied voltage: 3.3V

Visca Command Table-DL Series

Command Set	Command	Command Packet		Comments	DL30	DL10
CAM_Power	On	8x 01 04 00 02 FF		Power ON/OFF	O	O
CAM_Power	Off	8x 01 04 00 03 FF		Power ON/OFF	O	O
CAM_Zoom	Stop	8x 01 04 07 00 FF			O	O
	Tele(Variable)	8x 01 04 07 2p FF		p=0 (Low) to 7 (High)	O	O
	Wide(Variable)	8x 01 04 07 3p FF		p=0 (Low) to 7 (High)	O	O
CAM_Focus	Stop	8x 01 04 08 00 FF			O	O
	Auto Focus	8x 01 04 38 02 FF			O	O
	Manual Focus	8x 01 04 38 03 FF			O	O
	One Push	8x 01 04 18 01 FF			O	O
	Direct	8x 01 04 47 0p 0q 0r 0s FF		pqrs: Zoom Position	O	O
CAM_WB	Auto	8x 01 04 35 00 FF		Normal Auto	O	O
	ATW	8x 01 04 35 04 FF			O	O
	Indoor	8x 01 04 35 01 FF			O	O
	Outdoor	8x 01 04 35 02 FF			O	O
	One Push WB	8x 01 04 35 03 FF		One Push WB mode	O	O
	Manual	8x 01 04 35 05 FF		Manual Control mode	O	O
	One Push	8x 01 04 10 05 FF		One Push WB Trigger	O	O
CAM_RGain	Up	8x 01 04 03 02 FF		Manual Control of R Gain	O	O
CAM_RGain	Down	8x 01 04 03 03 FF			O	O
CAM_Bgain	Up	8x 01 04 04 02 FF		Manual Control of B Gain	O	O
CAM_Bgain	Down	8x 01 04 04 03 FF			O	O
CAM_AE	Full Auto	8x 01 04 39 00 FF		Automatic Exposure mode	O	O
	Manual	8x 01 04 39 03 FF		Manual Control mode	O	O
	Shutter Priority	8x 01 04 39 0A FF		Shutter Priority Automatic Exposure mode	O	O
	Iris Priority	8x 01 04 39 0B FF		Iris Priority Automatic Exposure mode	O	X
	Bright	8x 01 04 39 0D FF		Bright Mode (Manual control)	O	O
CAM_Shutter	Up	8x 01 04 0A 02 FF		Shutter Setting	O	O
CAM_Shutter	Down	8x 01 04 0A 03 FF			O	O
CAM_Iris	Up	8x 01 04 0B 02 FF		Iris Setting	O	X
CAM_Iris	Down	8x 01 04 0B 03 FF			O	X
CAM_Gain	Up	8x 01 04 0C 02 FF		Gain Setting	O	O
CAM_Gain	Down	8x 01 04 0C 03 FF			O	O
CAM_Bright	Up	8x 01 04 0D 02 FF		Bright Setting	O	O
CAM_Bright	Down	8x 01 04 0D 03 FF			O	O
	Up	8x 01 04 0E 02 FF		Exposure Compensation Amount Setting	O	O
	Down	8x 01 04 0E 03 FF			O	O
CAM_Backlight	On	8x 01 04 33 02 FF		Back Light Compensation ON/OFF	X	X
CAM_Backlight	Off	8x 01 04 33 03 FF			X	X
CAM_Preset	Reset	8x 01 04 3F 00 pp FF		pp: Preset Number 0x00~0xFF	O	O
	Set	8x 01 04 3F 01 pp FF			O	O
	Recall	8x 01 04 3F 02 pp FF			O	O
CAM_Menu	On/Off	8x 01 06 06 10 FF		Display ON/OFF	X	X
Pan-tilt Drive	Up	8x 01 06 01 VV WW 03 01		VV: Pan speed setting 0x01 (low speed) to 0x18 (high speed) WW: Tilt speed setting 0x01 (low speed) to 0x18 (high speed)	O	O
	Down	8x 01 06 01 VV WW 03 02			O	O
	Left	8x 01 06 01 VV WW 01 03			O	O
	Right	8x 01 06 01 VV WW 02 03			O	O
	UpLeft	8x 01 06 01 VV WW 01 01			O	O
	UpRight	8x 01 06 01 VV WW 02 01			O	O
	DownLeft	8x 01 06 01 VV WW 01 02			O	O
	DownRight	8x 01 06 01 VV WW 02 02			O	O
	Stop	8x 01 06 01 VV WW 03 03			O	O
	Home	8x 01 06 04 FF			O	O
	Reset	8x 01 06 05 FF			X	X
CAM_Wdr	On	8x 01 04 3D 02 FF		Wdr ON/OFF	O	O
CAM_Wdr	Off	8x 01 04 3D 03 FF			O	O
CAM_MenuEnter		8x 01 7E 01 02 00 01 FF		Enter Submenu	X	X
Tally Lamp ON		8x 01 7E 01 0A 00 02 FF			X	X
Tally Lamp OFF		8x 01 7E 01 0A 00 03 FF			X	X
Freeze	Freeze On	81 01 04 62 02 FF		Freeze On Immediately	X	X
	Freeze Off	81 01 04 62 03 FF		Freeze Off Immediately	X	X
	Preset Freeze On	81 01 04 62 22 FF		Freeze On When Running Preset	O	O
	Preset Freeze Off	81 01 04 62 23 FF		Freeze Off When Running Preset	O	O
Auto Tracking	On	8x 01 04 7D 02 FF	Auto tracking ON/OFF		O	O
Auto Tracking	Off	8x 01 04 7D 03 FF			O	O
CAM_Memory Special	Set	8x 01 04 3F 01 pp FF	pp: 0x00 To 0xFF normal preset pp: 0x5F => Turn on OSD menu pp: 0xA0 => Full Body pp: 0xA1 => Upper Body pp: 0xA2 => Tracking Point pp: 0xA3 => Switch pp: 0xA4 => Presenter mode (support with FW v25 or newer) pp: 0xA5 => Zone mode (support with FW v25 or newer)		Turn on OSD menu X Full Body O Upper Body O Tracking Point X Switch O Presenter mode O Zone mode O	Turn on OSD menu X Full Body O Upper Body O Tracking Point X Switch O Presenter mode O Zone mode O

Inquiry Command	Command Packet	Reply Packet	Comments		DL30	DL10
CAM_PowerInq	8x 09 04 00 FF	y0 50 02 FF	On		O	O
CAM_PowerInq	8x 09 04 00 FF	y0 50 03 FF	Off		O	O
CAM_WBModeInq	8x 09 04 35 FF	y0 50 00 FF	Auto		O	O
		y0 50 01 FF	In Door		O	O
		y0 50 02 FF	Out Door		O	O
		y0 50 03 FF	One Push WB		O	O
		y0 50 04 FF	ATW		O	O
		y0 50 05 FF	Manual		O	O
CAM_RGainInq	8x 09 04 43 FF	y0 50 00 00 0p 0q FF	pq: R Gain		O	O
CAM_BGainInq	8x 09 04 44 FF	y0 50 00 00 0p 0q FF	pq: B Gain		O	O
CAM_AEModeInq	8x 09 04 39 FF	y0 50 00 FF	Full Auto		O	O
		y0 50 03 FF	Manual		O	O
		y0 50 0A FF	Shutter Priority		O	O
		y0 50 0B FF	Iris Priority		O	O
		y0 50 0D FF		Bright	O	O
CAM_ShutterPosInq	8x 09 04 4A FF	y0 50 00 00 0p 0q FF		pq: Shutter Position	O	O
CAM_IrisPosInq	8x 09 04 4B FF	y0 50 00 00 0p 0q FF		pq: Iris Position	O	X
CAM_GainPosInq	8x 09 04 4C FF	y0 50 00 00 0p 0q FF		pq: Gain Position	O	O
CAM_BrightPosInq	8x 09 04 4D FF	y0 50 00 00 0p 0q FF		pq: Bright Position	O	O
CAM_ExpCompPosI nq	8x 09 04 4E FF	y0 50 00 00 0p 0q FF		pq: ExpComp Position	O	O
CAM_FocusModeIn q	8x 09 04 38 FF	y0 50 02 FF		Auto Focus	O	O
CAM_FocusModeIn q	8x 09 04 38 FF	y0 50 03 FF		Manual Focus	O	O
CAM_FocusPosInq	8x 09 04 48 FF	y0 50 0p 0q 0r 0s FF		pqrs: Focus Position	O	O
CAM_ZoomPosInq	8x 09 04 47 FF	y0 50 0p 0q 0r 0s FF		pqrs: Zoom Position	O	O

Visca over IP Settings

The x value should be 1 for Visca-over-IP string,
Example string: 01 00 00 09 00 00 00 01 81 01 06 01 07 07 01 03 FF

CGI Command Table-DL Series

CGI List for Video Transmission						DL30/DL10
CGI item name	URL	Command	Parameter Name	Parameter value	Description
Get JPEG	/snapshot				1280×720 jpg	848×480 jpg
Get RTSP stream	rtsp://ip/live_st1					O

CGI List for Camera Control						DL30/DL10
CGI item name	URL	Command	Parameter Name	Parameter value	Description
up start	/cgi-bin?SetPtzf=	1,0,1&(random)				O
up end	/cgi-bin?SetPtzf=	1,0,2&(random)				O
down start	/cgi-bin?SetPtzf=	1,1,1&(random)				O
down end	/cgi-bin?SetPtzf=	1,1,2&(random)				O
left start	/cgi-bin?SetPtzf=	0,1,1&(random)				O
left end	/cgi-bin?SetPtzf=	0,1,2&(random)				O
right start	/cgi-bin?SetPtzf=	0,0,1&(random)				O
right end	/cgi-bin?SetPtzf=	0,0,2&(random)				O
zoom_in start	/cgi-bin?SetPtzf=	2,0,1&(random)				O
zoom_in end	/cgi-bin?SetPtzf=	2,0,2&(random)				O
zoom_out start	/cgi-bin?SetPtzf=	2,1,1&(random)				O
zoom_out end	/cgi-bin?SetPtzf=	2,1,2&(random)				O
set preset:	/cgi-bin?ActPreset=	1,N&(random)			N : position	O
load preset:	/cgi-bin?ActPreset=	0,N&(random)			N : position	O

CGI List for Various Settings						DL30/DL10
exposure value	/cgi-bin?Set=	img_expo_expo,3,N&(random)	value	1 ~ 9	N : value	O
saturation	/cgi-bin?Set=	img_saturation,3,N&(random)	value	0 ~ 10	N : value	O
contrast	/cgi-bin?Set=	img_contrast,3,N&(random)	value	0 ~ 4	N : value	O
Tracking on:	/cgi-bin?Set=	trk_tracking_on,3,1				O
Tracking off:	/cgi-bin?Set=	trk_tracking_on,3,0				O
Tracking Presenter Mode:	/cgi-bin?Set=	trk_mode,3,1&(random)				O
Tracking Zone Mode:	/cgi-bin?Set=	trk_mode,3,2&(random)				O
Reboot	/cgi-bin?OnePush=!					O
Factory Reset	/cgi-bin?OnePush=d					O
Mode Presenter	/cgi-bin?Set=	trk_mode,3,1&(random)				O
Mode Zone	/cgi-bin?Set=	trk_mode,3,2&(random)				O
Mode Get	/cgi-bin?Get=	trk_mode,3&(random)			Reply: trk_mode,3=1 : Presenter(Wide Area) trk_mode,3=2 : Zone(Segment)	O
Update Detect Info	/cgi-bin?Set=	trk_update_detect,3,1			Use this CGI to update data before getting the detect zone info	O
Click Track Get detect zone number	/cgi-bin?Get=	trk_detect_num,3			Reply: trk_detect_num,3=X X: Number of detected people, up to 50. (Use “Update Detect Info” CGI first)	O
Click Track Get detect zone info	/cgi-bin?GetTrackingDe tectZone=X (X: Number of human shape box that user want to get)				Reply: focus: XX zone[00]:840,703,207,379 zone[01]:1176,724,240,350 XX – current tracking box number zone[NN]:x,y,w,h – box coordinate(based on 1080p)	O
Click Track Set target zone	/cgi-bin?SetString=	TrackingFocusZone,[x,y,w,h]			[x,y,w,h]: Position of tracking target (based on 1080p)	O
Click Track Set target zone	/cgi-bin?Set=	trk_assign_zone,3,X			X: Human shape box number of tracking target	O
Tracking On/Off Get	/cgi-bin?Get=	trk_tracking_on,3			Reply: trk_tracking_on,3=1 : On trk_tracking_on,3=0 : Off	O
Sleep Timer	/cgi-bin?Set=	sys_sleep_time,3,N	value	0, 10, 300, 600, 1200	N : value (0 : Off)	O

Example Codes-DL Series

Example codes
Assuming the camera having an IP address of 10.10.10.5
Up start : http://10.10.10.5/cgi-bin?SetPtzf=1,0,2&(1234)
Zoom in start : http://10.10.10.5/cgi-bin?SetPtzf=2,0,1&(1235)
Tracking on : http://10.10.10.5/cgi-bin?Set=trk_tracking_on,3,1
Tracking off : http://10.10.10.5/cgi-bin?Set=trk_tracking_on,3,0
The (random) code is user defined and can be any unique code in sequence. This ID cannot be the same, otherwise the camera will ignore this command.
Example codes:
There are the examples for saturation, exposure, and contrast.
Saturation example: http://10.10.10.5/cgi-bin?Set=img_saturation,3,10&(1238) <= the red value 10 is the value of saturation.
Exposure example #1: http://10.10.10.5/cgi-bin?Set=img_expo_expo,3,9&(1239) <= the red value 9 is the value of exposure, the exposure value (-4 ~ 4) in system is 4.
Exposure example #2: http://10.10.10.5/cgi-bin?Set=img_expo_expo,3,1&(1240) <= the red value 1 is the value of exposure, the exposure value (-4 ~ 4) in system is -4.
Contrast example: http://10.10.10.5/cgi-bin?Set=img_contrast,3,4&(1241) <= the red value 4 is the value of contrast.
Sleep Timer example #1: http://10.10.10.5/cgi-bin?Set=sys_sleep_time,3,0 <= The red value 0 is the value of sleep timer. 0 means disable the sleep timer.
Sleep Timer example #2: http://10.10.10.5/cgi-bin?Set=sys_sleep_time,3,300 <= The red value 300 is the value of sleep timer. 300 means set the sleep timer to 5 min (300sec).
