JAZTDPFS ZF8HP55A 8-Speed Transmission Valve Body Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of your JAZTDPFS ZF8HP55A 8-Speed Transmission Valve Body. Please read this manual thoroughly before attempting any installation or service to ensure safety and optimal performance. This component is designed for specific automotive applications and should only be handled by qualified technicians.

2. Product Overview

The JAZTDPFS ZF8HP55A is an 8-speed automatic transmission valve body, a critical component responsible for controlling the hydraulic pressure and fluid flow within the transmission. This precise control enables smooth gear changes and efficient power transfer. It is engineered to meet the specifications of compatible ZF 8HP series transmissions.

Figure 2.1: Top view of the ZF8HP55A 8-speed transmission valve body, showing the intricate fluid pathways and mounting points.

3. Compatibility

This transmission valve body is compatible with various vehicles equipped with ZF 8HP series transmissions. Specifically, it is designed for use with ZF8HP55A, ZF8HP50, ZF8HP45, ZF8HP55, and ZF8HP70 8-speed automatic transmissions. Common vehicle applications include models from BMW, Jaguar, and Land Rover. Always verify the exact transmission code and part number for your vehicle before installation.

• Compatible Transmission Models: 8HP55A, ZF8HP55A, 8HP50, ZF8HP50, 8HP45, 8HP55, 8HP70, ZF8HP55, ZF8HP70
• Compatible Vehicle Brands: BMW, Jaguar, Land Rover

4. Key Features

The JAZTDPFS ZF8HP55A transmission valve body offers several key features designed for reliable performance:

• Coherent Power Transmission: Engineered for smooth and consistent power delivery.
• Smoother Speed-Up Shifts: Facilitates seamless gear changes during acceleration.
• Adaptive Shift Rhythm: Adjusts to varying vehicle speeds for optimized shifting.
• Reliable Engagement: Designed for smooth opening and closing of valves, preventing jamming or engagement faults.
• Temperature Resistance: Maintains stable performance across a wide range of operating temperatures, from hot summer conditions to cold environments.

5. Safety Information

WARNING: Improper installation or handling of this component can lead to serious injury, vehicle damage, or transmission failure. Always adhere to the following safety guidelines:

• Professional Installation Recommended: Due to the complexity of transmission systems, installation should only be performed by certified automotive technicians with experience in ZF 8HP transmissions.
• Disconnect Battery: Always disconnect the vehicle's battery before beginning any work on the transmission or electrical components.
• Wear Protective Gear: Use appropriate personal protective equipment, including safety glasses and gloves.
• Fluid Handling: Transmission fluid can be hot and harmful. Handle with care and dispose of used fluid responsibly according to local regulations.
• Vehicle Support: Ensure the vehicle is securely supported on a lift or jack stands before working underneath it.
• Torque Specifications: Follow manufacturer-specific torque specifications for all fasteners. Overtightening or undertightening can cause damage.

6. Installation Instructions

Installation of the ZF8HP55A transmission valve body requires specialized tools and knowledge. The following is a general overview; always refer to the specific service manual for your vehicle and transmission model for detailed, step-by-step procedures.

1. Preparation:
   • Park the vehicle on a level surface and engage the parking brake.
   • Disconnect the negative terminal of the vehicle's battery.
   • Raise the vehicle safely using a lift or jack stands.
   • Place a drain pan beneath the transmission.
2. Drain Transmission Fluid:
   • Remove the transmission drain plug and allow all fluid to drain.
3. Remove Transmission Pan:
   • Carefully remove the transmission pan bolts and lower the pan. Be prepared for residual fluid.
   • Remove the transmission filter.
4. Disconnect Electrical Connectors:
   • Identify and carefully disconnect all electrical connectors attached to the valve body solenoids and sensors.
5. Remove Old Valve Body:
   • Unbolt the existing valve body from the transmission case. Note the position of any check balls or small components during removal.
   • Carefully lower and remove the old valve body.
6. Install New Valve Body:
   • Ensure the mating surfaces on the transmission case and the new valve body are clean and free of debris.
   • Carefully position the new JAZTDPFS ZF8HP55A valve body into the transmission case.
   • Install the valve body bolts and tighten them to the manufacturer's specified torque sequence and values.
7. Reconnect Components:
   • Reconnect all electrical connectors securely.
   • Install a new transmission filter.
   • Clean the transmission pan, replace the pan gasket (if applicable), and reinstall the transmission pan, tightening bolts to specifications.
8. Refill Transmission Fluid:
   • Refill the transmission with the correct type and amount of transmission fluid as specified by the vehicle manufacturer.
   • Perform the fluid level check procedure according to the vehicle's service manual.
9. Final Checks:
   • Reconnect the battery.
   • Start the engine and check for leaks.
   • Perform a road test to verify proper transmission operation and shifting.

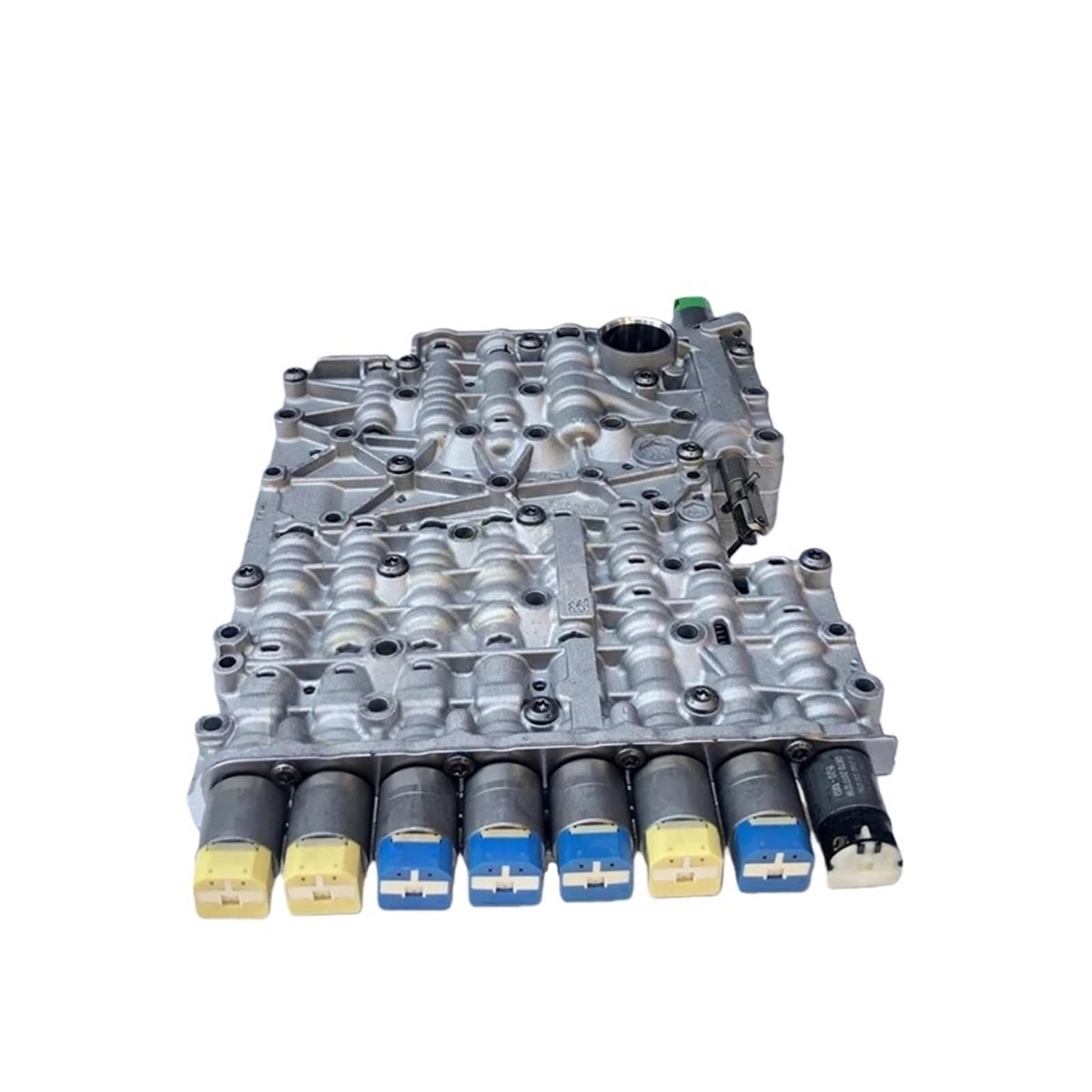

Figure 6.1: Bottom view of the ZF8HP55A valve body, highlighting the various solenoids and electrical connections that control fluid flow.

Figure 6.2: Side perspective of the ZF8HP55A valve body, illustrating the arrangement of solenoids and their wiring harnesses.

7. Operation

Once correctly installed, the ZF8HP55A transmission valve body operates automatically as an integral part of your vehicle's transmission system. It receives electronic signals from the Transmission Control Unit (TCU) and translates these signals into hydraulic actions. This involves directing transmission fluid under pressure to engage and disengage clutches and bands, thereby facilitating smooth and precise gear shifts across the 8 available speeds. The valve body's design ensures efficient power transfer and adapts to driving conditions for optimal performance.

8. Maintenance

The ZF8HP55A transmission valve body itself does not require routine maintenance beyond proper installation. Its longevity and performance are directly tied to the overall health and maintenance of the transmission system. Adhere to the following general maintenance practices:

• Regular Transmission Fluid Changes: Follow your vehicle manufacturer's recommended schedule for transmission fluid and filter changes. Using the correct type of fluid is crucial.
• Use Approved Fluid: Always use transmission fluid that meets the specifications for your ZF 8HP transmission. Incorrect fluid can cause severe damage to the valve body and other internal components.
• Professional Inspections: Have your transmission inspected periodically by a qualified technician to detect and address any potential issues early.
• Avoid Overheating: Ensure your vehicle's cooling system is functioning correctly to prevent transmission overheating, which can degrade fluid and damage components.

9. Troubleshooting

If you experience transmission issues after installing or while using the ZF8HP55A valve body, consider the following common symptoms. Note that these issues can stem from various transmission components, not solely the valve body. Professional diagnosis is always recommended.

Note: Many transmission issues require specialized diagnostic equipment and expertise. Attempting repairs without proper knowledge can cause further damage. Always consult a qualified automotive technician for complex problems.

10. Specifications

• Product Type: 8-Speed Automatic Transmission Valve Body
• Model: ZF8HP55A (Compatible with 8HP55A, ZF8HP55A, 8HP50, ZF8HP50, 8HP45, 8HP55, 8HP70, ZF8HP55, ZF8HP70)
• Brand: JAZTDPFS
• Exterior Finish: Brushed
• Number of Items: 1
• ASIN: B0HDNKQFHM
• Size: One Size

11. Warranty and Support

For information regarding warranty coverage, technical support, or replacement parts, please contact the seller or manufacturer directly. Keep your purchase receipt and product information readily available when contacting support.

Manufacturer: zhangtao_7k2s9x

Model Number: zhangtao_7k2s9x
