1. Introduction
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your HOVER HEART DB4S004 4-Stroke Gas Dirt Bike. Please read this manual thoroughly before operating the dirt bike to ensure proper use and to prevent injury or damage.
The HOVER HEART DB4S004 is a 4-stroke gas-powered mini dirt bike designed for recreational use by riders aged 6-13 years, with a maximum weight recommendation of 165 pounds. It features a 39cc engine, front and rear disc brakes, and dual suspension for a controlled riding experience.
2. Safety Information
WARNING: Operating this dirt bike can be dangerous. Always wear appropriate safety gear, including a helmet, eye protection, gloves, and protective clothing. Adult supervision is required for riders under 16 years of age.
- Read the Entire Manual: Understand all instructions and warnings before operation.
- Protective Gear: Always wear a DOT-approved helmet, eye protection, gloves, long sleeves, long pants, and sturdy boots.
- Adult Supervision: Children should only operate this dirt bike under direct adult supervision.
- Operating Environment: Use only in designated off-road areas. Avoid public roads, uneven terrain, or areas with obstacles.
- Pre-Ride Inspection: Before each ride, check tire pressure, brake function, throttle operation, and ensure all fasteners are tight.
- Fuel Handling: Gasoline is highly flammable. Refuel in a well-ventilated area with the engine off and cool. Do not smoke while refueling.
- Emergency Stop: Familiarize yourself with the emergency kill switch location and function.
- Weight Limit: Do not exceed the maximum weight recommendation of 165 pounds.
- Age Recommendation: This dirt bike is recommended for ages 6-13 years.
3. What's in the Box
Upon unpacking, ensure all components are present:
- HOVER HEART DB4S004 Dirt Bike (main unit)
- Tool Kit
- User Manual (this document)
If any items are missing or damaged, please contact customer support immediately.
4. Assembly and Setup
The HOVER HEART DB4S004 dirt bike comes partially assembled. Follow these steps for final assembly and initial setup:
4.1 Unpacking
Carefully remove the dirt bike and all components from the packaging. Retain packaging for future transport or returns.
4.2 Handlebar Installation
- Position the handlebars into the handlebar clamps.
- Ensure the handlebars are centered and aligned correctly.
- Tighten the handlebar clamp bolts securely using the provided tools. Do not overtighten.
4.3 Wheel and Tire Check
Verify that both front and rear wheels are securely attached and that tires are properly inflated. Recommended tire pressure can be found in the Specifications section.
Image: Knobby tire and disc brake detail. Ensure tires are properly inflated and brakes are functional.
4.4 Fueling the Dirt Bike
WARNING: Use only unleaded gasoline. This is a 4-stroke engine and does NOT require oil mixing with the fuel.
- Ensure the engine is off and cool.
- Locate the fuel tank cap, usually on top of the engine or frame.
- Carefully open the fuel cap.
- Fill with fresh, unleaded gasoline. Do not overfill.
- Securely close the fuel cap.
Image: Engine and pull start mechanism. This bike uses a 4-stroke engine, requiring only gasoline.
4.5 Pre-Ride Checks
Before every ride, perform the following checks:
- Brakes: Squeeze both front and rear brake levers to ensure they engage properly and stop the wheels effectively.
- Throttle: Twist the throttle grip to ensure smooth operation and that it returns to the idle position when released.
- Tires: Check tire pressure and inspect for any damage or excessive wear.
- Fasteners: Verify all nuts, bolts, and screws are tight.
- Emergency Kill Switch: Test the kill switch to ensure it immediately shuts off the engine.
5. Operating Instructions
5.1 Starting the Engine
- Ensure the fuel valve (if present) is in the "ON" position.
- Set the choke lever (if present) to the "START" or "CHOKE" position (usually for cold starts).
- Locate the pull start handle.
- Pull the handle firmly and smoothly until the engine starts. Do not pull the cord to its full extension or let it snap back.
- Once the engine starts, gradually move the choke lever to the "RUN" position as the engine warms up.

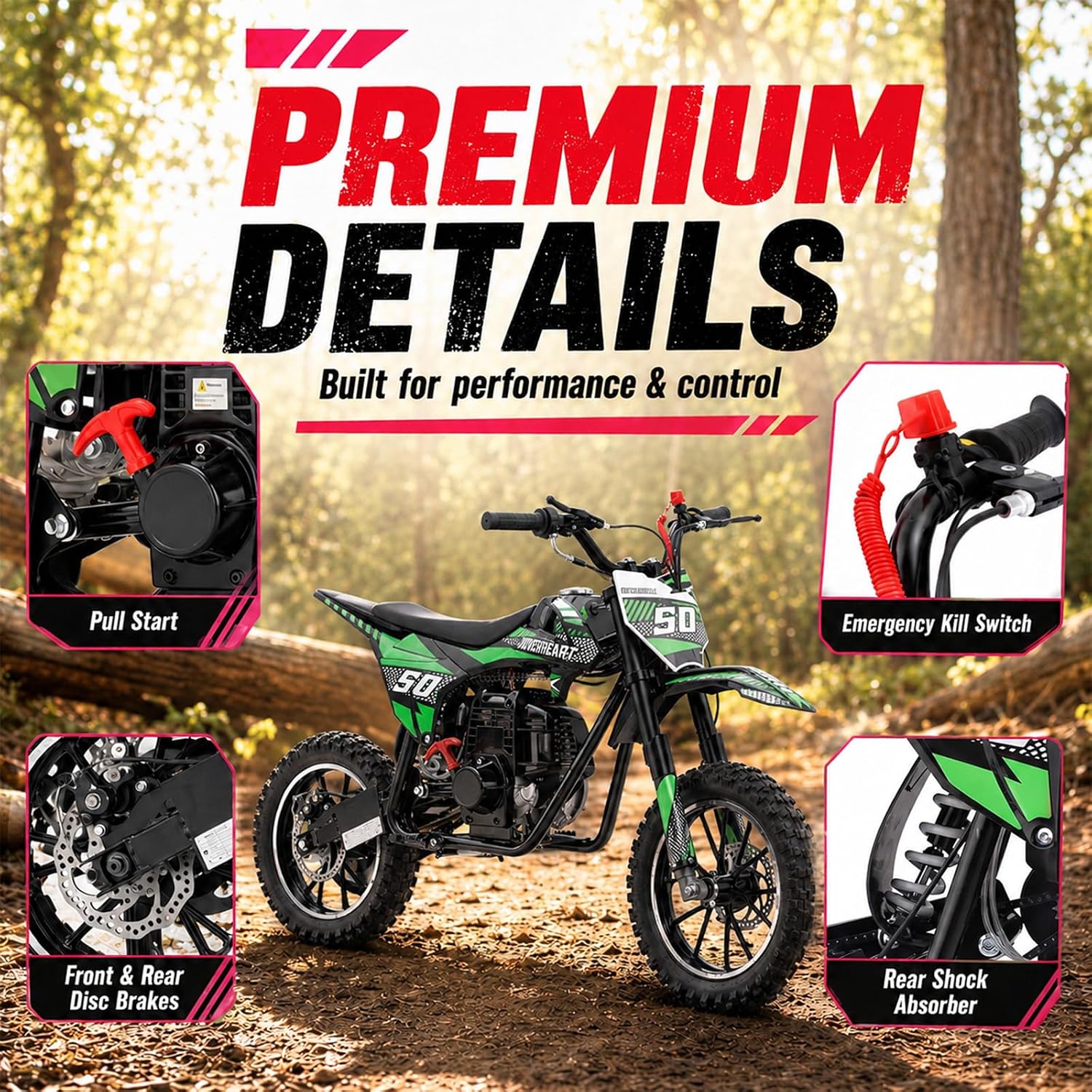

Image: Pull start mechanism. Pull firmly and smoothly to start the engine.
5.2 Riding the Dirt Bike
- Mount the dirt bike and ensure your feet can reach the ground or footpegs comfortably.
- Slowly and gently twist the throttle to accelerate.
- To slow down, release the throttle and gently apply the brakes. Use both front and rear brakes for balanced stopping.
- Maintain a safe speed, especially on unfamiliar terrain. The maximum speed is approximately 19 mph.
5.3 Stopping the Engine
To stop the engine, press the emergency kill switch located on the handlebars. Alternatively, turn the fuel valve to the "OFF" position and let the engine run out of fuel.
Image: HOVER HEART DB4S004 in use. Always ensure proper riding posture and control.
5.4 Video Demonstration
Watch this video for a visual guide on the HOVER HEART Gas Dirt Bike features and operation:
Video: Overview of the HOVER HEART Gas Dirt Bike, demonstrating its features and general use.
6. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your dirt bike.
6.1 Engine Oil
Check the engine oil level before each ride. Refer to the engine's dipstick for proper levels. Change the engine oil according to the schedule in the Specifications section or if it appears dirty.
6.2 Air Filter
Inspect and clean the air filter regularly, especially after riding in dusty conditions. A dirty air filter can reduce engine performance and lifespan.
6.3 Chain Lubrication
Keep the drive chain clean and properly lubricated. Apply chain lubricant regularly to prevent rust and wear.
6.4 Brake Inspection
Regularly inspect brake pads for wear and brake cables for proper tension and damage. Replace worn brake pads promptly.
6.5 General Cleaning
Clean the dirt bike after each use to remove dirt and debris. Avoid using high-pressure washers directly on electrical components or bearings.
7. Troubleshooting
This section addresses common issues you might encounter with your HOVER HEART DB4S004 dirt bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine does not start | No fuel, kill switch engaged, choke incorrect, fouled spark plug, pull start issue. | Check fuel level, ensure kill switch is off, adjust choke, inspect/replace spark plug, check pull start mechanism. |
| Loss of power during operation | Dirty air filter, low fuel, incorrect fuel type, engine overheating. | Clean air filter, refuel, ensure correct gasoline, allow engine to cool. |
| Brakes feel weak | Worn brake pads, loose brake cable, air in hydraulic system (if applicable). | Inspect/replace brake pads, adjust brake cable tension, consult a professional for hydraulic brake issues. |
| Unusual noises from engine | Low oil, loose components, internal engine issue. | Check oil level, inspect for loose parts, contact customer support if noise persists. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact HOVER HEART customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | DB4S004 |
| Engine Type | 39cc 4-Stroke OHV Engine |
| Fuel Type | Unleaded Gasoline (No oil mixing required) |
| Max Speed | Approx. 19 mph |
| Brake Style | Front and Rear Disc Brakes |
| Suspension Type | Dual (Front and Rear) |
| Wheel Size | 2.5 inches (Knobby Tires) |
| Frame Material | Alloy Steel |
| Product Weight | 55 lbs |
| Maximum Weight Recommendation | 165 lbs |
| Recommended Age Range | 6-13+ years |
| EPA Approved | Yes |
Image: Side view of the HOVER HEART DB4S004 dirt bike, illustrating its overall dimensions and components.
9. Warranty and Support
9.1 Warranty Information
HOVER HEART provides a 90-day warranty for this product. The warranty details are as follows:
- 0 - 30 Days: Free return and full refund.
- 31 - 90 Days: Exchange or provision of replacement parts. No refund during this period.
Please retain your proof of purchase for warranty claims.
9.2 Customer Support
For any questions, concerns, or warranty claims, please contact HOVER HEART customer service. Easy parts replacement is available through our US warehouse.
Contact information can typically be found on the product packaging or the official HOVER HEART website.
