Introduction
Thank you for choosing the Relaxdays Over-the-Appliance Storage Cabinet. This manual provides essential information for the safe assembly, installation, and maintenance of your new cabinet. Designed to maximize vertical space, this cabinet offers practical storage above your washing machine, dryer, or toilet. Please read these instructions carefully before beginning assembly and retain them for future reference.

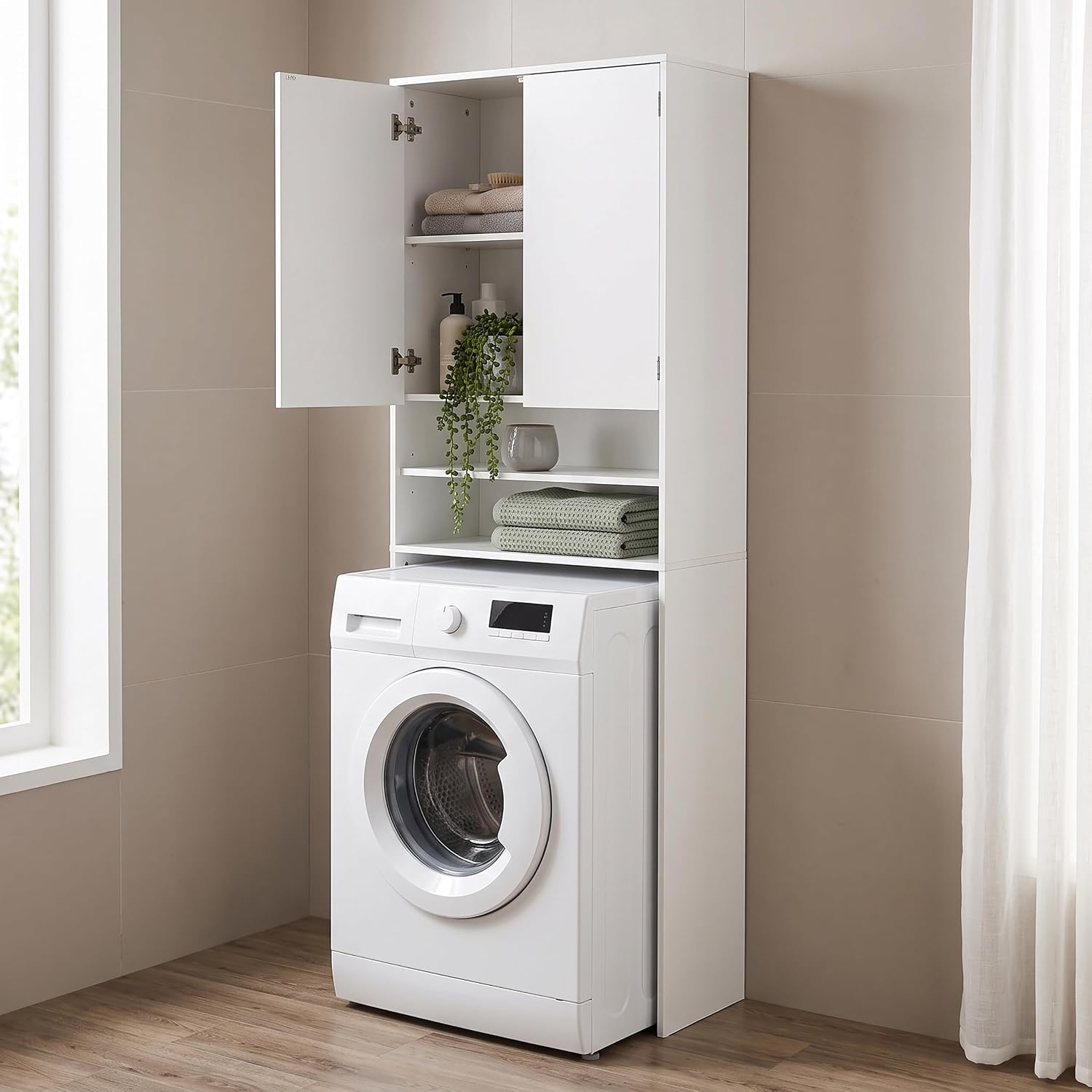

Image: The Relaxdays Over-the-Appliance Storage Cabinet in white, positioned above a washing machine. The cabinet features two upper doors, two open shelves, and a lower open section designed to fit over an appliance. Inside, towels and cleaning supplies are neatly stored.
Safety Instructions
- Always assemble the cabinet on a soft, clean surface to prevent scratches.
- Ensure all components are present and undamaged before assembly. Do not proceed with assembly if any parts are missing or damaged.
- Use appropriate tools as specified in the assembly guide. Do not overtighten screws.
- This cabinet must be securely fastened to the wall using the provided anti-tip hardware to prevent accidental tipping, especially in households with children or pets.
- Do not overload shelves. Each shelf has a maximum load capacity of approximately 5 kg.
- Keep small parts and packaging materials away from children.
- Periodically check all fasteners to ensure they remain tight.
Package Contents
Before starting assembly, verify that all the following components are included in your package:
- 1x Over-the-Appliance Cabinet (assembly kit)
- Assembly instructions
- Mounting hardware (screws, dowels, L-brackets for anti-tip)
Note: Decorative items shown in product images are not included.
Image: Essential anti-tip hardware components: a metal L-bracket, two wood screws, and two plastic wall anchors. These are crucial for securing the cabinet to the wall.
Assembly Instructions
Follow these steps carefully to assemble your Relaxdays Over-the-Appliance Storage Cabinet. It is recommended to have two people for assembly.
- Prepare the Area: Clear a spacious, clean, and soft area for assembly to prevent damage to the cabinet parts.
- Identify Components: Lay out all panels and hardware. Refer to the included diagram for part identification.
- Assemble the Base Frame: Attach the bottom panel to the two side panels using the provided screws and dowels. Ensure the pre-drilled holes align correctly.
- Install the Back Panel: Slide or fasten the back panel into the grooves or attach it to the rear edges of the side panels. This adds stability to the structure.
- Attach the Upper Section: Connect the upper side panels and top panel to form the enclosed cabinet section.
- Insert Shelves:
- For the fixed shelves, secure them in place as indicated in the diagram.
- For adjustable shelves, insert the shelf pins into the desired holes on the side panels, then place the shelves on top of the pins.
Image: A detailed view of an adjustable shelf pin securely placed in one of the multiple pre-drilled holes on the cabinet's side panel, demonstrating how shelves can be customized for height.
- Mount the Doors: Attach the hinges to the cabinet doors and then to the side panels of the upper section. Adjust hinges as needed for proper door alignment. Ensure the magnetic closures are installed to keep doors securely shut.
- Position the Cabinet: Carefully lift and place the assembled cabinet over your washing machine, dryer, or toilet. Ensure it is level and stable.
- Secure with Anti-Tip Hardware:
- Mark the wall through the holes of the L-brackets attached to the top rear of the cabinet.
- Drill pilot holes in the wall at the marked locations. Insert wall anchors if necessary (for drywall or plaster).
- Secure the L-brackets to the wall using the provided screws. This step is critical for safety.
Image: An interior view of the cabinet with both upper doors open, revealing the internal storage configuration. There are two adjustable shelves within the closed compartments and an open shelf below them.
Usage
The Relaxdays Over-the-Appliance Storage Cabinet is designed to provide convenient storage in your bathroom or laundry area.
- Storage: Utilize the two closed compartments for items you wish to keep out of sight, such as toilet paper, cleaning supplies, or personal care products. The two open shelves are ideal for frequently accessed items or decorative elements.
- Adjustable Shelves: The shelves within the closed compartments are adjustable, allowing you to customize the storage height to accommodate items of various sizes. Simply reposition the shelf pins to your desired height.
- Placement: This cabinet is suitable for placement over most standard washing machines, dryers, or toilets. Ensure the dimensions of your appliance fit within the cabinet's lower opening (approximately 86 x 61 x 28.5 cm HxWxD).
Image: The white storage cabinet positioned over a toilet, demonstrating its versatility in different bathroom configurations. The open shelves hold toilet paper and a diffuser.
Maintenance
To ensure the longevity and appearance of your cabinet, follow these simple maintenance guidelines:
- Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the laminated finish.
- Spills: The cabinet features a water-repellent lamination. In case of spills, wipe them immediately with a dry cloth to prevent moisture damage.
- Inspection: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
- Avoid Direct Sunlight: Prolonged exposure to direct sunlight may cause fading or discoloration over time.

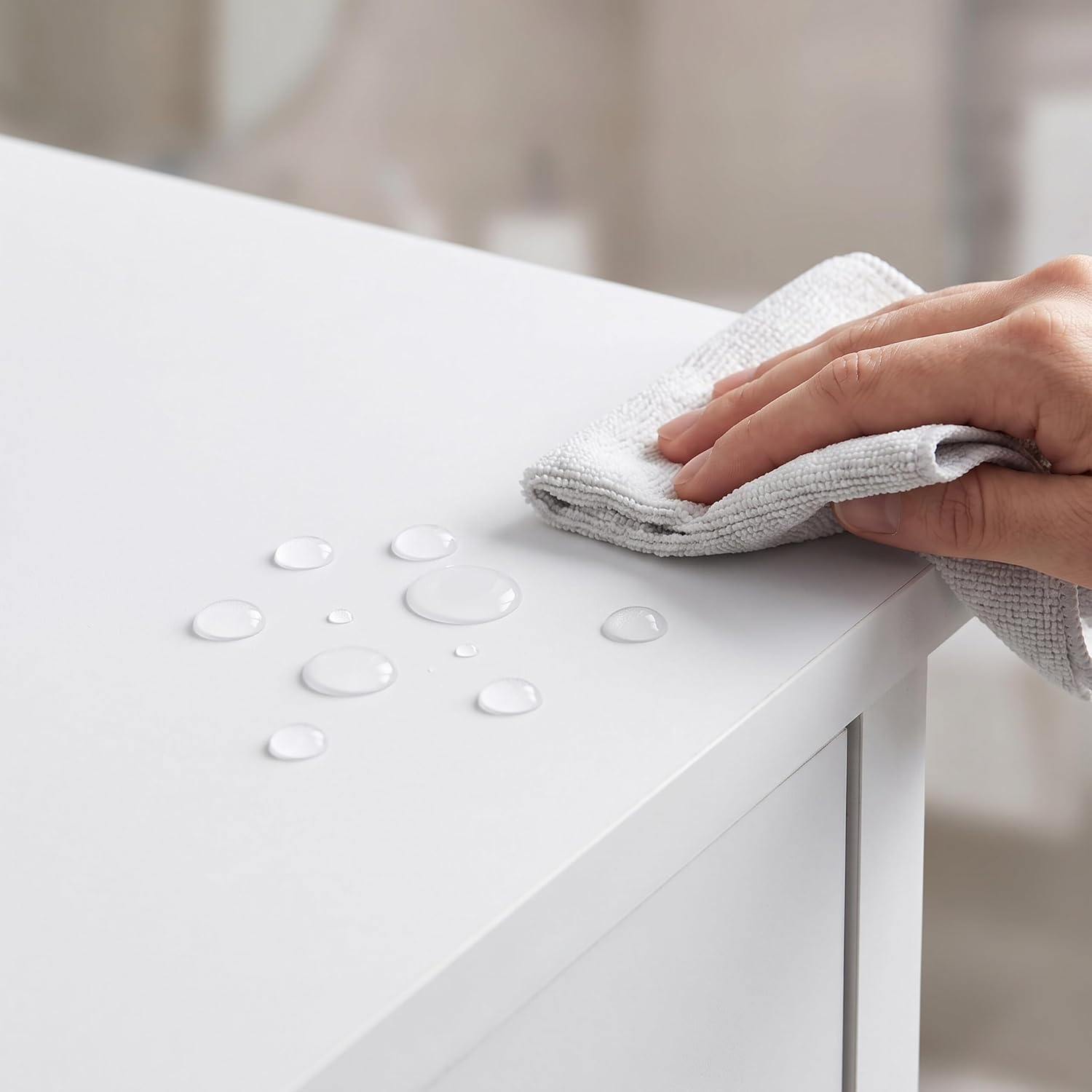

Image: A hand using a microfiber cloth to wipe away water droplets from the white, laminated surface of the cabinet, demonstrating its water-repellent feature.
Specifications
| Brand | Relaxdays |
| Model Number | 10053773_49 |
| Color | White |
| Overall Dimensions (H x W x D) | Approx. 174 x 63.5 x 30 cm |
| Appliance Space (H x W x D) | Approx. 86 x 61 x 28.5 cm |
| Shelf Dimensions (W x D) | Approx. 61 x 27 cm (closed compartments), 61 x 28 cm (open shelves) |
| Weight Capacity per Shelf | Approx. 5 kg |
| Product Weight | Approx. 20.7 kg |
| Material | Composite wood with water-repellent lamination |
| Number of Shelves | 4 (2 open, 2 within closed compartments) |
| Assembly Required | Yes |
| Mounting Type | Floor standing with wall anti-tip fixation |
Image: A schematic diagram illustrating the overall dimensions of the cabinet: 174 cm in height, 63.5 cm in width, and 30 cm in depth.
Warranty and Support
For information regarding warranty, returns, or customer support, please refer to the purchase documentation or contact your retailer directly. For product-specific inquiries, you may also visit the official Relaxdays website or contact their customer service department.
