MCQNDS Chevrolet Epica Rear Left Door Lock Actuator (Model 96636044) User Manual

Product Overview

This manual provides instructions for the MCQNDS Door Lock Actuator, specifically designed for Chevrolet Epica models. The actuator is a critical component of your vehicle's central locking system, responsible for the smooth and reliable locking and unlocking of the vehicle doors.

Compatibility: This door lock actuator is compatible with Chevrolet Epica models from 2007 to 2015. Please verify the OE/OEM reference number to ensure correct fitment for your specific vehicle door.

• OE/OEM Reference Numbers:
• 96636039 (Front Left)
• 96636043 (Front Right)
• 96636044 (Rear Left - This product variant)
• 96636045 (Rear Right)

Installation Instructions

The door lock actuator is located inside the vehicle door panel. Installation typically involves removing the interior door panel, disconnecting the old actuator, and installing the new one. It is recommended to consult a professional mechanic or a detailed vehicle-specific service manual for precise installation steps.

Important: Before purchasing and installing, carefully check the item number, model, brand, and year of your vehicle to ensure proper fitment. Incorrect installation can lead to malfunctions or damage.

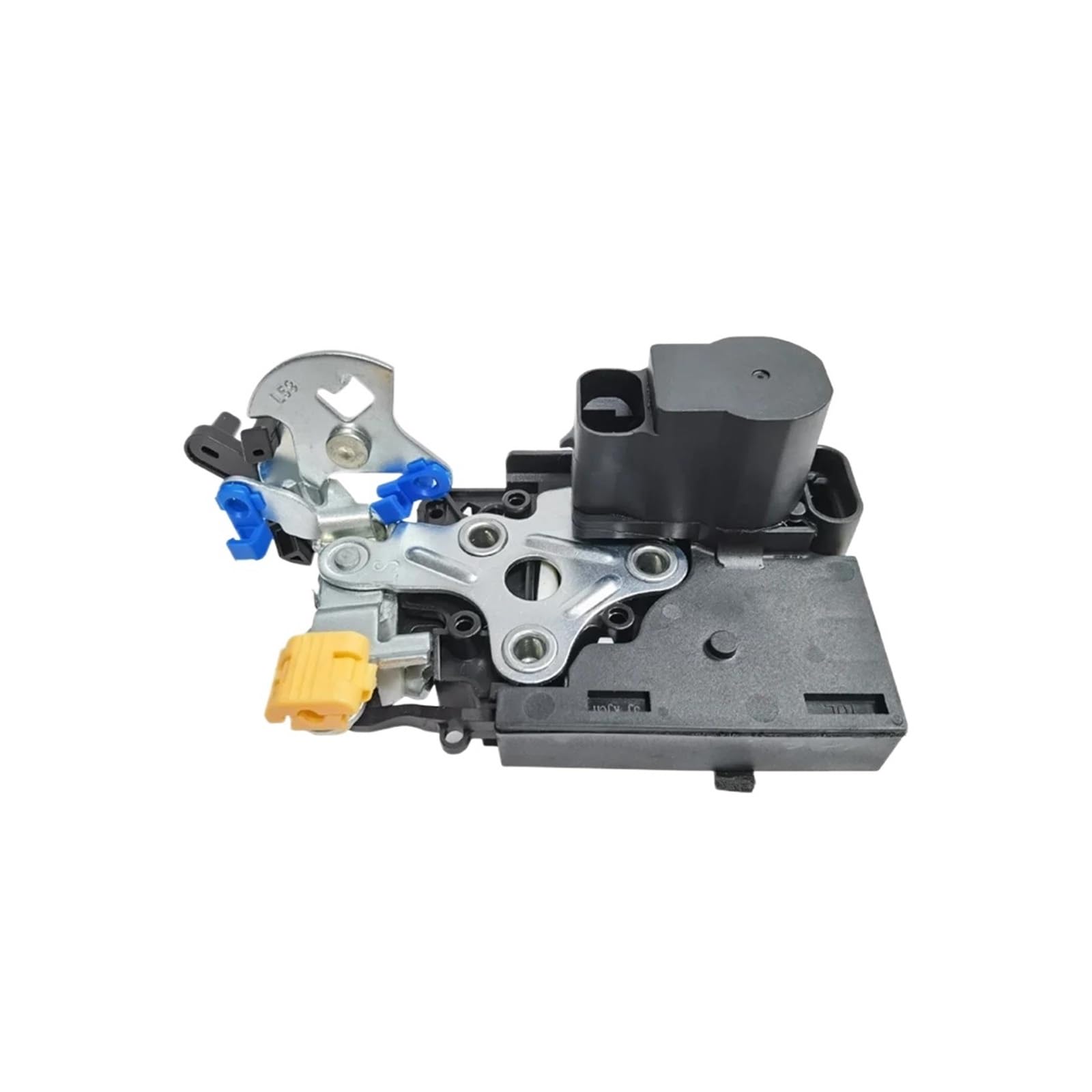

This image displays the MCQNDS door lock actuator, showing its metallic and plastic components. The actuator is designed for the rear left door of Chevrolet Epica models.

General Installation Steps (Consult a professional for detailed guidance):

1. Preparation: Ensure the vehicle is turned off and the battery is disconnected to prevent electrical hazards.
2. Door Panel Removal: Carefully remove the interior door panel. This usually involves unscrewing fasteners and prying clips.
3. Disconnect Old Actuator: Locate the existing door lock actuator. Disconnect any electrical connectors and linkage rods attached to it.
4. Remove Old Actuator: Unbolt and remove the old actuator from its mounting position within the door frame.
5. Install New Actuator: Position the new MCQNDS actuator in place and secure it with bolts. Reconnect all electrical connectors and linkage rods. Ensure all connections are firm and correct.
6. Test Functionality: Before reattaching the door panel, reconnect the battery and test the locking and unlocking function of the door.
7. Reassemble Door Panel: Once functionality is confirmed, reattach the interior door panel and all fasteners.

Operating Instructions

The MCQNDS door lock actuator functions as part of your vehicle's central locking system. Once installed, it will respond to commands from your vehicle's remote key fob, interior door lock switch, or manual key insertion to lock or unlock the door.

• Locking: Pressing the lock button on your remote or interior switch will send an electrical signal to the actuator, causing it to engage the door lock mechanism.
• Unlocking: Pressing the unlock button on your remote or interior switch will send an electrical signal to the actuator, causing it to disengage the door lock mechanism.
• The actuator is designed to provide smooth and stable locking and unlocking actions, minimizing operational failures.

Maintenance

Door lock actuators are generally maintenance-free components. However, to ensure longevity and proper function:

• Avoid exposing the door interior to excessive moisture or dirt, which can affect electrical components.
• If the door panel is removed for any reason, visually inspect the actuator's electrical connections and mechanical linkages for any signs of wear or looseness.
• Ensure all moving parts within the door mechanism are free from obstruction.

Troubleshooting

If you experience issues with your door lock actuator, consider the following common troubleshooting steps:

• Door Not Locking/Unlocking: Check if other doors are functioning correctly. If only one door is affected, the actuator or its wiring may be faulty.
• Intermittent Operation: This could indicate a loose electrical connection, a failing actuator, or an issue with the vehicle's wiring harness.
• Unusual Noises: Grinding or clicking sounds from within the door when attempting to lock/unlock may suggest mechanical failure within the actuator.

For persistent issues, it is recommended to seek diagnosis and repair from a qualified automotive technician.

Specifications

Warranty and Support

Specific warranty information for this MCQNDS product is not available in the provided data. For details regarding warranty coverage, returns, or technical support, please refer to the product packaging or contact the seller directly through your purchase platform.
