Introduction
This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your RIXOC GT60 Pro Electric Dirt Bike. Please read this manual thoroughly before operating the bike to ensure proper use and to prevent damage or injury.
Safety Reminders
Your safety is paramount. Adhere to all local safety regulations and always wear a helmet when riding. This electric dirt bike is designed for off-road and street-legal use, but local laws regarding electric bike operation may vary. Always check and follow local regulations.
- Always wear a helmet and appropriate safety gear.
- Check the warning label on the ebike's frame before riding.
- Do not exceed local speed limits.
- Ensure the battery is securely installed and charged before each ride.
- Regularly inspect brakes, tires, and all moving parts for proper function.
- Be aware of your surroundings and ride defensively.
Setup and Assembly
The RIXOC GT60 Pro Electric Dirt Bike is delivered 90% pre-assembled. The assembly process is similar to that of a common bicycle and requires no extra tools beyond what is provided. Ensure all connections are secure and the battery is properly seated before first use.
Initial Steps:
- Unpacking: Carefully remove all components from the packaging.
- Handlebar Installation: Attach the handlebars and tighten securely.
- Front Wheel Installation: Install the front wheel and ensure the brake caliper is correctly aligned.
- Pedal Attachment: Attach the pedals (if applicable, this model seems to be more dirt bike than ebike with pedals, but the description mentions "pedals assist").
- Battery Connection: Verify the battery is properly connected and secured.
- Pre-Ride Inspection: Perform a thorough check of all bolts, nuts, and quick releases to ensure they are tightened to the manufacturer's specifications.
Figure 1: Fully assembled RIXOC GT60 Pro Electric Dirt Bike.
Operating Instructions
Powering On and Off:
- To power on, press and hold the power button on the display.
- To power off, press and hold the power button again until the display turns off.
Riding Modes and Speed Control:
The GT60 Pro offers versatile riding modes. It features a 3000W motor (4000W peak) capable of 40 MPH off-road speed. For street-legal use, it can be limited to 20 MPH. The bike delivers 100 Nm of torque, allowing it to conquer inclines up to 30%.
Figure 2: Motor specifications and performance capabilities.
Battery and Charging:
The bike is equipped with a 60V 35Ah removable battery. It provides up to 70 miles in speed-limited mode with pedal assist or 50 miles in pure electric mode. The battery is IPX4 waterproof and features key-lock security. A full recharge takes 8-9 hours.
Figure 3: Battery features and range.
Display and App Connectivity:
The vibrant center-mounted color digital display provides real-time information such as speed, battery level, ride mode, and mileage. The dedicated RIXOC companion app allows you to track ride data, share routes, and access additional features.
Figure 4: Digital display interface.
Figure 5: RIXOC Smart App in use.
Maintenance
Regular maintenance ensures the longevity and safe operation of your RIXOC GT60 Pro. Perform these checks regularly:
- Tire Pressure: Check tire pressure before each ride. The professional off-road tires (100/90-19) are designed for durability and grip.
- Brakes: Inspect the 4-piston hydraulic brakes for wear and proper function. Ensure brake levers are responsive.
- Suspension: Check the 6-layer progressive suspension system for any signs of damage or leaks.
- Chain: Keep the chain clean and lubricated.
- Fasteners: Periodically check all bolts, nuts, and screws for tightness.
- Battery Care: Store the battery in a cool, dry place and charge it regularly, even when not in use, to maintain its health.

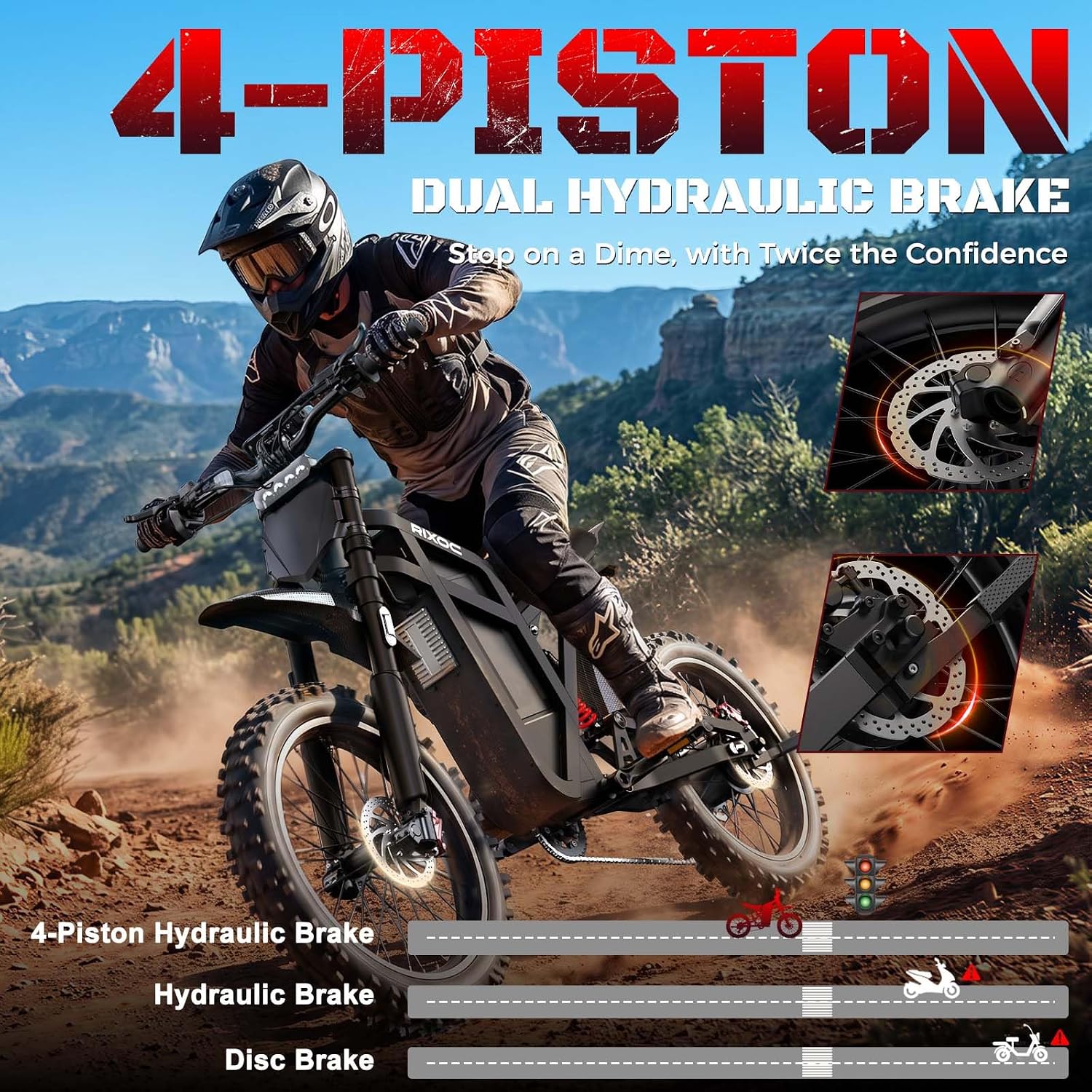

Figure 6: 4-Piston Hydraulic Brake System.
Figure 7: 6-Layer Suspension System components.
Figure 8: Product dimensions and weight specifications.
Troubleshooting
This section provides solutions to common issues. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike does not power on | Battery not charged or not connected; power button issue. | Ensure battery is fully charged and securely connected. Press and hold power button firmly. |
| Motor not engaging | Throttle issue; motor connection loose; error code on display. | Check throttle connection. Inspect motor wiring. Refer to display for error codes and consult manual or support. |
| Brakes feel weak | Brake pads worn; hydraulic fluid low; air in system. | Inspect brake pads for wear and replace if necessary. Consult a professional for hydraulic system maintenance. |
| Unusual noises during operation | Loose components; chain issues; motor or wheel bearing problem. | Check all fasteners. Clean and lubricate chain. If noise persists, seek professional inspection. |
Specifications
| Feature | Detail |
|---|---|
| Model | GT60 |
| Motor Power | 3000W (4000W Peak) |
| Battery | 60V 35Ah Removable |
| Max Speed (Off-road) | 40 MPH |
| Max Speed (Street-legal) | 20 MPH |
| Range (Pure Electric) | Up to 50 miles |
| Range (Pedal Assist, Speed-limited) | Up to 70 miles |
| Charging Time | 8-9 hours |
| Brakes | 4-Piston Hydraulic Disc Brakes |
| Suspension | 6-Layer Progressive (Dual Hydraulic Front Forks, Rear Hydraulic Shock) |
| Tires | 1.6*19-inch (100/90-19) Professional Off-Road Tires |
| Item Weight | 119 pounds |
| Max Load Capacity | 330 lbs |
| Recommended Height | 5.5 ft - 6.5 ft |
| Waterproof Rating | IPX4 (Battery) |
| Included Accessories | Phone Holder, Lock, Tool Kit |
Warranty and Support
RIXOC provides a 1-year warranty for the GT60 Pro Electric Dirt Bike. For technical support, warranty claims, or any inquiries, please contact us using the information below. Keeping the original packaging is recommended for the best service experience.
- Warranty: 1 Year
- Phone Support: 1-888-675-8866
- Email Support: Support@rixoc.com
- Website: rixoc.com
- Support Hours: Monday-Friday 9:00 a.m. - 4:00 p.m. UTC-8
You can also scan the QR code provided in the product documentation to register your warranty.
Figure 9: RIXOC Customer Support Contact Information.
