Aoxun 8x7 FT Outdoor Bar Shed with Canopy and Solar String Lights Instruction Manual

1. Introduction and Overview

This manual provides instructions for the assembly, operation, and maintenance of your Aoxun 8x7 FT Outdoor Bar Shed with Canopy and Solar String Lights, Model G37109. This versatile outdoor structure is designed to enhance your patio or backyard space, offering both storage and an entertainment area.

The unit features a 2-in-1 design where the front panel lifts to form a shaded canopy, and a fold-down counter provides a convenient surface. Constructed from high-quality, rust-resistant metal panels with a sloped roof, it is built to withstand various weather conditions. For entertainment, it includes a pre-drilled steel post for TV mounting (bracket not included) and a built-in cable port for power cords. The integrated solar string lights offer ambient lighting with multiple modes and timer settings.

2. Safety Information

• Read all instructions carefully: Before beginning assembly, ensure you understand all steps.
• Two-person assembly recommended: For safety and efficiency, assembly should be performed by two individuals.
• Wear protective gloves: Gloves are recommended during assembly to prevent scratches or cuts from metal edges.
• Choose a level surface: Install the shed on a firm, level foundation to ensure stability.
• Secure the structure: Ensure the shed is properly anchored to the ground to prevent wind damage.
• Electrical safety: When routing cables through the designated port, ensure all electrical connections are safe and comply with local regulations.
• Weight limits: Do not exceed the maximum weight capacity of 66 pounds for any shelves or mounted items.

3. Package Contents

Verify that all components listed below are present and undamaged before beginning assembly. Refer to the detailed parts list in your included illustrated manual for specific part numbers.

• Metal wall panels
• Roof panels and support beams
• Canopy mechanism (gas struts, hinges)
• Fold-down counter components
• Door and lockable latch
• Two windows
• Galvanized steel pipes for TV mount
• 50 FT Solar String Lights (15 sockets, 17 LEDs including 2 spares, remote, USB cable, solar panel)
• Assembly hardware (screws, nuts, bolts)
• Illustrated instruction manual
• 2 pairs of protective gloves

4. Setup and Assembly

Assembly of the Aoxun Outdoor Bar Shed requires careful attention to detail. Please follow the step-by-step illustrated manual provided in your package. Two people are recommended for efficient and safe assembly. Wear the included protective gloves to avoid scratches during handling of metal panels.

4.1 Site Preparation

• Select a flat, level, and stable area for installation.
• Clear the area of any debris, rocks, or vegetation.
• Ensure adequate space around the shed for assembly and future access.

4.2 Assembly Steps Overview

1. Unpack and Organize: Carefully unpack all components and organize them according to the part numbers in the manual.
2. Base Assembly: Construct the base frame on your prepared site.
3. Wall Panel Installation: Attach the wall panels to the base frame, ensuring proper alignment.
4. Window and Door Installation: Install the two visual windows and the single hinged door with its lockable latch.
5. Canopy and Counter Assembly: Install the front canopy panel with its gas struts and the fold-down counter.
6. Roof Installation: Secure the sloped roof panels, ensuring proper drainage.
7. Internal Features: Install the galvanized steel pipes for the TV mount and ensure the cable routing hole is accessible.
8. Solar String Lights: Install the solar string lights along the canopy or desired area.

For detailed, step-by-step instructions, refer to the illustrated manual included with your product.

Figure 1: Product Dimensions. This image illustrates the overall dimensions of the Aoxun 8x7 FT Outdoor Bar Shed, including height, width, and depth, along with specific measurements for the canopy and counter areas.

Figure 2: Durable Bar Shed Features. This image highlights key structural and functional components such as the visual windows, lockable latch, gas struts supporting the canopy, and the door closer arm.

5. Operating Instructions

5.1 Bar Shed Operation

• Canopy: To open the canopy, gently lift the front panel. The integrated gas struts will assist in holding it in the open position. To close, pull the canopy down until it latches securely.
• Fold-Down Counter: The counter can be folded up for storage or down for use as a serving or preparation area. Ensure it is securely locked in place when in use.
• TV Mount Ready Post: The shed includes a pre-drilled steel post designed to accommodate a TV mount (M6 nuts). A TV bracket is not included. Ensure your TV and bracket are compatible and securely installed.
• Cable Routing: Utilize the reserved cable routing hole to safely run power cords for appliances, the solar string lights, or other electronic devices, maintaining a tidy and safe environment.

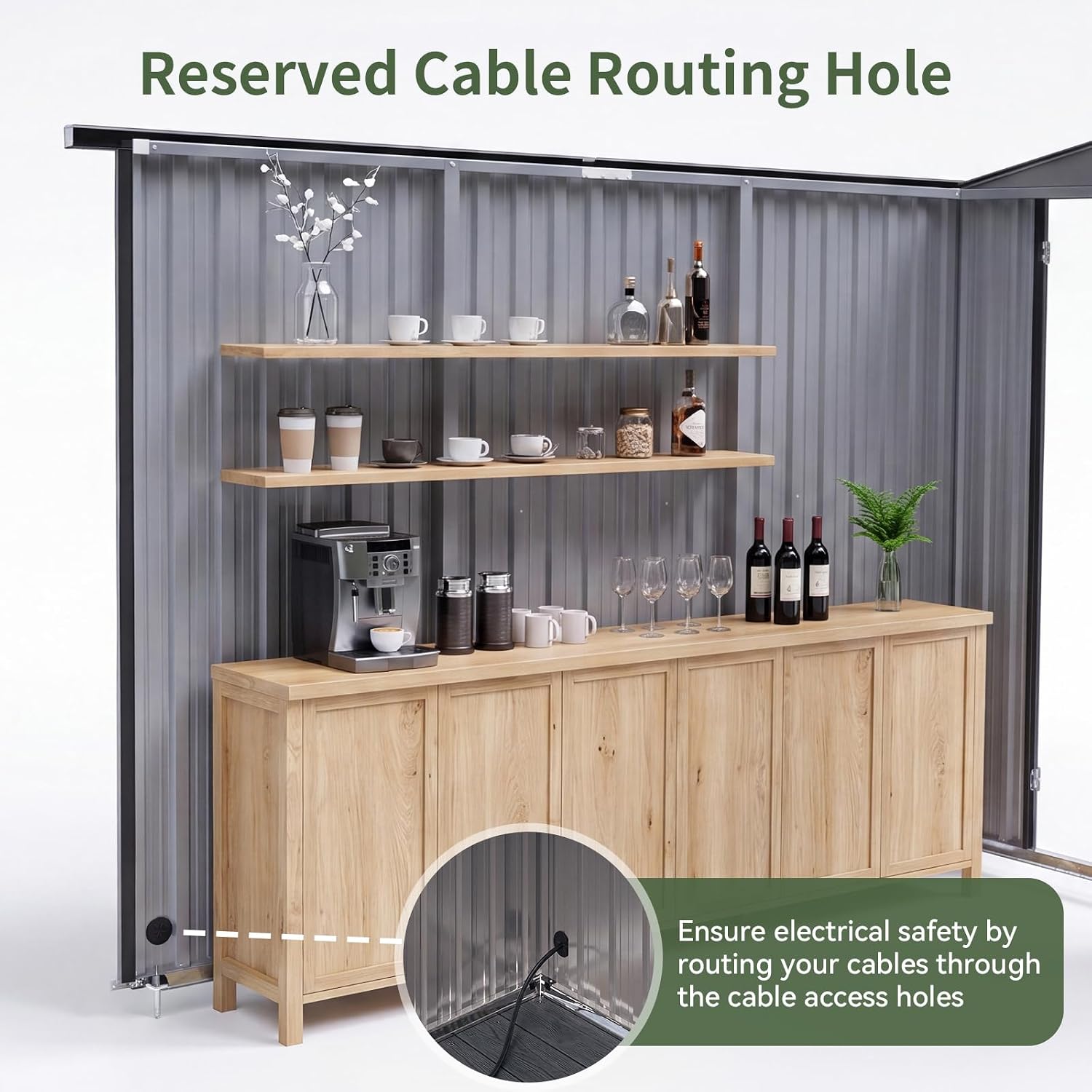

Figure 3: Reserved Cable Routing Hole. This image shows the interior of the shed with a designated hole for routing electrical cables, ensuring safety and organization.

Figure 4: Galvanized Steel Pipes for TV Mount. This image displays the interior wall equipped with galvanized steel pipes, pre-drilled for M6 nuts, ready for a TV mount (bracket not included) suitable for 40-70 inch screens.

5.2 Solar String Lights Operation

• Automatic Function: The solar string lights are designed to charge automatically during the day and illuminate at night. Ensure the solar panel is placed in an area that receives direct sunlight for optimal charging.
• Remote Control: Use the provided remote control to adjust the lighting. You can select from 8 different lighting modes, adjust brightness levels, and set a timer for automatic shut-off.
• Waterproof Rating: The lights are rated IP65 waterproof, making them suitable for outdoor use in various weather conditions.

Figure 5: Solar String Lights. This image shows the solar string lights installed on the bar shed, detailing their specifications including total wire length, number of LEDs, lighting duration, voltage, and light color.

6. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your Aoxun Outdoor Bar Shed.

• Cleaning: Clean the metal panels periodically with a mild soap and water solution. Avoid abrasive cleaners or harsh chemicals that could damage the rust-resistant coating. Rinse thoroughly with clean water.
• Rust Inspection: Regularly inspect the metal surfaces for any signs of rust or corrosion. Address any issues promptly with appropriate rust-treatment products.
• Roof Drainage: The sloped roof is designed for efficient water drainage. Periodically check that the roof is clear of debris (leaves, snow accumulation) to maintain its drainage capabilities. The roof can bear up to 6 inches of snow.
• Solar Panel: Keep the solar panel clean and free of dirt or obstructions to ensure efficient charging of the string lights.
• Hardware Check: Periodically check all screws and bolts to ensure they remain tight. Tighten any loose fasteners as needed.

Figure 6: Sloped Metal Roof. This image emphasizes the design of the sloped metal roof, engineered for efficient drainage and protection against wind, UV, and snow loads up to 6 inches.

7. Troubleshooting

If you encounter issues with your Aoxun Outdoor Bar Shed, refer to the following common troubleshooting tips:

• Missing or Damaged Parts: If you discover any missing or damaged parts upon unpacking, immediately contact Aoxun customer support with your purchase details and specific part numbers.
• Assembly Difficulties: If you are struggling with assembly, re-read the relevant sections of the illustrated manual. Ensure all parts are correctly oriented and all fasteners are used as indicated. A second person can often help identify overlooked steps.
• Shed Instability: Ensure the shed is installed on a perfectly level surface. Verify that all anchoring points are securely fastened to the ground.
• Solar String Lights Not Working:
  • Ensure the solar panel is clean and receiving direct sunlight for several hours.
  • Check that the lights are switched ON (if applicable) and the remote control has working batteries.
  • Verify all connections between the solar panel and the string lights are secure.
• Canopy or Door Sticking: Check hinges and tracks for any obstructions or debris. Lubricate moving parts with a silicone-based spray if necessary.

If problems persist, please contact Aoxun customer support for further assistance.

8. Specifications

9. Warranty and Support

Aoxun is committed to providing quality products and customer satisfaction.

• Returns: The product is eligible for 30-day easy returns. Please refer to your purchase platform's return policy for detailed instructions.
• Customer Support: Our 24/7 customer support team is available to assist you with any questions, concerns, or issues regarding your Aoxun Outdoor Bar Shed.
• Contact Information: For support, please refer to the contact details provided with your purchase documentation or visit the official Aoxun store page: Aoxun Store.
