UDPATIO Patio Furniture Set with Fire Pit Table Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your UDPATIO Patio Furniture Set with Fire Pit Table. Please read all instructions carefully before assembly and use to ensure safe and proper operation. Retain this manual for future reference.

Safety Information

WARNING: For outdoor use only. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

• Keep children and pets away from the fire pit during operation.
• Ensure adequate ventilation. Do not use the fire pit in an enclosed space.
• Always turn off the gas supply at the tank when the fire pit is not in use.
• Do not attempt to move the fire pit while it is in operation or still hot.
• Maintain a safe distance from flammable materials, including furniture, curtains, and dry vegetation.
• Only use the type of gas specified for this appliance.
• Regularly inspect gas hoses and connections for leaks using a soapy water solution.
• Never leave the fire pit unattended when lit.

Package Contents

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact customer support immediately.

• Armrest Sofas (2)
• Armless Sofas (2)
• Corner Sofa (1)
• Fire Table (1)
• Coffee Table (1)
• Seat Cushions (5)
• Back Cushions (5)
• Hardware Pack (Bolts, Washers, Allen Wrench)
• Crystal Glass Beads for Fire Pit

This image displays the individual components of the patio set, including two armrest sofas, two armless sofas, one corner sofa, one fire table, and one coffee table, along with their respective dimensions.

Setup and Assembly

Assembly is required for this patio furniture set. Follow these steps carefully.

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratches.
2. Assemble Sofa Frames: Connect the backrests and armrests to the seat frames using the provided hardware. Do not fully tighten bolts until all pieces are aligned.
3. Connect Sofa Sections: Use the U-shaped fasteners to securely connect the individual sofa sections (armrest, armless, corner) into your desired configuration.
4. Assemble Coffee Table: Attach the legs to the coffee table top.
5. Assemble Fire Table: Ensure the burner pipe is correctly seated. Place the crystal glass beads into the fire pit basin.
6. Final Tightening: Once all components are assembled and aligned, fully tighten all bolts.
7. Place Cushions: Position the seat and back cushions on the assembled furniture. Use the straps behind the backrests to keep pillows in place.

An example of the fully assembled L-shaped patio furniture set, including the fire pit table and coffee table, arranged in an outdoor environment.

This image details the three methods for securing the sofa components: non-slip bottom for cushions, U-shaped fasteners to connect chairs, and straps to hold back pillows.

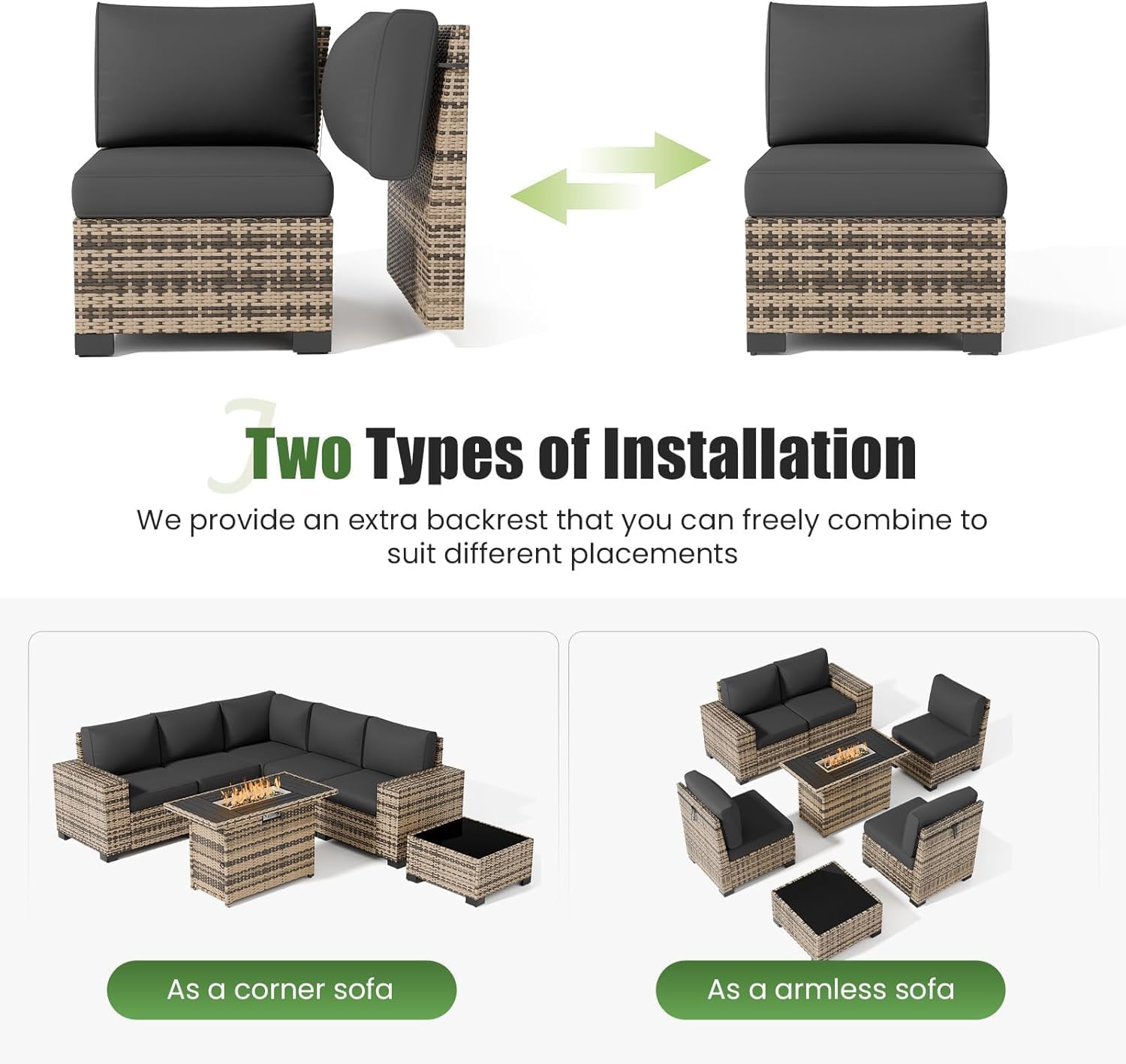

This diagram illustrates the modularity of the sofa, showing how it can be configured as a corner sofa or as separate armless sofa units.

Operating Instructions

Fire Pit Operation

1. Connect Gas Tank: Ensure the gas tank (not included) is securely connected to the fire pit's gas line.
2. Open Gas Valve: Slowly open the valve on the gas tank.
3. Ignition: Turn the control knob on the fire table to the "ON" position and press the electric ignition button. Hold for a few seconds until the flame ignites.
4. Adjust Flame: Once lit, adjust the flame height using the control knob.
5. Shut Down: To turn off, turn the control knob to the "OFF" position, then close the valve on the gas tank.

This image highlights the key components of the fire pit: the 304 stainless steel burner pipe, the electric ignition control, and the decorative crystal glass beads, demonstrating its operation.

Furniture Use

The modular design allows for various configurations to suit your outdoor space. The fire pit table can also be used as an outdoor dining table by covering the fire pit basin with the provided lid.

This image illustrates the dual functionality of the fire pit table, showing it both as an active fire pit and as a covered outdoor dining table.

Maintenance

• Rattan Cleaning: Wipe the PE rattan with a damp cloth and mild soap. Avoid harsh chemicals.
• Cushion Care: The cushions are removable and washable. Follow care instructions on the label. Store cushions indoors during inclement weather or prolonged periods of non-use to extend their lifespan.
• Fire Pit Maintenance: Regularly clean the burner and surrounding area. Ensure the crystal glass beads are free of debris. Cover the fire pit when not in use to protect it from elements.
• Frame Care: The rust-proof metal frame can be wiped clean with a damp cloth.

This image details the construction and materials of the furniture, including the rust-proof metal frame, hand-woven weather-resistant faux rattan, and removable, washable cushions, highlighting features relevant to maintenance.

Troubleshooting

Specifications

• Brand: UDPATIO
• Model: 7 Pcs/ 5 Seats Fire Table
• Color: Yellow/Grey
• Material Type: PE Rattan, Metal Frame
• Style: Modern
• Assembly Required: Yes
• Fire Pit Heat Output: 50,000 BTU
• Fire Pit Burner Material: 304 Stainless Steel

Warranty and Support

UDPATIO products are designed for quality and durability. For specific warranty details, please refer to the documentation included with your purchase or contact UDPATIO customer support.

If you encounter any issues or have questions regarding your product, please contact UDPATIO customer service. Contact information can typically be found on the packaging or the official UDPATIO website.
