1. Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your LIKIMIO Kitchen Island with Power Outlet & USB Charging. Please read this manual thoroughly before assembly and use to ensure proper function and safety. This kitchen island is designed to offer versatile storage, an expandable countertop, and integrated power solutions for your kitchen space.
Image 1.1: LIKIMIO Kitchen Island in a typical kitchen environment, showcasing its design and functionality.
2. Safety Information
Always follow basic safety precautions when using this product to reduce the risk of fire, electric shock, and personal injury.
- Ensure all components are securely fastened before use.
- Do not overload the power outlets. Refer to the specifications for maximum electrical load.
- Keep liquids away from electrical outlets and charging ports.
- Do not allow children to climb on or play with the kitchen island.
- Use on a flat, stable surface. Lock wheels when the island is in a stationary position.
- Avoid placing hot items directly on the countertop without protection.
3. Setup & Assembly
Assembly of the LIKIMIO Kitchen Island requires careful attention to detail. Two-person assembly is recommended for ease and safety. All necessary screws, bolts, and tools are included in the package, along with a step-by-step illustrated manual.
3.1 Unpacking
Carefully unpack all components and verify against the parts list provided in the included manual. Ensure no parts are missing or damaged. If any parts are missing or damaged, contact customer support immediately.
3.2 Assembly Steps
Follow the detailed, illustrated instructions provided in the separate assembly manual. Pay close attention to the orientation of each piece. Do not overtighten screws during initial assembly; tighten all fasteners securely once the unit is fully assembled.

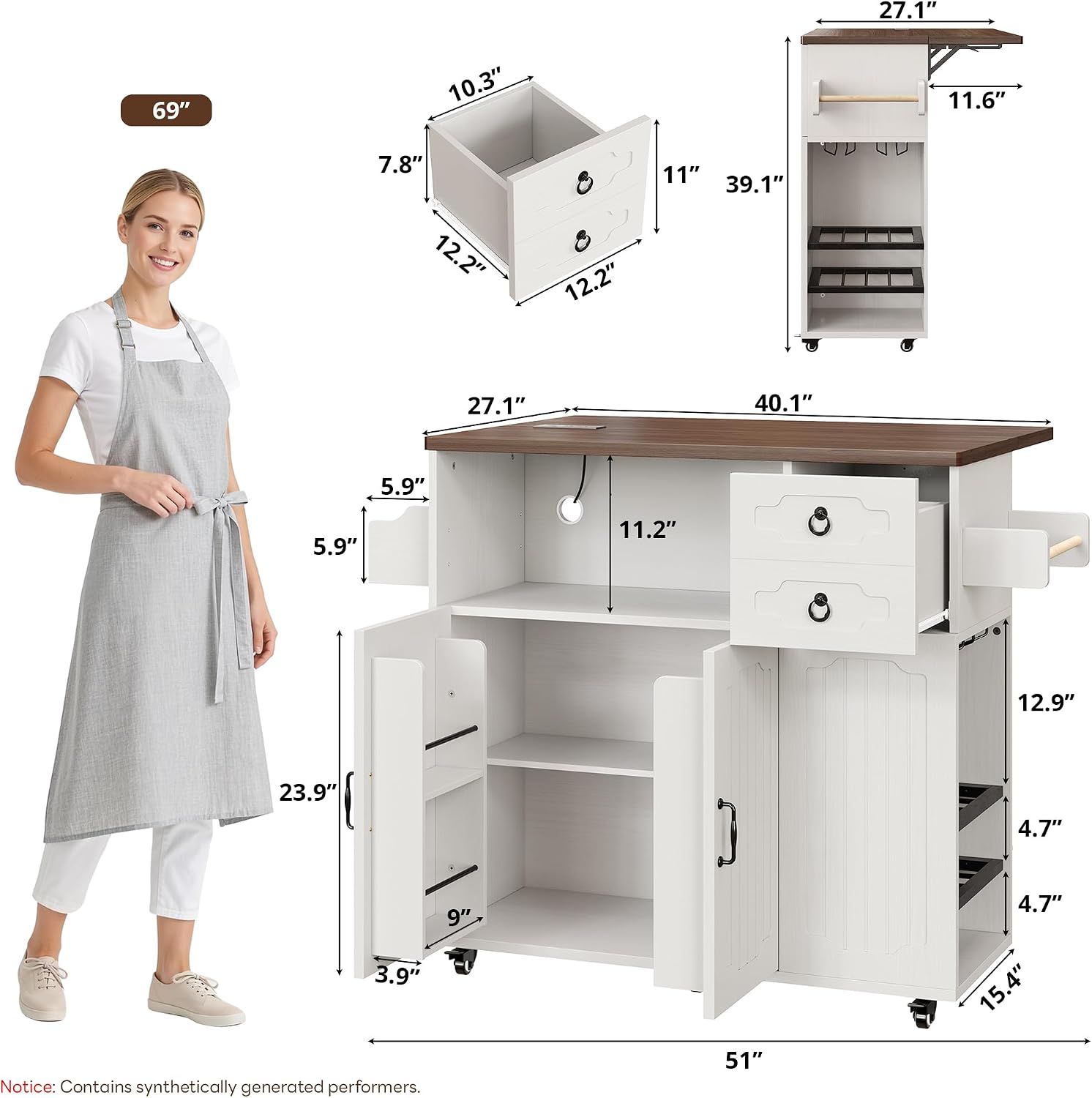

Image 3.1: Detailed dimensions of the LIKIMIO Kitchen Island, useful for planning placement and assembly.
4. Operating Instructions
4.1 Power Outlet & USB Charging
The kitchen island is equipped with a multi-purpose power strip featuring 2 standard AC outlets (125V/12A), 1 USB-A port (5V/2A), and 1 USB-C port (5V/2A). The power cord is 4.9 feet long. Plug the island's main power cord into a grounded wall outlet. The concealed cord routing helps maintain a clutter-free countertop.
Image 4.1: Close-up view of the integrated power outlet and USB charging ports.
4.2 Foldable Drop Leaf Countertop
The island features a foldable drop leaf that expands the countertop depth from 15.5 inches to 27 inches. To extend, lift the drop leaf until it is level with the main countertop and engage the support mechanism underneath. To fold, disengage the support and gently lower the leaf. This feature allows for flexible use as a prep station or a dining surface for two, and helps reclaim floor space when not in use.
Image 4.2: The drop leaf countertop shown in both folded and extended positions.
4.3 Mobility & Locking Wheels
The kitchen island is equipped with 5 heavy-duty rubber metal wheels, including 2 locking brakes and 1 center stability wheel. To move the island, ensure the locking brakes are disengaged. To secure the island in place, press down on the locking levers on the two braking wheels until they click into position. This prevents unintended movement during use.
Image 4.3: The mobile kitchen island with a focus on its wheels and locking feature.
4.4 Storage Features
The island offers diverse storage options:
- Cabinets: Two large cabinets provide ample space for bulky kitchen supplies.
- Drawer: A single drawer is ideal for organizing utensils or smaller items.
- Side Wine Rack: Designed to hold wine bottles securely.
- Double-Row Glass Holders: Conveniently store wine glasses.
- Spice Rack: A dedicated rack for easy access to spices.
Image 4.4: Overview of the kitchen island's storage capabilities, highlighting the drawer, door storage, glass holder, wine rack, and spice rack.
4.5 Product Video
Video 4.5: An official LIKIMIO video demonstrating the features and mobility of the kitchen island.
5. Maintenance
5.1 Cleaning
Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the finish. For spills, clean immediately to prevent staining, especially on the walnut finish top.
5.2 General Care
- Periodically check all fasteners and tighten if necessary to ensure stability.
- Inspect wheels for debris and clean as needed to maintain smooth mobility.
- Keep the island away from direct sunlight and extreme temperature changes to prevent material warping or fading.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Island is wobbly or unstable. | Loose fasteners; uneven floor. | Tighten all assembly screws. Ensure the island is on a level surface. |
| Wheels do not roll smoothly. | Debris in wheels; locking mechanism engaged. | Clean any debris from the wheels. Ensure wheel locks are disengaged. |
| Power outlets/USB ports not working. | Island not plugged in; circuit breaker tripped; overloaded. | Ensure the island's power cord is securely plugged into a working wall outlet. Check your home's circuit breaker. Reduce the number of devices plugged in. |
| Drop leaf does not extend/fold easily. | Mechanism obstructed or stiff. | Check for any obstructions. Apply a small amount of silicone lubricant to hinges if stiff. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 1081711 |
| Product Dimensions (D x W x H) | 27.1" x 40" x 39.17" (folded) |
| Countertop Depth (Extended) | 27" |
| Material | Engineered Wood |
| Color | White with Walnut Finish Top |
| Item Weight | 93.7 pounds |
| Maximum Weight Recommendation | 200 pounds |
| Power Outlets | 2 AC outlets (125V/12A) |
| USB Charging Ports | 1 USB-A (5V/2A), 1 USB-C (5V/2A) |
| Power Cord Length | 4.9 feet |
| Wheels | 5 heavy-duty rubber metal wheels (2 locking, 1 center stability) |
| Storage Features | 2 cabinets, 1 drawer, side wine rack, double-row glass holders, spice rack |
8. Warranty & Support
LIKIMIO is committed to providing high-quality products. This product comes with a 60-day free replacement policy for any manufacturing defects or issues. Our customer service team is available 24/7 to assist you with any questions or concerns regarding your kitchen island.
8.1 Contact Support
For assistance, please refer to the contact information provided in your product packaging or visit the official LIKIMIO website. When contacting support, please have your model number (1081711) and purchase details ready.
